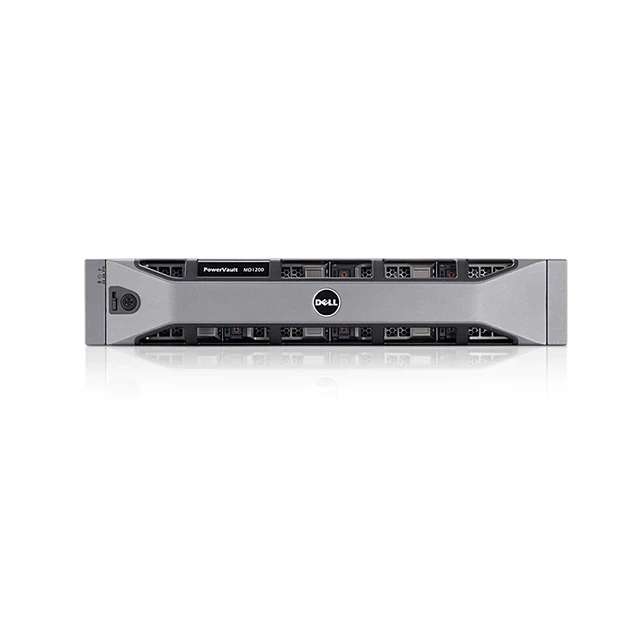

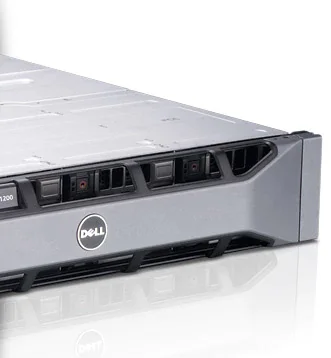

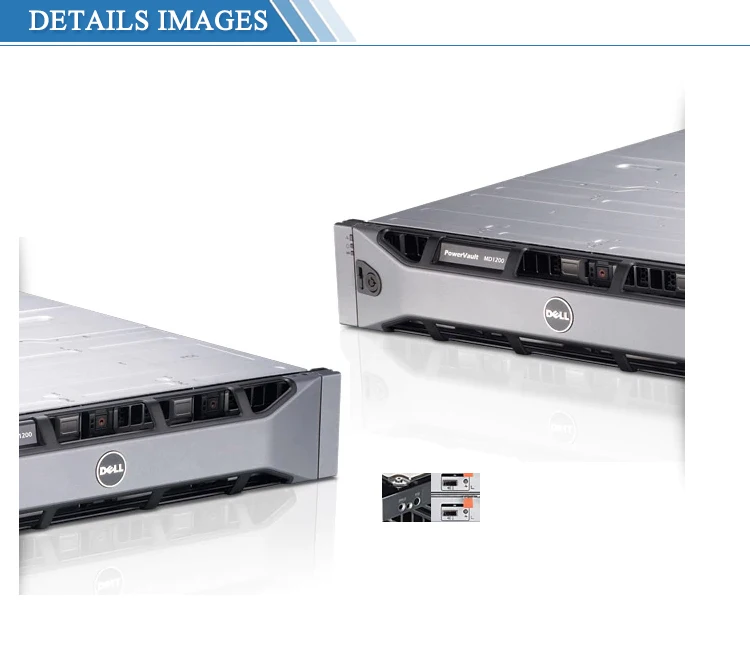

New original Dell PowerVault MD1200 network Storage

Operating System

Refer to the PERC RAID Card details for supported Operating Systems

PERC H810

Connectivity

Support for the following configurations

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)

Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)

Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 11 and a separate connectivity to drives 12 through 23.

Power

Two fully redundant power supplies

supports DC power

Wattage

AC - 600 W; DC - 700 W

Heat dissipation

AC - 2047 BTU/hr; DC - 2388 BTU/hr

Voltage

100-240VAC; 48V DC

Frequency

50/60Hz

Amperage

8.6 A at 100 V, 4.3 A at 240 V

Available Hard Drive Power (per slot)

Supported drive power consumption (continuous):
up to 1.2 A at +5V
up to 0.5 A +12V

Management

Enclosure Management Modules (EMM)

2 EMM modules provide redundant enclosure management capability

RAID

PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.
See PERC H800 server compatability matrix for a list of currently supported servers

Storage

Drives*

Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, 15K rpm and SAS Solid State Drives (SSDs).

Drive performances and capacities

2.5” 6Gbps SAS

HDD 15K – 146GB, 300GB, 600GB
HDD 10K – 300GB, 600GB, 900GB, 1.2GB
HDD 10K 512e – 1.8TB
HDD 7.2K – 500GB, 1TB
SSD – 200GB, 800GB value SLC
SSD – 400GB mainstream SLC
SSD – 800GB RI MLC
SSD – 200GB, 400GB WI SLC
SSD – 2TB eMLC

2.5” 12Gbps SAS

HDD 15K – 600GB
HDD 7.2K NL-SAS 512e – 2TB
SSD – 200GB, 400GB, 800GB 1.6TB MU MLC
SSD – 200GB, 400GB, 800GB WI MLC
SSD – 800GB, 1.6TB RI MLC

Maximum Capacity (per enclosure)

Up to 48TB when using 24 x 2TB NL-SAS 2.5" HDDs

Expansion Capabilities

PERC H810 enables expansion to 8 enclosures, 4 per port

Back-Panel Connectors

SAS connectors (per EMM)

1 SAS (SFF 8088) "IN" connector for connection to the host
1 SAS (SFF 8088) "OUT" connector for expansion to an additional enclosure

Serial connector (per EMM)

1 6-pin UART mini-DIN connector (for factory use only)

LED Indicators

Front panel

1 two-color LED indicator for system status
2 single-color LED indicators for power and split mode

Hard-drive carrier

1 single-color activity LED
1 two-color LED status indicator per drive

EMM

3 two-color LED status indicators: one for each of the EMM SAS ports and one for the EMM status
1 single-color Unit Identification LED for each EMM

Power supply/cooling fan module

3 LED status indicators for Power supply/cooling fan fault, AC power, and DC power

Chassis

Height*Width*Depth:

8.7cm (3.43 inches)
48.2cm (18.98 inches)
54.1 (21.30 inches)

Weight

23.31 kg (51 lb) (maximum configuration)
8.61 kg (19 lb) (empty)

Environmental Operating Conditions

Temperature

Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour
Supports Fresh Air cooling, up to 35 degrees Celsius

Relative humidity

Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)

Altitude

Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
