pneumatic small pad printing machine price for lighter cap Light cover LC TP1 150

Product Overview

Description

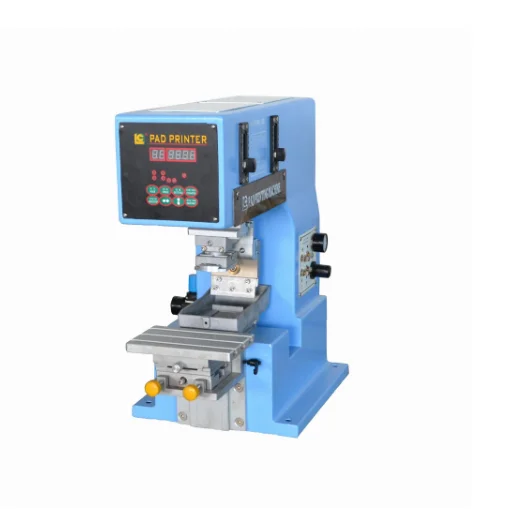

pneumatic small pad printing machine price for lighter cap Light cover LC-TP1-150

Product name	New arrival Desktop Mini Single JH-MINI LC-TP1-150
Model No	LC-TP1-150

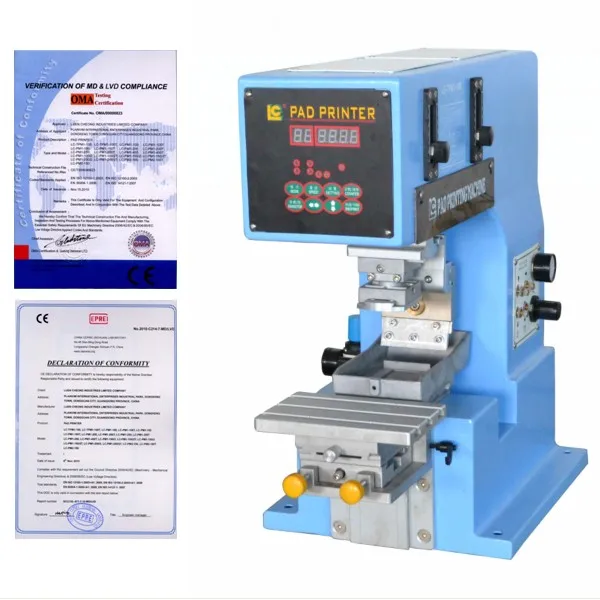

Certificate	CE, ISO-9001-2000
Brand Name	LC,China
Description	Desktop style pad printer Model  is LC-TP1-150,it is easy operateing and samll volume. cheaper and  Widely used in the field of  pens ,cosmetic caps, toies  plastic  parts, Gifts,  office supplies, hardware objects.
Advantage	1.    ontrolled by microprocessor,easy operation,running stably and accurately. 2.4-digit auto counter built-in.  3.    Cast aluminum machine frame,low weight and high intensity,turnable   machine head.  4.    Separate adjustment of the pad up/down stroke speed.  5.    Ink scraper is auto balance keeping in printing.  6.   With the function of ink scraping nonstop without printing in order to prevent the ink from drying.  7.    Ink cup is turnable and adjustable in vertical and horizontal direction.  8.    With super long slide stroke to print large size workpiece.  9.    Speed of every single pneumatic organ is adjustable.
Parameter	1.     Model  NO. LC-TP1-150   2.     operation:pneumatic  3.     printing Colors: 1  4.     Plate area:100*150  5.     Max printing area:90*140mm  6.     Max  printing speed:1700PCS/H  7.     Wattage:220V/ 50HZ  8.     Air pressure:0.4-0.6Mpa  9.     machine size; 850*400*1300mm(LxWxH) 10.     machine weight: 80kg
Usage	Desktop Pad Printer LC-TP1-150T is well suitable to pad printing on pens, toys, cups, cosmetic container, gift crafts, ball, mobile phone keypad, computer keyboard, household appliances ect.
Free fittings	1. One pcs steel plate  2. Two pcs silicone rubber pad  3. A suit tool  4. English operating instruction
Shipping way	By sea, by air, by express
Delivery time	Within 7 days from the receipt of payment
Loading seaport	Shenzhen or Hong Kong, China
package	Plywood case
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)



    New arrival Desktop Mini Single JH-MINI LC-TP1-150

Packaging:wooden cases(rely on your requirements)

Delivery:7days after payment



 pneumatic small pad printing machine price for lighter cap Light cover LC-TP1-150





Our advantages and some of our customers:

16 hours online services

8:00 am--12:00pm (Monday- Saturday)

24 hours phone call services  (Monday- Sunday)

In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.

Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.













Luen Cheong Printing Equipment Group Ltd. established in 1991,which is professional in develop,manufacture and sales the Screen printer,Pad printer,Hot stamping machine,Heat transfer machine,Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.

In order to keep up with the automatic industry, we continues to improve the diversified printing equipment, and be agent for Ink,Screen fabric,Squeegee and so on. Nowadays, we are successful in develop & produce the new series of Screen printer,Pad printer,Hot stamping machine,Heat transfer machine,Automatic printing machine,Peripheral equipment & Accessory. We are high praised by the customers from domestic and aboard.

We promote the innovation series Ink cup Pad Printer, which adopt the automatic control system, make the operation easy and stable, also the procedures is more flexible. Light-weight due to strong aluminum cast machine frame. The pneumatically driven and Components that is adopt from Europe and Japan, also the shaft lever and shaft sleeve, ensure it is hard to wear, reduced the maintenance and extended mechanical life. Otherwise, with the long Slide stroke and Rotating body design, it can help you smoothly in large format printing and machine testing. The sealed ink cup can reduce the ink volatile, it is more fuel-efficient and more environmentally.

In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.

Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.



1.Keep the machine cleaning

2.Refence the outside drawing of workpiece to make holder and model.

3.Washing the part of slide weekly,and feeding the lubricating oil.

4.Deal with the water in the filter regual,for protect the pneumatic system trasfer.

5.the size of Pad Plate must fit for the size of Inkwell

6. Pay attention to the choice of pad:

The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the workpiece.

7. Usage of ink:

According to different kinds of workpieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the inkcup.
