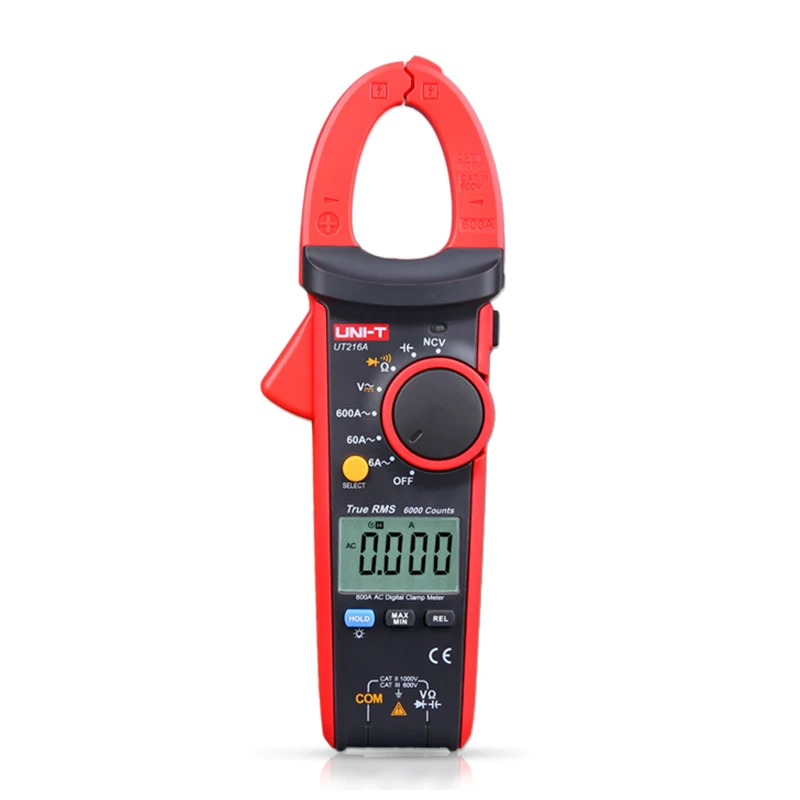

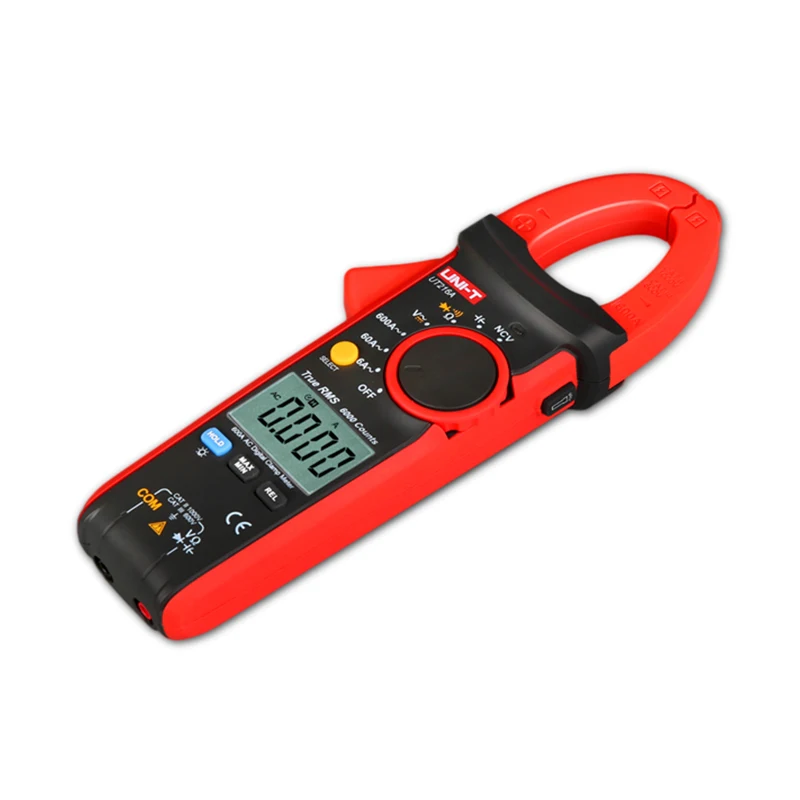

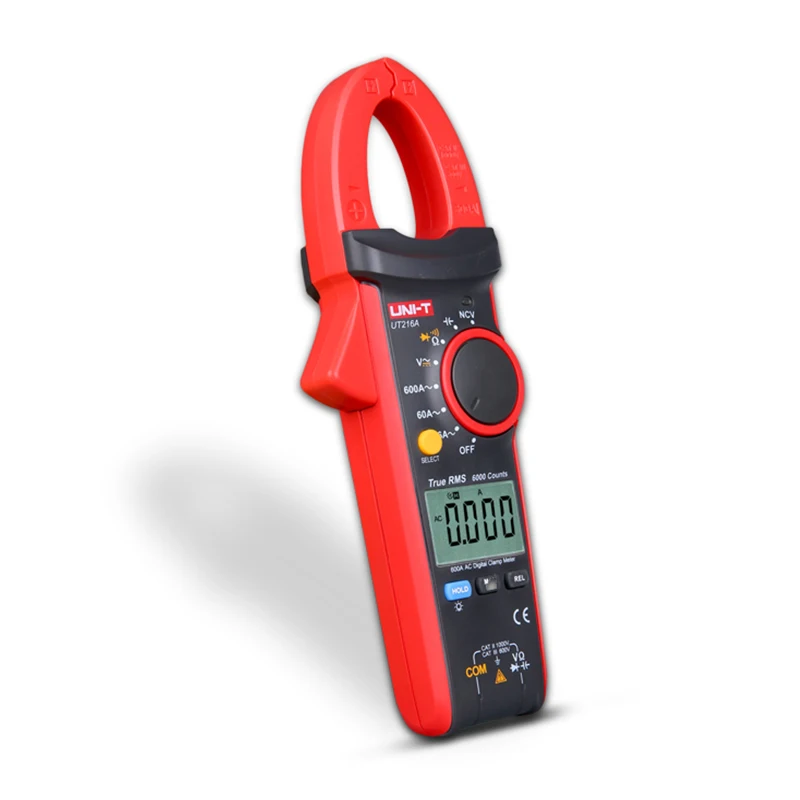

Uni t UT216A 600A True RMS Digital Clamp Meter

Product Overview

Description

UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in railways and aerospace, server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability.

Specifications	Range	UT216A
AC current (A)	600A	±(2.5%+5)
AC current frequency response		50/60Hz
DC current (A)	750V	±(1.2%+5)
AC voltage (V)		40~400Hz
DC voltage (V)	1000V	±(0.8%+1)
Resistance (Ω)	60MΩ	±(1%+2)
Capacitance (F)	60mF	±(4%+5)
Features
Display count		6000
Auto range		√
Jaw opening		30mm
True RMS		√
Diode	Around 3.0V	√
NCV		√
Data hold		√
Relative mode		√
MAX/MIN		√
LCD backlight		√
Flashlight		√
Auto power off		√
Continuity buzzer		√
Low battery indication	≤3.6V	√
Input protection		√
Input impedance for DCV	≥10MΩ	√
General Characteristics
Power	1.5V battery (R03) x 3
Display	38mm x 24mm
Product color	Red and grey
Product net weight	280g
Product size	220mm x 75mm x 40mm
Standard accessories	Batteries, test leads
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 345mm x 385mm
Standard carton gross weight	20.6kg
