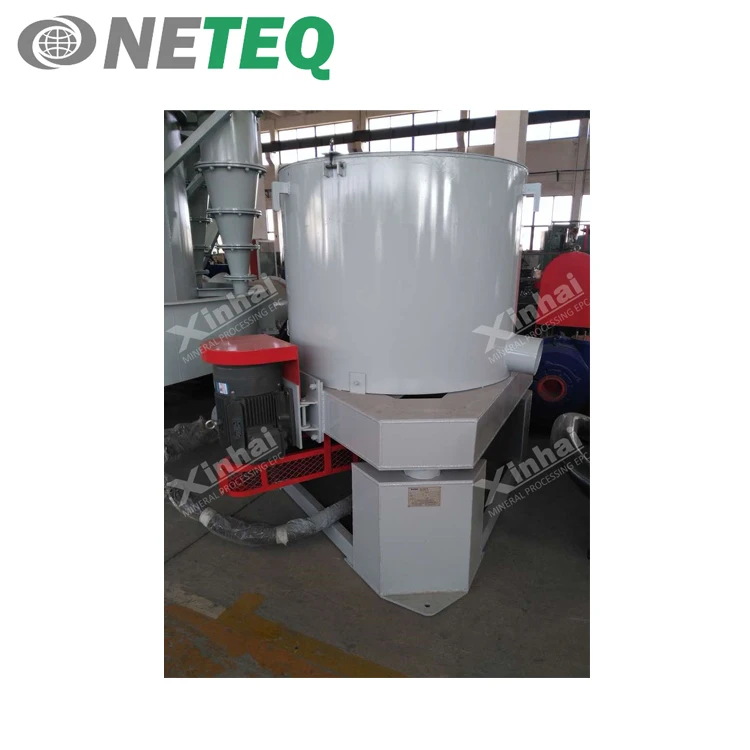

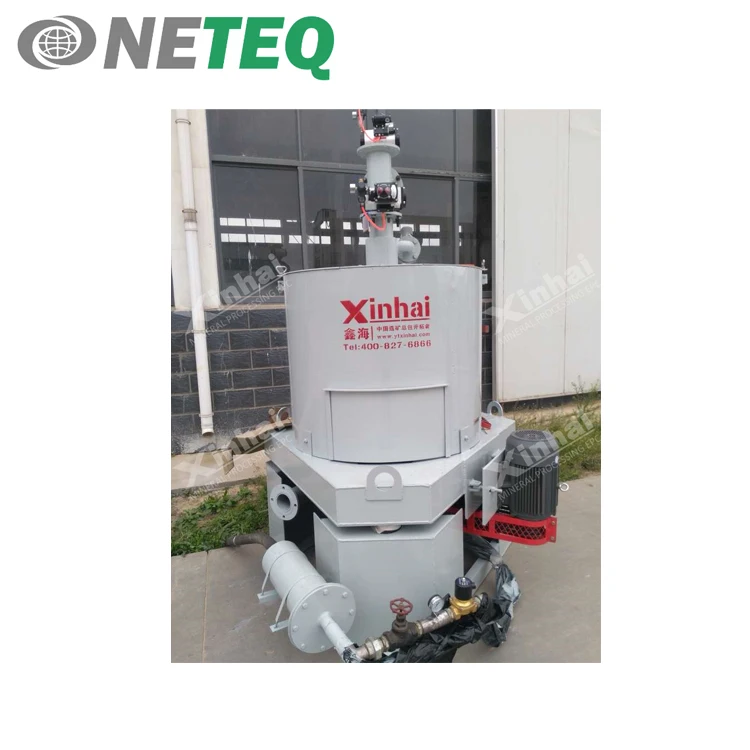

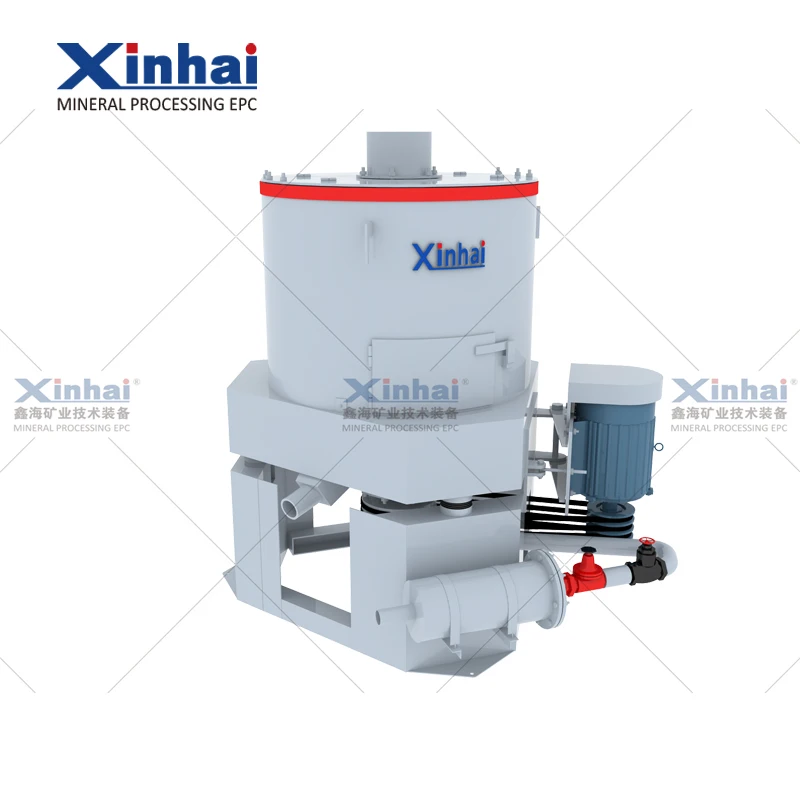

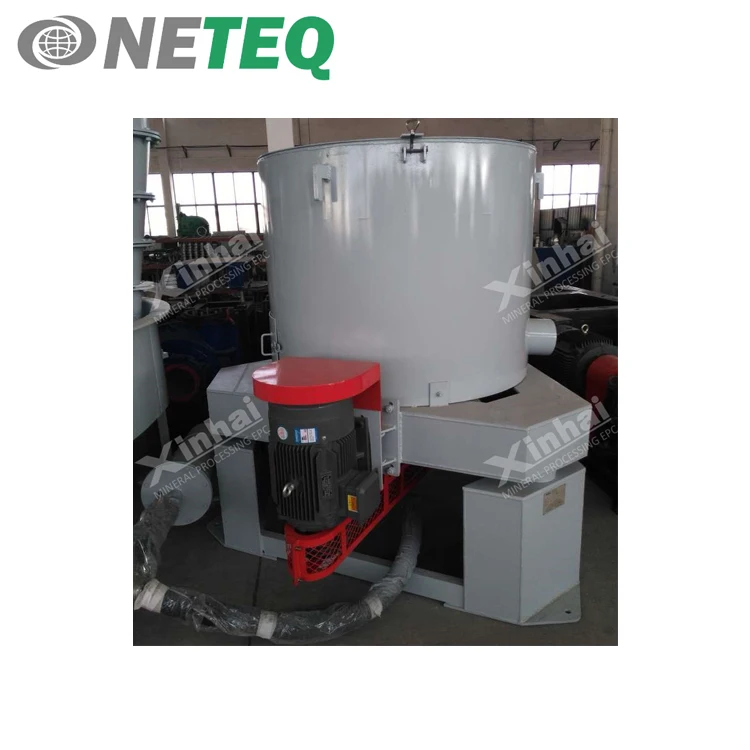

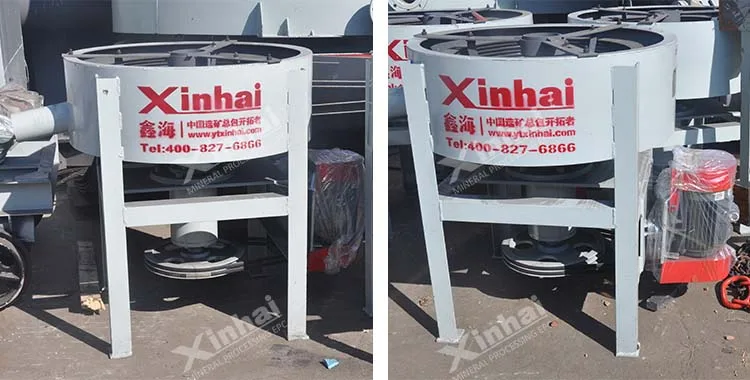

China High Efficiency Gold Centrifugal Concentrator Separator Mineral Separator
- Category: Mineral Separator >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (62026476643):
Product Overview
Description
Related Products
The mineral separator mainly include following equipment,You can "click" the picture to know more information!
Products Description

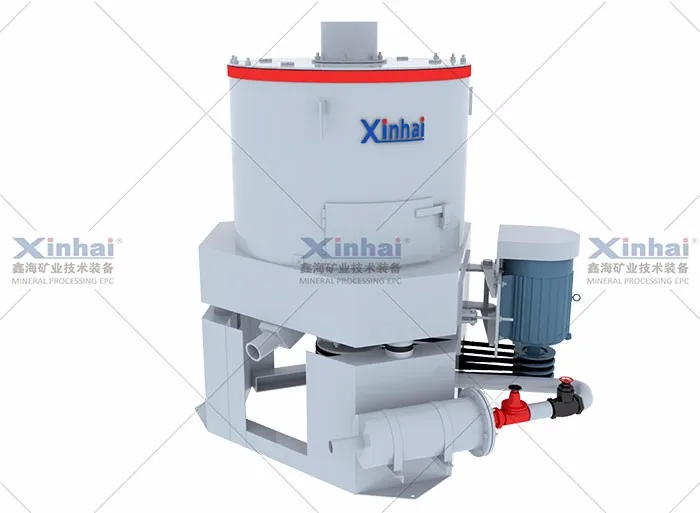

Mineral Separator——Product Description
Mineral separator is a kind of gravity concentrating machine. It will produce big centrifugal force when rotating, and strengthen gravity process, to make the superfine particle effectively recover. It can be extremely effective to sorting monomer gold of vein gold ore proved by test. In addition, it can be used for recycling the monomer gold in gold ore and other metals.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074mm, the gold is up to 98%, For 0.004mm in particle size, the gold recovery is 97%.
Product Advantages

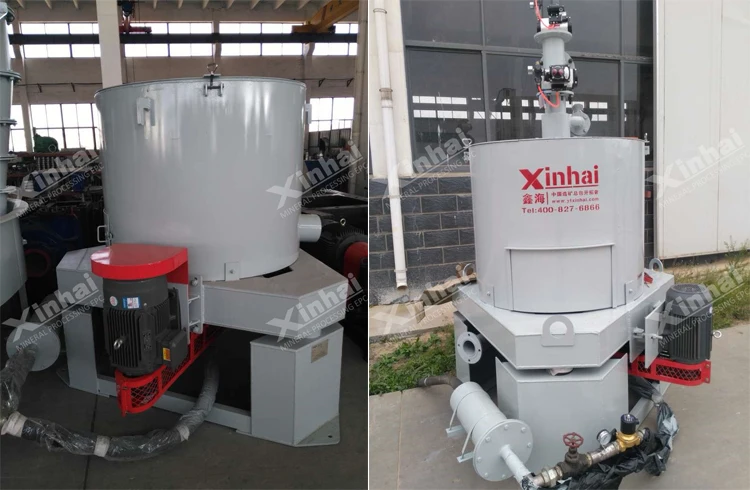

gold centrifugal concentrator——Product Advantage
1. High concentrating ratio and high recovery
Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.
2. Total process automation, steady recovery performance
3. Low energy consumptions.Low water and electricity requirements
4. Environmentally friendly
5. Low production costs, durable wear parts, minimal maintenances requirements
Product Structure

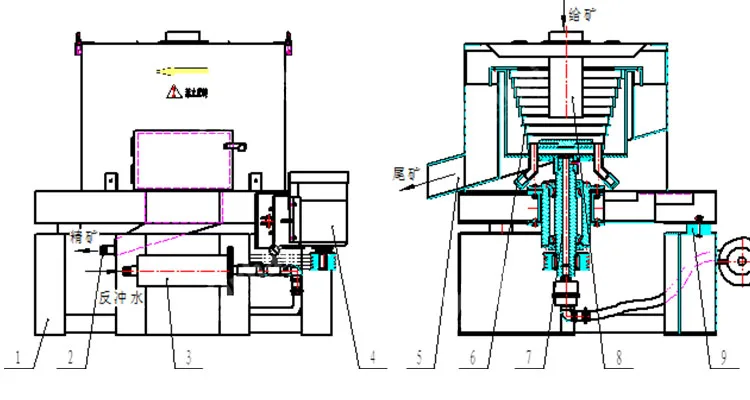

Mineral Separator——Product Structure
Mineral separator is a kind of gravity concentrating machine. It will produce big centrifugal force when rotating, and strengthen gravity process, to make the superfine particle effectively recover. The hollow shaft of this equipment can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be
separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Technical Parameters
Model | Capacipy（t/h） | Power(kw) | Slurry Water（L/min） | Recoil water（L/min） | Concentrate output（Kg/time） |
LX19 | 0.25 | 0.75 | 16 | 30 | 1.5~2.5 |
LX25 | 1~1.5 | 1.1 | 60 | 50 | 3~5 |
LX30 | 2~3 | 1.5 | 120 | 80 | 5~8 |
LX60 | 8~12 | 5.5 | 400 | 130~180 | 20~30 |
About Xinhai

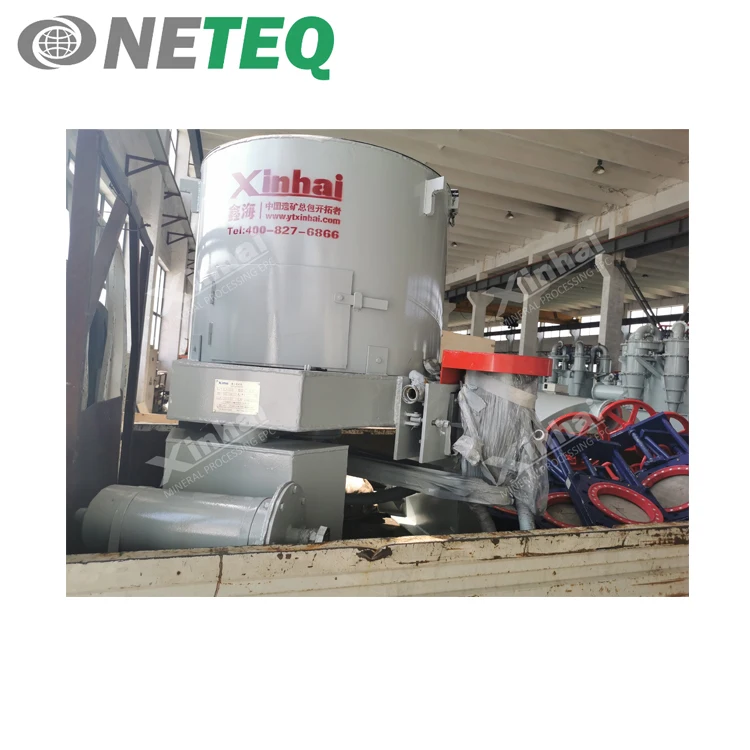

Product packaging
