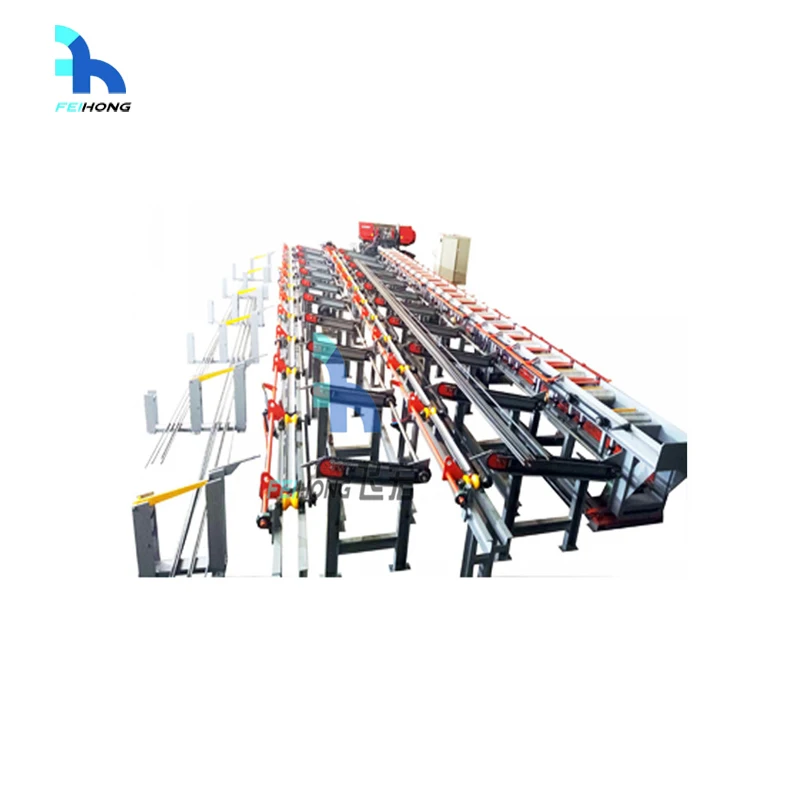

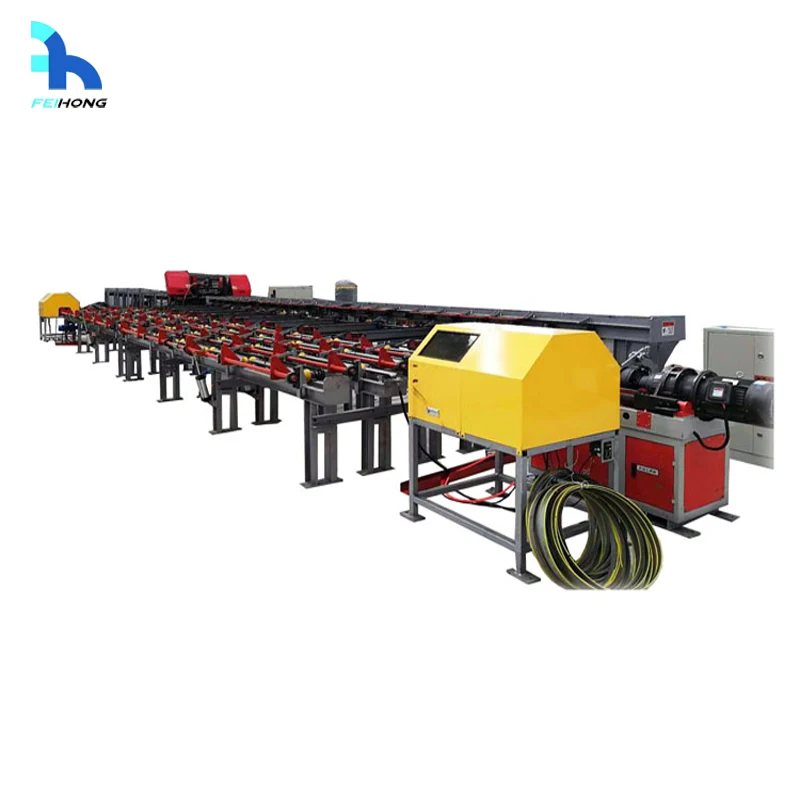

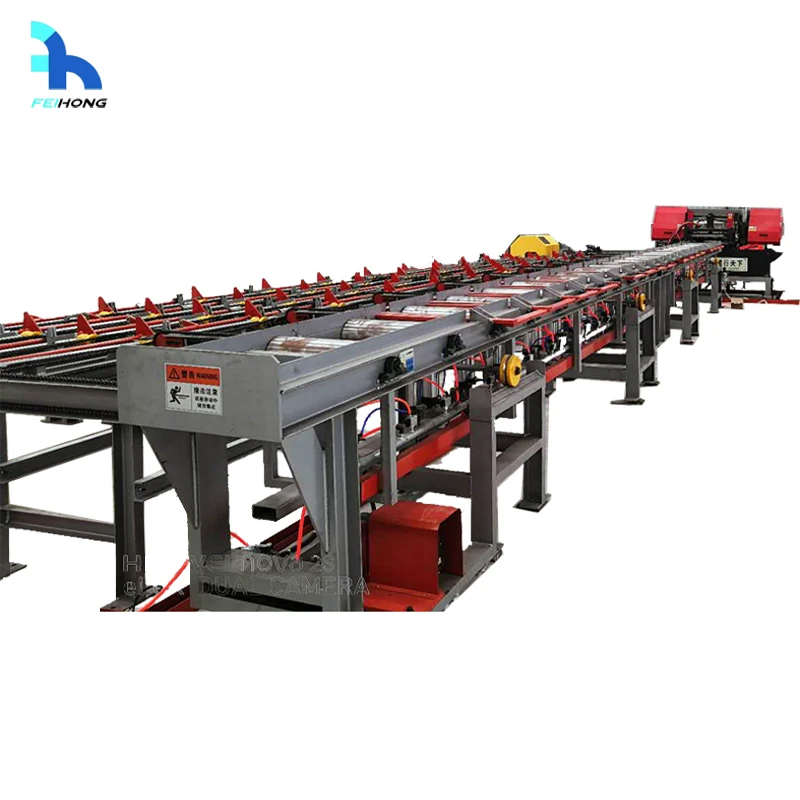

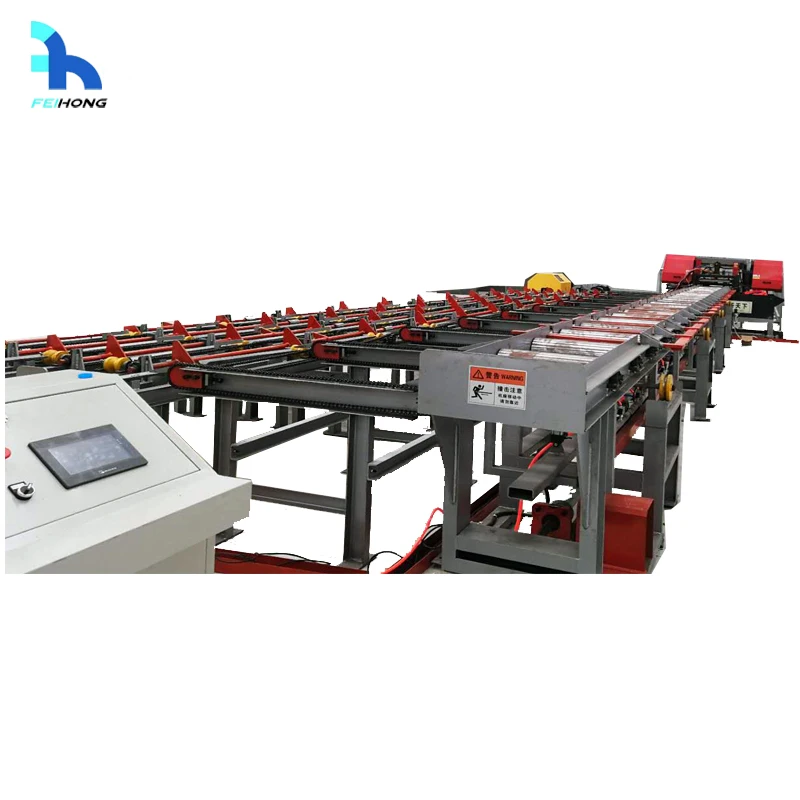

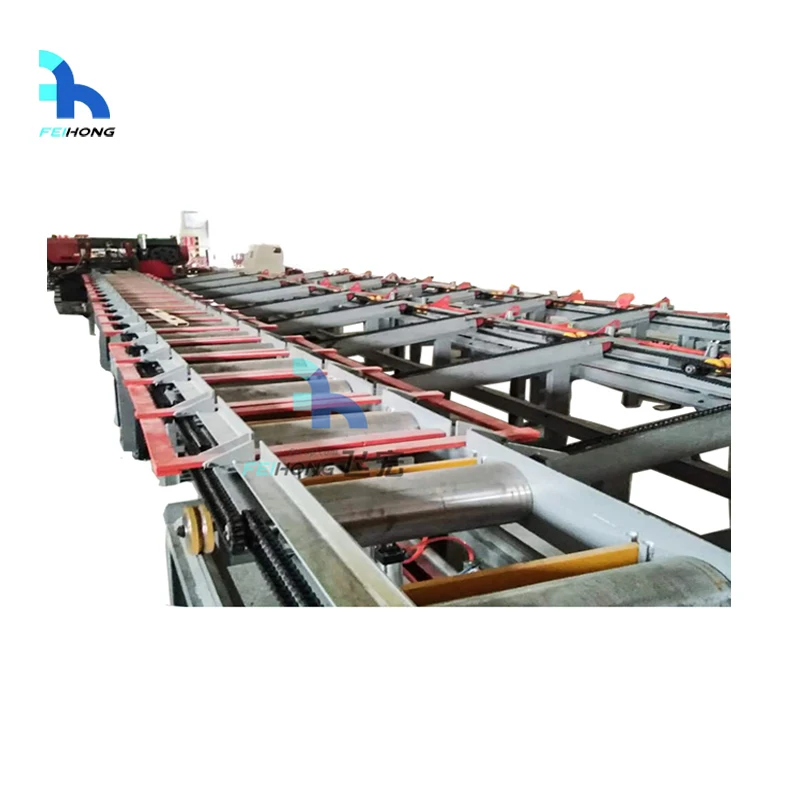

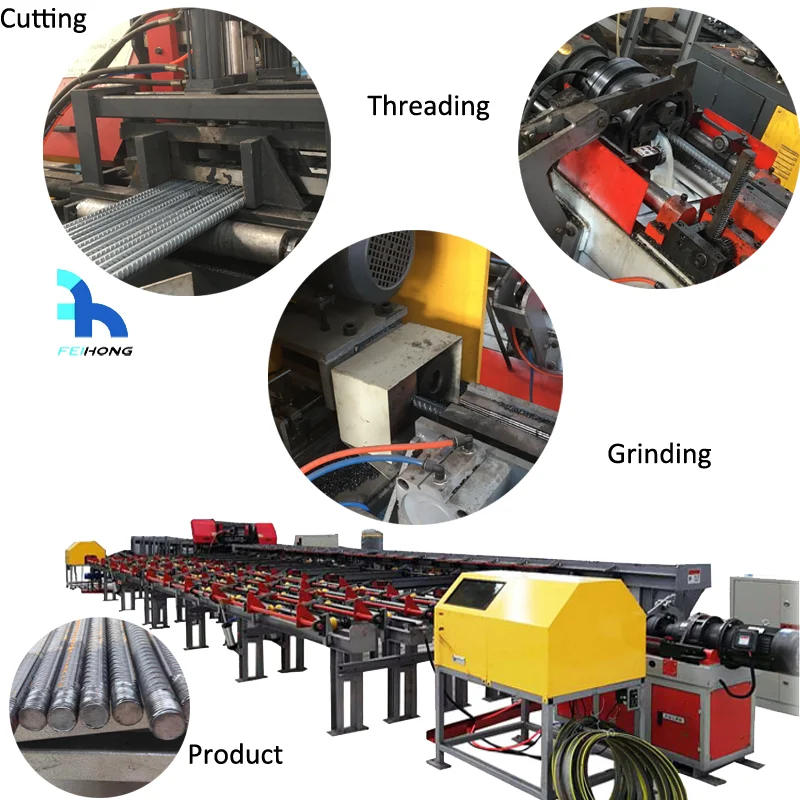

CNC rebar sawing & threading line is mainly used in the reinforcement processing field, construction site and prefabricated beam factory of all major highway, high-speed railway and housing construction.

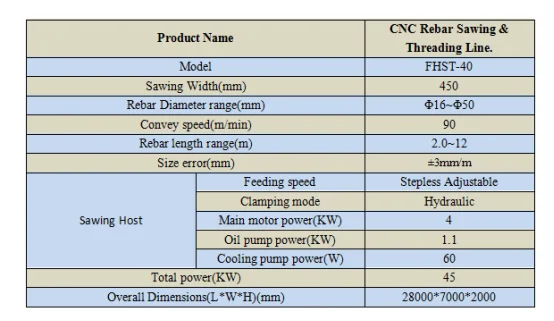

Technical Parameters – – Rebar Sawing and Threading Machine
Main Features of CNC Automatic Rebar Sawing and Threading Machine :

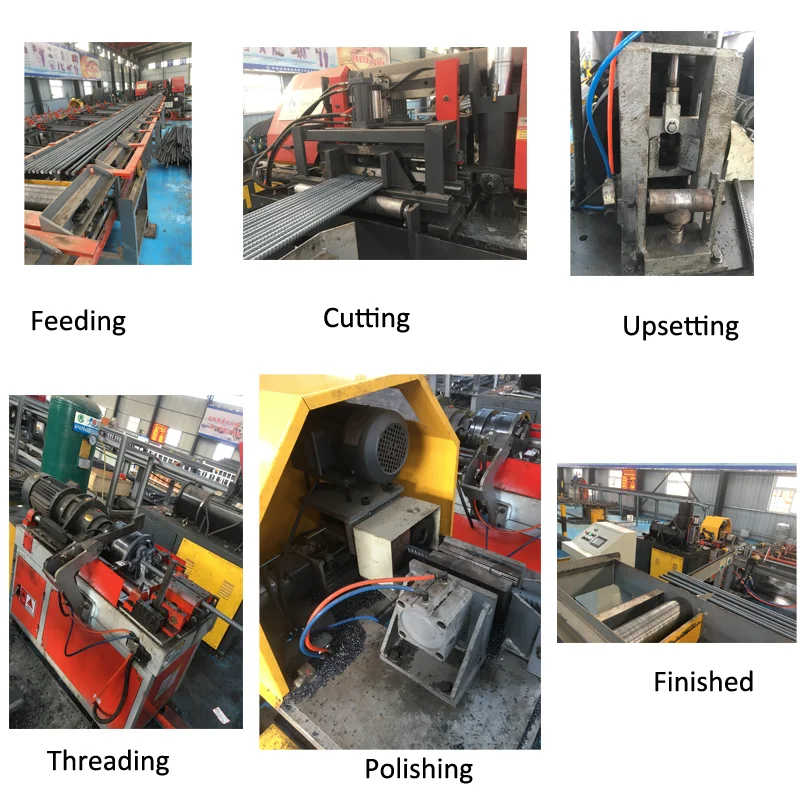

1. It can automatically complete the sawing of the rebar end and the sawing face is smooth which can thread directly; 2.Steel bar fixed length mechanism adopts servo motor control, adjusting the distance between the shear blade and positioning baffle through Servo motor drive screw mechanism. With encoder measurement, length of high precision, it can up to ± 2 mm. It can cut the rebar bar to kinds of length. Many manufacturers in the industry still use frequency conversion motor control, the accuracy is poor.

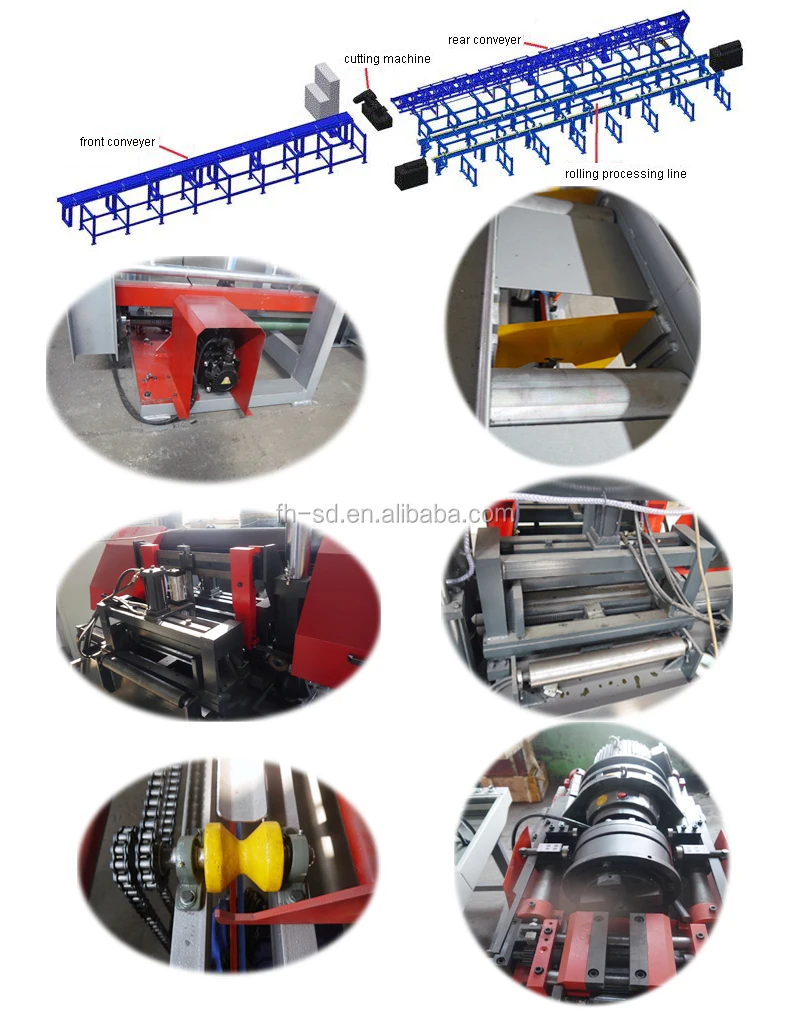

3. Automatic cutting to length and accurate steel bar cutting make sure the end material of the bar can reach up to 1cm. It can improve the utilization rate of materials. 4.With high production efficiency, the main machine can realize the steel bar both ends with automatic sizing sawing length. The sawing width can up to 450mm. It can saw 17 steel bars withΦ20 in about one minute. The main machine adopts double column design, and it can lift smooth and sawing stable. The steel bar is pressed with hydraulic cylinder on both sides, which has high pressure, so that the bar does not rotate during sawing process, reducing the damage to the saw blade, and the steel reinforcement is evenly cut. 5. The first stage set of wire roller conveyor platform adopts chain drive, which can be used for the temporary storage of steel bar after butting saw, and realizes the assembly line operation of the processing operation. It can reduce secondary transportation and improve production efficiency. 6. V-type roller conveyor is used to ensure transmission the steel bar to the threading machine automatically, and then turn to the next procedure without manual assistance. V-type adopts wear-resistant material with long service life. 7. Enhanced threading machine has long service life, and it can automatically clamping the steel bar and automatically strip the rib cage. Therefore the labor intensity is reduced and productivity is improved
Company Information
Shandong Feihong is a leading numerical control steel processing equipment manfacturer, which designs and provides practical automatic numericalcontrol steel processing services program for the steel processing field and construction site in the field of highway, high-speed railway and housing construction in over 20 countries and areas around the world to have the global customer enjoy steel automatic processing services with ultra-highquality and professional design unique
Welcome to our factory
Our Honor and Certificate
Packing & Delivery Time
Packing
CNC stirrup bender will be nude packed in container, the parts and tool will be packed in wooden case.suitable for long distance sea shipment.
Delivery Time
25-30 days adfter received the down payment.
Related Product
Our Service
♦Pre-sale Service Quality & Price is built on each transaction's satisfaction Customized Design Reasonable Equipment based on your request,our team's hard research & existing project proposal
♦Sale Service Strict QC Inspection---8-Level Quality Assurance System off the production line Details & Video Sent to help your workers know how the device works OEM&ODM Service with Professional R&D and Design Team
♦After-Sales Service Maintenance Response in 24 hours After-Sales Service Team Oversea Technical Support Experience Customer Reviews Satisfaction is nearly 100%
FAQ
1.Q: Are you a factory or trading company? A: We are a professional manufacturer with strong capability in research, development and manufacturing, you can not only get the factory price but also can enjoy the “ultra-high quality and professional design” unique to Feihong. 2. Q: Where is your factory located? How can I visit there? A: Our factory is located in Jining City, Shandong Province, China. We have branch Office in Qingdao sea port city, which is very convenient for shipment. All the customers, from home or abroad, are warmly welcome to visit us! 3. Q: Can you do OEM?
A: Yes, we can do OEM as client’s requirement. 4.Q: All products have a warranty? A:YES, Our warranty term is One Year. 5.Q:What about the delivery time? A:Usually 15-30 days after down payment, the exact delivery time is according to the production season and order quantity. 6. Q: What is the biggest advantage of the company?? A: Stable Better Quality and Perfect Service . Our company is a state high-tech enterprise, our rebar processing machinery are used in hundreds of infrastructure projects both with China and abroad. We are the framework agreement supplier to CREC(CHINA RAILWAY ENGINEERING CORPORATION). We have the most complete after-sales service support system ,"8-level quality assurance system," truly lifelong maintenance, customer satisfaction is almost 100%.
