Large size vacuum coating machine for elevator plate

Product Overview

Description

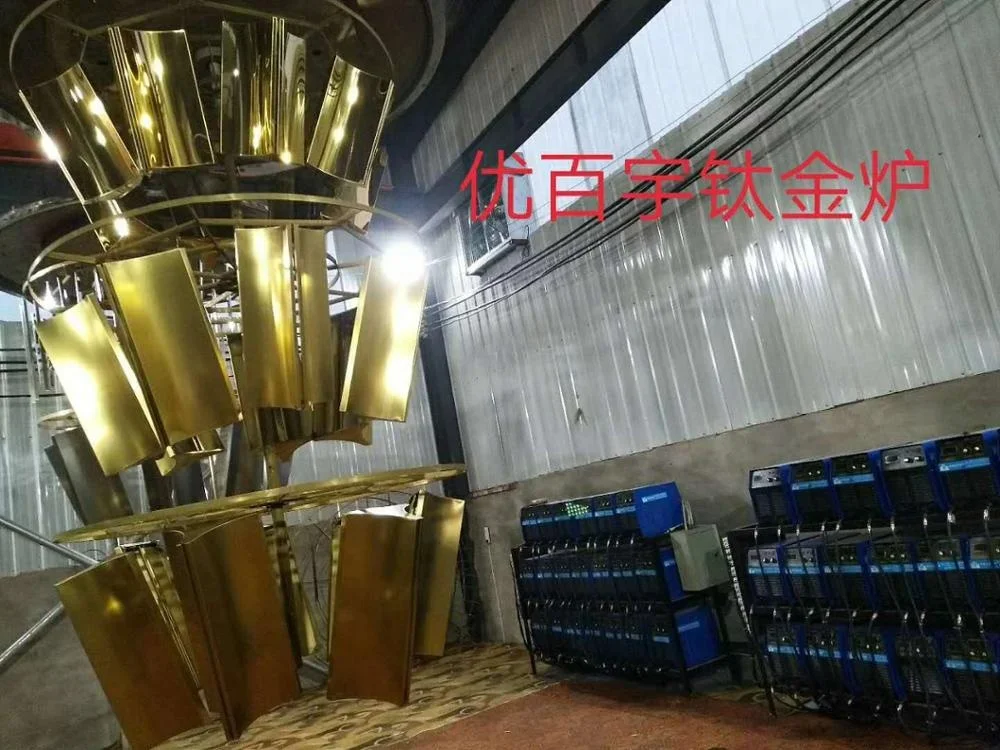

        Large size vacuum coating machine for elevator plate

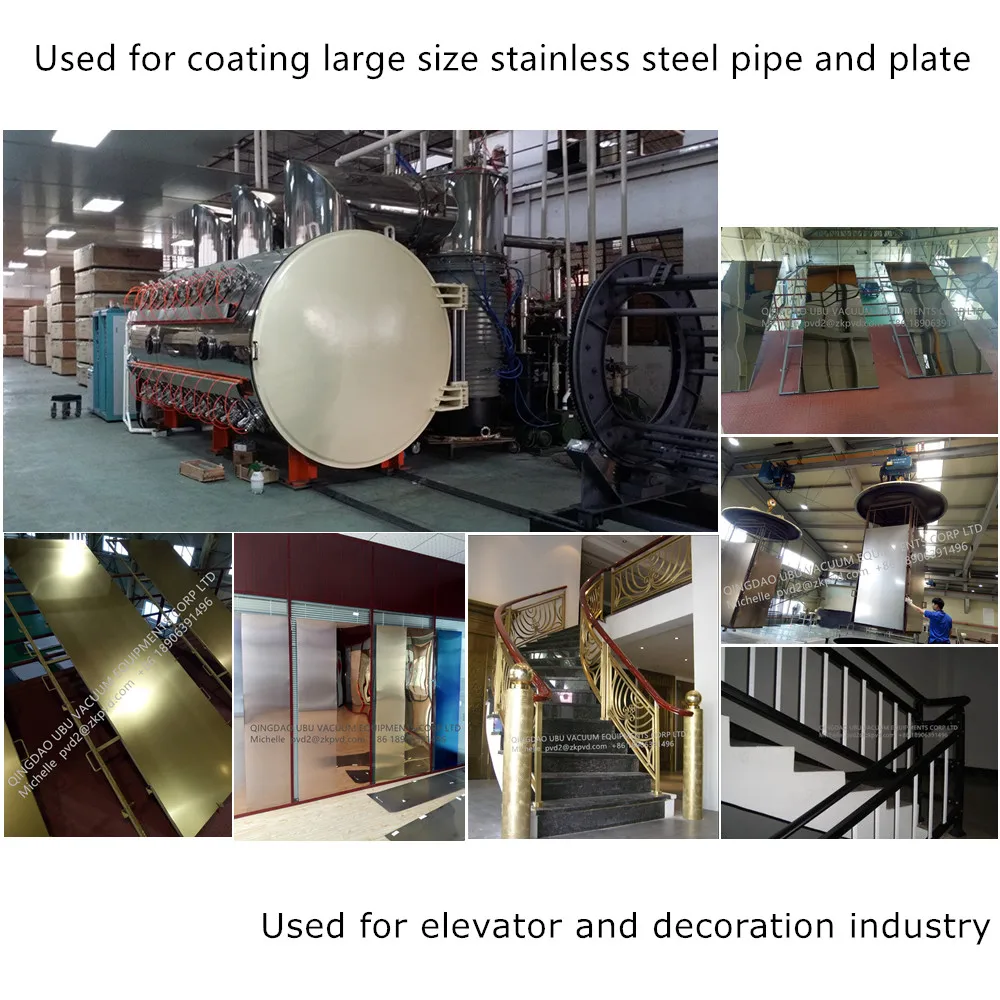

    Large size vacuum coating machine for elevator plate which is applied to coating large size stainless steel board or pipe, is mainly used in elevator industry, stair railing industry and decoration industry. By using the PVD technology,the stainless steel plates can be much efficiently and stably.





Coating: TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN



Color: gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc.









 PVD coating technology

PVD coating is a plasma coating deposition technology which the materials are vaporized under vacuum conditions ,so as to avoid the reaction between the vaporized material and air.  PVD coating is used to add new features as improve the workpieces' hardness,wear resisitance,corrosion resisitance ect..



coating thickness            0.5-10μm



hardness                        1000-4000 HV



temperature resisitance    300-1150°c



deposition temperature     200-600°c









Watch industry (strap, case, dial)

Automotive industry (piston, piston rings, alloy wheels)

Hardware industry (sanitary ware, door knobs, locks)

Glass ceramics industry (glass tableware, ceramic crafts)

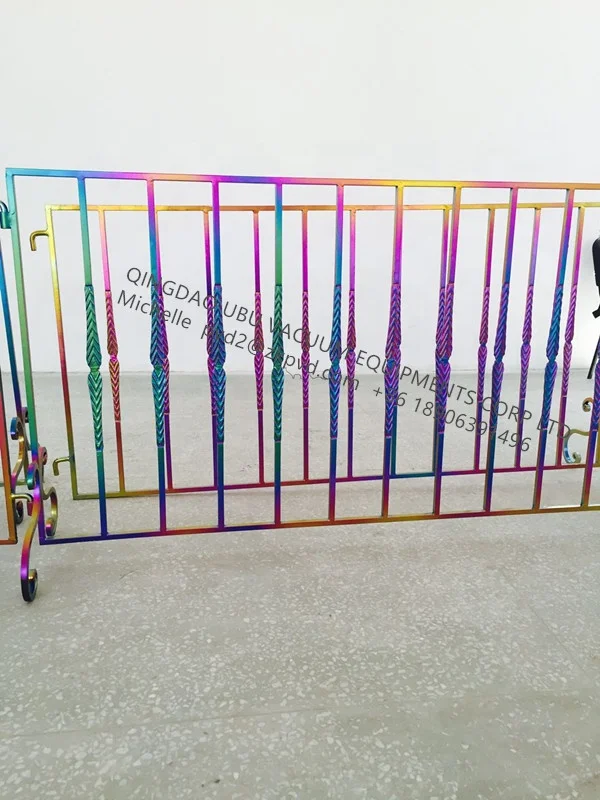

Architecture industry (stainless steel plate, stair railings, columns)

Tools industry (drill bits, carbide cutters, broaches, shaving heads)

Precision mold industry (standard punch mold, forming mold)

As well as pens and glasses etc..





1 common package : standard wooden case

2 under customer's request

3 Warranty: 1 year

4 Engineers available to service machinery overseas
