28 t Landing Gear for Heavy duty Semitrailer FROM China manufacturer

Product Overview

Description







Heavy-duty Semitrailer Landing Gear Information:



Dimention of LGJ28-B0101T:

Capacity: 28T

Static Load: 80T

Speed: Higher 9, Lower 0.9

Lift/Height: 430/830; 480/880



Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.



Gear Box: Inside & Outside

Operation: Single side & Double side

Lifting Capacity: 25 ton ~ 35 ton.

Static Load: 50 ton ~ 90ton

Gear Food Type: T, A, S, G, R

Out put: 80,000 pairs yearly



Landing Gear Dimension:



Number	Capacity	Static Load	Speed		Lift	Height
	kg	kg	Higher	Lower	mm	mm
LGJ28-B0201T	28000	80000	9	0.9	430	830
LGJ28-B0202T	28000	80000	9	0.9	480	880



Landing Gear Features ( Just for Reference):

• Ideal for heavy-duty trailers


• 2-Speed jack makes cranking faster and easier

           * Low gear: full lifting power offers smooth and easy ratio of 1" for every 27-1/3 turns

           * High gear: ultimate speed with 1" for every 4-1/2 turns

• Traditional gearbox design requires you to reposition crank to switch gears

          * Sidewind crank included

• Easy-to-access grease fittings


• Heavy-duty steel leg band provides extra strength and support


• High-efficiency, double-lead screw


• Self-leveling sand shoe offers absolute stability


• Set includes 2-speed jack, single-speed jack and crank

         * Cross shaft not included - a user-made connecting rod is required to match the width of your trailer

• Direct-weld design


• Black paint finish

Landing Gear Function & Attention ( Just for Reference):



1.The device is use for semi-trailer and special trailers.

2.It lift and support trailer when it is separated from tractor.

3.It's also in use for all sorts of trucks that they are secured to work as jack.

4.The quality is up to the standard of American ABS specification.

5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.

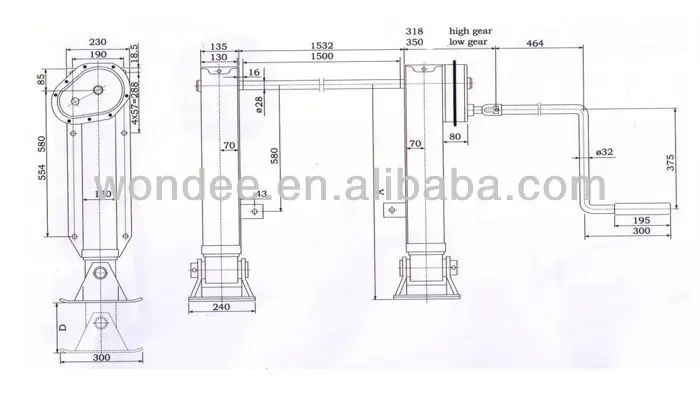

Landing Gear Drawings ( Just for Reference):

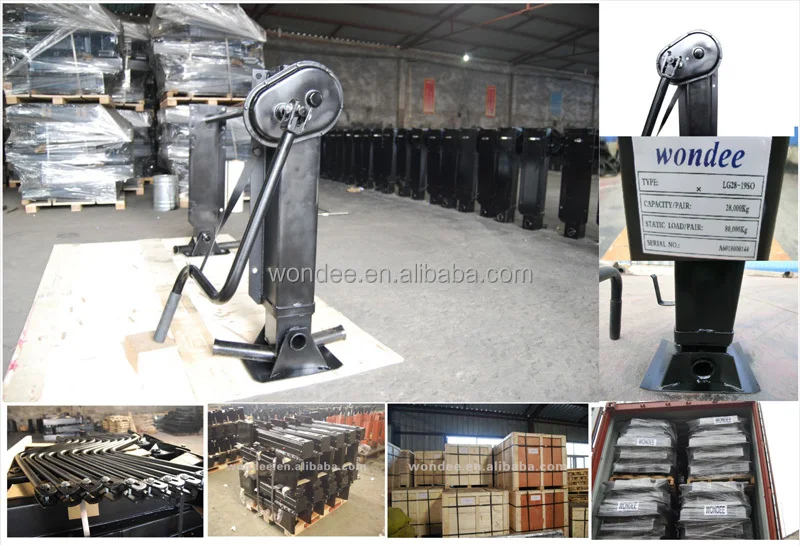

The Detail Photos about Landing Gear:









Besides Heavy-duty Semitrailer Landing Gear, WONDEE AUTOPARTS also Supply LEAF SPRING, WHEEL RIM,SEMI TRAILER,SUSPENSION,AXLE ... .... ...
