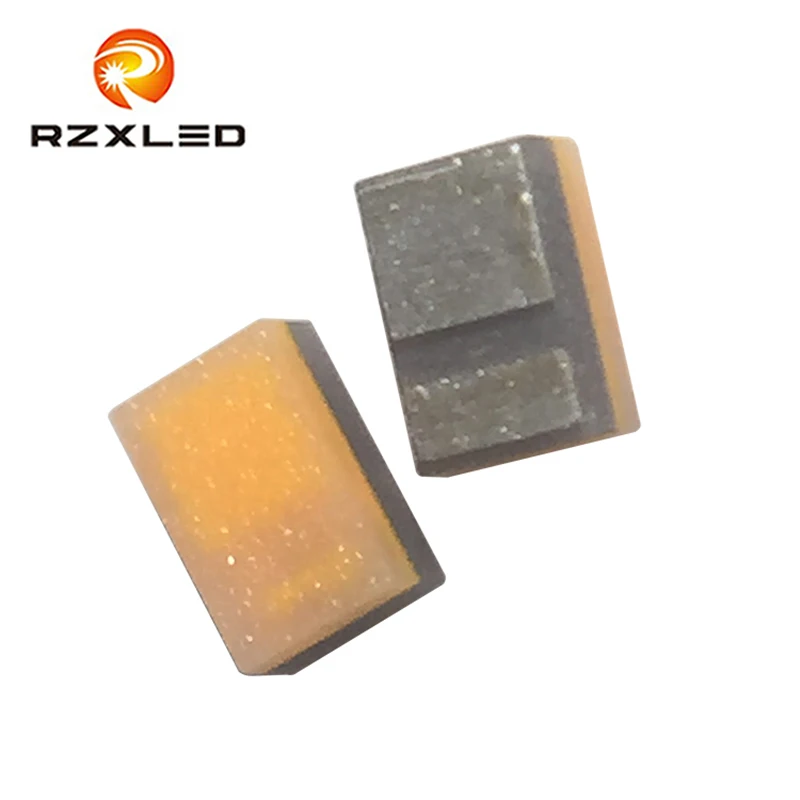

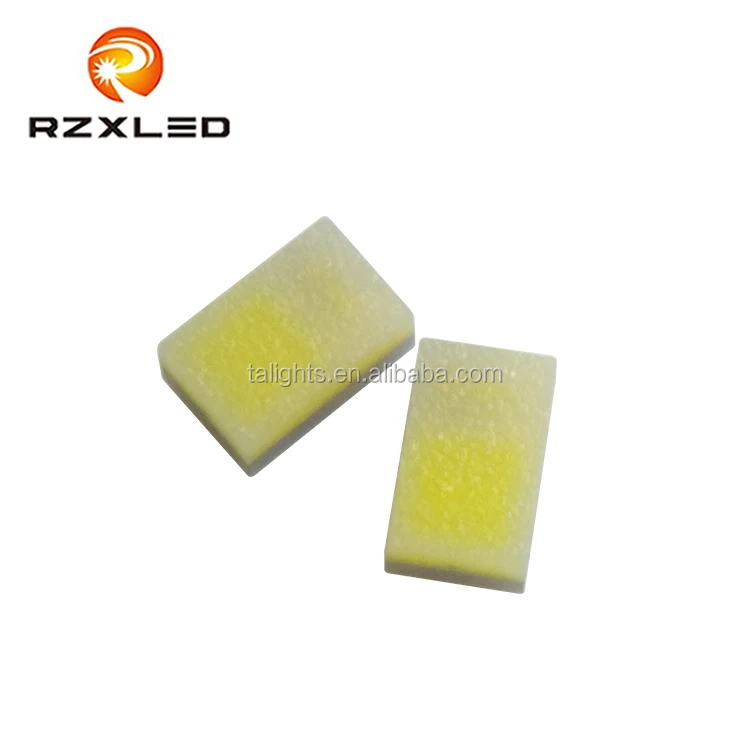

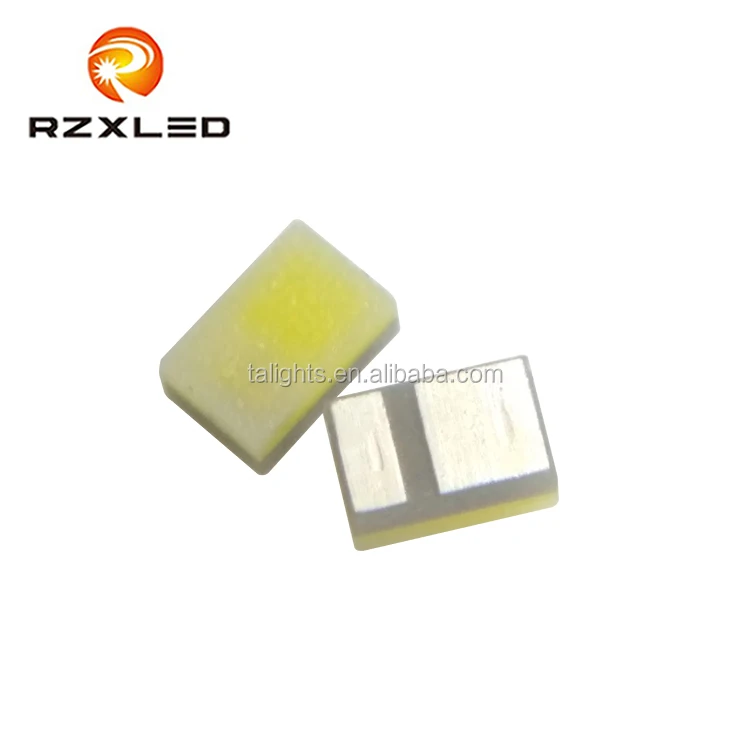

LED 3W 3.2V 1610Package Diode Warm white2700K 3000K 3300K 3500K

Product Overview

Description

Specifications:3W

1. Brand new and high quality.

2. LED emitter: 3W. Forward Current: 350-700mA

3. Emitted color: White 5000-6500K  /Warm white2700-3500K

4. Color temperature: White 5000-6500K/ Warm white2700-3500K

5. DC forward voltage (VF):2.8V-3.0V /3.0-3.2V/3.2-3.4V;

6. Beam angle: 120 degrees.

7. LifeSpan time: > 50,000 hours.

8. Intensity luminous: 180-240LM

9. RoHs compliant, lead free.

working temperature: - 20℃ ~ 85℃

 storage temperature: - 30℃ ~ 100℃

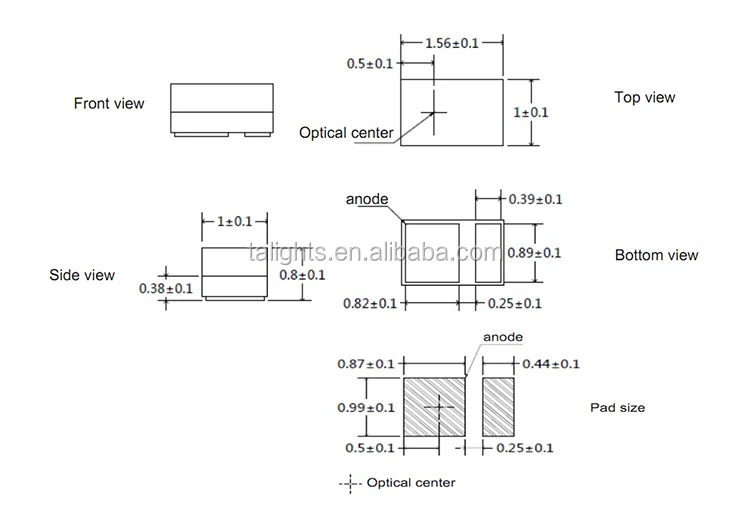

size:1.6*1.0*0.8MM
Package included:4000PCS/Reel

Applications :

1. Mobile Phone Camera Flash(Camera flash light /strobe light for mobile devices )

2. Torch light for DV(Digital Video) application

3. Indoor lighting applications

4. Signal and symbol luminaries for orientation maker lights (e.g. steps, exit ways, etc.)

5. TFT backlighting

6. Exterior and interior illumination applications

7. Decorative and Entertainment Lighting

8. Exterior and interior automotive illumination
