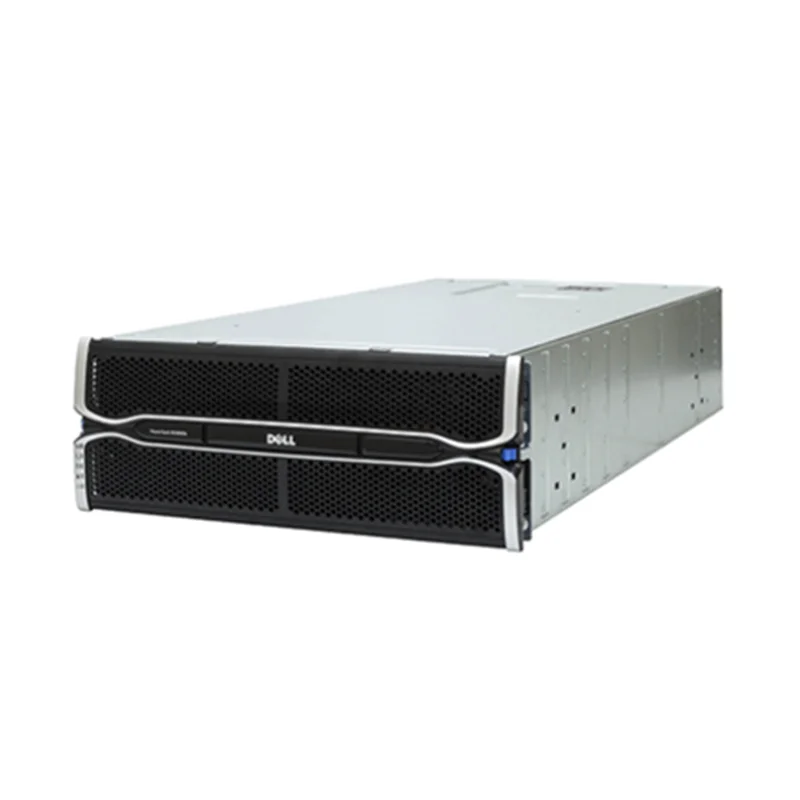

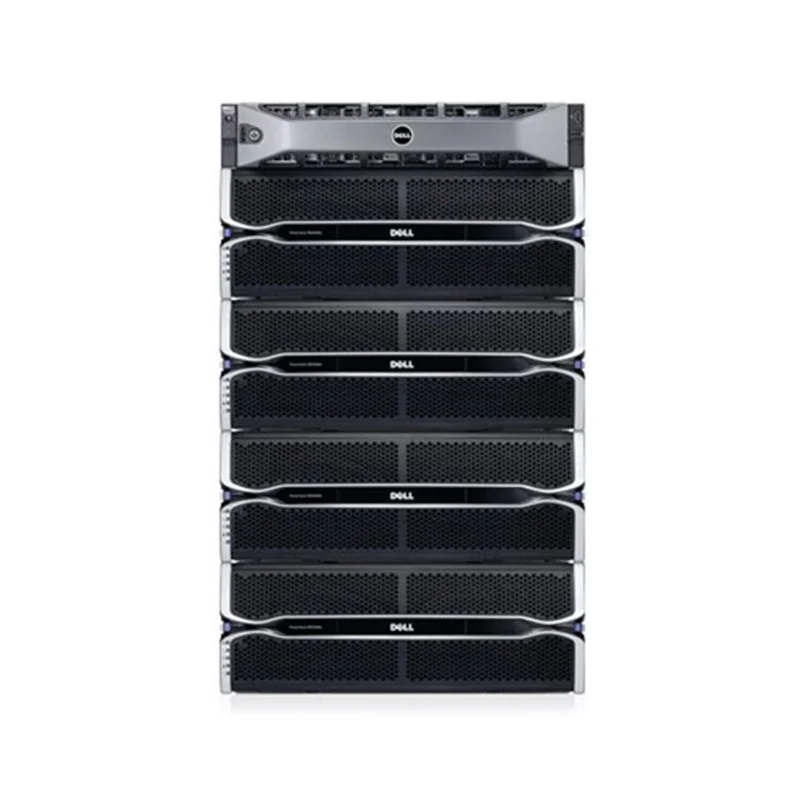

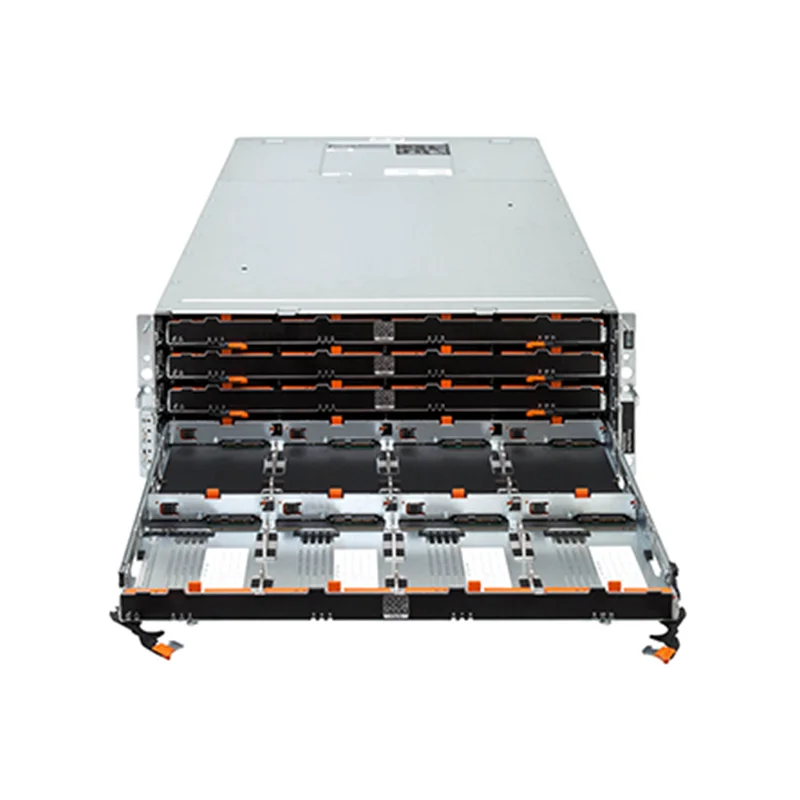

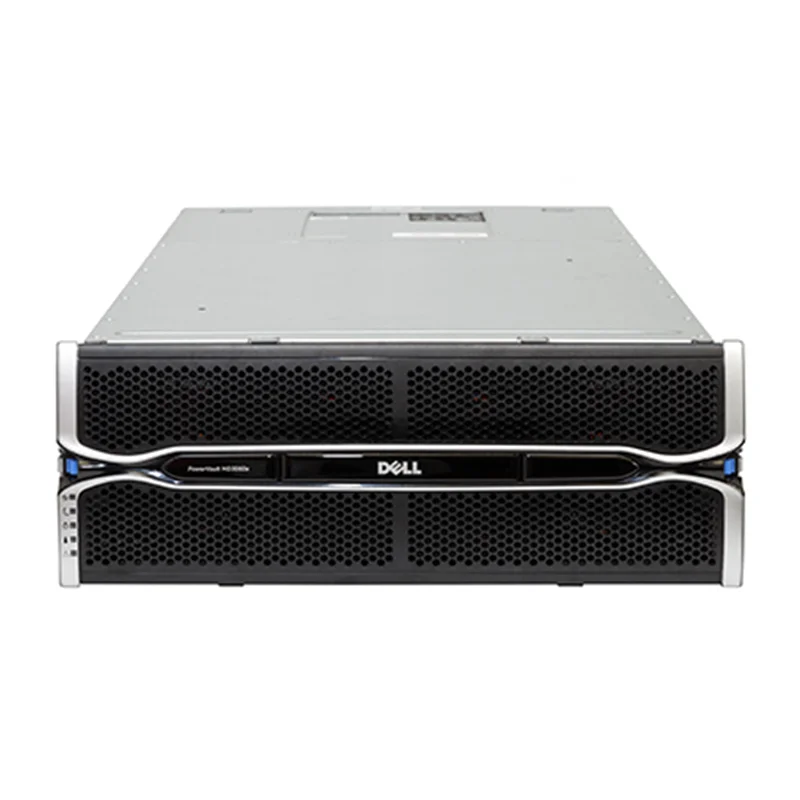

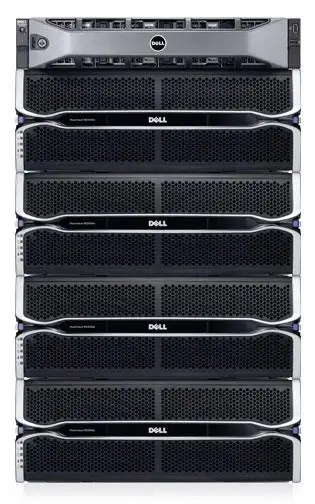

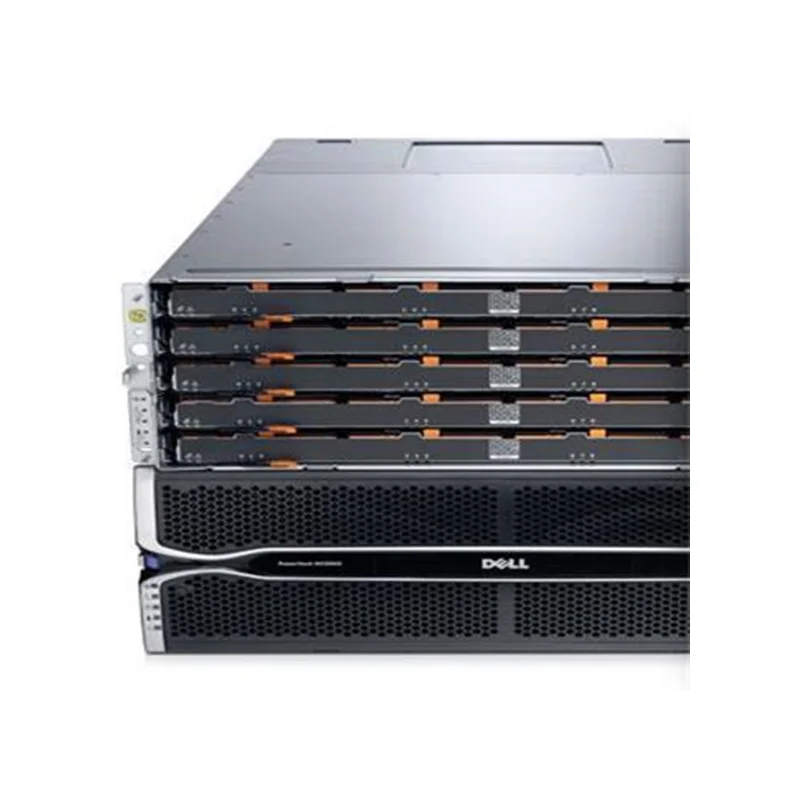

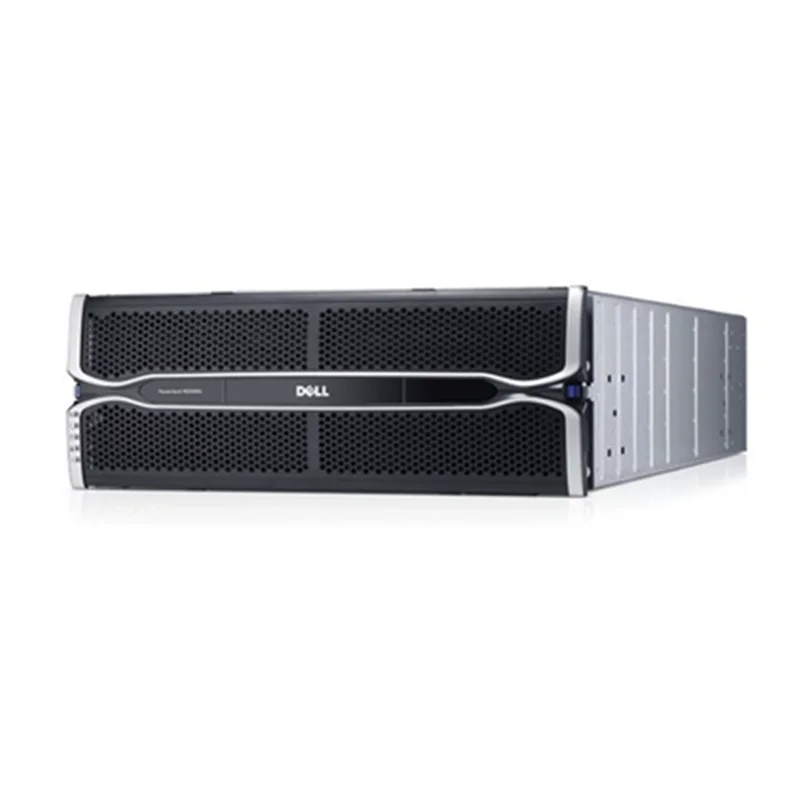

Brand new original Dell PowerVault MD3060e network Storage

Feature

 MD3060e

Drives

 60

Drive type Mix and match

 3.5” and 2.5” SAS, NL-SAS, SSD, SED

3.5" drive capacity

NL-SAS 7.2K RPM

 500GB, 1TB 3 , 2TB 3 , 3TB 3 , 4TB 3 , 6TB, 8TB, 10TB

SSD

 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5” HDD carriers)

2.5" drive capacity

SAS 15K RPM

 146GB 3 , 300GB 3 , 600GB 3

SAS 10K RPM

 146GB, 300GB 3 , 600GB 3 , 900GB 3 , 1.2TB 3

NL-SAS 7.2K RPM

 500GB 3 , 1TB 3 , 2TB

SSD

 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)

3.5” 10K and 15K HDDs are not supported on the dense model

Expansion capabilities

 Up to 4 dense enclosures behind a single server

Controllers

 Dual Enclosure Management Modules (EMMs)

Maximum HA host

 2

Form factor

4U rack enclosure

Management software

 Server controller dependent

Server support

 Dell PowerEdge R630, R730 and R730xd servers

OS support

 Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.5, Ubuntu 12.04 LTS, and Debian 7.4

Physical dimensions (height x width x depth)

177.8 mm (7.0”) x 482.6 mm (19.0”) x 825.5 mm (32.5”)

Maximum weight

 105.20 kg (232.0 lb)

Environment

Power

AC 1755W

Heat dissipation (max)

 5988 BTU/hr

Voltage

 220V AC, auto ranging

Frequency range

50/60Hz

Temperature

Operating

 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour

Relative humidity

Operating

 10% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour

Altitude

Operating

 -30.5 m to 3000 m (-100 ft to 9,840 ft)

Note

 For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.
