Henan 12T/H dry mixing mortar plant for sale
US $45600-$56800
От 6 до 8 лет/ч шпатлевка Ступка смешивание машины/сухая штукатурная машина для порошка замазки стены
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (62032202816):
Product Overview
Description

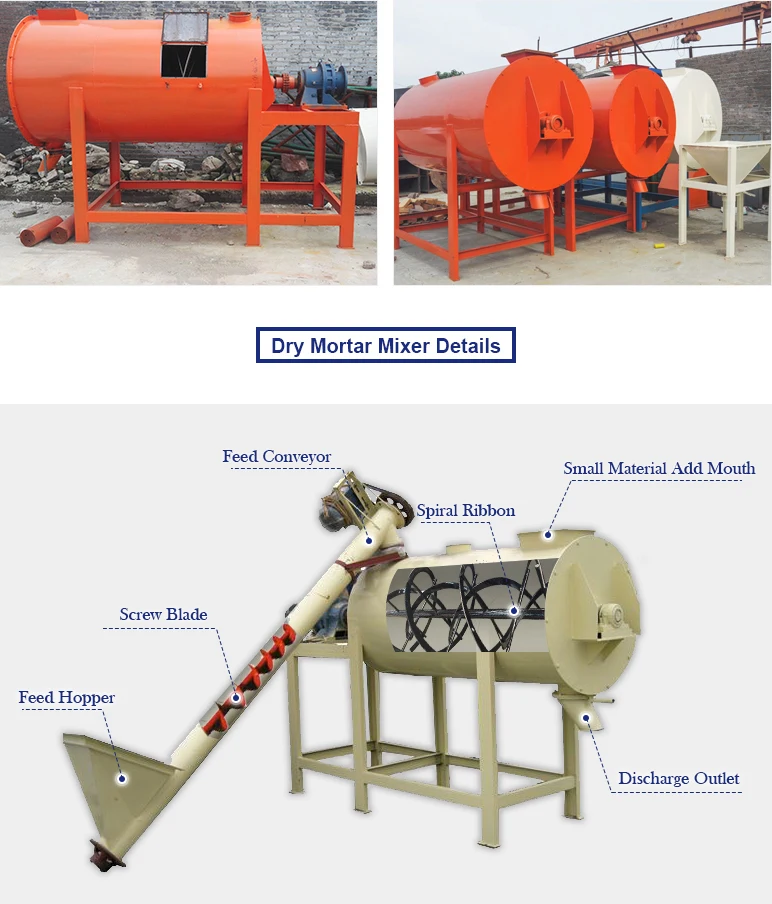

Dry mortar production machinery is mainly composed of dry mortar mixer, feed screw conveyor, three ribbon mixing machine, secondary hoist, a storage hopper and automatic packing machine, etc..
This system is an efficiency production system after multiple times improvement on the basis of multiple ribbons dry mortar mixer. Mixed product will be into a storage bin through second lift machine. Then worker can carry out filing operation and not affect the next production. Matching an accurate packing machine can greatly improve production efficiency.
| Name | GLHL1.0 Production Line | GLHL2.0 Production Line | GLHL3.0 Production Line | |
| Host Type | GLHL-1000 | GLHL-1000 | GLHL-2000 | GLHL-3000 |
| Feed Screw Converey | Power(kw) | 3 | 4 | 4 |
| Size(mm) | φ165x3200 | φ219x3600 | φ219x3600 | |
| Second Lift Screw Converor | Power(kw) | 3 | 3 | 4 |
| Size(mm) | φ165x3000 | φ165x3000 | φ219x3300 | |
Size Of Storage Bin (mm) | φ160x2850 | φ180x2850 | 2100x1320x2850 (Double port) | |
| Automatic Valve Port Paching Machine | Power(kw) | 3 | 3 | 3 |
| Packing Efficiency(s/bag) | 6 | 6 | 6 | |
| Size(mm) | 980x680x1050 | 980x680x1050 | 980x680x1050 | |
Click here for more information
