Price:$920.00 - $1,500.00

Quantity:


Product Overview

Description





\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


Description of JXSC Shaking Table Separation:

Shaking table is a flagship mining equipment with more than 30 years experiences in JXSC factory.

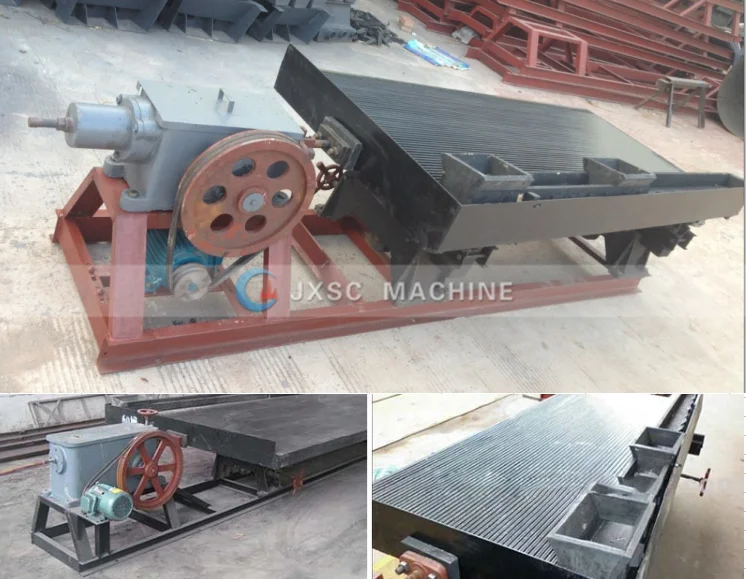

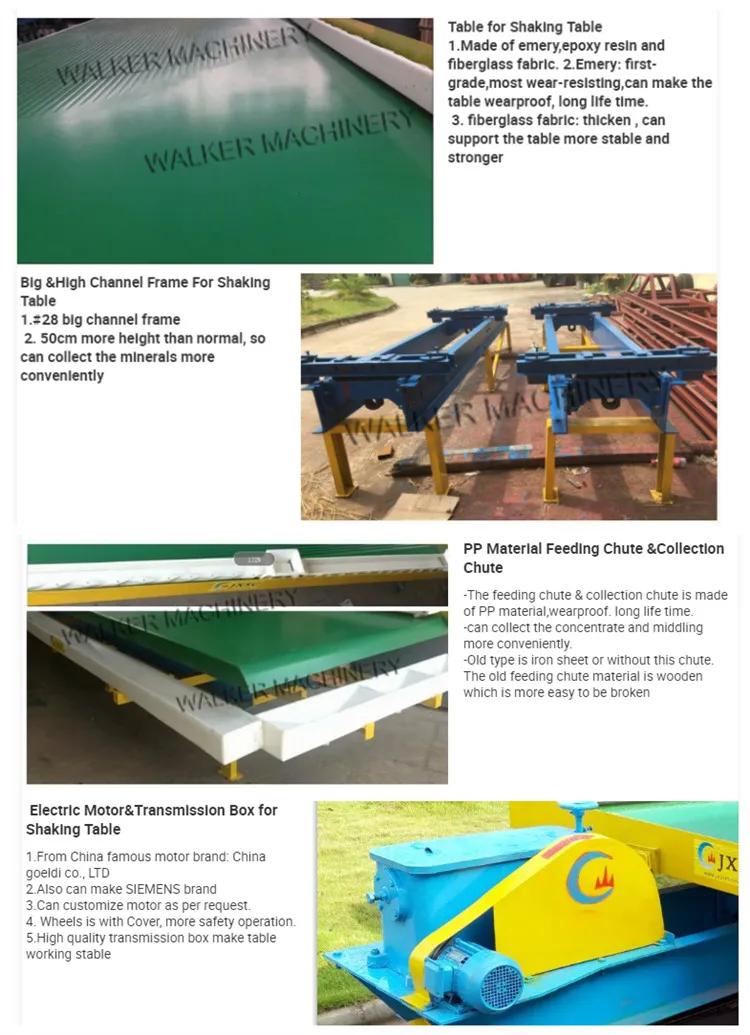

It is a gravity wet process mine machinery, the table deck is made of fiber glass reinforced with wearable corundum surface. Mining shaker table is composed of three parts: head motion of shaking table, table deck of shaking table, as well as bearing and adjusting gradient.

Shaking table widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum-niobium, lead, zinc, copper, antimony, other rare metal and noble metal ores.




Working principle of Shaking Table Separation:

The working principle of Cobalt Shaker Table is separate the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.

The prominent advantage of ore shaking table is precise separation.

The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.

We can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.





Shaking Table Features
1. High recovery ration
2. High concentration ration
3. Easy installation
4. Simple operation
5. Deck constructed of fiber glass
6. Seveb different decks to choose
7. Long working life
8. Adjustable stroke length and speed

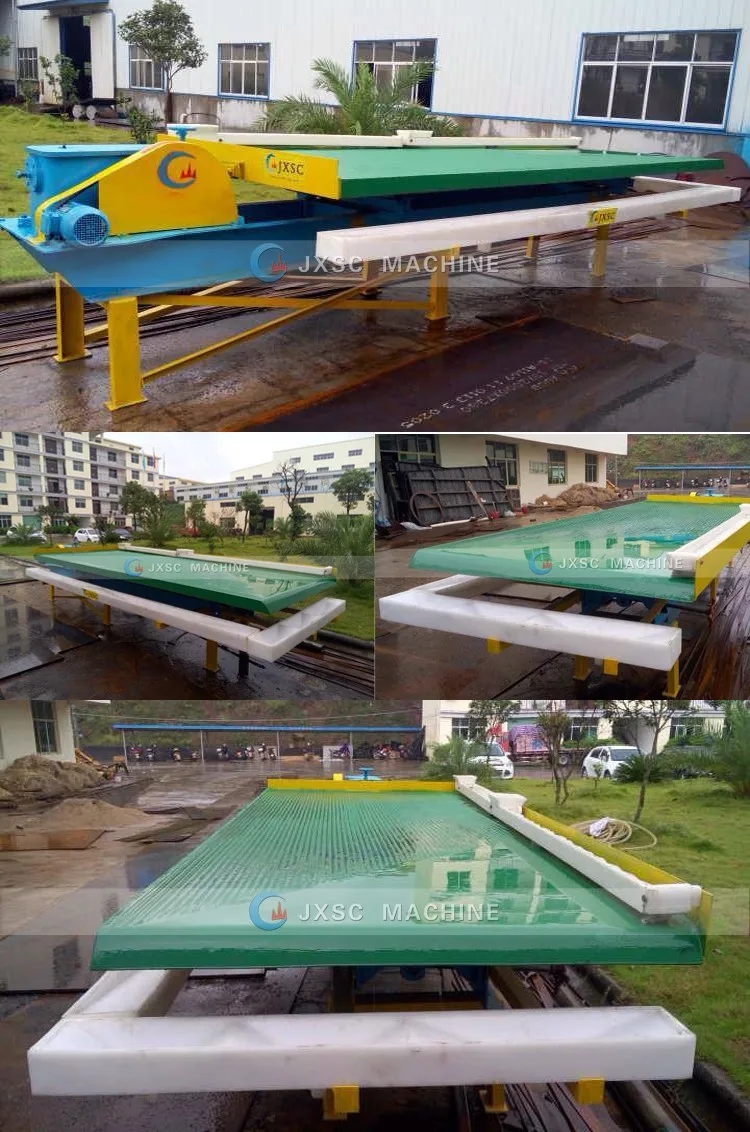

We Also Have Classical 6S Shaking Table JXSC




Technical data





Deck type

Unit

Course sand

Fine sand
Slime Deck
Three different kinds of decks are available
Beneficiation Area
m2
7.6
7.6
7.6
4.08
1.95
0.5
Deck Size
Length
  Size
mm
4450
4450
4450
3000
2100
1100
transmission end width
mm
1855
1855
1855
1320
1050
500
Concentrate end width
mm
1546
1546
1546
1100
850
430
Maximum Feeding Size
mm
2
0.5
0.15
0.1-2
0.074-2
0.074-2
Feeding Amount
t/d
30-60
10-20
15-25
0.4-1.5t/h
0.3-0.8t/h
0.05-0.2t/h
Feeding Density
%
25-30
20-25
15-25
10-30


Stroke
mm
16-22
11-16
8-16
6-30
12-28
9-17
Frequency
f
45-48
18-53
50-57
210-320
250-450
280-460
Water added
t/d
80-150
30-60
10-17
0.3-1.5t/h
0.2-1t/h
0.1-0.5t/h
Transverse slope of Deck
°
2°30-4°30
1° 30-3° 30
1° -2°
0 -10°
0 -8°
0 -10°
Longitudinal slope of Deck
°
1.4
0.92
------
------
------
------
Cross-section Shape of Deck
rectangular
saw tooth
triangle
Avaliable rectangular, saw tooth, triangle
Motor Power
KW
1.1
1.1
1.1
1.1
1.1
1.1


after-sales service
We can send engineers to guide the installation and provide perfect after-sales service

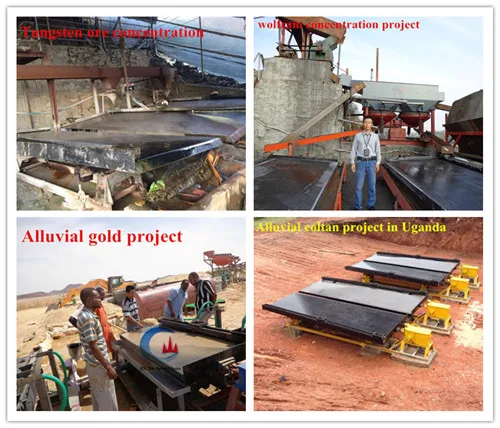

\t\t\t\t\t\t\t\t\tProducts application \t\t\t\t\t\t\t


Placer Ore Processing Case in Ghana
Date: 2017Place: Russia Federation
Mineral: Chrome
Maximum Feeding Size: 0-2mm
Order quantities: 20sets
Other machines:hopper,trommel screen, mixing tank, sluice box, smelting furnace, etc.






100tph Coltan Process Plant in Uganda
Date: 2019Mine site: Uganda
Processing mineral: Coltan ore
Full set equipment for entire line:Trommel scrubber>Vibration screen>Jig machine>Shaking table
Customer's feedback: Coltan recovery reached 90%, customer was happy with our equipment.




Congo 2 TPH Hard Rock Gold Processing Plant
This Plant also can be used for Hard Rock Tin ore/ Coltan ore/ Tungsten Ore/ Chrome Ore
primary processing.Process flowchart as below: Jaw crusher-> belt conveyor-> hammer crusher-> shaking table
Main machines specifications :
1- Jaw crusher: 2 sets (one set for reserve), model PE150*250. with 1-3 TPH capacity, flywheel with cover, with diesel engine.
2.-Belt Conveyor: 1 set, 10 m long, 500 mm width.
3.-Hammer crusher: 1 set, model PC400*300, 1-3 TPH capacity, 0-2 mm output size. flywheel with cover, with diesel engine, with strong frame operation floor, wet process.
4.-Shaking table: 2 sets, model 6S big shaking table, with 1 TPH capacity, table size 4500*1850mm. New

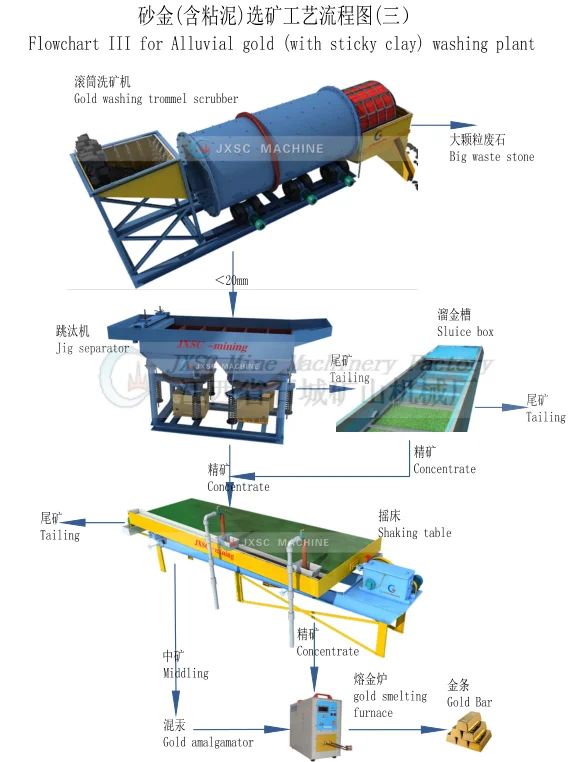

We have provided the diamond shaking table for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.






\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t

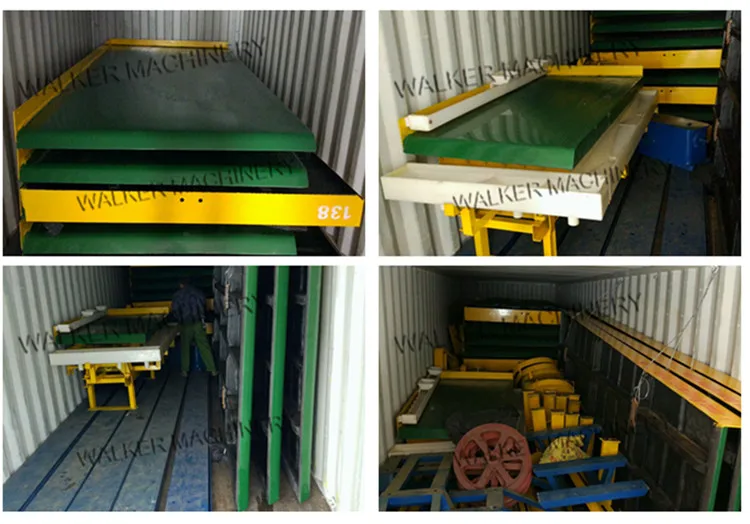

6s Shaking Table Packing/Loading


1. 6s Shaking Table spare parts would be packed in wooden boxes to avoid broken.
2. 6s Shaking Tables are fixed and loaded in container.





6s Shaking Table Shipping

1. 6s Shaking Tables are shipped in 40'HQ or Flat Containers by sea.
2. 6s Shaking Table can be also shipped by air if customers request.



\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t




Jiangxi walker Machinery Co.,Ltd, is a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province. professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.


Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting





\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.

2.Guaranteed:
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.

Our service

Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.


Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.


After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.


Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

Very good service help us win many clients from all over the world.
