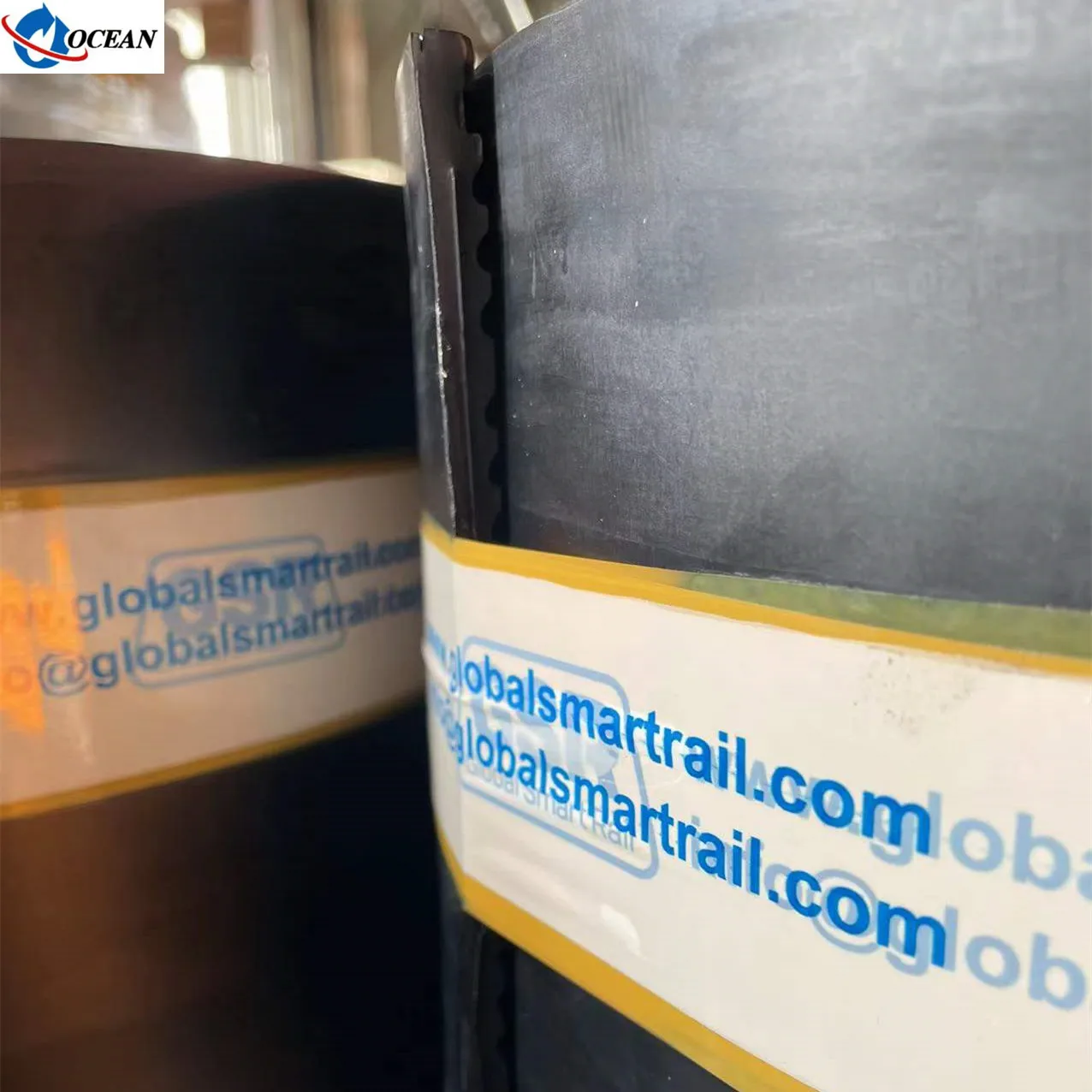

railway supplies GSR Rubber Pad for crane rail installation
- Category: Railway Parts & Accessories >>>
- Supplier: Tianjin Ocean Mechanical & Electrical Equipment Co. Ltd.
Share on (62033830220):
Product Overview
Description
Product Description
Specification
GSR CRS-PAD
For Continuous Rail Support
GSR-CRS pads have been specially designed for the soft mounting of crane rails, being mounted either continuously on steel, or on mixed concrete and steel, along with GSR fixing clips.
GSR-CRS pads are manufactured as a vulcanized synthetic elastomer strip, reinforced with a steel strip.
Reduce the wear of the rail and its support
Absorb uneven surfaces
Improve the contact between rail and support
Are suitable for all normal environmental conditions
Are designed for service temperatures from -25℃ up to 100℃
Reduce noise and vibration
Material characteristics:
Synthetic elastomer reinforced with a steel strip
Shore hardness : 75°A ± 5 (ISO 48:1994)
Tensile strength（ISO 37:1994) :17.5 N/mm2 when leaving factory – 15.0N/mm2 after ageing
Elongation (ISO 37:1994) : 305% when leaving factory – 240% after ageing
Compression set（ISO 815:1991) : < 5 % when leaving factory
Rebound resilience（ISO4662:1986) :27%
Service temperature : from -25°C up to +100°C. For other temperatures, please consult us.
Designations and dimensions:
LN = The effective width is always 5 to 8 mm less than the rail foot width

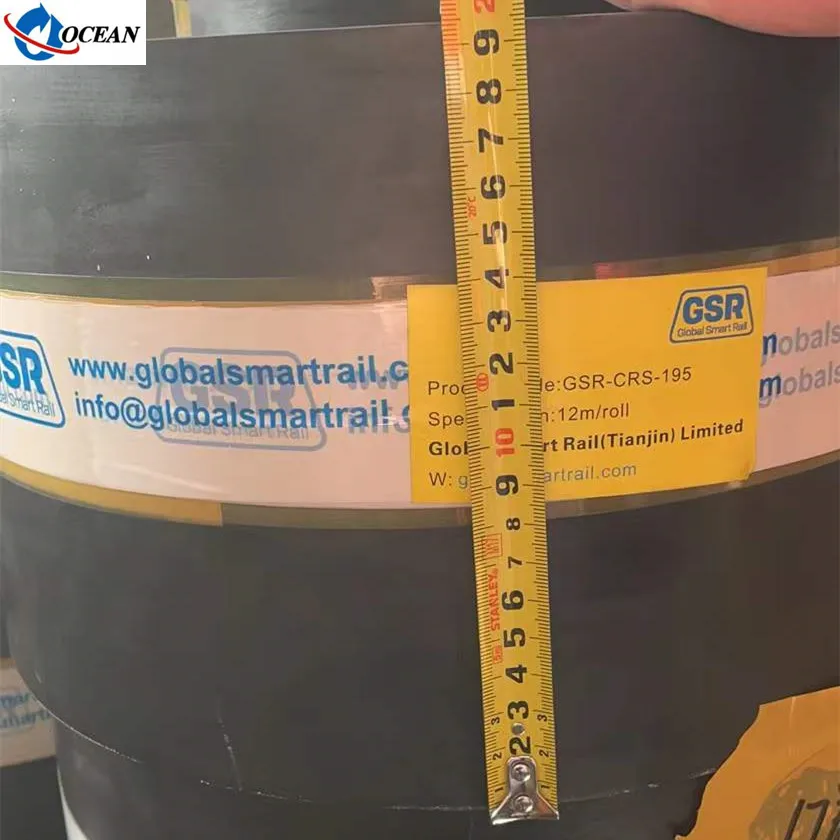

LN = 98mm, 108mm, 128mm, 135mm, 147mm, 168mm, 195mm, 215mm

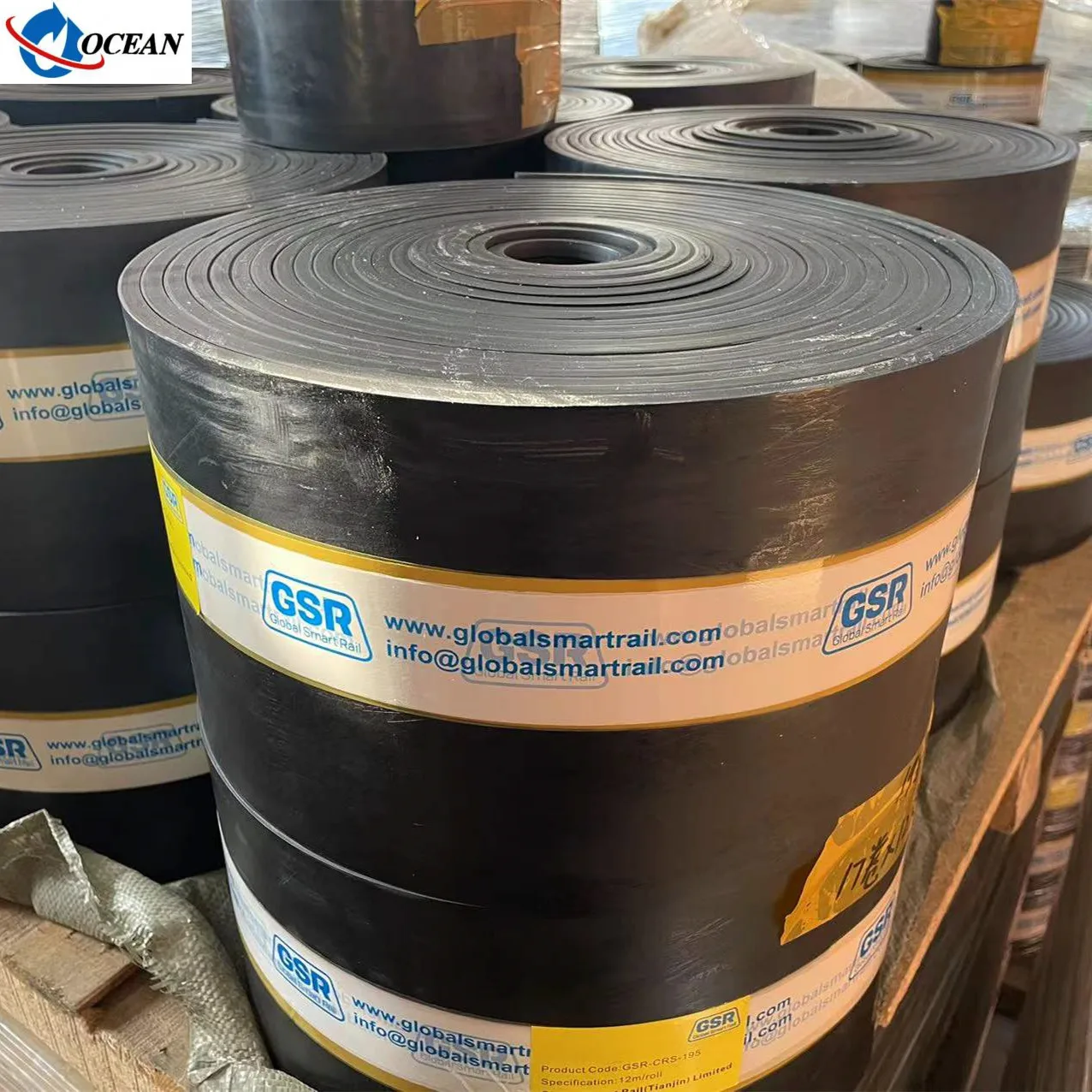

Pads are supplied in standard lengths of 12 m, with tolerance of ± 50mm

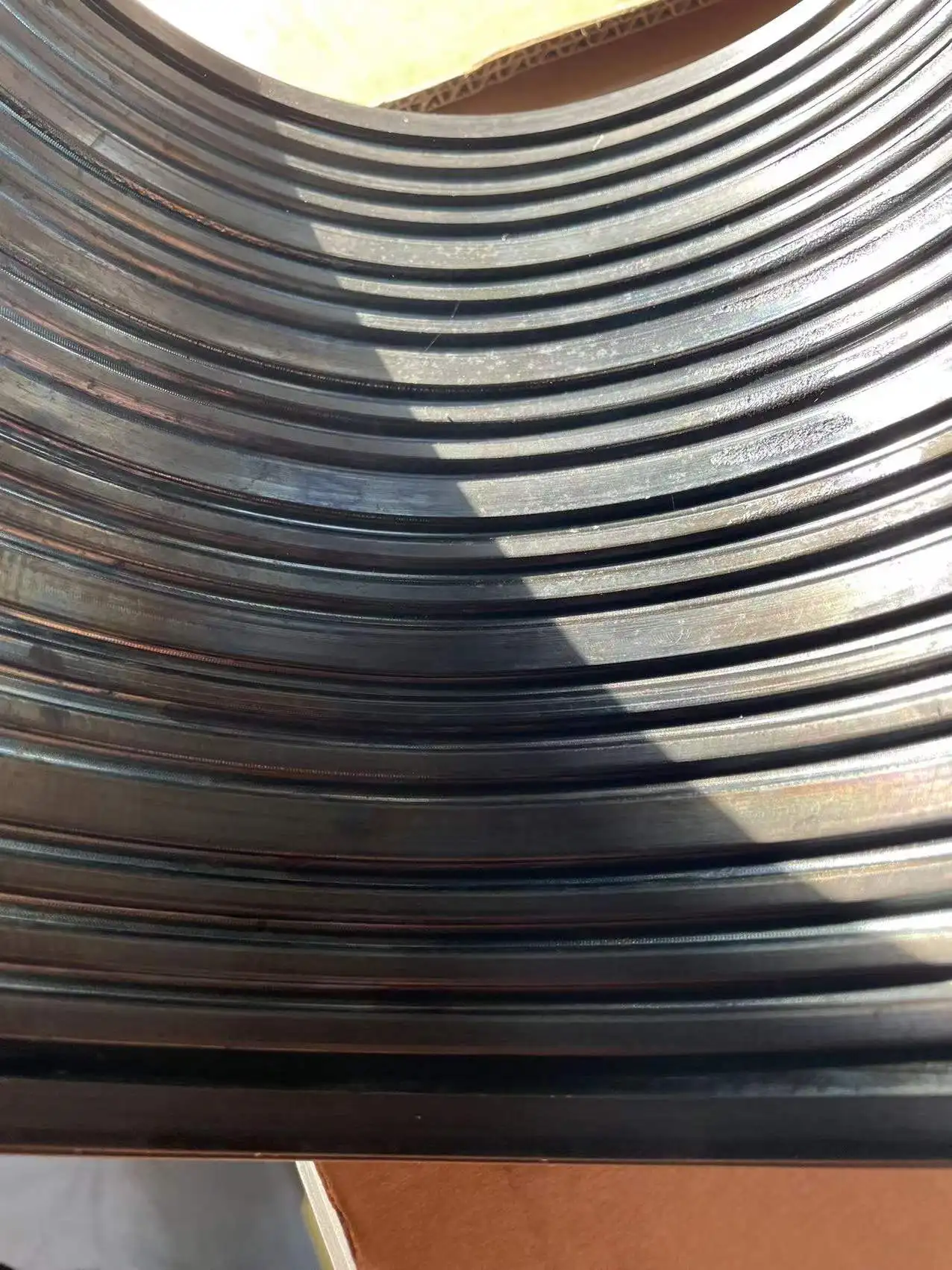

The upper face is grooved
GSR-CRS pads have been specially designed for the soft mounting of crane rails, being mounted either continuously on steel, or on mixed concrete and steel, along with GSR fixing clips.
GSR-CRS pads are manufactured as a vulcanized synthetic elastomer strip, reinforced with a steel strip.
Reduce the wear of the rail and its support
Absorb uneven surfaces
Improve the contact between rail and support
Are suitable for all normal environmental conditions
Are designed for service temperatures from -25℃ up to 100℃
Reduce noise and vibration
Material characteristics:
Synthetic elastomer reinforced with a steel strip
Shore hardness : 75°A ± 5 (ISO 48:1994)
Tensile strength（ISO 37:1994) :17.5 N/mm2 when leaving factory – 15.0N/mm2 after ageing
Elongation (ISO 37:1994) : 305% when leaving factory – 240% after ageing
Compression set（ISO 815:1991) : < 5 % when leaving factory
Rebound resilience（ISO4662:1986) :27%
Service temperature : from -25°C up to +100°C. For other temperatures, please consult us.
Designations and dimensions:
LN = The effective width is always 5 to 8 mm less than the rail foot width
LN = 98mm, 108mm, 128mm, 135mm, 147mm, 168mm, 195mm, 215mm
Pads are supplied in standard lengths of 12 m, with tolerance of ± 50mm
The upper face is grooved

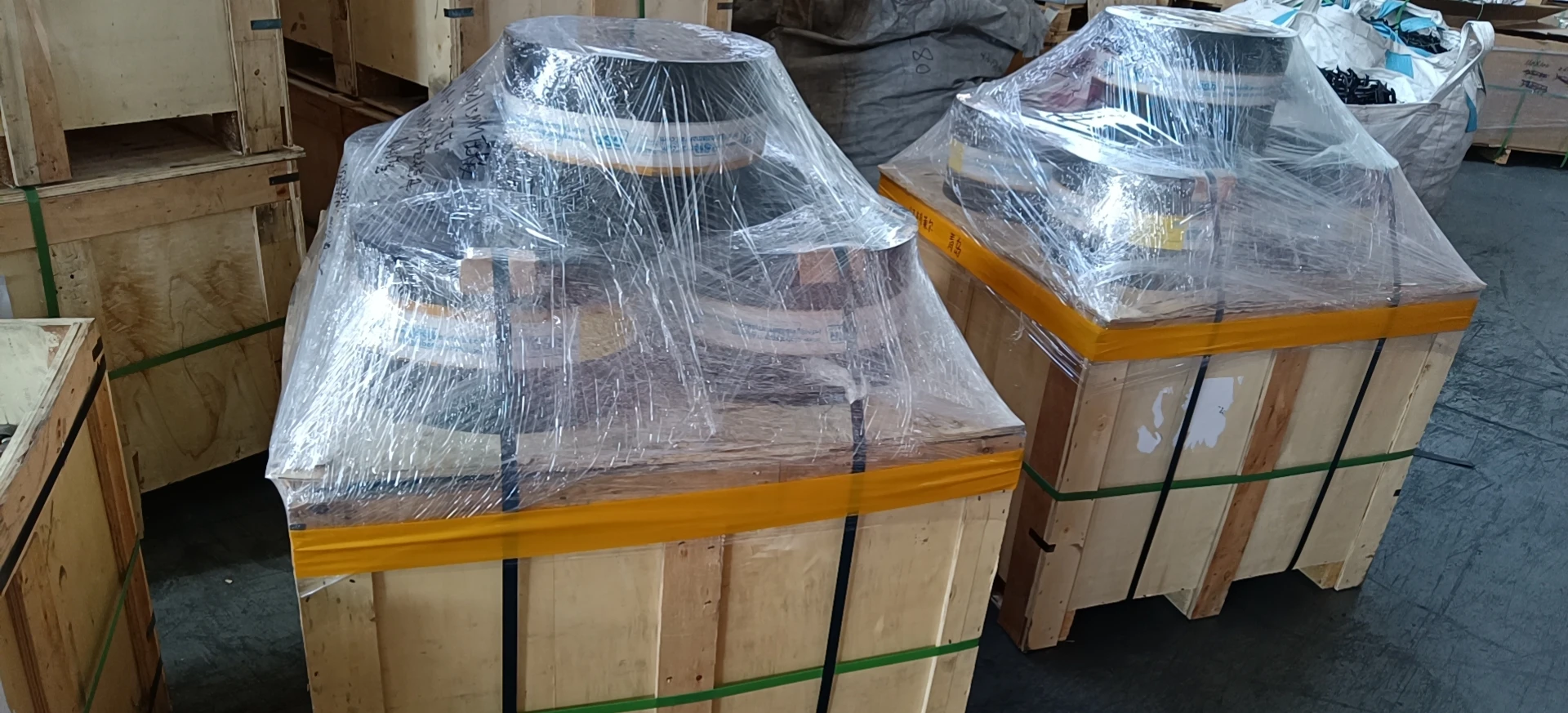

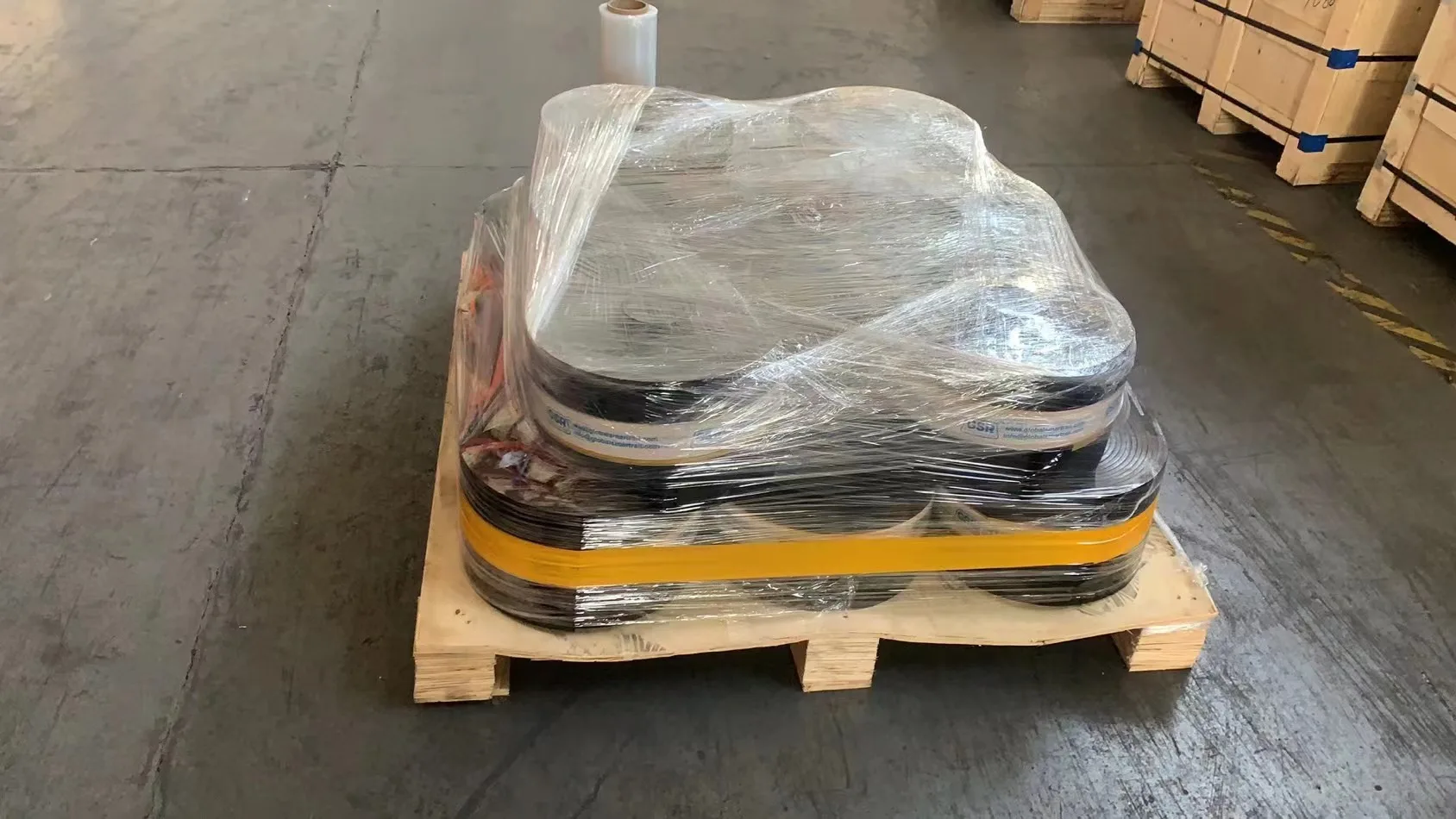

Packing & Delivery
Company Profile
Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Major Projects
Project: The 3rd and 4th phase for ship loader rail renovation and repair project by Shenhua Huanghua harbor co., LTD.
Supply: 508 meters of QU80 rail adopted GSR clips, pads and grout.
