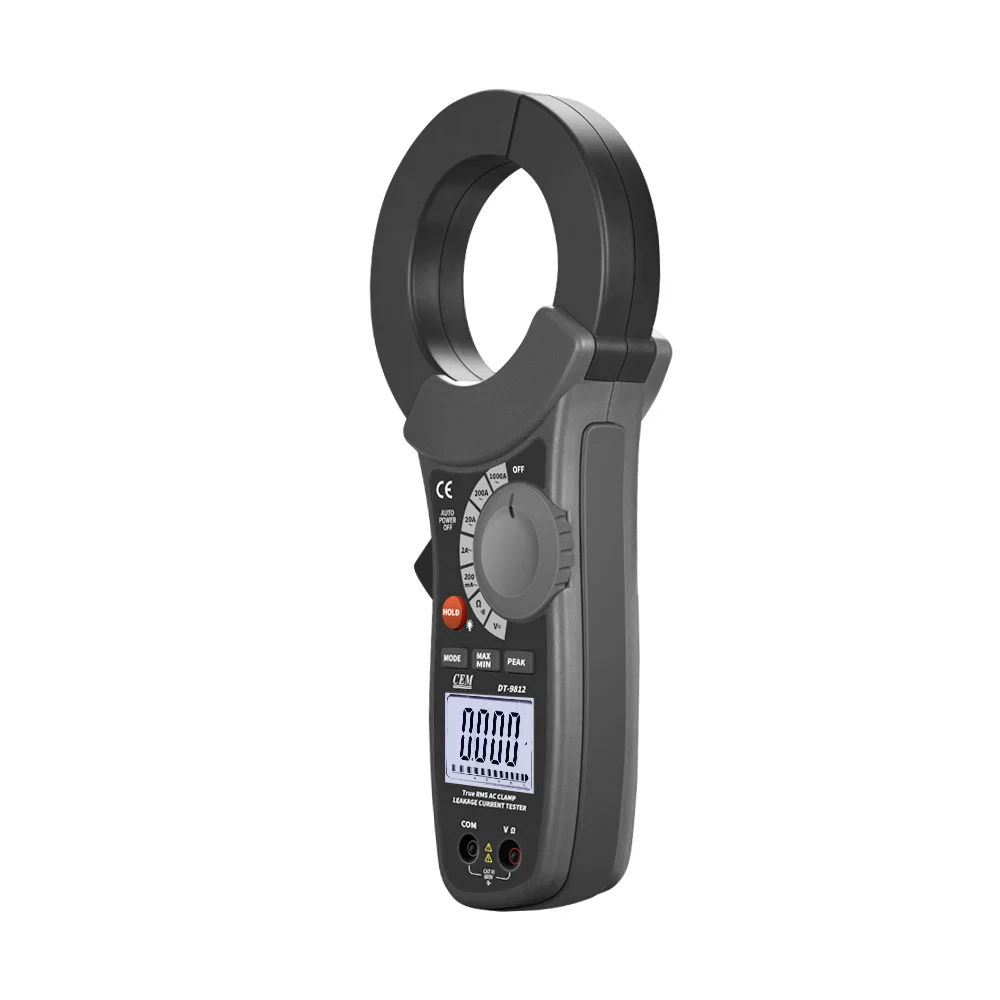

CEM DT 9812 68mm big jaw size 1000A AC Leakage Current Tester clamp meter with Peak hold function

Product Overview

Description



DT-9812 1000A AC Leakage Current Tester

Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.
Frequency filter switch to eliminate the effect of the harmonics.
Measurement from mA up to AC 1000A
True RMS enables an accurate measurement for distorted waveforms.
Peak hold function
Data hold function: Allows for easy reading in dimly light or hard-to-reach locations
Large LCD display with backlight
International safety standard IEC61010-1 CAT.III 600V

Size (H x W x D): 250mm x 113mm x 45mm
Weight: 490g



Features

Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.

Frequency filter switch to eliminate the effect of the harmonics.

Measurement from mA up to AC 1000A

True RMS enables an accurate measurement for distorted waveforms.

Peak hold function

Data hold function: Allows for easy reading in dimly light or hard-to-reach locations

Large LCD display with backlight

International safety standard IEC61010-1 CAT.III 600V



Specifications
Function	Range	Range	Accuracy(50/60Hz)	Accuracy(40~1kHz)
AC Current	200mA	0.1mA	±(1.5%+10d)	±(3.0%+10d)
	2A	1mA	±(1.5%+10d)	±(3.0%+10d)
	20A	10mA	±(1.5%+10d)	±(3.0%+10d)
	200A	100mA	±(2.0%+10d)	±(3.5%+10d)
	1000A	1A	±(5.5%+10d)	±(10%+10d)
AC Voltage	600V	0.1V	±(1.0%+5d)
DC Voltage	600V	0.1V	±(1.0%+5d)
Resistance	600	0.1	±(1.0%+5d)
Continuity Test	Threshold 40, Continuity Beeper 2KHz
Conductor size	68mm max.
Frequency response	40Hz-1kHz
Effect of external stray magnetic filed 15mm 100A	10mA AC max.
Applicable standards	IEC 61010-1 CAT.III600V IEC 61010-2-032
