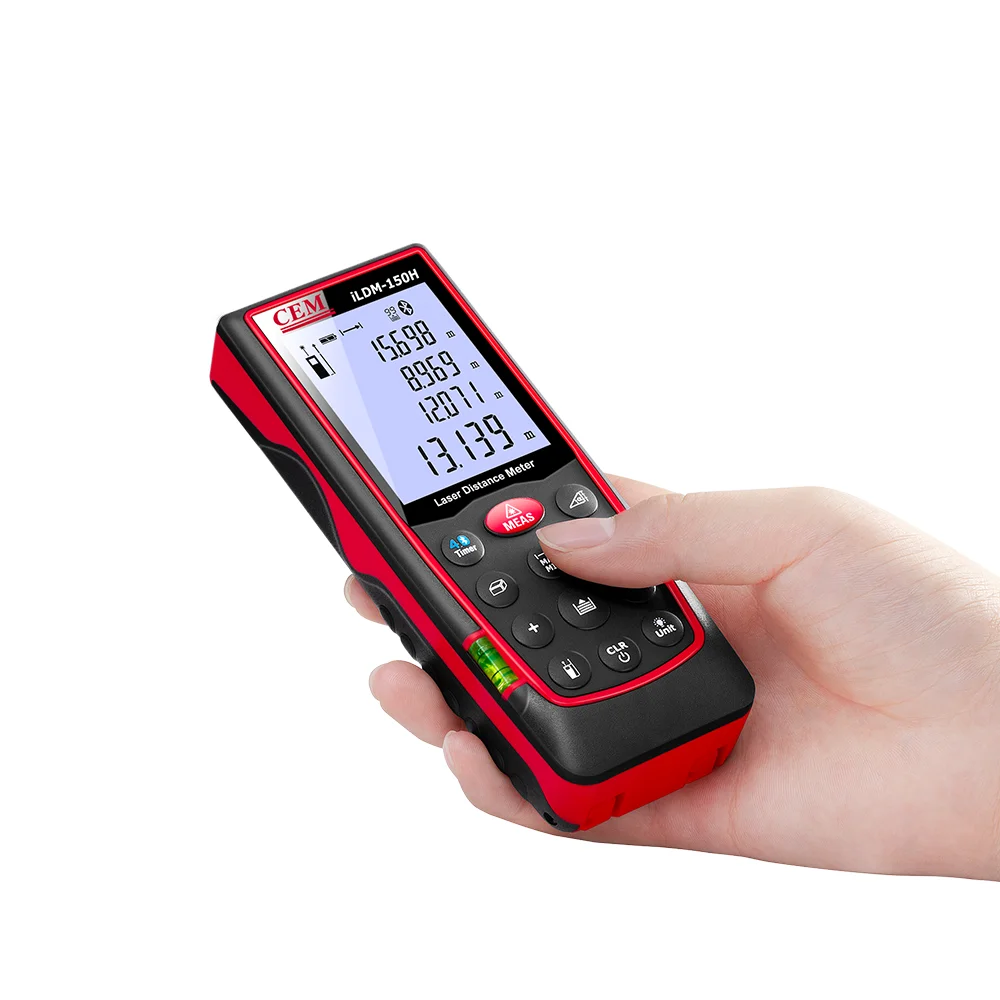

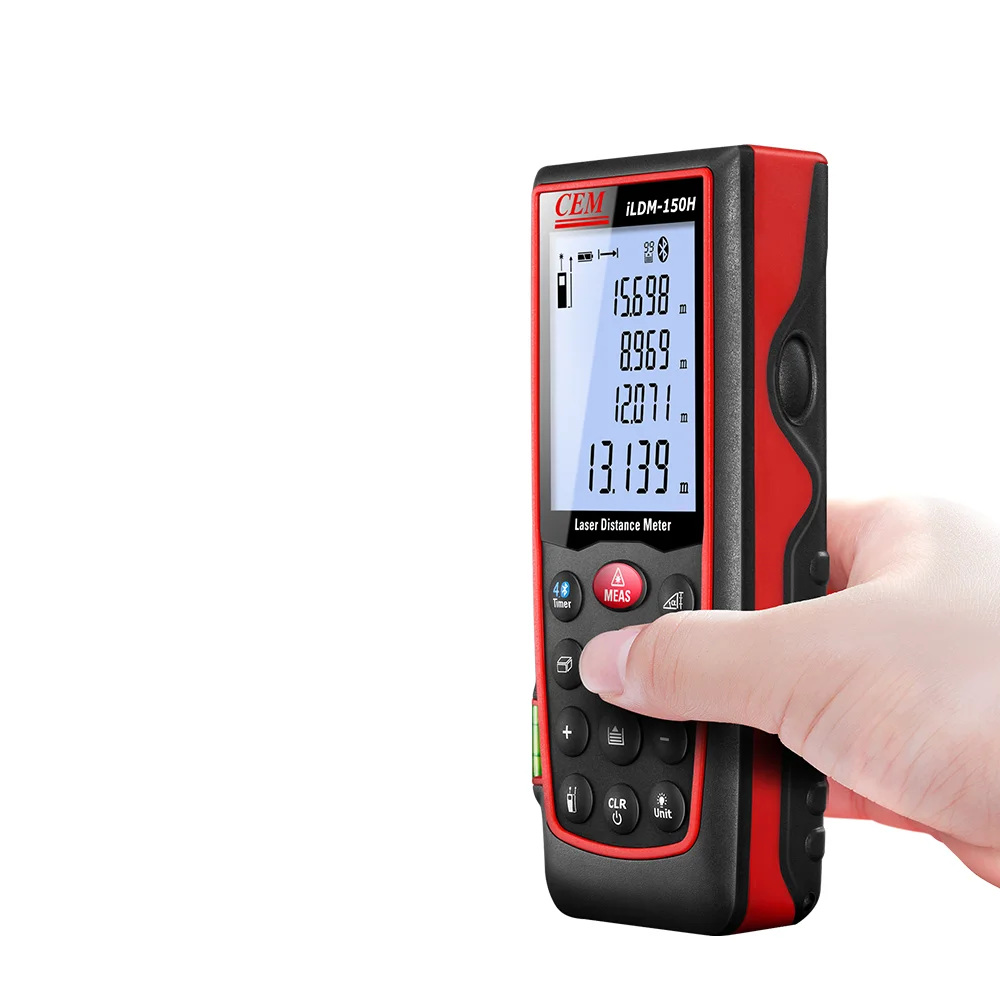

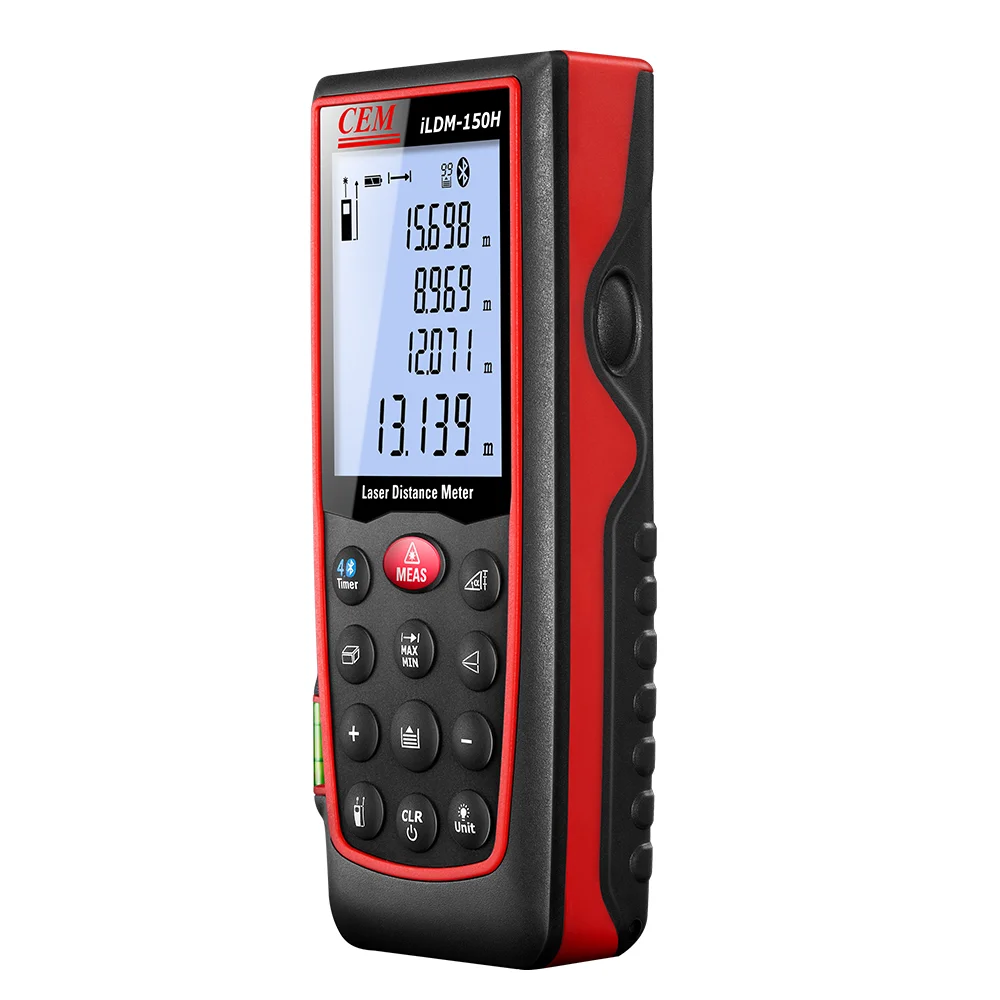

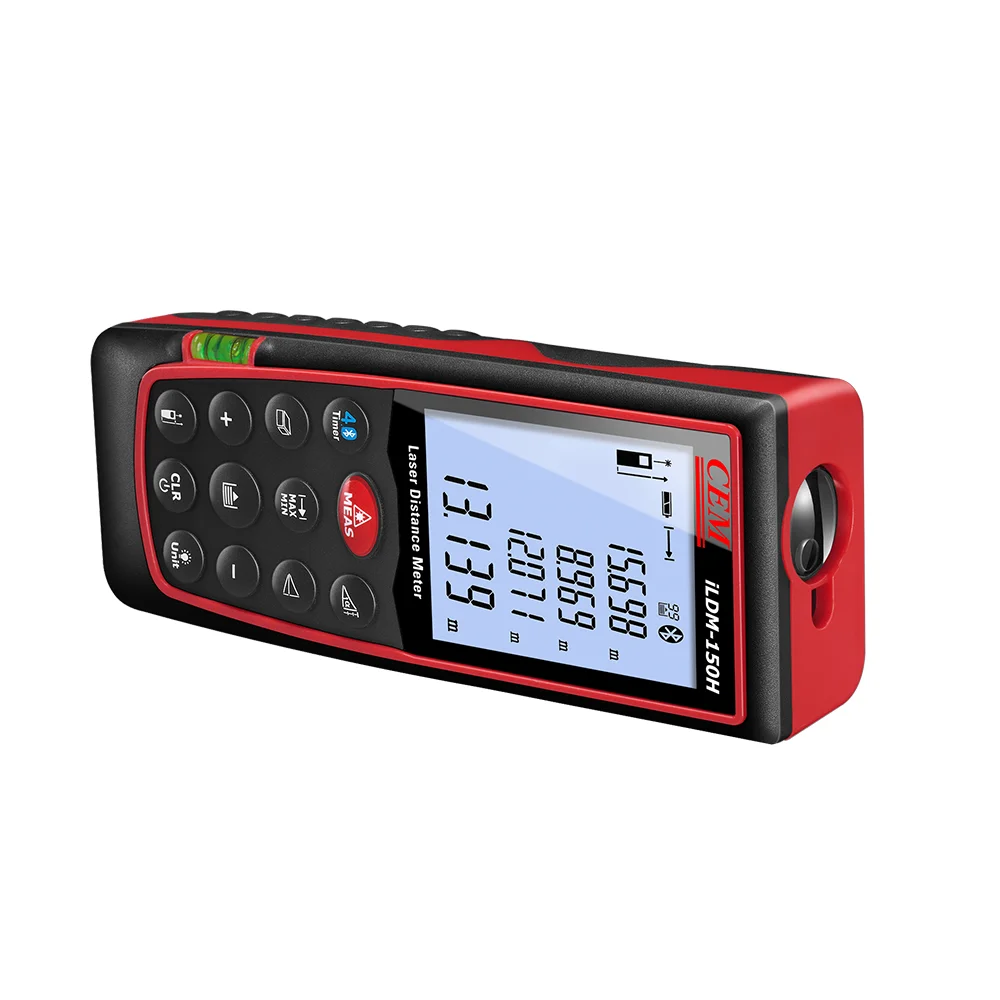

CEM iLDM 150H Professional laser distance meter 150m bluetooth laser rangefinder

Product Overview

Description

CEM iLDM-150H  Professional  laser distance meter 150m bluetooth laser rangefinder

The professional Laser Distance Meter is designed to give special users a high accuracy, one person distance measuring and estimating tool to measure remote and difficult reaching places. The compact and handheld design for indoor applications.Shortcut keys for addition, subtraction, Pythagoras, area and volume calculation make measuring fast and very reliable. The last 20 measurements are also stored.
Meterbox-iLDM software & cloud server support to transfer the measured data to the customer's smartphone for edit and storage.

Features

Area, Volume Calculations

Indirect Measurement Using Pythagoras

Indirect Measurement Using Tilt Sensor

Angle Measurement Using Tilt Sensor (±65°)

Addition/Subtraction

Continuous Measurement

Min/Max Distance Tracking

Timer (self-triggering)

Laser Continuous

Stake-out Function

Display Illumination and Multi-line Display

Multifunctional Endpiece

Tripod Thread

Bluetooth with APP Support

Meterbox iLDM & Cloud Service

Size(HxWxD): 135mm x 58mm x 33mm

Weight: 203g



Specifications	iLDM-150	iLDM-100H	iLDM-120H	iLDM-150H	iLDM-160H
Measuring Range	0.05 to 70m (0.15ft to 229.0ft)	0.05 to 100m (0.15ft to 328.0ft)	0.05 to 120m (0.15ft to 393.7ft)	0.05 to 150m (0.15ft to 492.1ft)	0.05 to 160m (0.15ft to 524.9ft)
Measuring Accuracy	Typically ±1.5mm (±0.06in)
Measuring Units	m, in, ft
Laser Class	Class II 635nm, <1mW
Smallest Unit Displayed	1mm
Tilt Sensor Measuring Range	±65°
Range of Bluetooth	10m
Dust Protect/Splash Proof	IP54
History Measurement Records	99
Keyboard Type	Super Soft-touch (Long Life)
Operating Temperature	-10℃ to 50℃ (14℉ to 122℉)
Storage Temperature	-20℃ to 60℃ (4℉ to 158℉)
Battery Life	Up to 8,000 Measurements
Battery	Type AA 2x1.5V
Auto Laser Switch-off	After 0.5min
Auto Instrument Switch-off	After 3min
