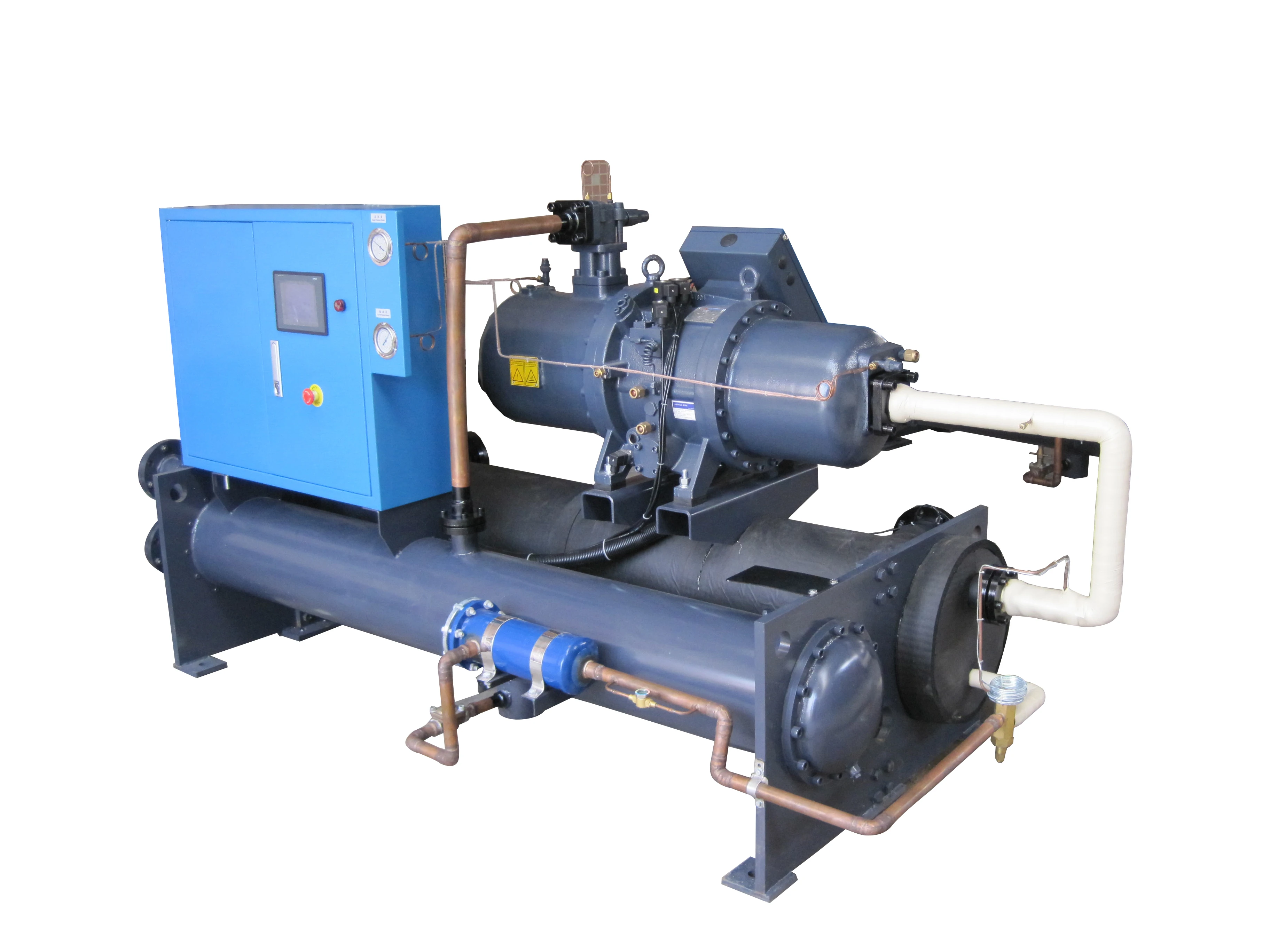

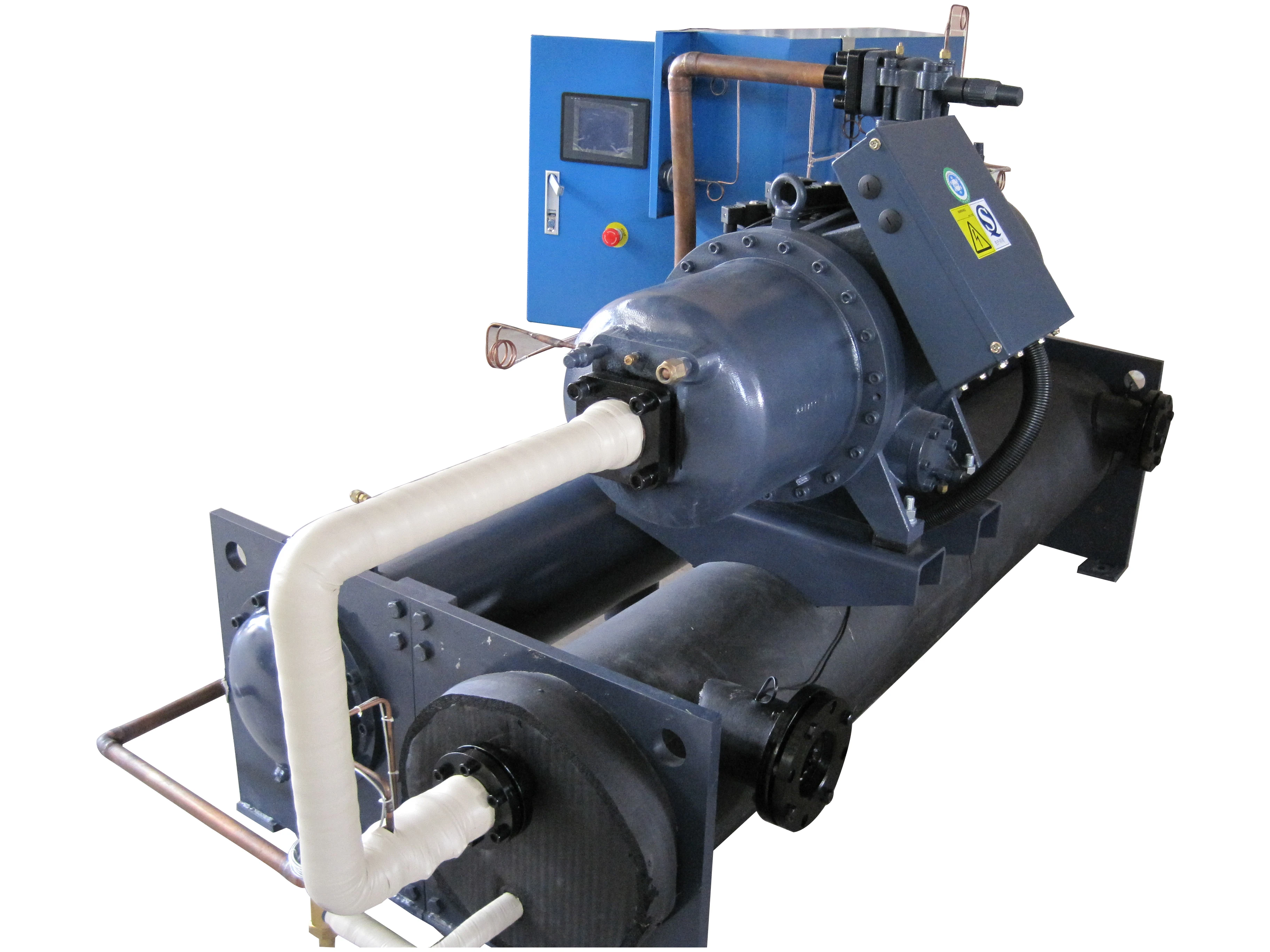

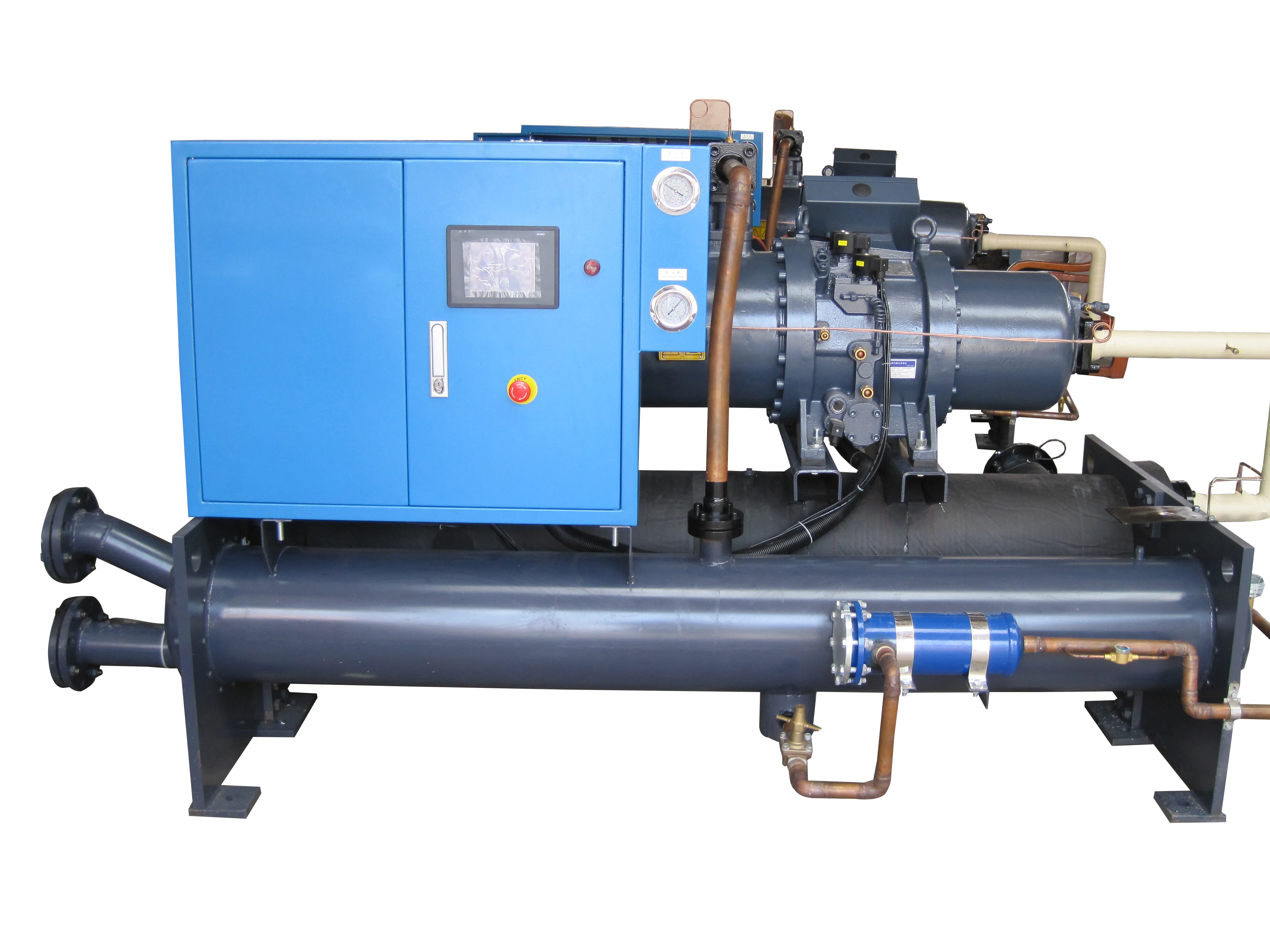

Холодильное оборудование, промышленная система охлаждения, винтовой охладитель с водяным охлаждением, двойной компрессор

                   Model

Item

LC-60WS

Band

Power supply

380V/3PH/50HZ

Nominal cooling capacity

Kcal/h

170000

KW

198

USRT

56

Refrigerant

Name

R22(or R407C/R404A)

Import of high

quality refrigerant

Refrigeration circuit

1

Throttling device

Control method

Thermostatic expansion valve

Compressor

Type

Semi-hermetic Screw

Hanbell(Taiwan)

Starting

Energy control

25%-50%-75%-100%

Input power(kw)

42.2

Rated current(A)

71

Condenser

Type

Shell tube

High efficiency external

thread copper pipe

shell and tube type

Water flow(m³/h)

41.3

Pressure loss(kpa)

40

Pipe specification(PT)

3″

Evaporator

Type

Shell tube

High efficiency internal

thread copper pipe

shell and tube type

Water flow(m3/h)

34

Pressure loss(kpa)

60

Pipe specification(PT)

3″

Safety device

Overload protection.high and low pressure protection.exhaust overheating protection.antifreeze protection.power inverse phase protection.hydraulic protection.

JAVE(Taiwan).ALCO(America).

Schneider(France).Chint

dB(A)

59.7

Dimension

LxWxH(mm)

2600*850*1600

Wooden case

Machine weight(kg)

1380

Operating weight(kg)

1550
