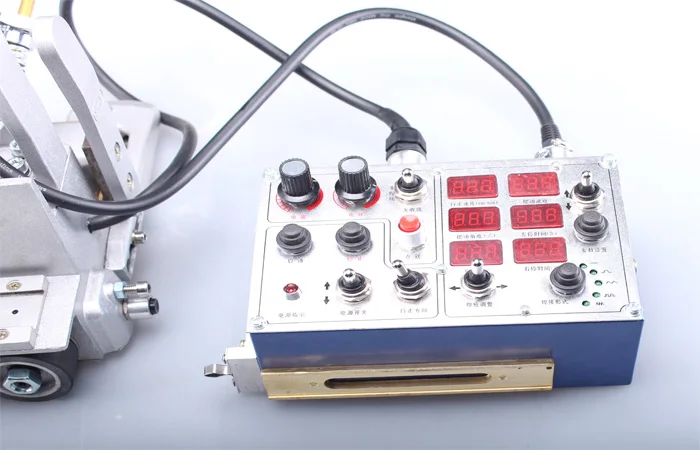

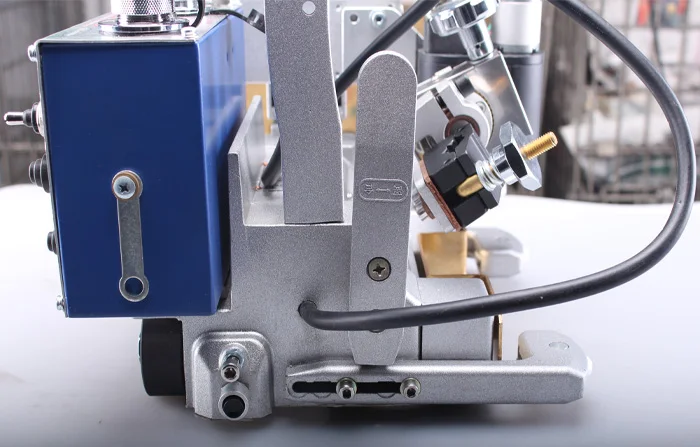

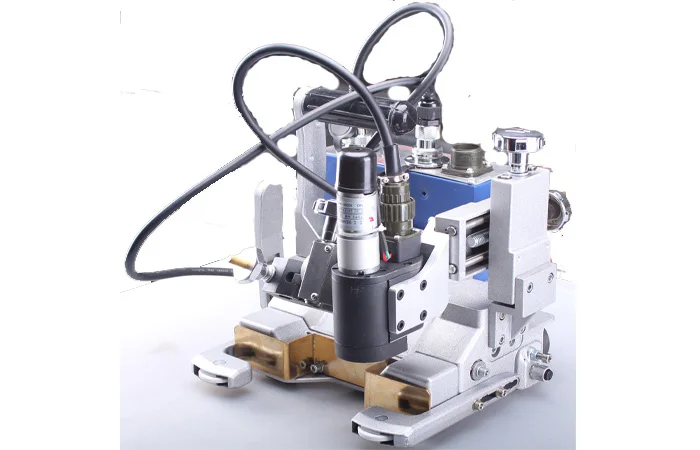

HK-5W is constituted of body, X-Y slide, guide wheel, grip of welding torch, swing device, magnetron hand grip and control box.

1) Body:It is the frame of the machine and the carrier of other parts.

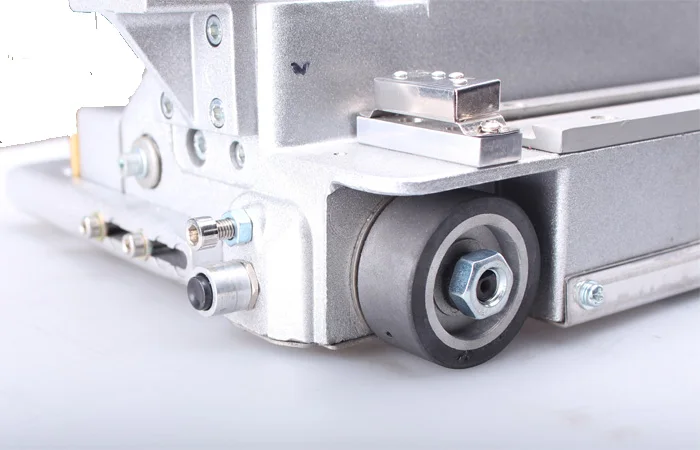

2) Driving part: It is the device to drive trolley. The part is constituted of four rubber rims, angle gear, chain, chain pulley.

HK-5W is constituted of body, X-Y slide, guide wheel, grip of welding torch, swing device, magnetron hand grip and control box.

1) Body:It is the frame of the machine and the carrier of other parts.

2) Driving part: It is the device to drive trolley. The part is constituted of four rubber rims, angle gear, chain, chain pulley.

3) X-Y slide: It is used to adjust the position of welding torch. In the welding process, you can adjust welding torch up and down a little.

4) Swing device of welding torch: Make the welding torch weld in swing model.

5) Grip device of welding torch: It is used to grip welding torch. It is convenient to repair, adjust it.

6) Magnetron hand grip: It makes trolley equipped and moved easily. It is equipped with permanent magnet to avoid running away welding line.

7) Guide wheel:

 Main technical parameter
