9/64 Hss M 35 5% Cobalt Hss E Drill Bits Index For Metal Milling
9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling
9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling
9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling
9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling
9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling
9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling

9/64 Hss M 35 5% Cobalt Hss E Drill Bits Index For Metal Milling

Share on (62038762397):


Price:$0.18 - $0.25

Quantity:


Product Overview

Description



Product Description










Product Name

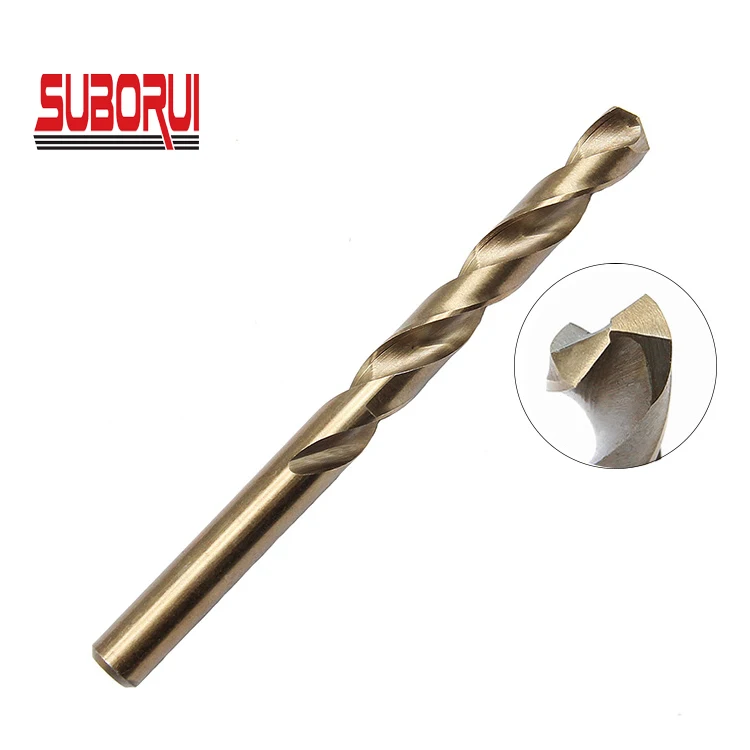

9/64 Hss M-35 5% Cobalt Hss E Drill Bits Index For Metal Milling

Material
HSS (Cobalt HSS-E is Available)
Process
Fully Ground (Rolled,  Milled are Available)
Standard
DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,
Reduced Shank are Available)
Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long , Silver & Deming 1/2" Reduced Shank are Available)
Size
0.3-30MM 1/16" - 31/64" , A - Z, 1# - 60#
Point Type
118 Degree Regular Point ,135 Degree Split Point, Pilot Point are Available
Shank Type
Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,

are Available)
Helix Angle
Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type Ware Available)
Web & Flute Type
Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish
Bright ,Black Oxide, Amber Color, Titanium, Black & Gold, Titanium & Bright are Available
Package
in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box
Features
1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
2.Universal 135° point shape for drilling a wide selection of materials.
3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.




Daily Production:100000PC

Sample same below size often we could delivery immediately,a little change often we could finish it around 3 days
More Product  No MOQ link




Welcome send us drawing as below








Customized Product



Custom Size

We have regular size standard, and you are welcome to provide the size you need





Coating Custom

We have several fixed options
1,Bright Coating
2,Titanium Coating
3,Amber Coating
4,Black Coating
5,Mix the two coatings

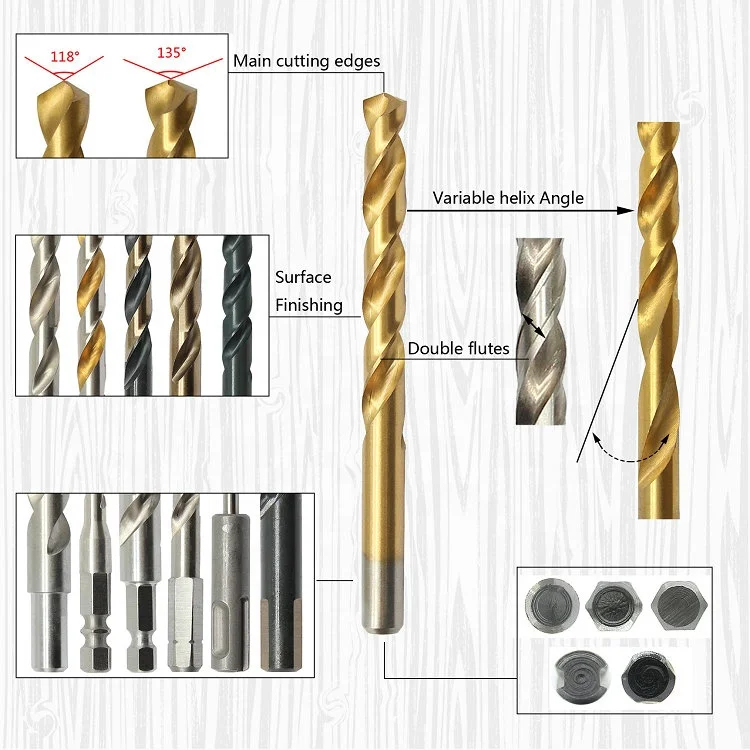

Cutting Edge

There are two options
1,135 Split Point
2,118 Split Point





Helix Angle and Flute Design

Regular Spiral Type N(normal)
Type W Fast Spiral (innovate)
Parabolic Flute(innovate)

.

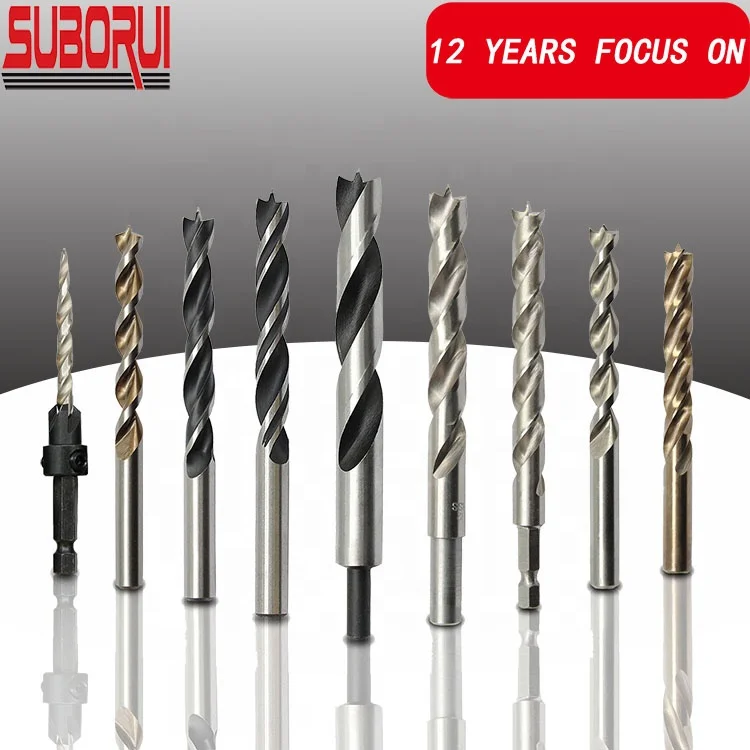

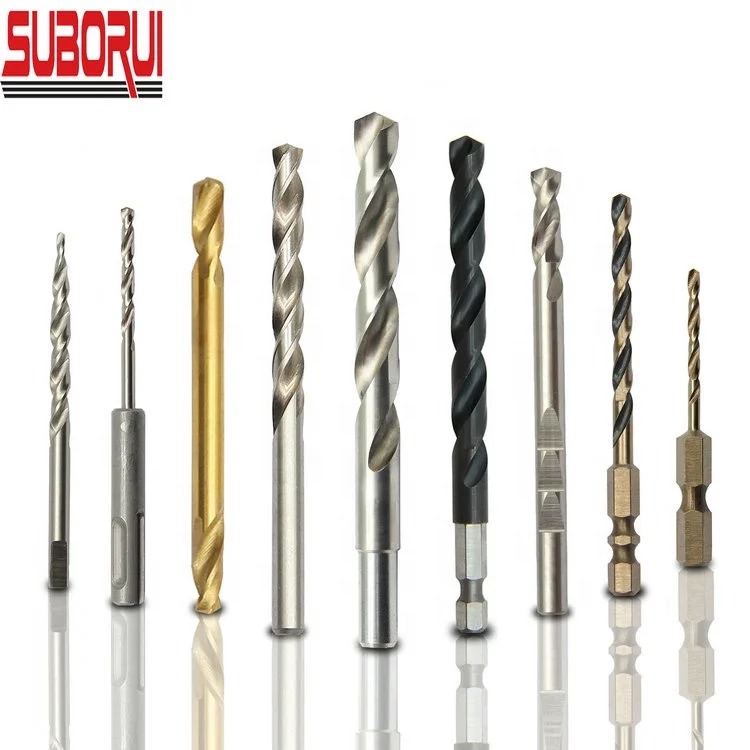

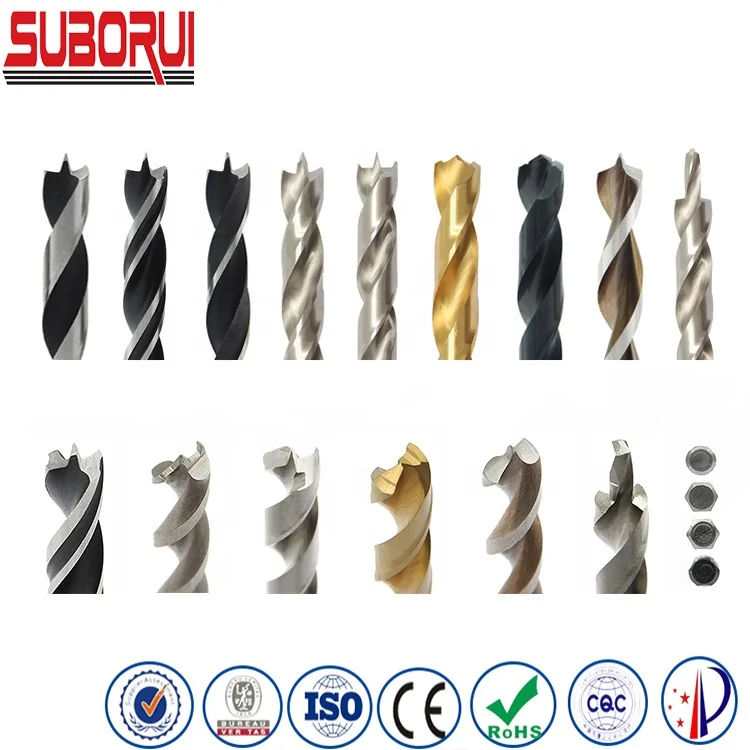

Main Product


                                      Wood Drill Bit

                                                 Twist Drill Bit

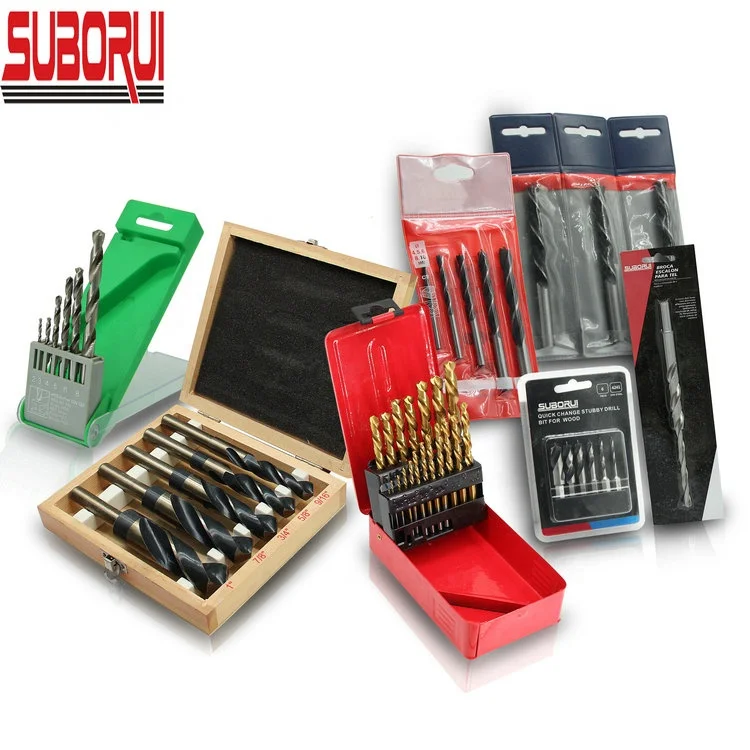

Packing & Delivery

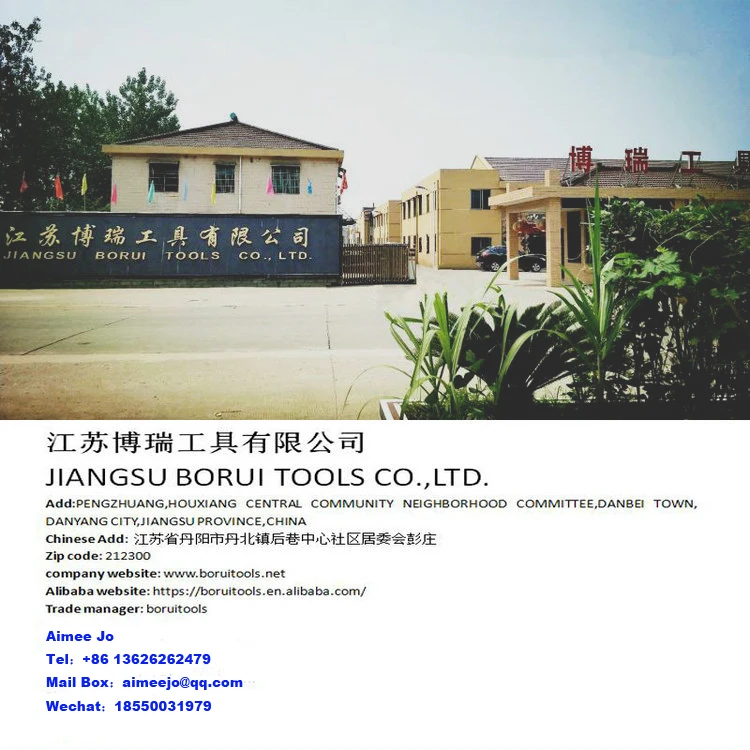

Our Company



Workshop


Passed Environment Inspection
We have 12 years of production experience,All the processing controled by ourself,welcome to visit factory





Certificate of quality assurance







Show

Every year we will go Shanghai Show,more show plan will listed  here




Feedback
