Manufactory direct tungsten alloy spheres/threaded ball bearing blank

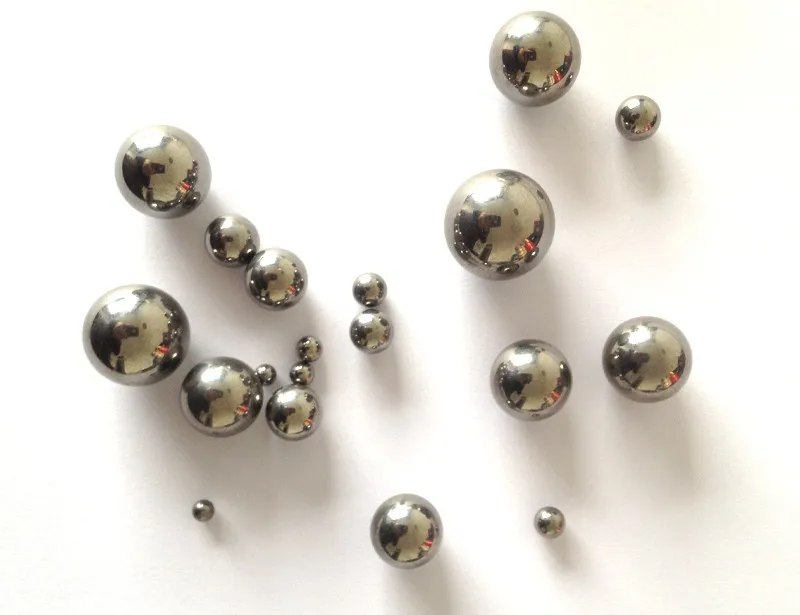

Carbide balls mainly include rough balls, fine grinding balls, punching balls, bearing balls, valve balls, non-magnetic balls,
Monel balls, through-hole balls, metering balls, scratching balls, and ball balls for pens.
Monel balls, through-hole balls, metering balls, scratching balls, and ball balls for pens.
Cemented carbide ball is characterized by high hardness, wear resistance, corrosion resistance, bending resistance, and poor service environment, which can replace all steel ball products. Hardness of cemented carbide ball ≥ 90.5, density = 14.9g/cm3.
Grade | Density (g/cm3) | Hardness (HRA) | TRS (Mpa) |
YG6 | 14.9 | 91.0 | 1800 |
YG6X | 14.8 | 92.0 | 1800 |
YKM6A | 14.7 | 92.5 | 1800 |
YG8 | 14.8 | 90.0 | 1950 |
YT5 | 13 | 90.8 | 1900 |
YT14 | 11.5 | 91.5 | 1500 |
YT15 | 11.3 | 91.8 | 1450 |
YW1 | 13.1 | 91.5 | 1600 |
YW2 | 13.1 | 91.0 | 1600 |
We are a professional customization company. Please provide us with the detailed size and material you need.
Advantage
1. High and new advanced equipment
2. The unique new technology: vacuum high temperature and high-pressure sintering. The product uses pressure sintering at the last stage, greatly reduces the porosity, improves the compactness, and greatly improves the mechanical properties of the product.
3. Our factory professionally produces customized, non-standard, special and non-magnetic parts.
4. Material: 100% virgin raw material with submicron grain size Grade: various grades for choice
5. With strict tolerance extent control, the tolerance can reach +/-0.01mm
6. Precision ground and polished
7. High wear resistance, high hardness and impact toughness Advanced technology, automatic pressing, HIP sintering and precision grinding
8. Having very good mechanical &chemical
stability
stability
9. High quality & reasonable price & fast delivery & best service.
