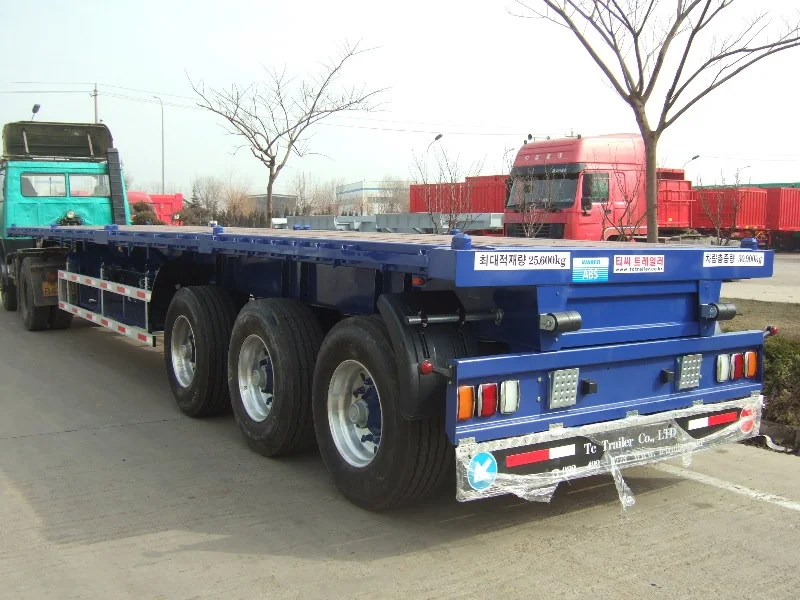

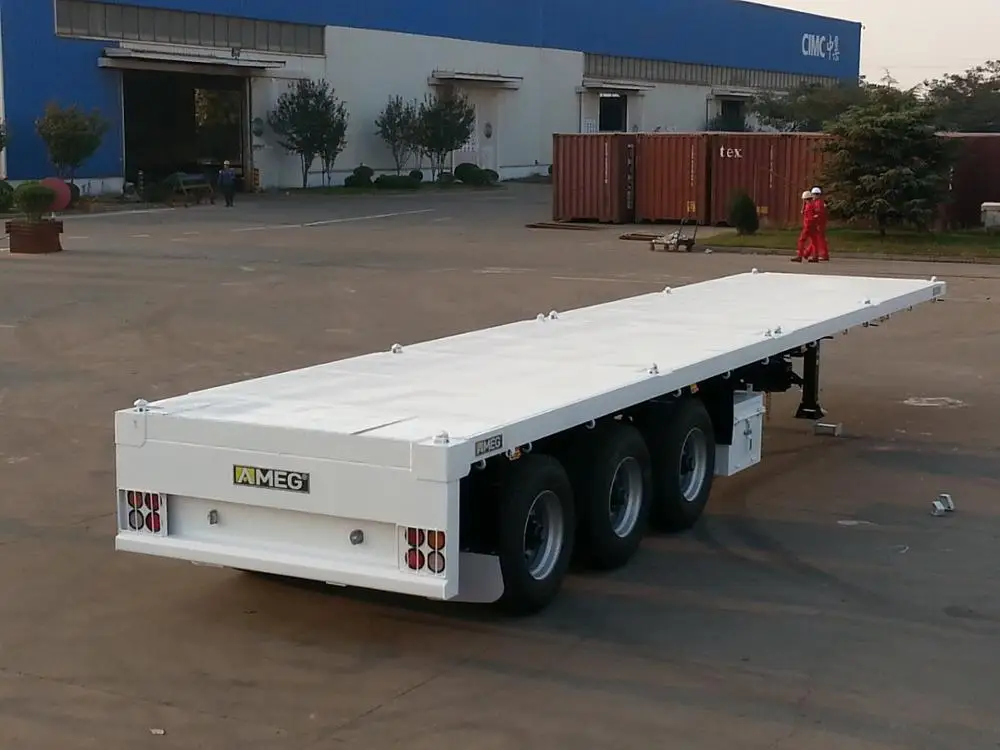

40ft BPW Germany suspension flatbed semi trailer

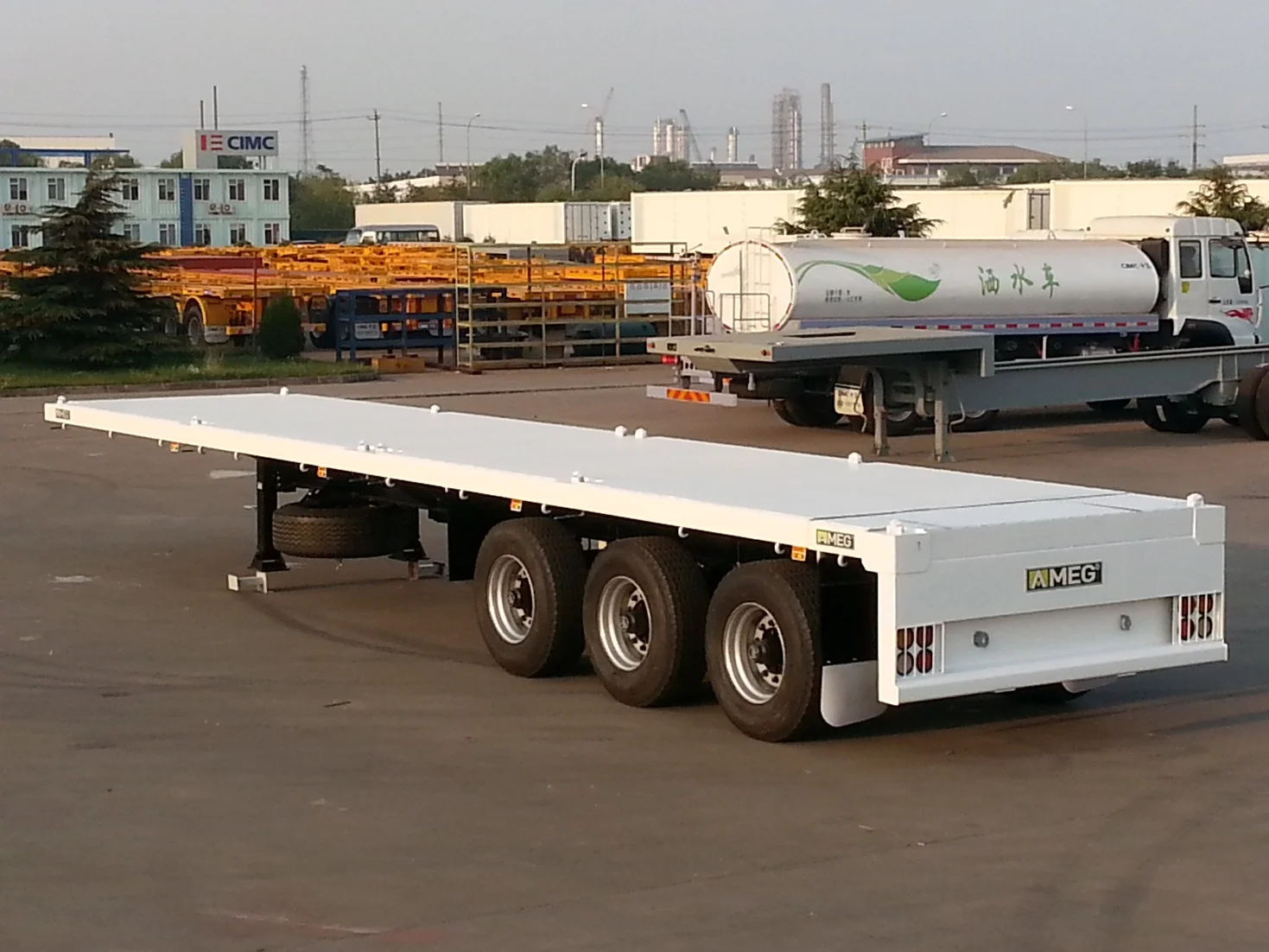

40’ Flatbed Semi-trailer with tri-axle

The trailer is designed for stevedoring and transporting 1x40’ ,1x 20’ or 2x20’ ISO Cargo
Containers.
Dimension:
Length: Approx 12,362 mm
Width: Approx 2,480 mm(including mud guard)
Height: Approx 1,532mm @ unload or more lower
King Pin Location: Approx 1,250 mm from the front face of the front bolster
Axle spacer: Approx 7,140 mm+1,360mm+1,360mm
Landing Gear location: Approx 2,420mm behind the king pin location.
Fifth wheel (King Pin) Height: Approx 1,300mm with the chassis level (It suitable the
tractor truck Kingpin plate 1350mm)
Weight:
Tare Weight(Tolerance 0~-4%): Approx7,300 kg
Max. Payload: Approx 33,700 kg
Gross Vehicle Weight: 41,000 kg


Explanation of loading:
From top loading per axle, We think the total weight is 50Ton, The weight 50Ton include the
tractor ,trailer and loading. The tractor is about 9Ton, So the Trailer and loading should be about 41
Ton. Now our trailer is about 7300kg (with one Spare Tire). So the loading can not more 33700kg.
However, In reality, The trailer can load 40Ton without problem.
Steel Structure:
Material: High strength low alloy steel with Q350 (350MPa) yield strength is used for
welded I-beam and Q350(350MPa) yield strength steel is used for the fabricated parts.
Main Beams: 500mm deep x 146mm wide x 6mm web welded I-section main beams.

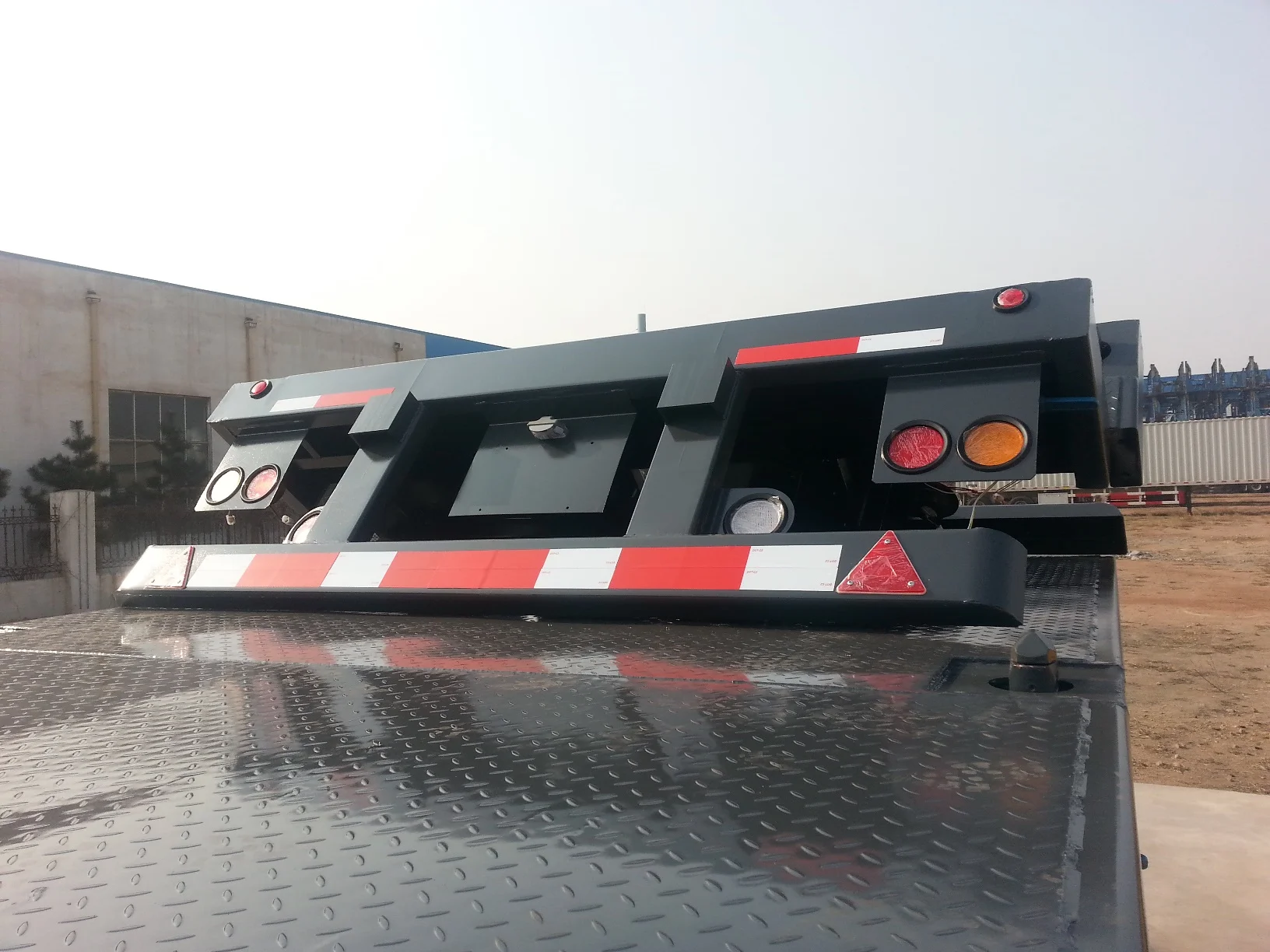

Platform: checked steel floor, the thickness is 2.5mm.
Front Wall: The height of the front wall is 1000mm
OEM Parts Configuration:
King Pin: 2” bolting king pin. Brand: JOST.
Twist Locks: Twelve(12) units retractable ISO type twist locks.
Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type:
JOST E100, Made in China.

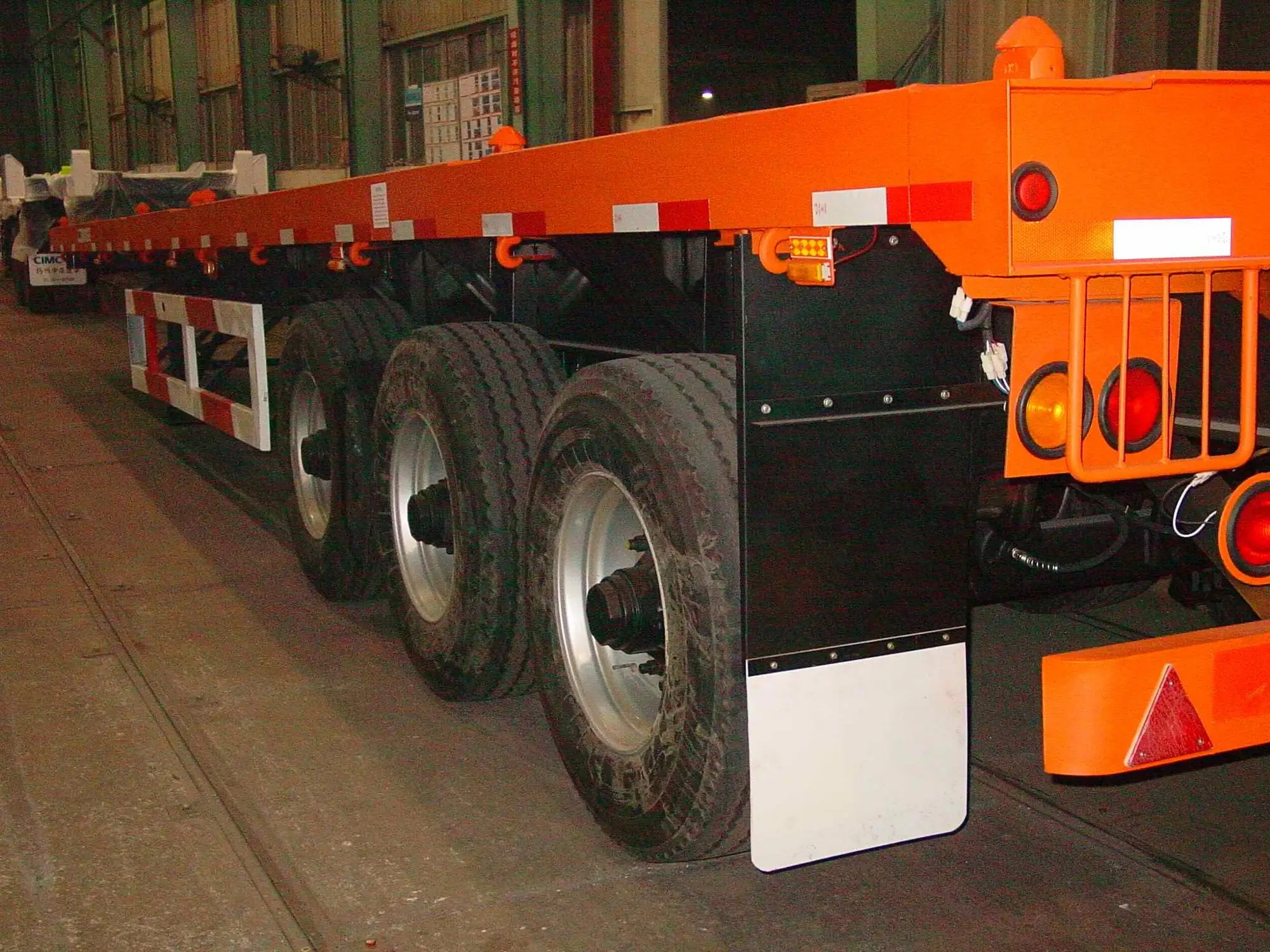

Suspension: heavy duty under mount tri-axle Germany type suspension with equalizers
12-leaf spring.
Axles: 150x150 square axle with 12 tons capacity. Brake: S420x220, Wheel fitting


10xM22x1.5/ PCD335/281. Type: BPW. Made in China.
Rims: 9.0-22.5, 10 Holes ISO steel rim,12 pieces+1pieces
Tires: 315/80R22.5, 12 pieces+1pieces. Chinese famous brand ,choose by the factory.
Brake System: Dual air brake system, WABCO relay emergency valve, none ABS system.
Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.
Electrical System: 24 volt lighting system with modular wiring harness,7 way ISO
receptacle in front of the front bolster, norms NO.1185. Chinese standard .
Others:
Spare Tire Carrier: Equipped one set per chassis with one spare tire

1. Payment:  Deposit , 1 year balance credit after the B/L date.

2. Assemble :  We assble the trailer on your company.

3. Working time :  Our team working in 24 hours, we copy with all of your questions and after service.

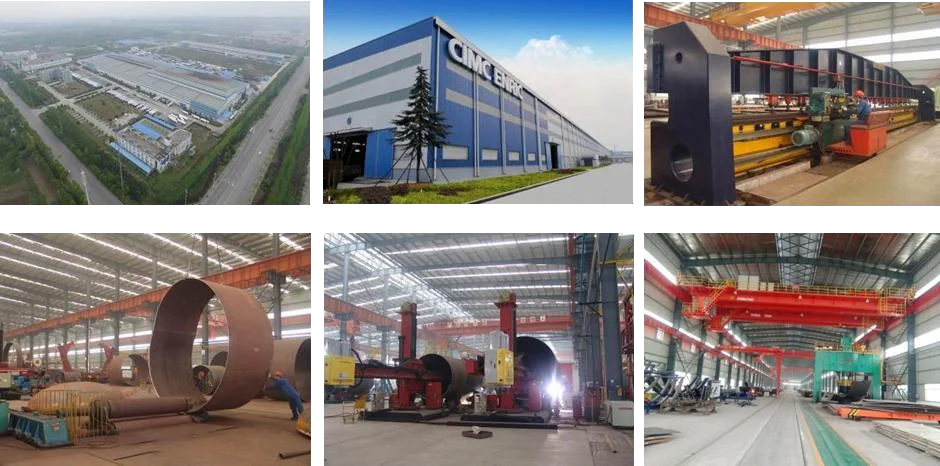

CIMIC Container and trailer has longest history. Businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as the semi trailer. Its annual production capacity of containers and trailers exceeds 2.4 million

1.  Design code and certificates

ASME,GB,ISO,CE,ADR,BV,DNV

2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.
