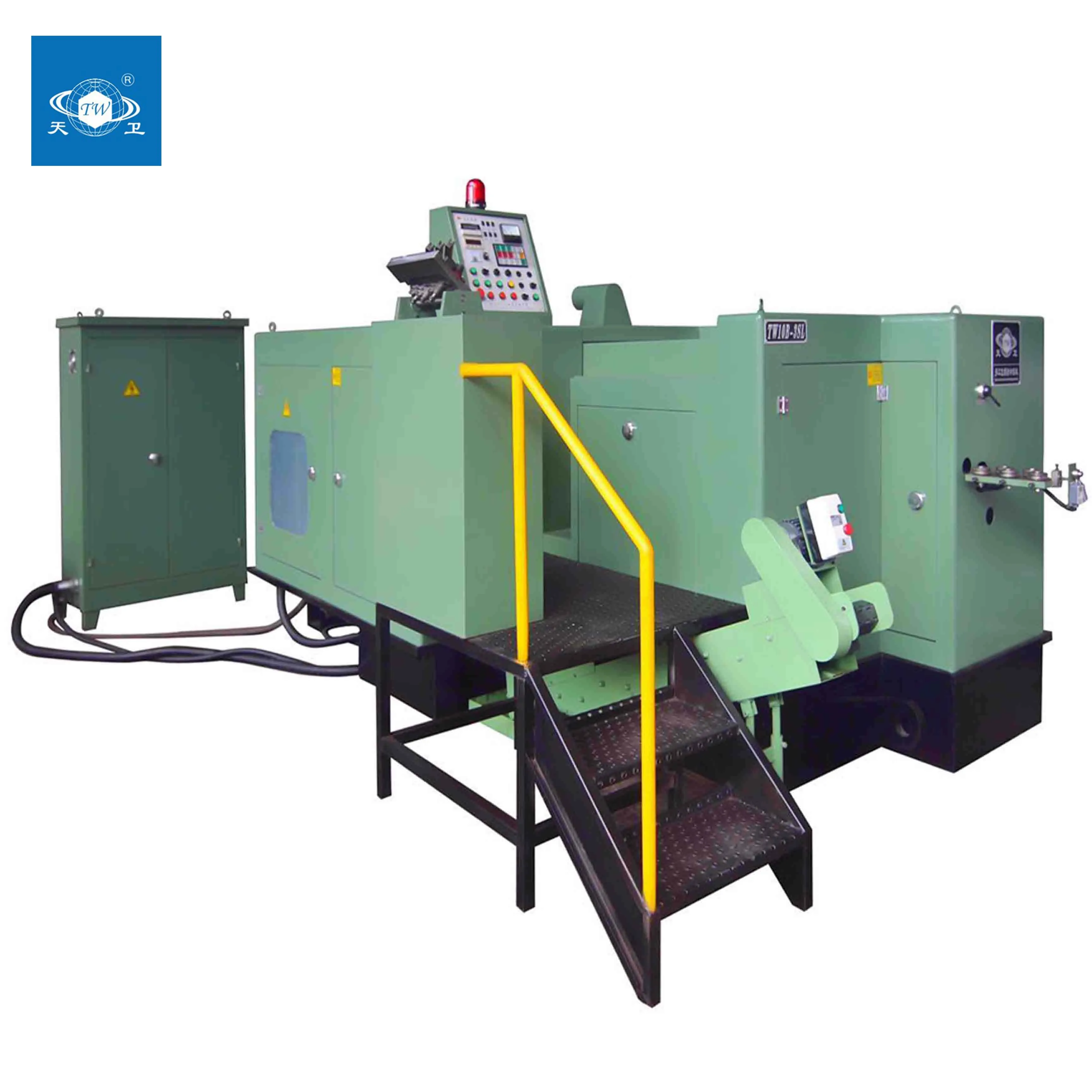

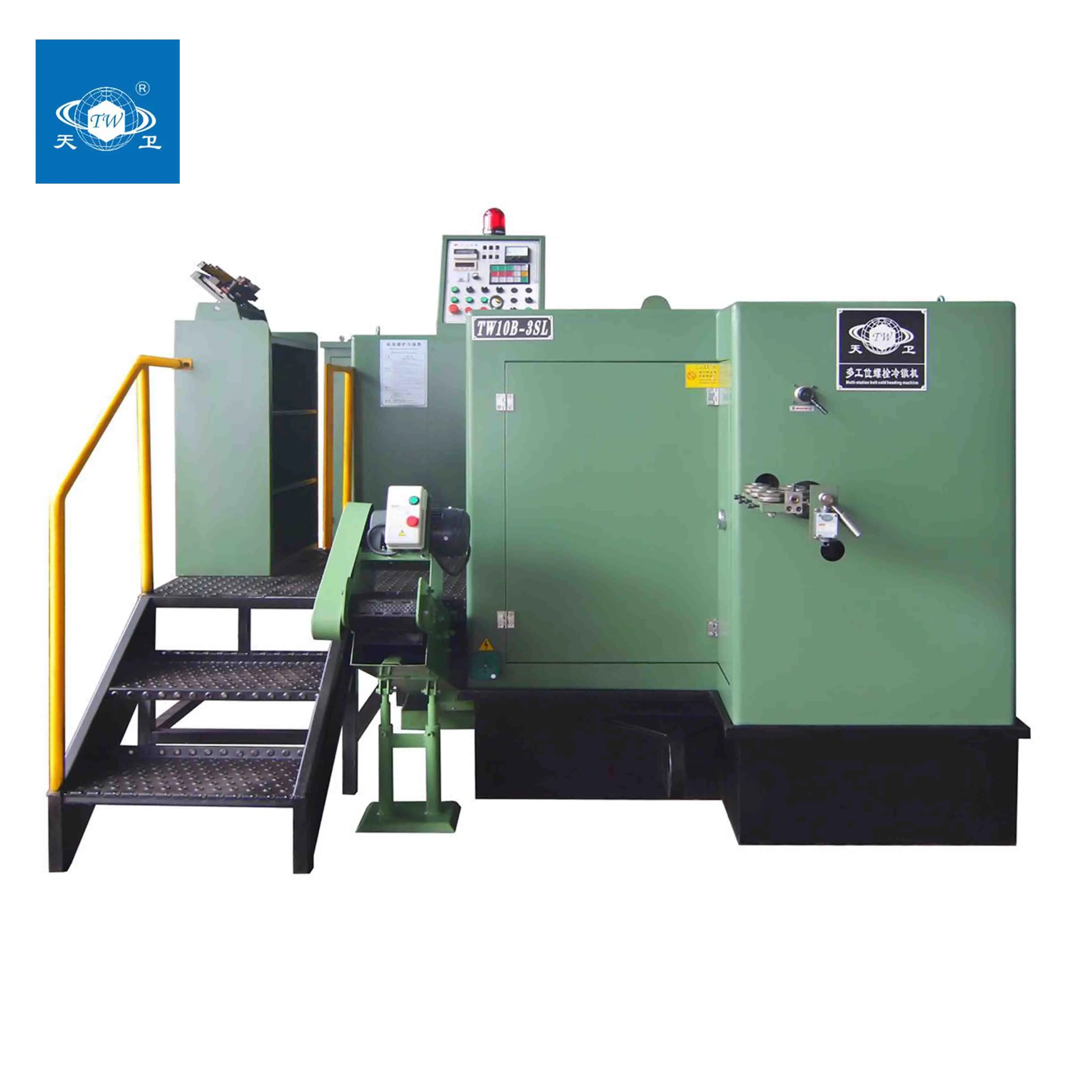

Bolt Screw Making 10B 5SL 5 Station 6MM Automatic Cold Heading Machine

Product Overview

Description

1.      Being equipped with air clutch.

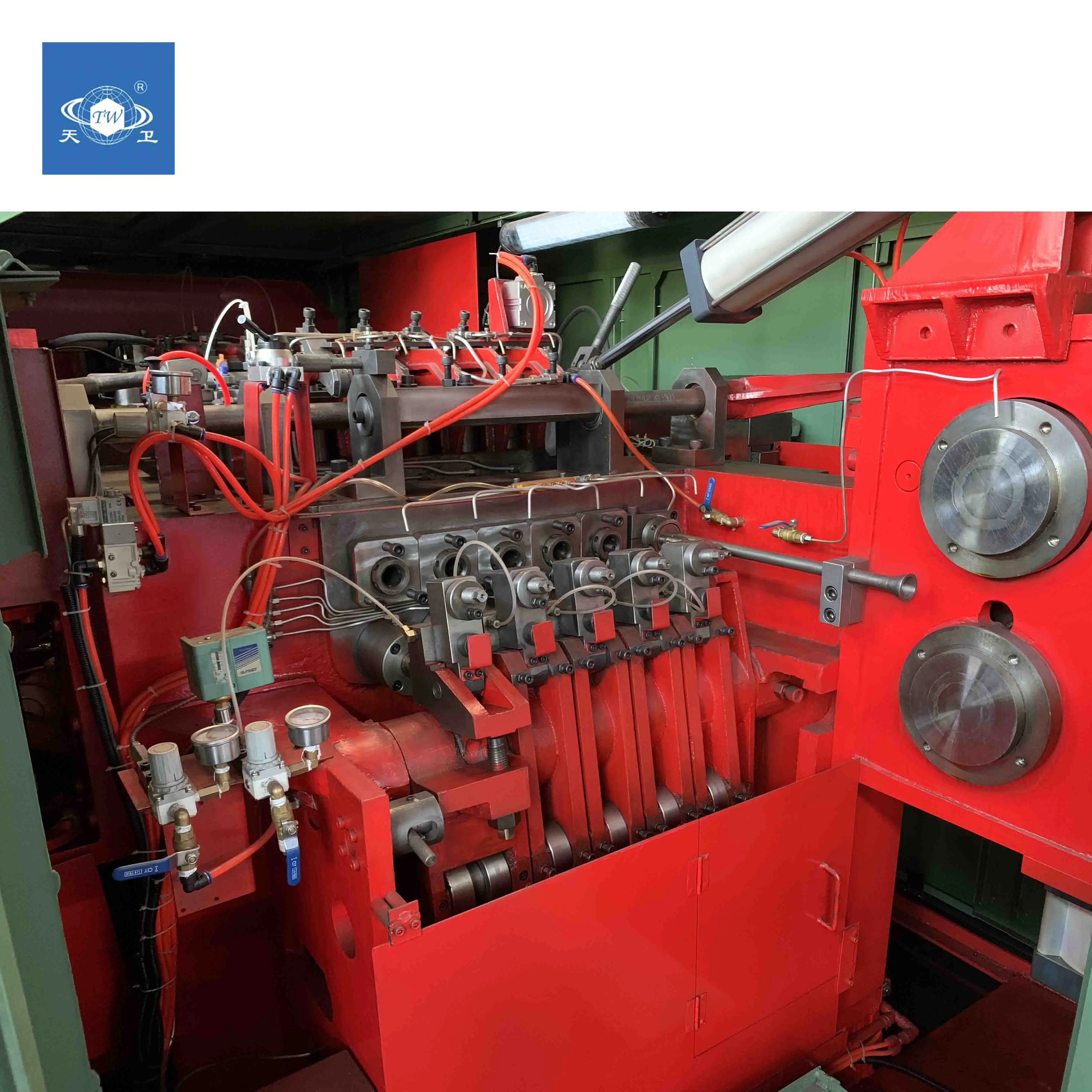

2.      Swing type pneumatic gripping mechanism, the gripping capacity is adjustable and clamping power is stable even at high working speed.
3.      Pressing and feeding wire, there are two overdrive clutches fixed in the feeding course.
4.      Wire cutting part is actuated by strong link-block system
5.      Each station of rear knock out device can be adjusted individually, and the last station can realize the action of knocking out trimmed product via adjusting the location of cam or changing different cam.
6.      Front knock out part moves simultaneously with the retreat movement of the main ram.
7.      Either front knock out device or rear knock out device is fixed a safety pin with the function of pressure check-up.
8.      There is imported converter available in electrical system.
9.      Both main and auxiliary rams, all are made of abrasion resistant alloy, and the inside plates of the formers are made of imported quench alloy.
10.  The principal parts such as body frame, main ram, main link lever etc. all are made of high-strength material.
11.  Main components for each part and all cams all are machined by numerically-controlled machine tools, for guaranteeing precision and the curve smooth and sliding.
12.  Touch screen and man-machine dialogue numerical control system are optional for meeting customer’s requirement.



By equipping with a rotating pilers system, which allows it to be turned up to 180 degrees and moved horizontally, the machine can be easily arranged for the product forming process by engineers. There is an option of the grip system that adapts pneumatic cylinder stand, the grip arms are individually operating and it is able to adjust gripping pressure upon the wire size and weight.  Clipper is changeable to bolt type.  Base on the working procedure of the work-piece, you can flip or transfer it levelly.









Wenzhou Tianwei Machinery Co., Ltd. was founded in 2010, located in Wenzhou, Zhejiang Province, China. The plant area of our company is 17000 square meters. We were formerly known as Ouhai Sanyang Transmission Machinery Co., which was founded in 1986 and specialized in making 1 die 2 blow machines for over 20 years. In 2010, we decided to change our product line to the innovative automatic multi-station cold forging machine, which will be the trend in the fasteners manufacturing industry due to its capability of making complicated products at a high speed. Since then, we accumulated rich experience in the multi-station screw machinery manufacturing industry.



Q: Can dies be purchased separately?

A: Yes. It's not mandatory to have the machine built with a die. Customers can choose to have dies purchased in other places.



Q: If I haven't used your machine before, how can I install and operate the machine?

A: The machine always goes to you with a detailed English manual. We also offer training programs for customers' engineers in our factory or through video tutorials.



Q: Do you have customer service?

A: Yes. Our friendly and professional customer service reps are available to answer your questions 24/7/365 through online chat and phone calls.



- Aliwangwang, Email, WhatsApp, Skype, phone calls are available for 24/7.

- After getting your inquiry, we will reply you within 24 hours.

- Our professional team would recommend you the most suitable model once we get your bolt size from the inquiry.

- After the order is confirmed, our order specialists will start to follow your order and arrange the contract and delivery terms.

- Machine operation and maintenance training are available at the seller's site.

- An experienced engineer is available for machine installation at the buyer's site.
