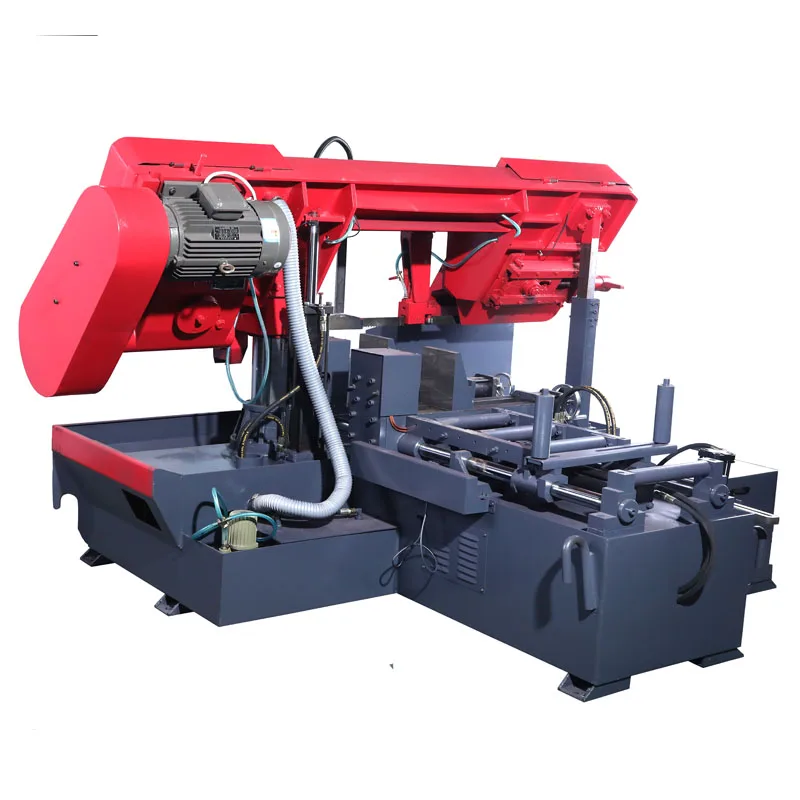

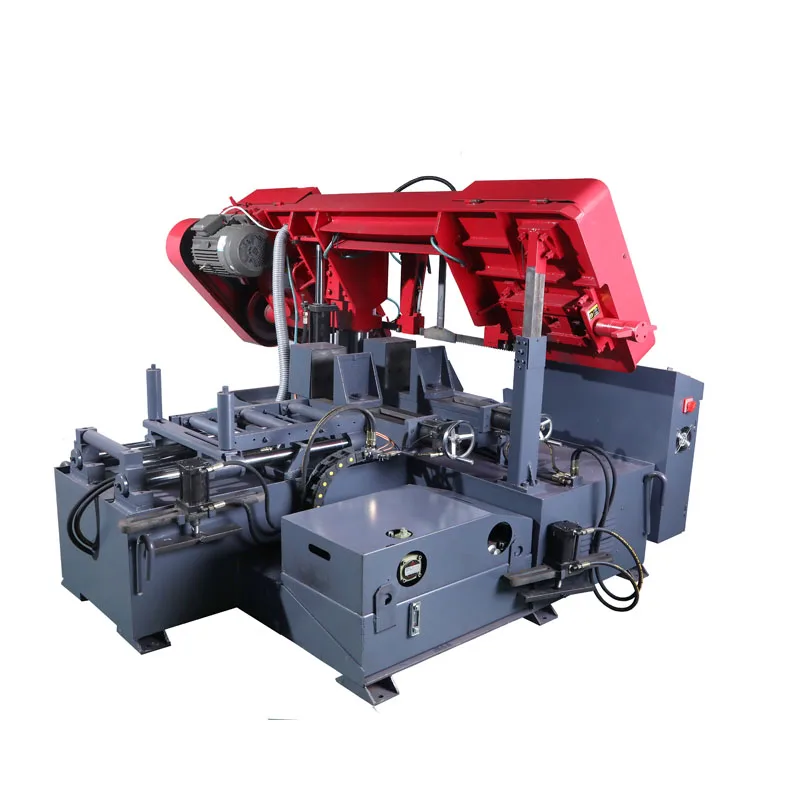

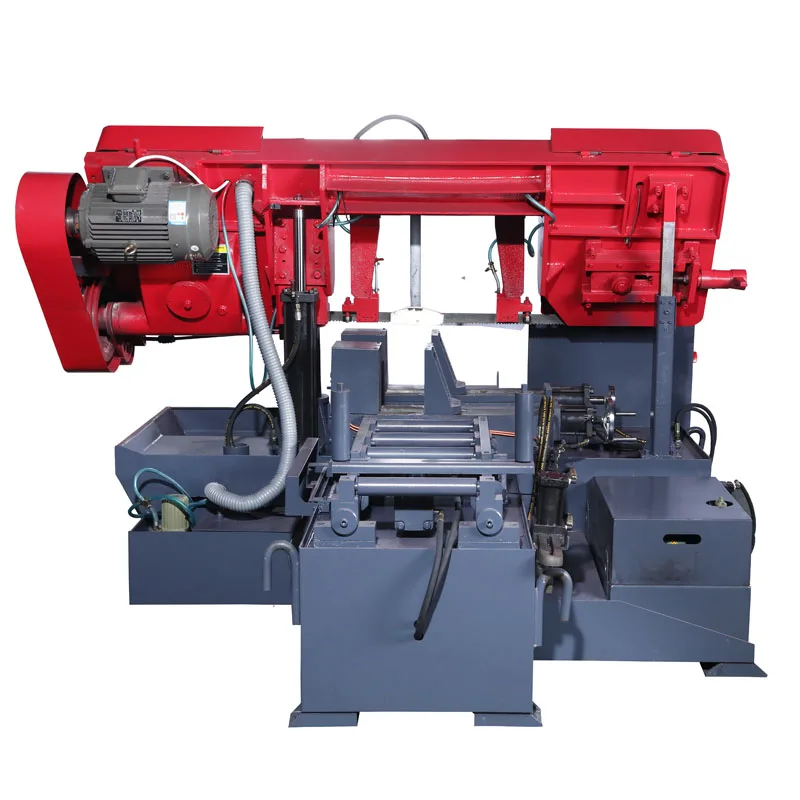

GZ4240A Full automatic band saw machine

Product Overview

Description

Full Automatic Metal Cutting Band Saw Machine

MODEL: GZ4240

APPROVALS: CE, ISO9001

STYLE: Horizontal

TYPE: Double Column

CONTROL: PLC Automatic

Key Specifications:

Cutting capacity	(Dia.)	400
	(width)	400
Blade speed		20/33/49/65/81(m/min)
Blade Size		1.1x34x4680(mm)
Main Motor		4(kw)
Hydraulic Motor		1.5 (kw)
Machine Size(LxWxH)		2300x2000x1600(mm)
Workpiece Clamping		Hydraulic

Main Features:



PLC program control, setting the cutting process.

Grating position feeding length, single-precision feed control within 0.2mm.

Processing size can be set to 1~5 groups.

Each group can be set once the feed length 50000mm.

Each group can be set once the number of processing elements is 1-999.

Jaws around the same time release / clamping jaws easy to wear.

Circulating hydraulic oil cooling system, the oil temperature is not easy to rise.

Automatic saw blade sweep crumbs device to prevent the accumulation of sawdust in the jagged,effective protection band saw blades.

Broken belt protection function, when the saw blade breaks or cassette, the machine can automatically shut down to protect the machine and workpiece.

Clamping detachable hydraulic system that allows a plurality of multilayer workpiece while cutting.



  mainly be used for cutting black metal ,non ferrous metal ,plastic and other non-metal materials .
