BAOTENG Crimping wire SV spade PVC terminal lugs pin type insulated wire end lugs
- Category: Terminals >>>
- Supplier: Wenzhou Baoteng Electrical Co. Ltd
Share on (62040924024):
Product Overview
Description

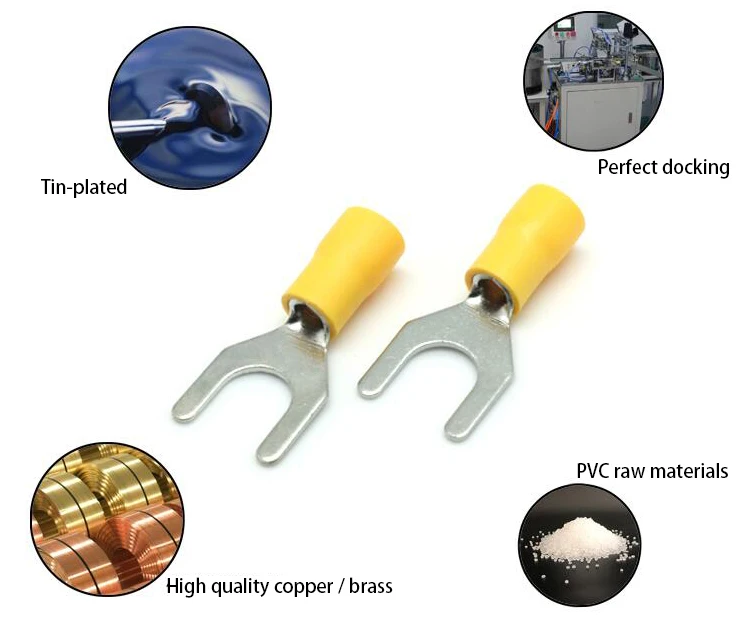

BAOTENG Crimping wire SV spade PVC terminal lugs pin type insulated wire end lugs
banner
Product Description

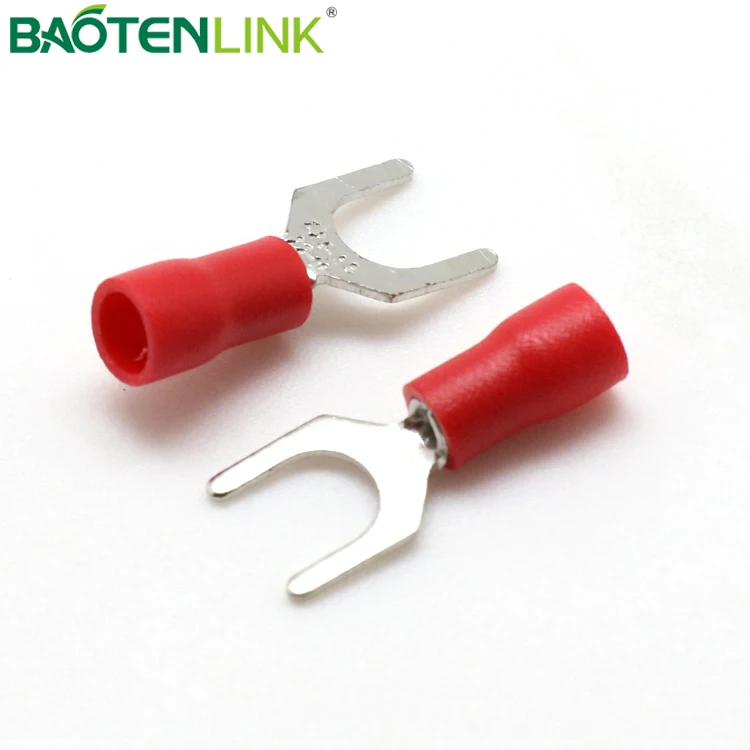

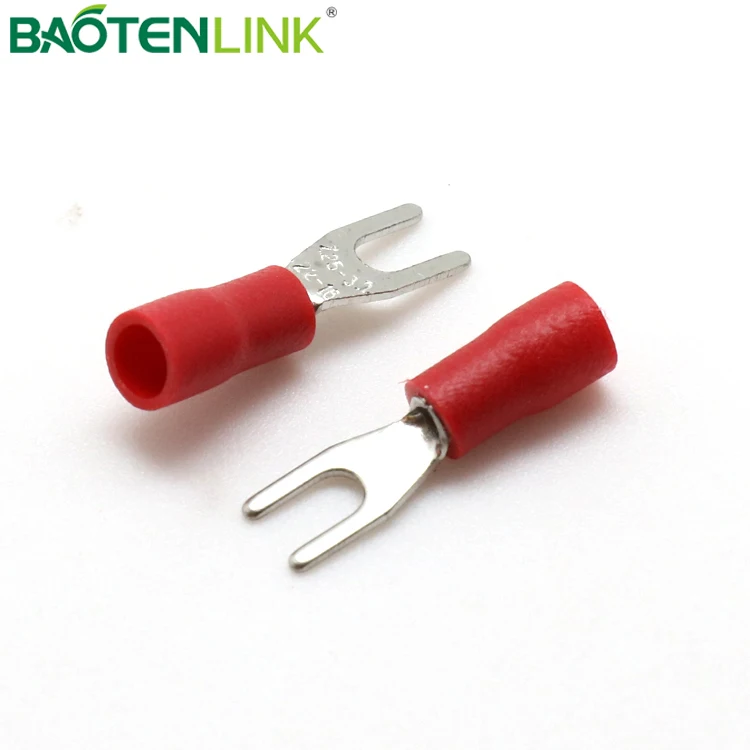

Cable size;0.5~1.5mm2(A.W.G.22~16) max current;Imax=19A material;purple copper thickness;0.75mm | ||||||||
| Item No | USA screw | screw dia.d2(mm) | Dimension(mm) | color | ||||
| B | L | F | H | Dφ | ||||
| SV 1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.3 | red |
| SVS 1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL 1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS 1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM 1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL 1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS 1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL 1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS 1.25-6 | 1\\4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL 1.25-6 | 1\\4 | 6.4 | 12 | 27.2 | 11 | |||

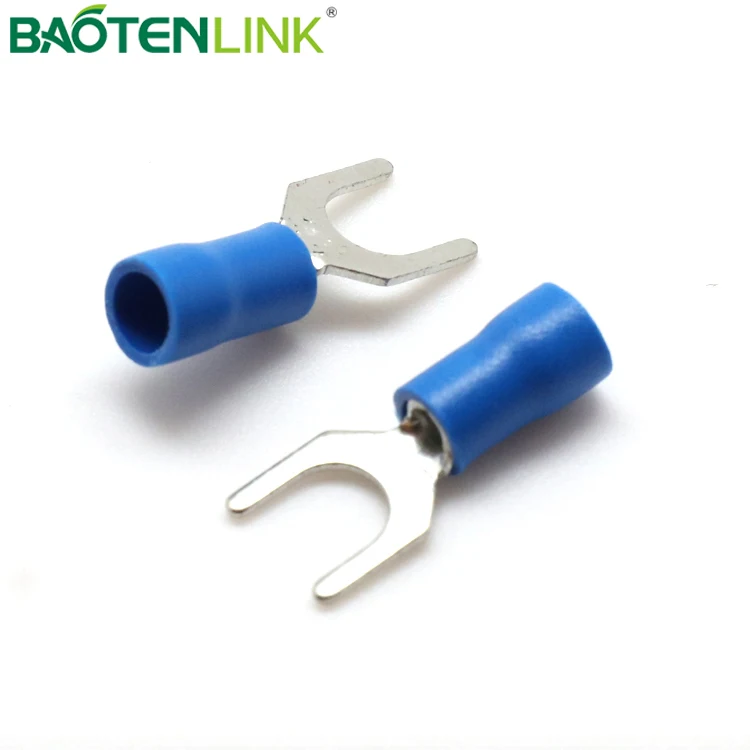

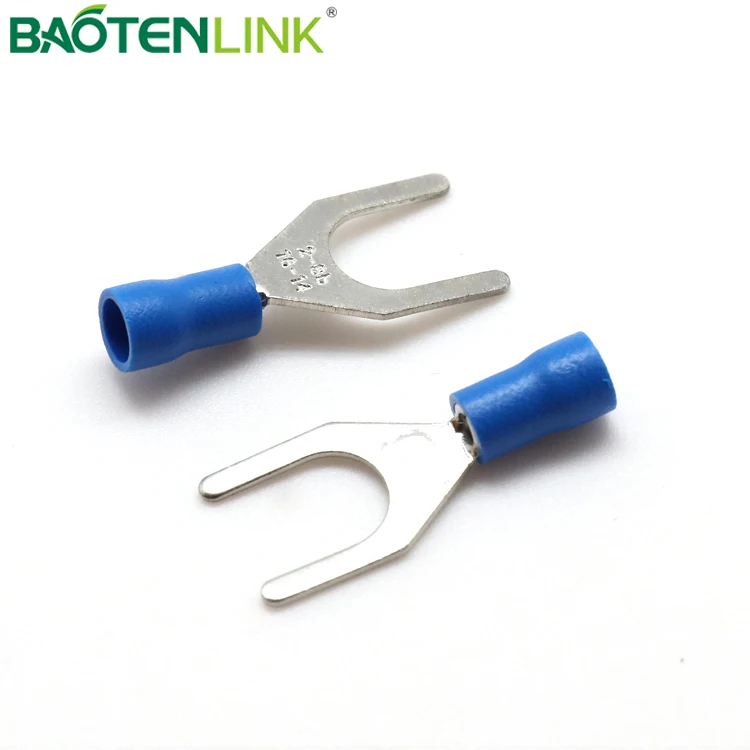

Cable size;1.5~2.5mm2(A.W.G.16~14) max current;Imax=27A material;purple copper thickness;0.8mm | ||||||||
| SV 2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.9 | blue |
| SVS 2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL 2-3.5 | #6 | 3.7 | 6 | 21.2 | 6.5 | |||
| SVS 2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM 2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL 2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS 2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL 2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS 2-6 | 1\\4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL 2-6 | 1\\4 | 6.4 | 12 | 27.2 | 11 | |||
Cable size;2.5~4mm2(A.W.G.14~12) max current;Imax=37A material;purple copper thickness;1.0mm | ||||||||
| SV 3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7 | 13 | 6.2 | black |
| SV 3.5-4 | #8 | 4.3 | 8 | 24.8 | 7 | |||
| SV 3.5-5 | #10 | 5.3 | 8 | 24.8 | 7 | |||
| SV 3.5-6 | 1\\4 | 6.4 | 12 | 28 | 12.1 | |||
| SV 3.5-8 | 5\\16 | 8.4 | 12 | 33.7 | 13.7 | |||

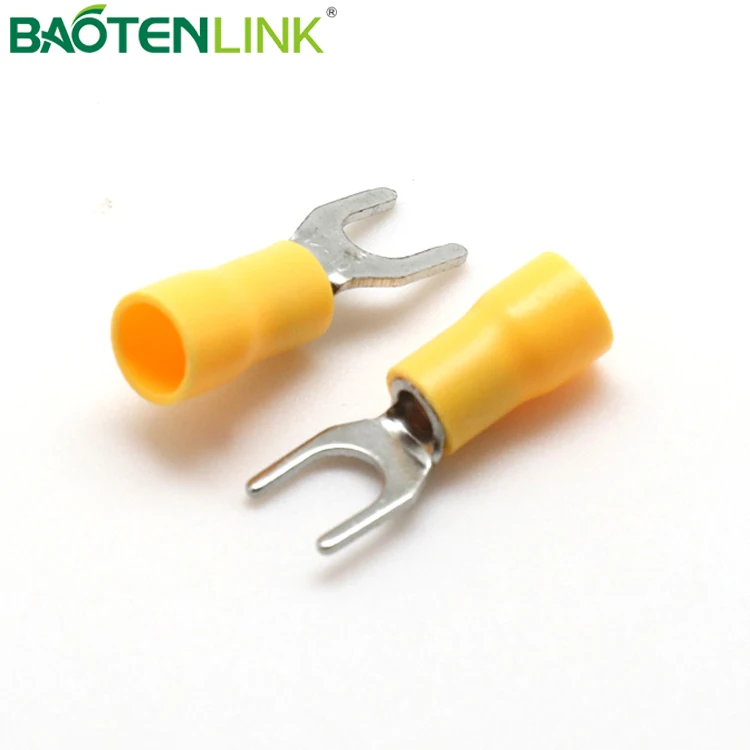

Cable size;4~6mm2(A.W.G.12~10) max current;Imax=48A material;purple copper thickness;1.0mm | ||||||||
| SV 5.5-3.5 | #6 | 3.7 | 8.3 | 2.2 | 7.5 | 13 | 6.7 | yellow |
| SVS 5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SVL 5.5-4 | #8 | 4.3 | 9 | 25.2 | 7.5 | |||
| SV 5.5-5 | #10 | 5.3 | 9 | 25.2 | 7.5 | |||
| SVS 5.5-6 | 1\\4 | 6.4 | 9 | 25.2 | 7.5 | |||
| SVL 5.5-6 | 1\\4 | 6.4 | 12 | 31.2 | 12 | |||
| SV 5.5-8 | 5\\16 | 8.4 | 14 | 30 | 11.5 | |||
BAOTENG Crimping wire SV spade PVC terminal lugs pin type insulated wire end lugs
Application scenario
Company Information
Contact us
FAQ
1. Are you a factory?
We are the manufacturer, we have 10 years experiences in this field. also we establish the trading company to make easy export.
2. What is MOQ?
No limit.
3. How long is the delivery time?
It depends on the quantity.
For samples or regular items in small qty ,we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we promise to sent in 15-30 days.
4. How about the payment terms?
We accept PayPal, west union and T/T.
5. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.
6. How can we get the samples?Is it free?
We provide free samples by express, but you need pay the express charge or make samples collection at your side.
7. What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.
8. How do we know you are a reliable supplier?
Wenzhou Baoteng has own manufacture for more than 10 years of Specializing in various of terminals and connector.
