   Uv radiation Polyester Printing Film/PET Film for Membrane Switch

General description

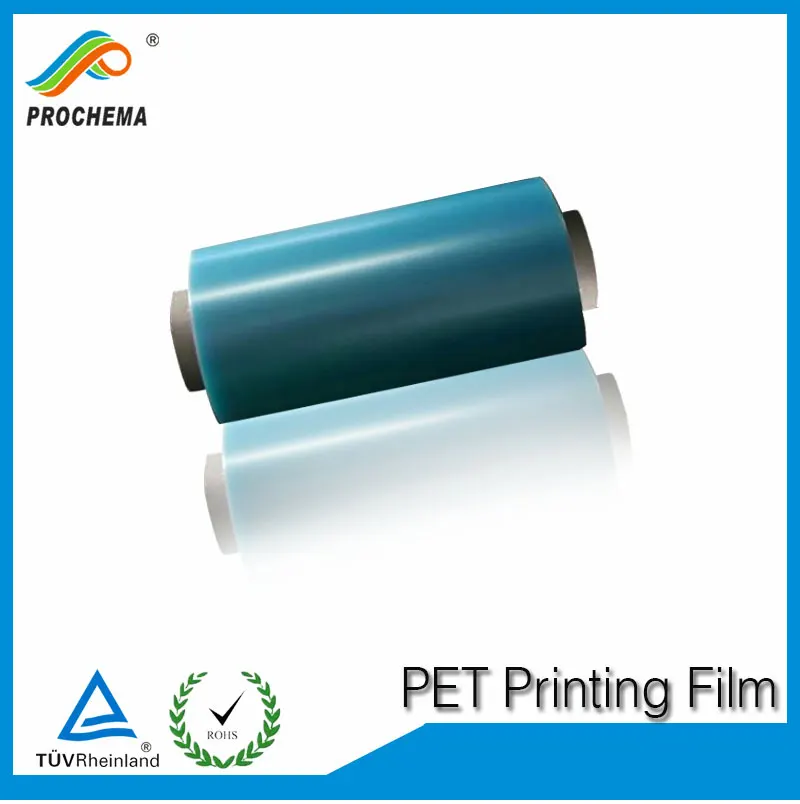

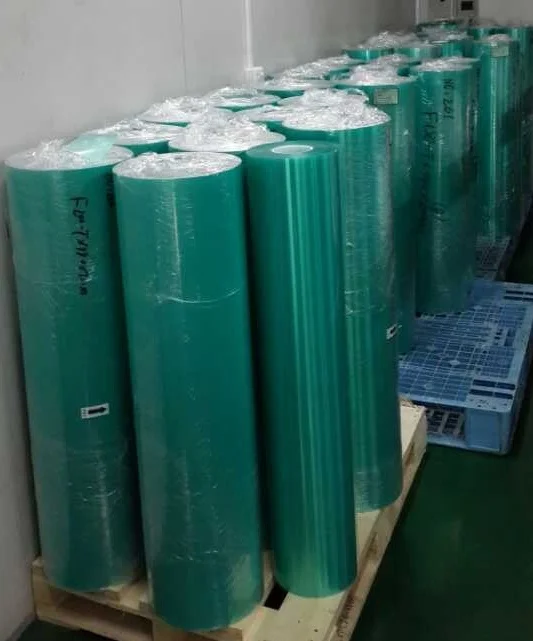

JP FILM is a high quality, embossable, hard coated polyester film, consisting of a chemically bonded UV-cured hard surface coating on a base polyester film. Film supplied as sheets or rolls, with or without protective films.

The coating significantly enhances the chemical resistance and the flex life of the base film thus extending the functionality of polyester film into areas demanding high abrasion resistance together with excellent receptivity to graphic inks. Film is optimised for a range of applications requiring a combination of high abrasion resistance and flexibility.





Versions using special heat stabilized polyester film with a typical residual shrinkage of < 0.3% @ 150°C are also available for demanding applications.





Advantage of PET Film



1,Excellent performances of friction resistance, scratch resistance and chemical resistance.

2, Long lifespan and bending resistance

3,Good thermostability, easy to print , free of overdrying while processed with multicolors.

4, With window liquid easy open clear window .

5, With special chemical treatment of printing surface, it owns strong adhesion.





Window of PET printing film :



Protex PET FIlm can be screen printed with Windotex to obtain a clear window (see Windotex product data sheet). Protex Fine, because of its lighter texture, will produce clearer windows than Protex Velvet.

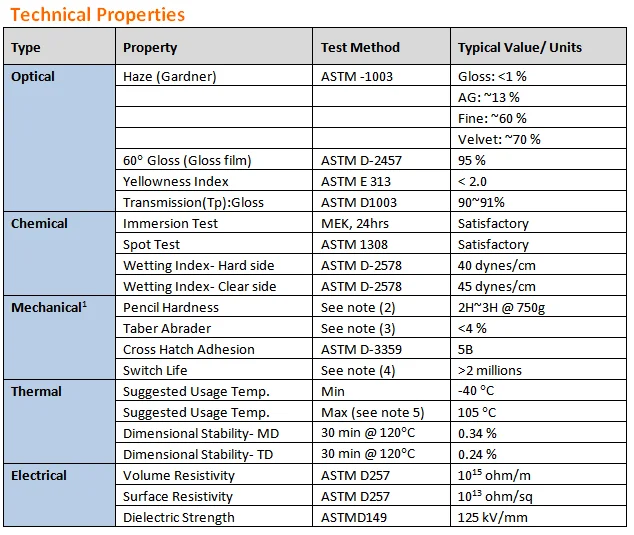

Main Features

·         Excellent scratch resistance 2H~3H

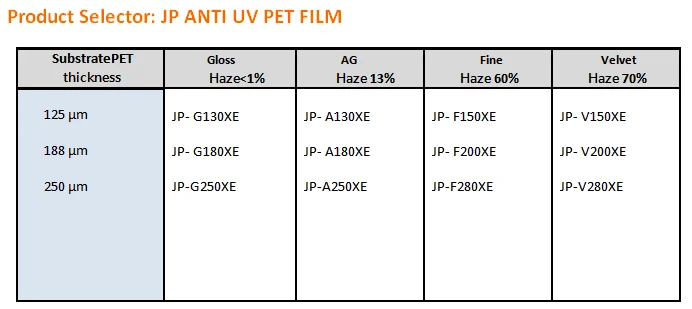

·         Multiple Textures and haze levels available including Gloss, Anti-glare and                  Matte (Fine and Velvet)

·         Receptive to a range of UV and solvent based varnishes

·         Embossable

·         Resistant to wide range of chemicals

·         Very high optical clarity

·         Exceptional flex life



Applications

JP FILM is optimised for the following applications-

·         Membrane touch switches

·         Fascia panels

·         Touch panels

·         Nameplates

·         Labels/ logos and Product marking

















 .
