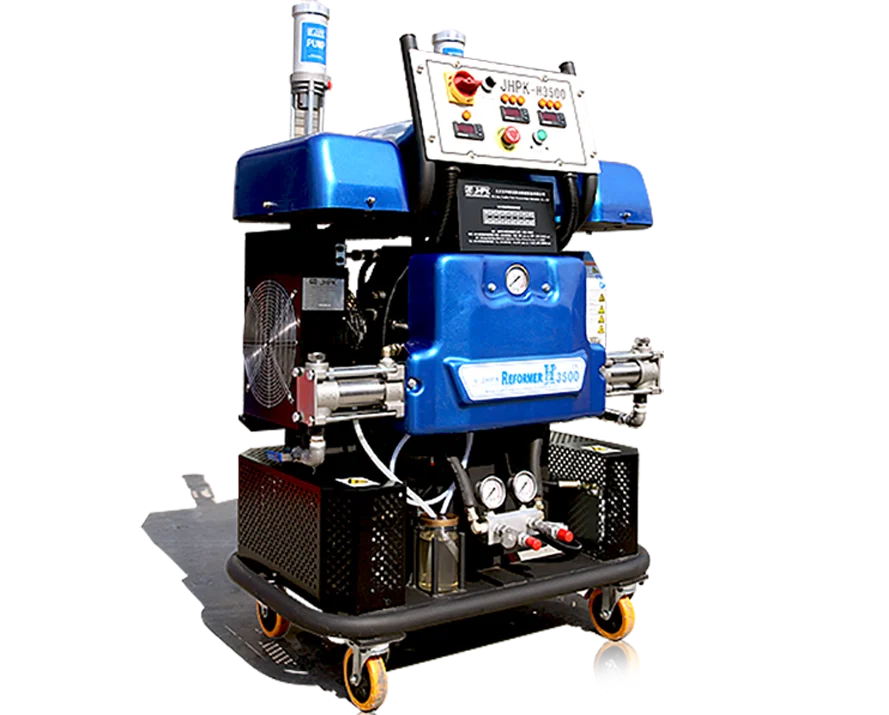

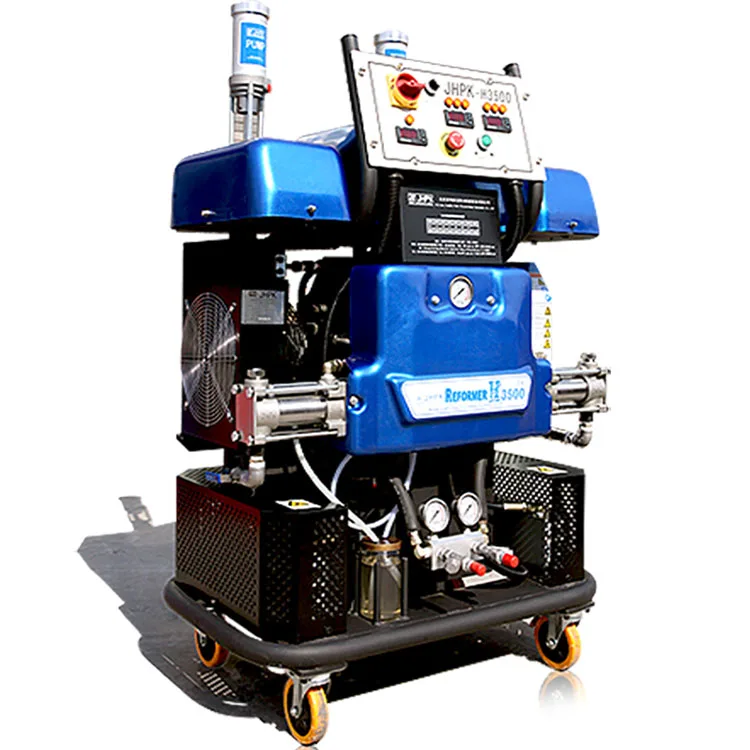

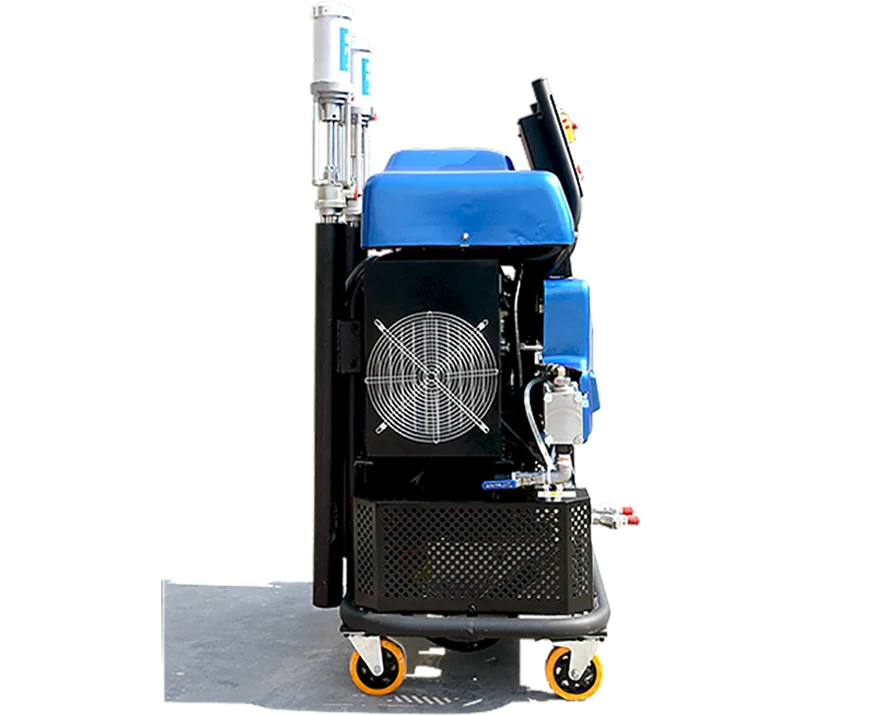

JHPK H3500 Bigger PU spray machine/polyurea machine

Product Overview

Description



Descrition:



Our company has obtained Quality Management System Certificates ISO9000.
The advanced management system and high efficient and modern production mode provide reliable quality assurance for our products.
Beijing Jinghua Park Polyurethane Equipment Co., Ltd freshly launched the double component system of hydraulic spraying equipment.
This kind of machine can be used in many areas and spray a lot of double component materials, such as spray a variety of two-component materials: polyurea elastomer, polyurethane elastomer, polyurethane foam and polyurea,polyurethane adhesive and sealants.
The advantages of this kind of machine:
1. It’s very convenient to moving more suitable for factory and construction contractor.
2. It provides the maxim function for the working.
3. It has the special FGPQ spray gun, simple operation, spray a better effect.



















Main equipment: 1 set
Spray gun: 1 piece
Heating pipe: 15 m (50ft)
3m pipe connecting to the gun: 1 set
Feeding pump: 2 sets
Spare parts :1 set
Tools :1 set
English manual: 1 set
Package: plywood tray















Ratio of raw materials: 1:1
Viscosity range: 200~1000CPS
Output of raw materials: 2~8L/ min
Heating power: 9000W*2
Hose heating power: 3200W
Heating temperature range: 0℃~90℃(32°F~194°F)
Power source: 3-phase 4-wires, 380V, 50Hz
Hydraulic working pressure: 8~12 Mpa(1160~1740psi)
Maximum pressure: 26Mpa(3770psi)
Max. length (optional): 90m(300ft)
Gun cleaning way: high pressure mechanical cleaning
Driven way: hydraulic driven















Dimension: 1100mm*1100mm*1550mm
Weight: 350Kg









Descrition:
Our company has obtained Quality Management System Certificates ISO9000.
The advanced management system and high efficient and modern production mode provide reliable quality assurance for our products.
Beijing Jinghua Park Polyurethane Equipment Co., Ltd freshly launched the double component system of hydraulic spraying equipment.
This kind of machine can be used in many areas and spray a lot of double component materials, such as spray a variety of two-component materials: polyurea elastomer, polyurethane elastomer, polyurethane foam and polyurea,polyurethane adhesive and sealants.
The advantages of this kind of machine:
1. It’s very convenient to moving more suitable for factory and construction contractor.
2. It provides the maxim function for the working.
3. It has the special FGPQ spray gun, simple operation, spray a better effect.





Standard Configuration:

Main equipment:	1 set
Nozzle:	1 piece
Heating tube per group:	15m(50ft)
Short tube with nozzle per group:	3m(10ft)
Feeding pump:	2 sets
Spare parts:	1 set
Tool:	1 set
English manual:	1 set
Package:	plywood tray



Technical Data:

Proportion of raw material:	1:1
Viscosity range of raw material:	200-1000 CPS (under operation temperature)
Output of raw material:	2-8 L/min
Heating power:	9000W*2
Hose heating power:	3200W
Maximum pressure	26Mpa(3770psi)
Heating temperature range:	0℃~90℃
Electrical source:	3 phase 4 wire, 380V 50Hz
Compressed air:	0.5~0.8Mpa(70~120psi)≥ 1m3/min
Hydraulic working pressure	8~12Mpa(1160~1740psi)
Max. length (optional):	90m(300ft)
Gun cleaning way	high pressure mechanical cleaning
Driven way	hydraulic driven



Shipping Parameter:

Dimension:	1100mm×1100mm×1550mm
Weight:	350Kg
