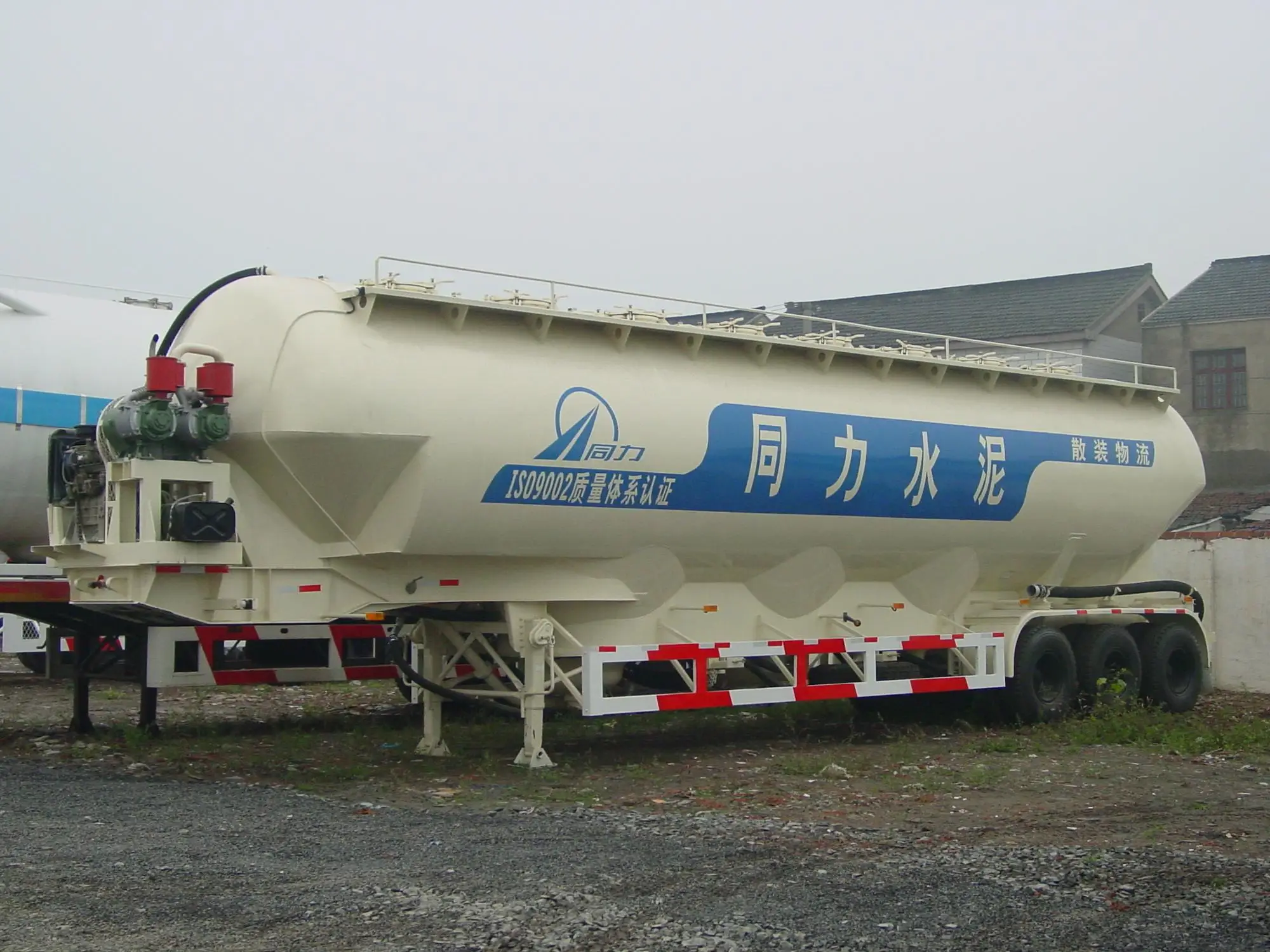

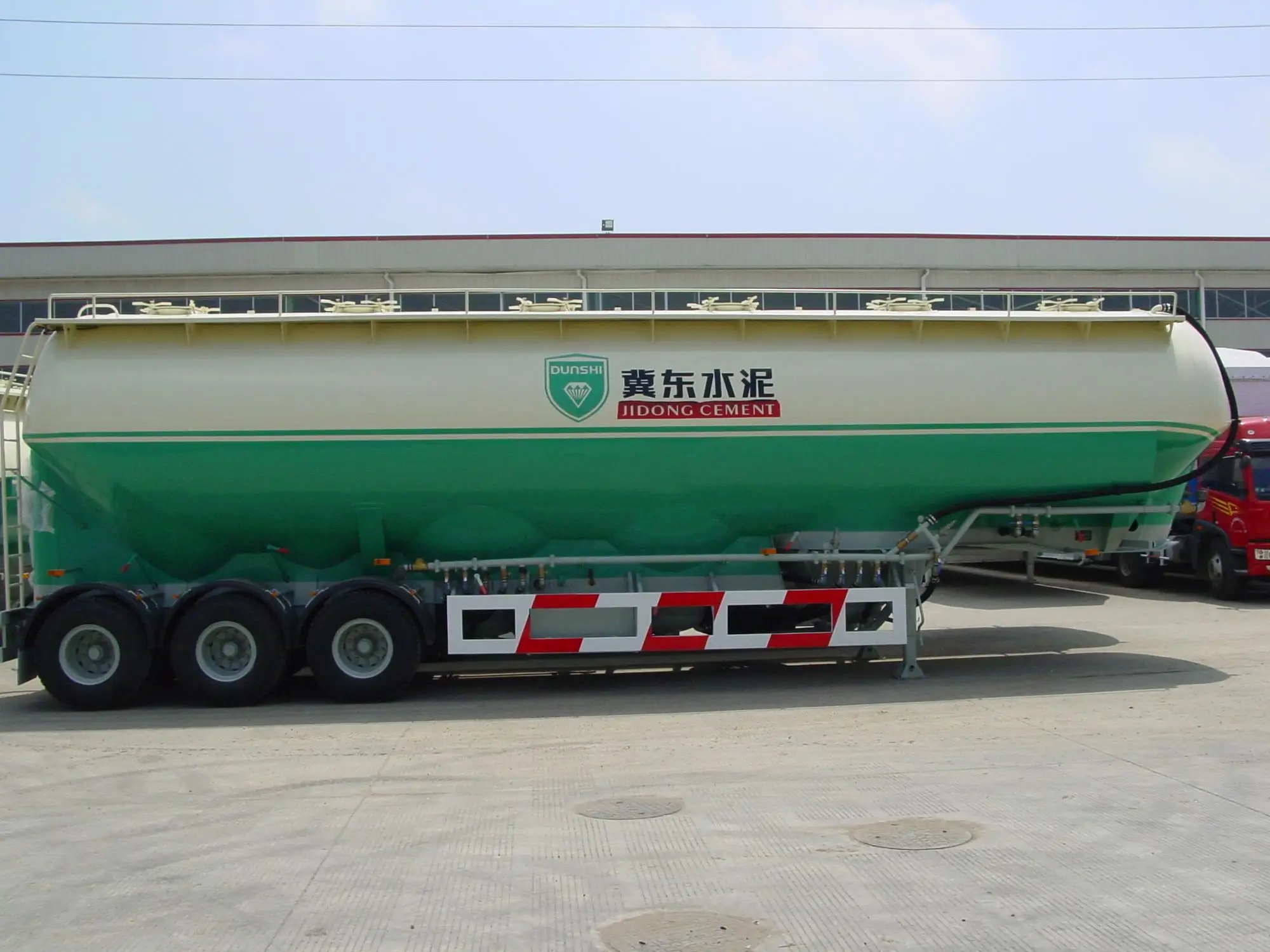

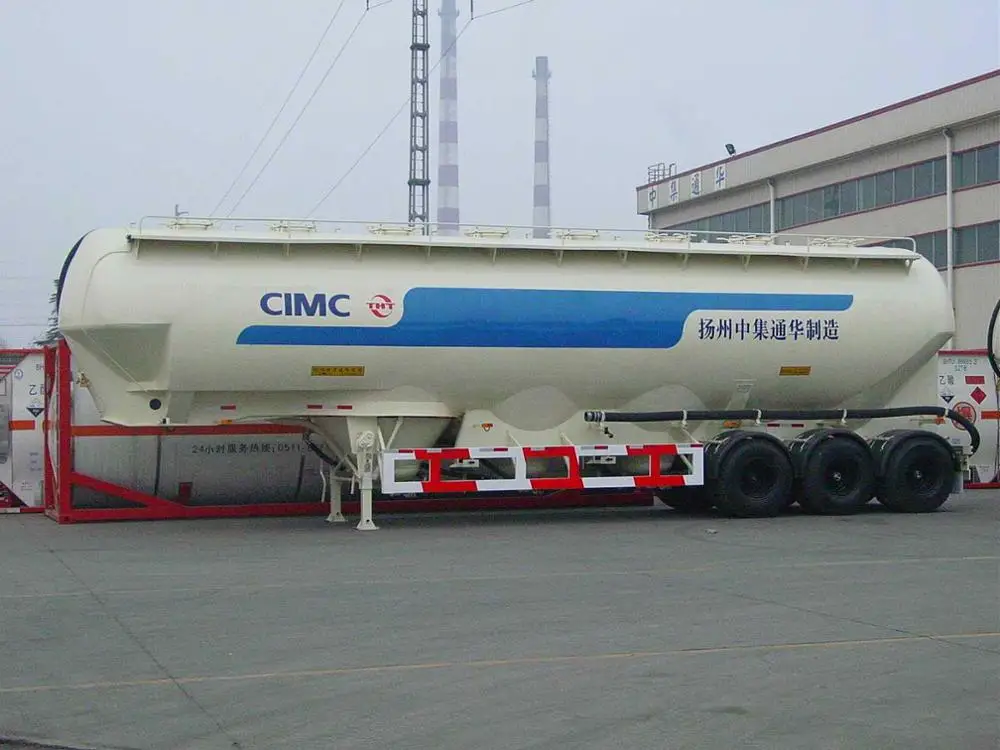

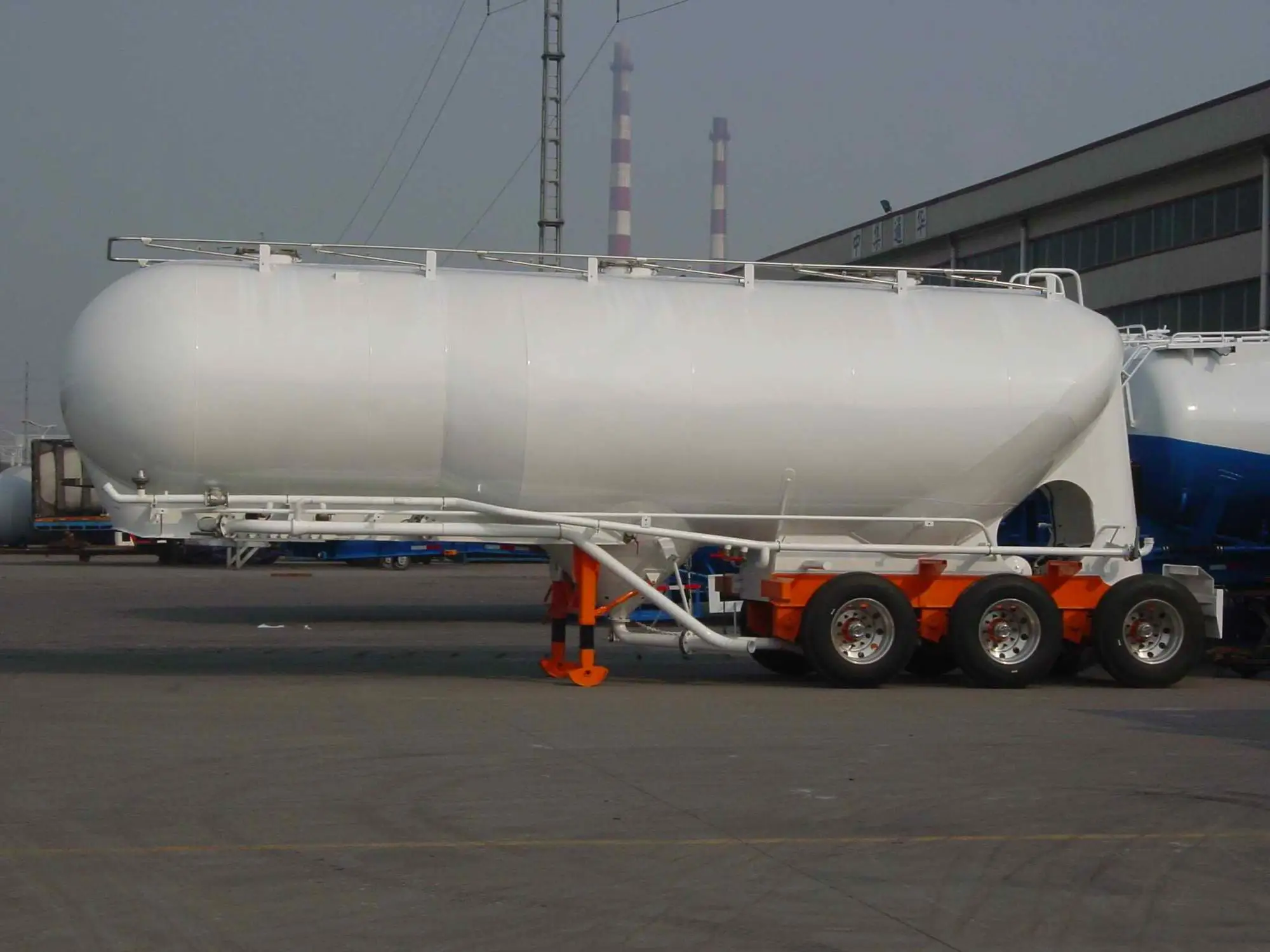

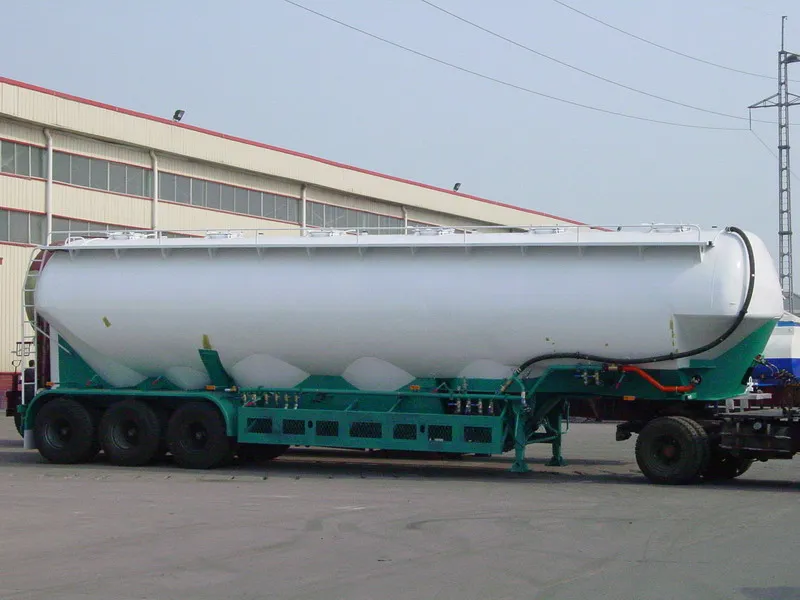

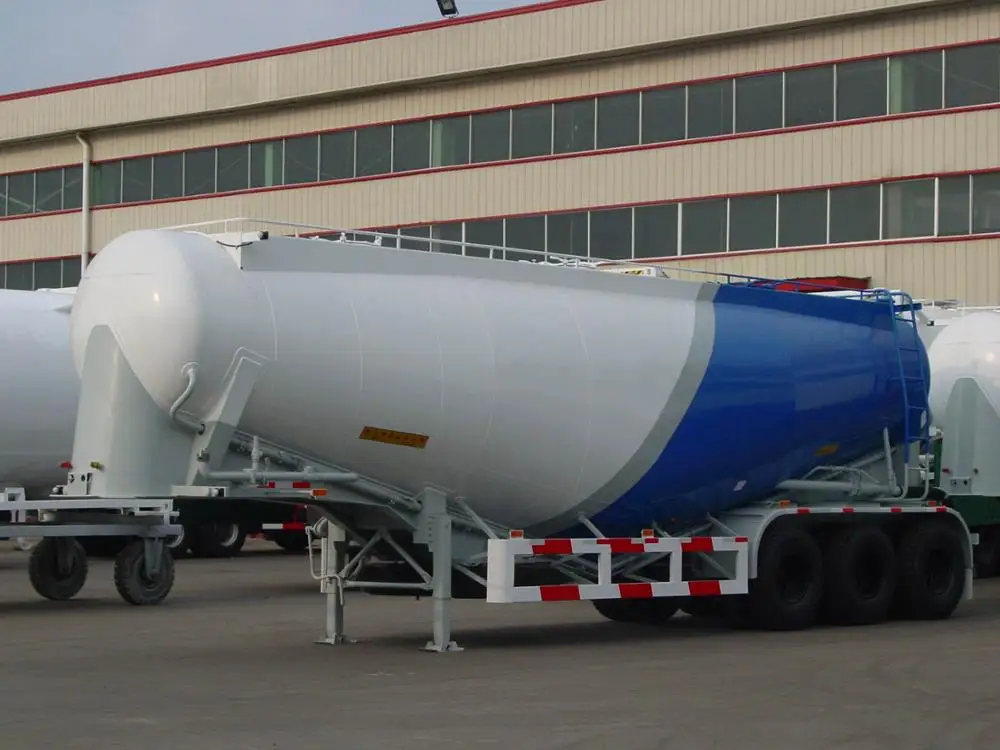

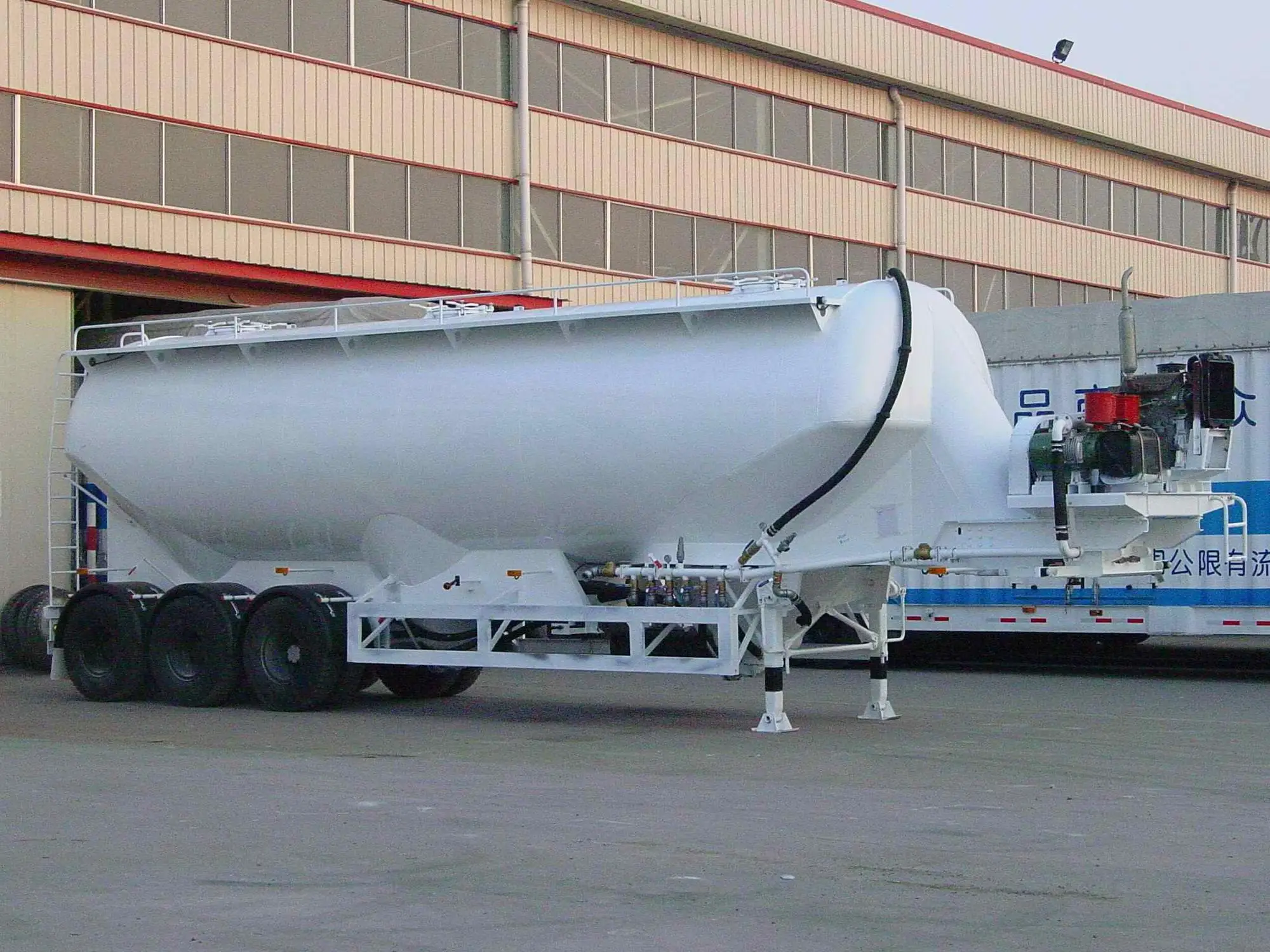

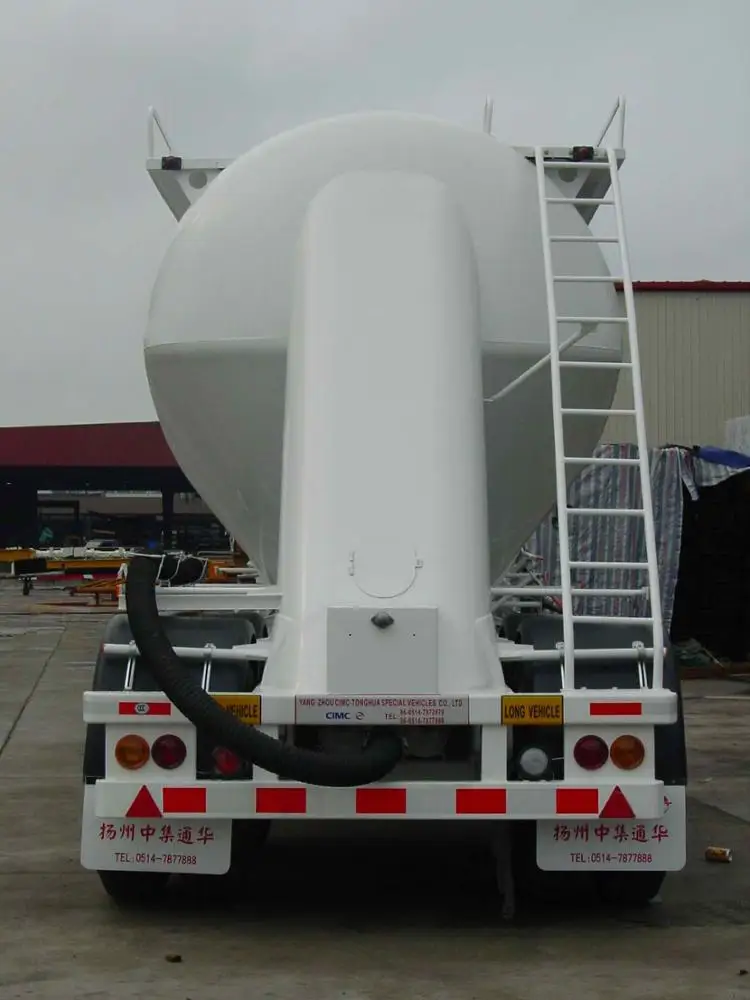

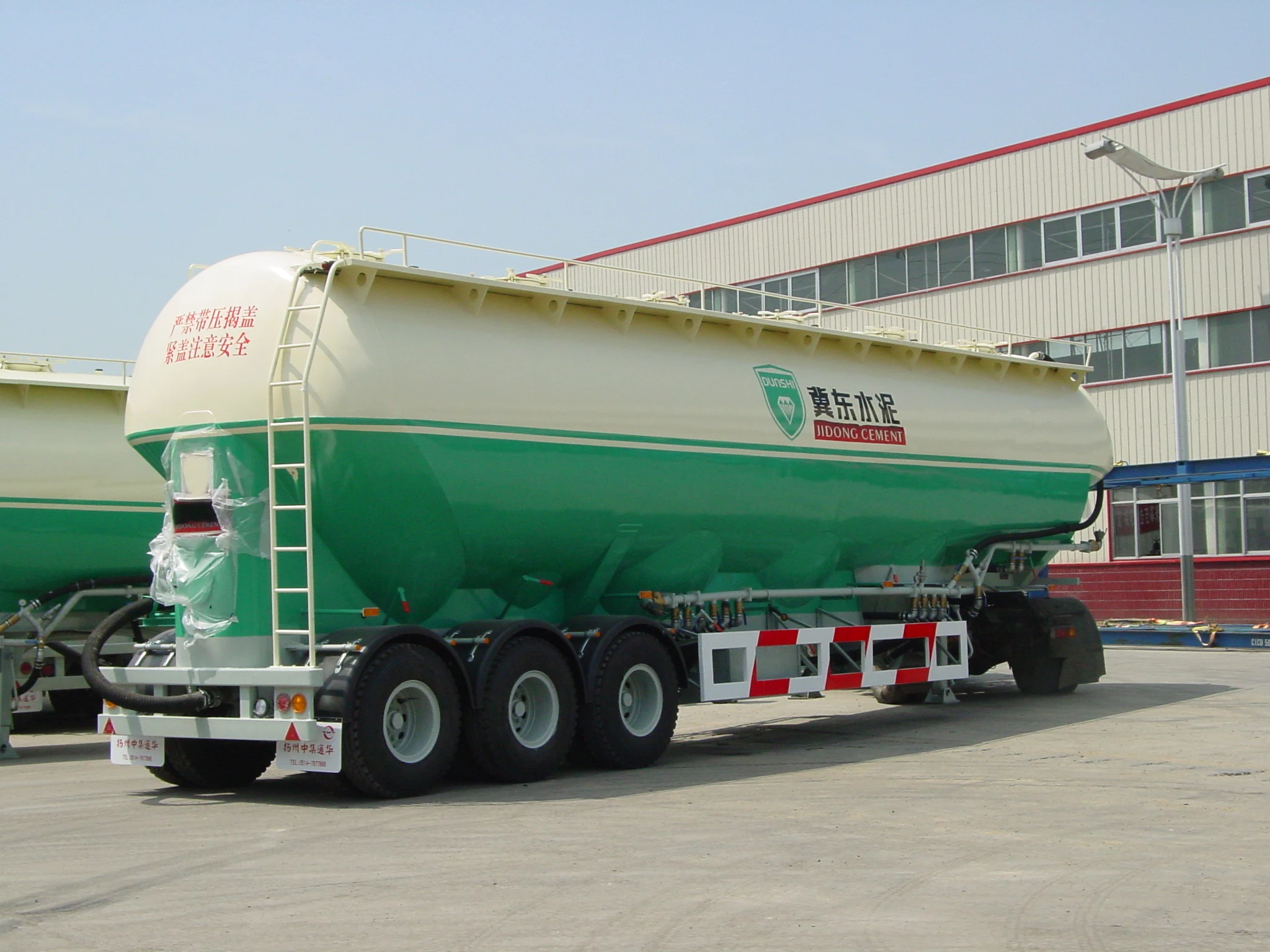

ASME, ADR,DOT ISO 60M3 BULK CEMENT TANK TRAILER

AIR DISCHARGE TANKER

 SPECIFICATION
Type: Air Discharge Tanker

Aeration system : Pneumatic SURESEAL Aeration System.
4 Fluidizer per cone.
Manhole : Three
RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer;
8-Leaf Spring.
Axle : Square axle,150X150mm.(FUWA 13T)
Brake : Dual line pneumatic brake system.
Parking Brake : Type 30/30 spring brake system on two axles.
Wheel : 8.5-20,10 holes steel Disc wheel, 12 Pcs.
Tire : 12.00R20-18PR, 12 Pcs
King Pin : 3.5" JOST KZ1412.
LANDING LEG: JOST A400
Two speed manual operation type with sand shoe.
Lifting Capacity : 22,750 kg
Static Load Capacity : 72,750 kg

4” male quick coupler-1 pcs

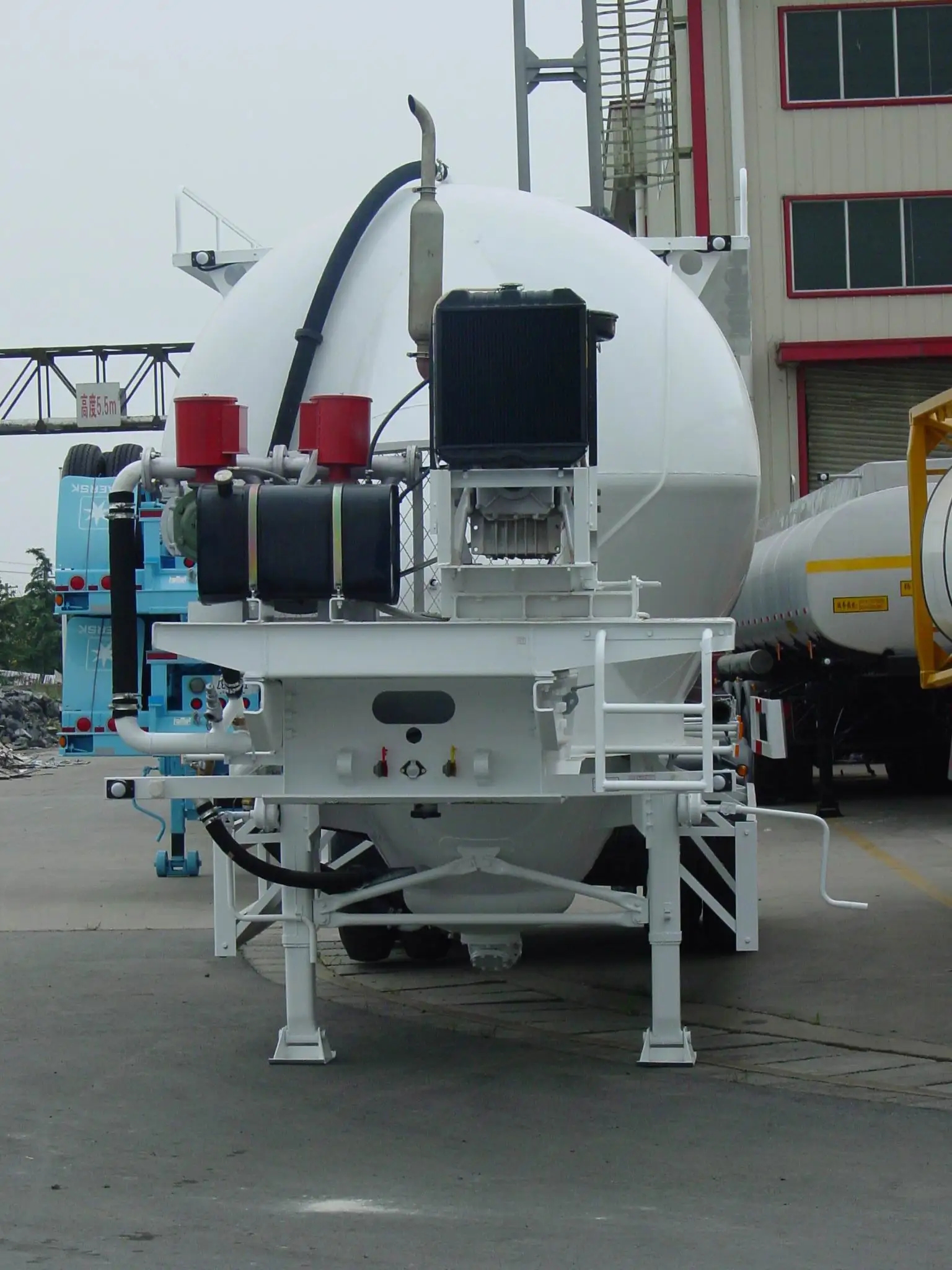

PNEUMATIC SYSTEM:
Electromotor : SHANGHAI 4100AG Made in China
Air Compressor : SUZHOU 10m3
/min Made in China
ELECTRICAL:
Voltage : 24 Volt.
Receptacle : 7 way
Light: Front Marker Lamp : White
Side Marker Lamp : Amber
Rear Lamp : Red
Turn Signal Lamp : Amber
STRUCTURAL WEIGHT RATING:
Tare Weight : 11,800 Kg.
Pay Load : 60,000 Kg.
G.V.W.R. : 71,800 Kg.
King Pin Weight : 25,000 Kg.
Axle Weight : 46,800 Kg.

Package :  By roro ship , can equipped with air compressor or without it .

1. Payment:  Deposit , 1 year balance credit after the B/L date.

2. Assemble :  We assble the trailer on your company.

3. Working time :  Our team working in 24 hours, we copy with all of your questions and after service.

CIMIC Container and trailer has longest history. Businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as the semi trailer. Its annual production capacity of containers and trailers exceeds 2.4 million .

1.  Design code and certificates

ASME,GB,ISO,CE,ADR,BV,DNV

2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.
