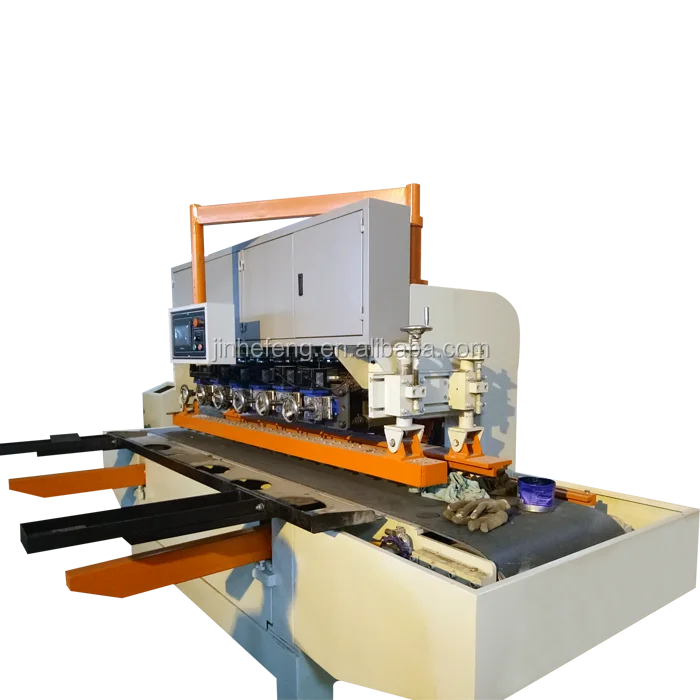

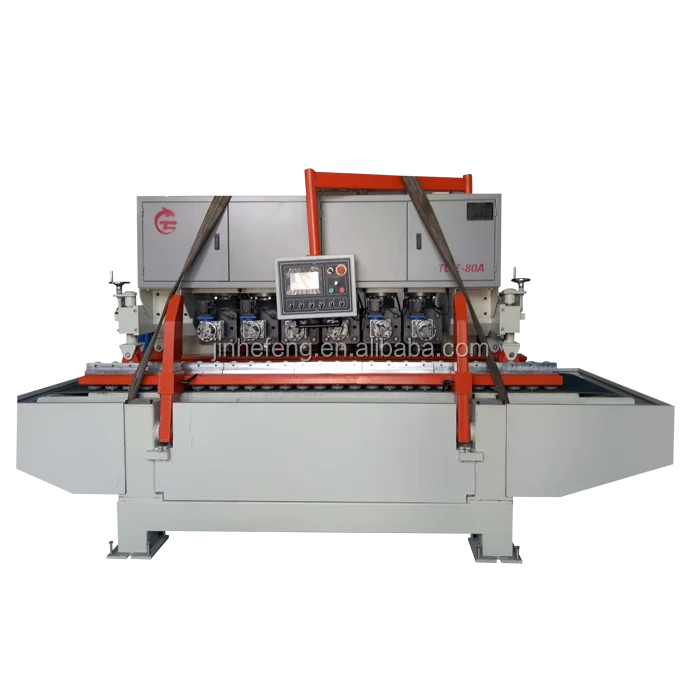

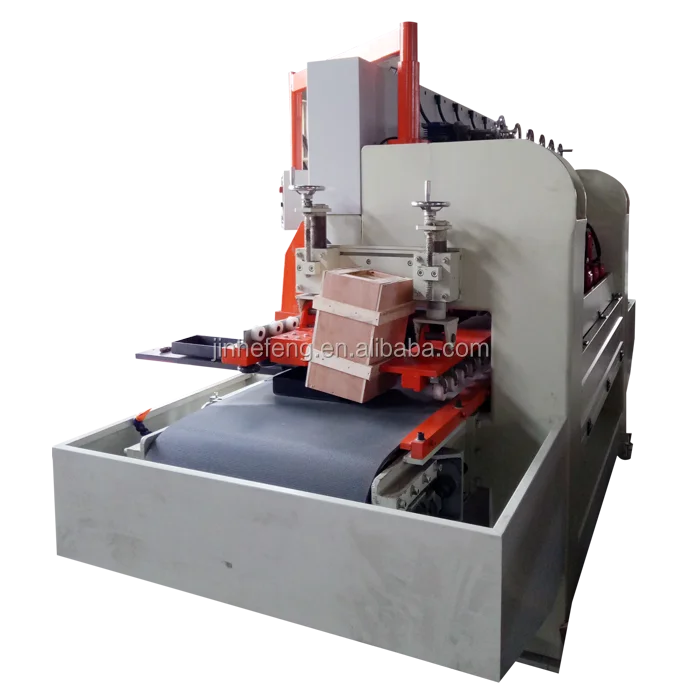

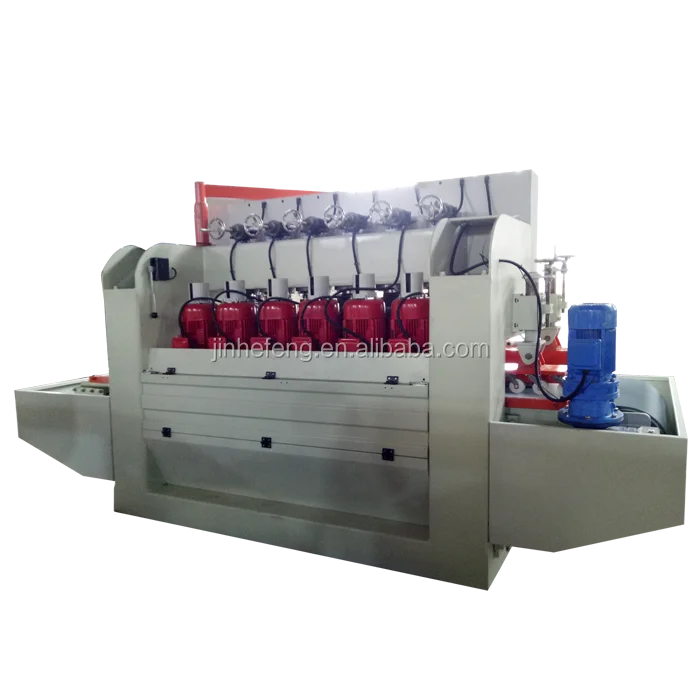

TL6E 80A automatic edge profile stone polishing machine for marble and granite

Product Overview

Description

TL6E-80A Automatic Edge Profile Machine



This machine can be used to finish profiling and polishing the edge of stones at the same time, such as marble, granite, artificial stone, ceramics and glass, etc. With full automatic processing, workers don't need to change the adaptors and profile wheels which should be done on single-head profile machine. This helps us to save a lot of labor cost and improve the quality of profiling. It is a preferred equipment for customers in the stone field.



Technical Parameters

Model	TL6E-80A
Max processing width	2000mm
Max processing thickness	80 mm
Diameter of profile wheel	140~180 mm
Diameter of polishing wheel	160-180 mm
Main power supply	3kw
Total power supply	22 kw
Water consumption	100L/min
Processing speed	0.2~2.2 m/min
Overall dimension	3600×1100×2200 mm
Weight	3500 kg
