Kamoer KDS 24V DC мотор система дозирования для белья система дозирования моющих средств Дозирующий химический дозатор Перистальтический Насос

Product Overview

Description

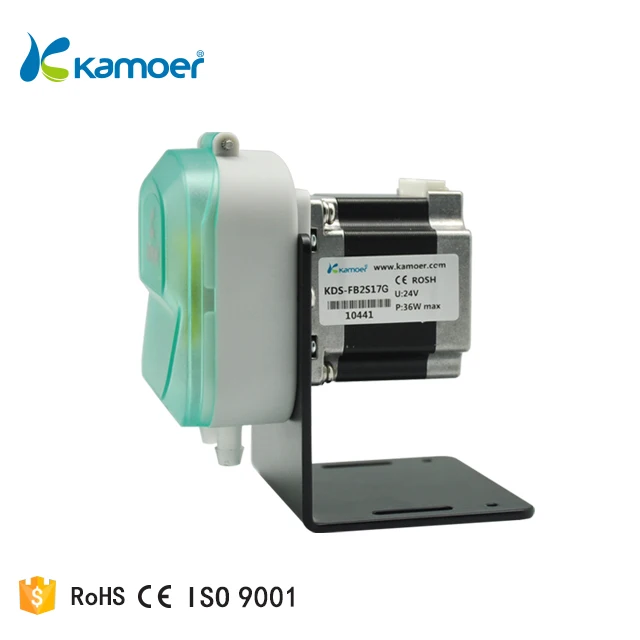

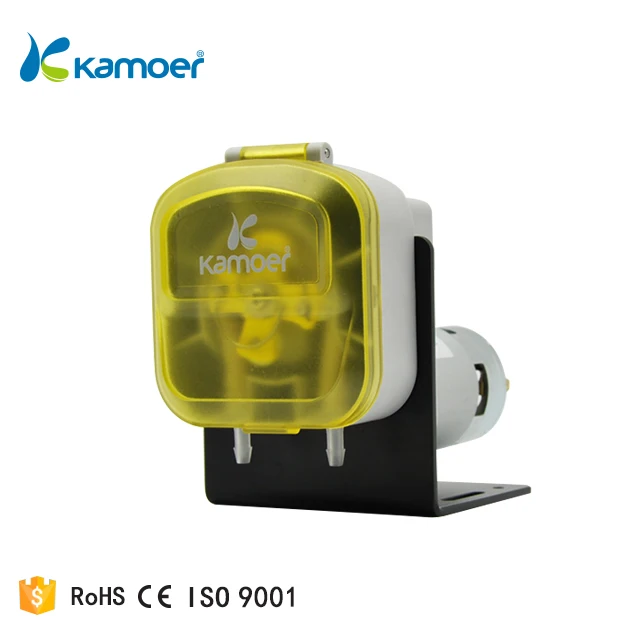

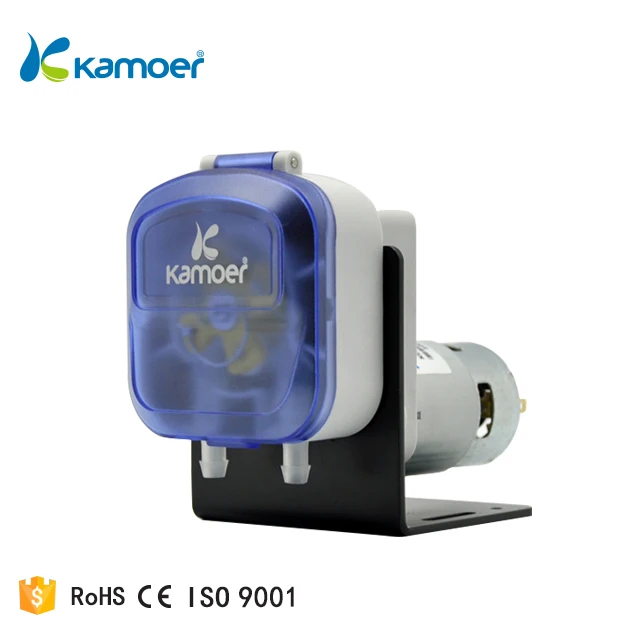

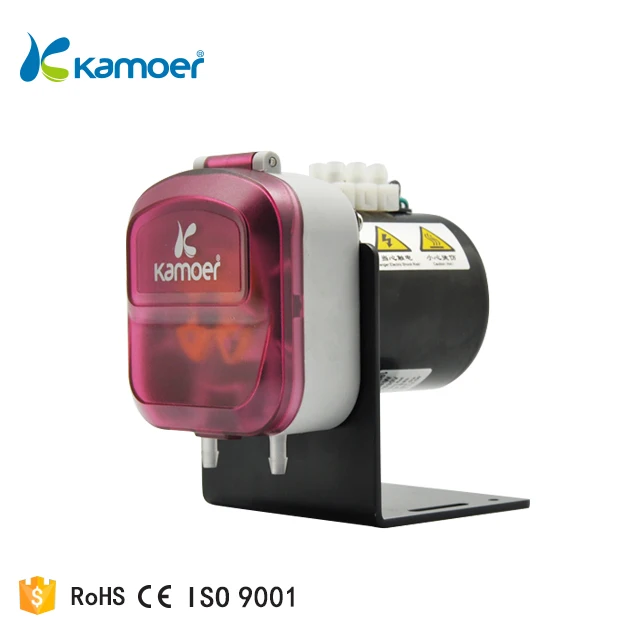

Kamoer KDS 24V DC Motor Peristaltic Dosing Water Pump Laundry Machine

KDS Peristaltic Pumps

Performance feature:

Suitable for viscous, non-viscous liquid transmission

Capable of transferring liquid containing particles

Four kinds of motor for you to choose from, including Ac and dc motor

Thicker tubing wall to withhold higher pressure

Longer service time with resilient tubing

Lowest level of noise

Colorful and custom appearance for you to choose from

Branded and patented product

Application

Cleaning equipment, Environmentally water treatment, Dishwashing facilities     , Analytical instrument, Washing hands adding liquid, House appliances    , Separation liquid equipment, Scientific experiments

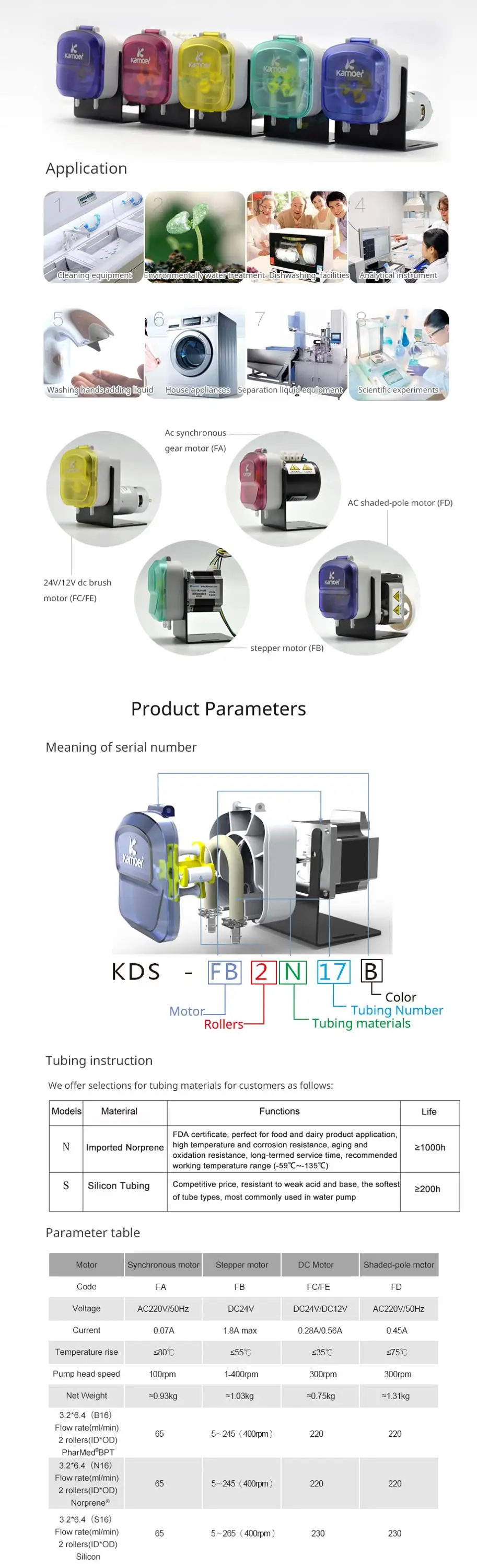

Product parameter

Motor — KDS series peristaltic pump have four kinds motors , Ac synchronous gear motor (FA), stepper motor (FB) ,24V/12V dc brush motor (FC/FE) , AC shaded-pole motor (FD), This motor can provide different voltage

Tube — The pump is configured with French-made Imported Norprene tube(N)

and silicon tube(S). Both of them has is 1.6mm wall thickness to withstand high

pressure. Besides,different choise of tube size is avaliable to meet your need for

different flow rate.

Working parts — Two active motors and two guiding rotor constitute the main working parts of this pump. The guiding rotor ensure the tube would not deviate from the working area. Both ends of two active motors was installed with elastic spring, making sure that the outflow pressure would not be affected by thedegree of wear of tubing. This unique design makes transferring liquid with small particles smooth and avoid locked-rotor.

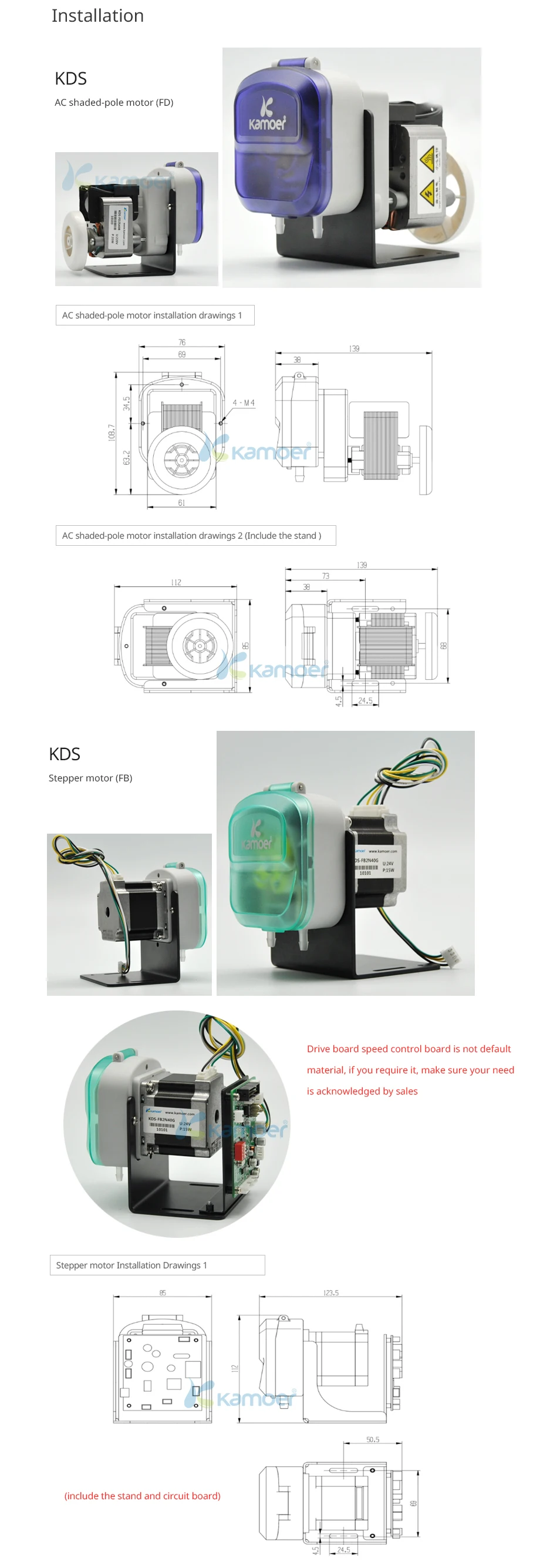

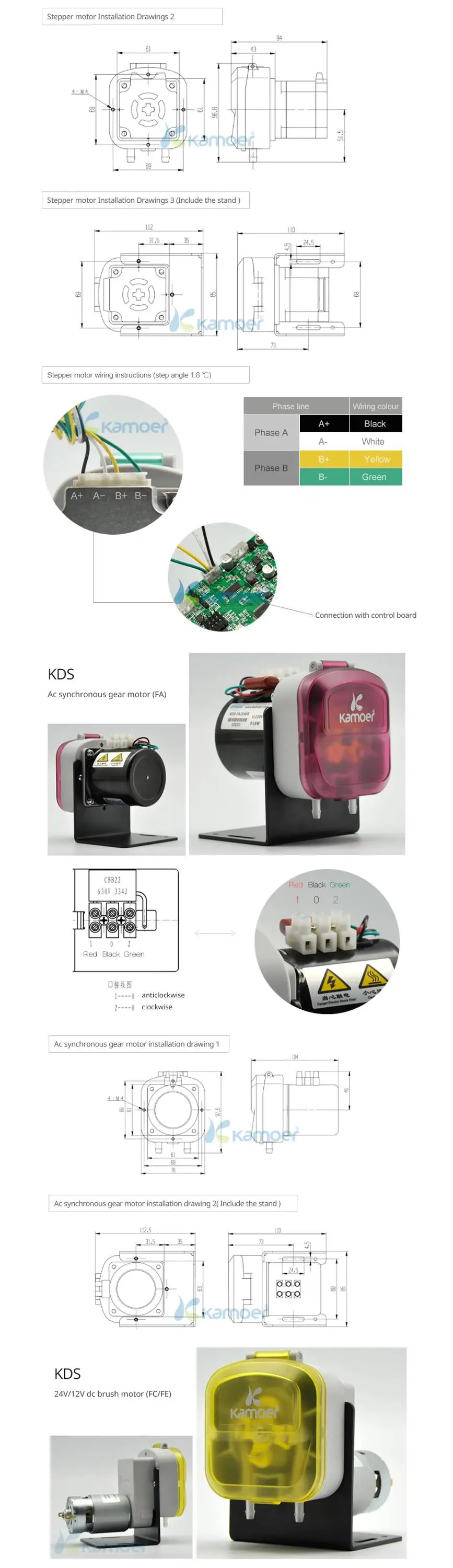

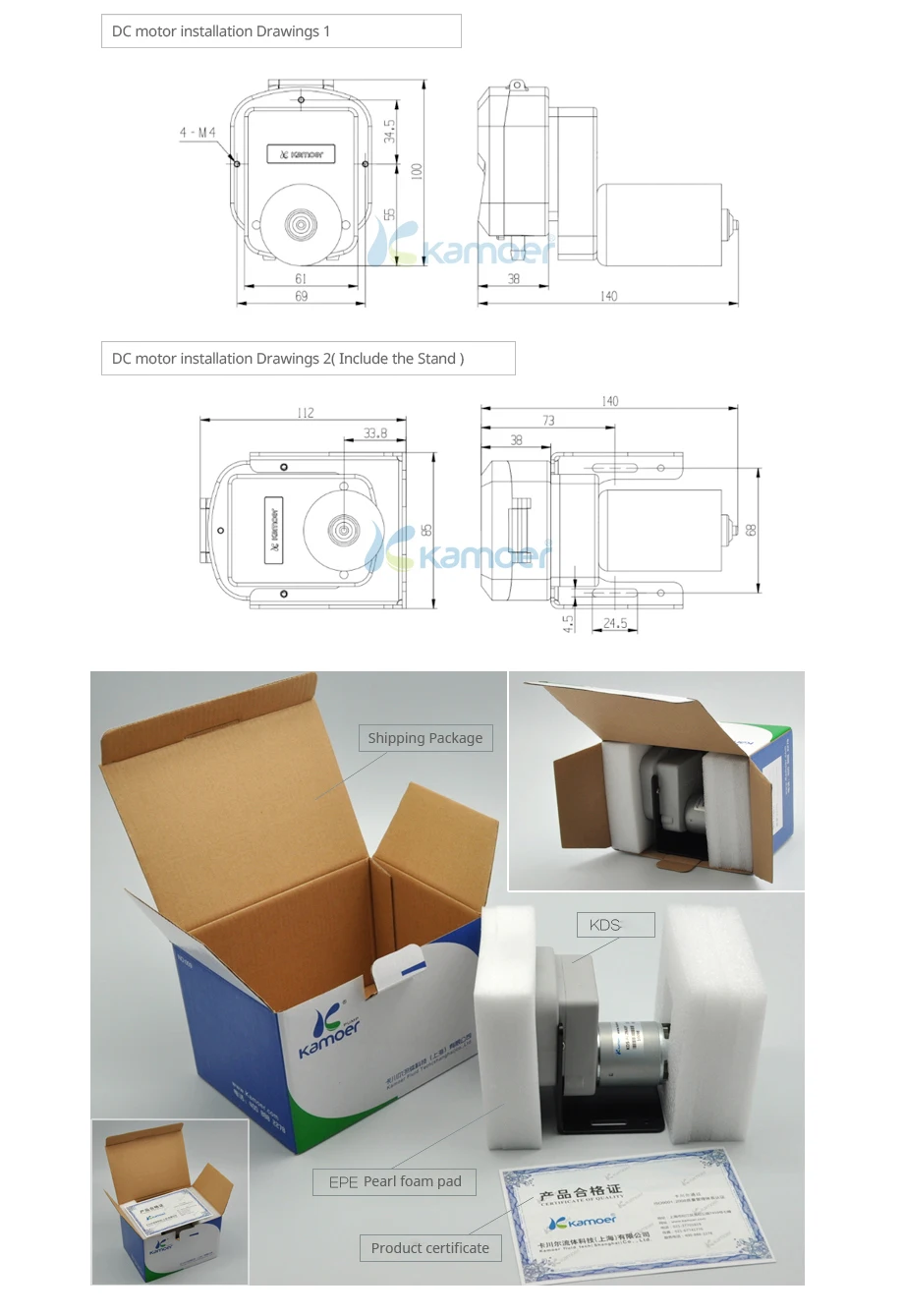

Installation method — This pump have two ways of fixation, supporting it or sticking a wear through it. This two installation methods make it applicable in different working places. Four direction of pipe joint is acceptable, as shown in the following picture.

Material  — The body of this pump is made of high-impact synthetic engineering plastics. Medal parts are made of high corrosion and temperature resistant stainless steel. Bearing is made of French-imported material to facilitate the low level of noise and long term durability.

Appearance & Color  — KDS Series pump have four kinds of color, Yellow(Y), Red(R), Blue(B), and Green(G). Choose at your will.
