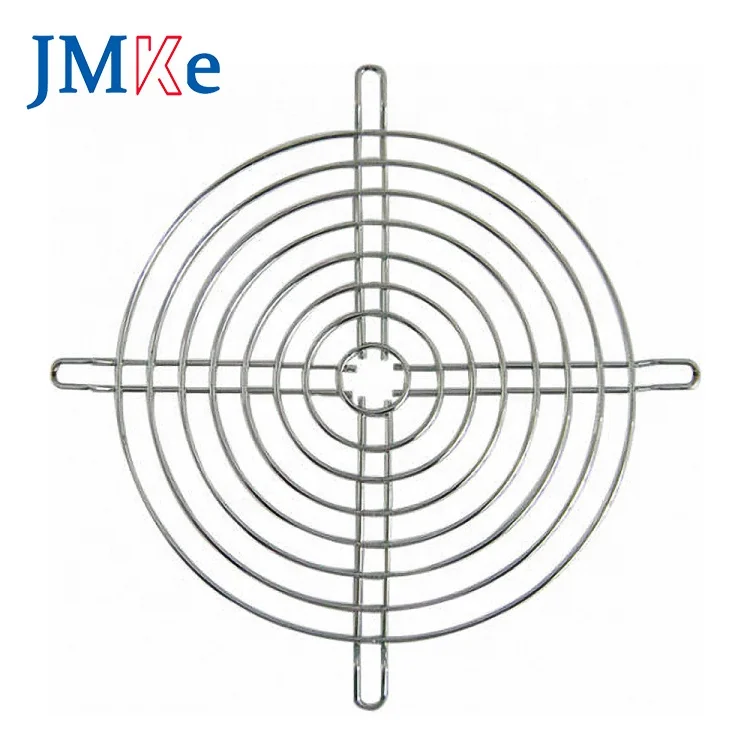

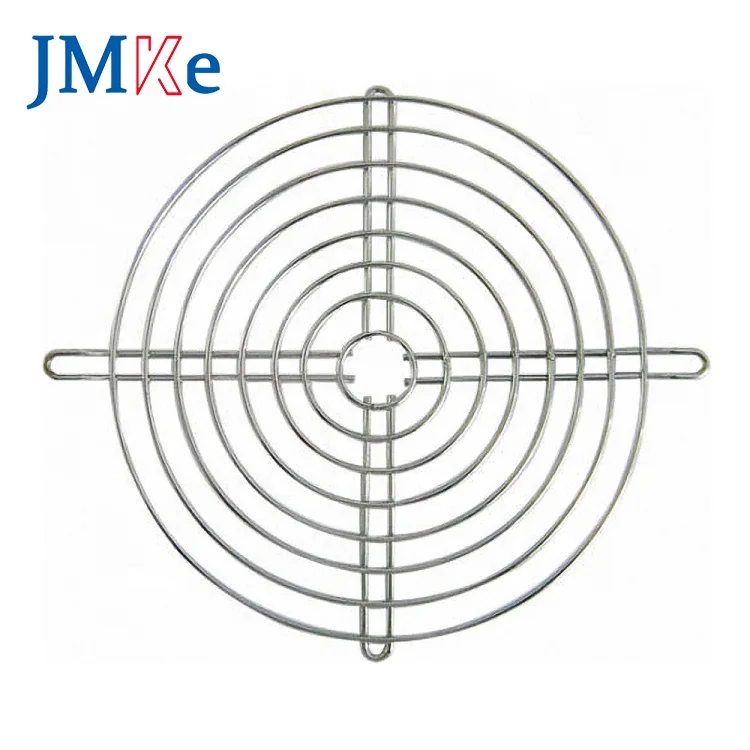

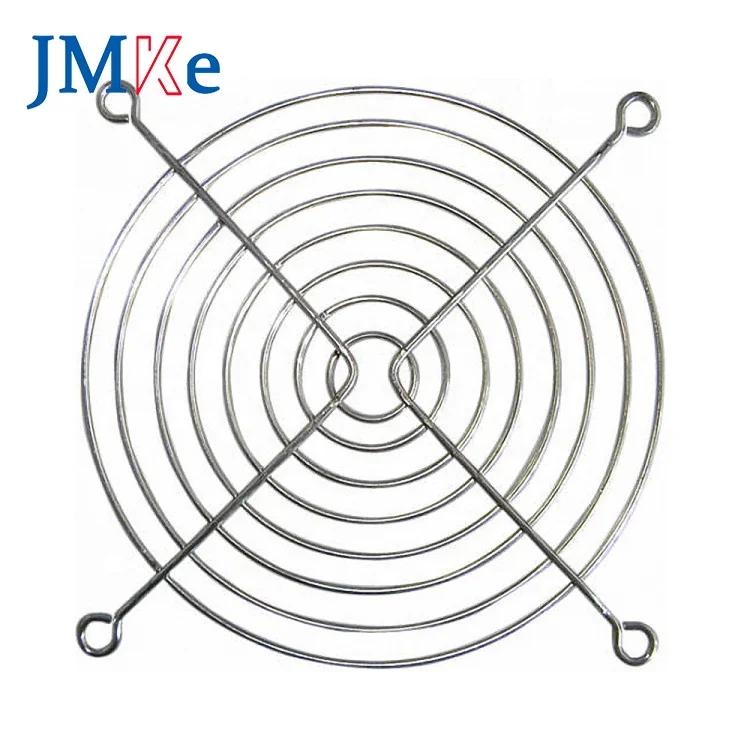

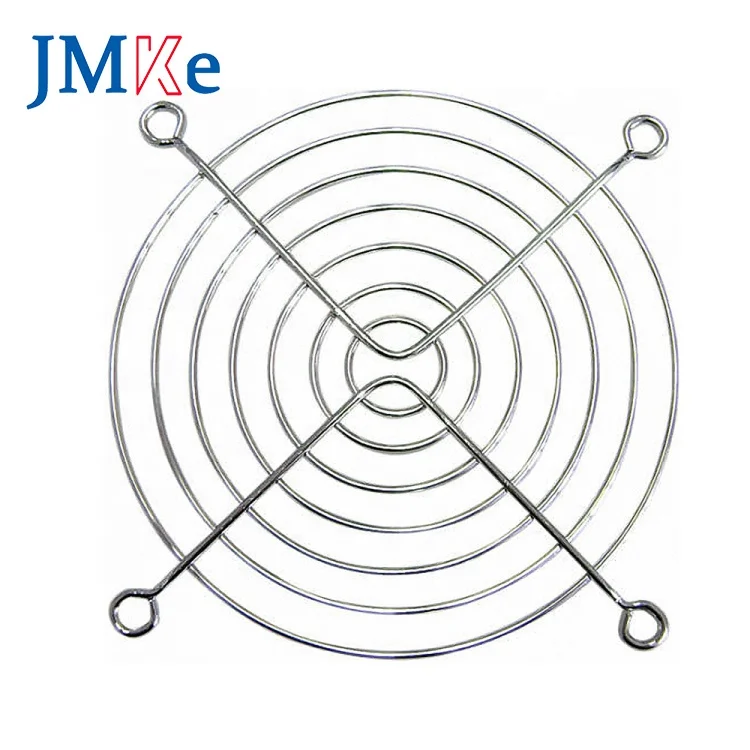

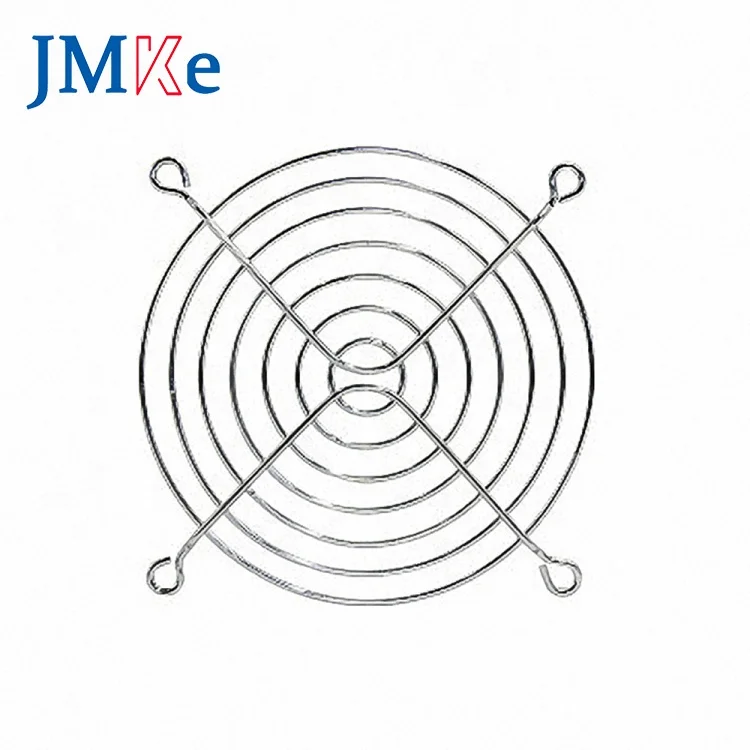

JMKE Hot Sale AC DC Metal Fan Guard filter fan guard 92mm Grille Guard
- Category: Ventilation Fan Parts >>>
- Supplier: Tianjin Motorong Technology Co. Ltd.
Share on (62046300755):
Product Overview
Description
JMKE Hot Sale AC DC Metal Fan Guard filter fan guard 92mm Grille Guard
Specification
Finish: bright nickel chrome plating or black plating.
Fan guards diameters:
25mm,30mm,40mm,50mm,60mm,70mm,80mm,92mm,110mm,120mm,127mm,150mm,160mm,172mm,220mm,254mm,280mm.
Part of our fan finger guard dimensions list as following table, want to know more size please contact us via email or chat with our customer service online.
Fan guard diameter | Rings No. | Ring wire diameter | Rib wire diameter | Screw Holes NO. |
25 mm | 2 | 1.4mm | 1.4mm | 2 |
30mm, 35mm, 40mm | 2 | 1.6mm | 1.6mm | 4 |
50mm | 3 | 1.6mm | 1.6mm | 4 |
60mm | 4 | 1.6mm | 1.6mm | 4 |
70mm | 5 | 1.6mm | 1.8mm | 4 |
80mm | 5 | 1.8mm | 1.8mm | 4 |

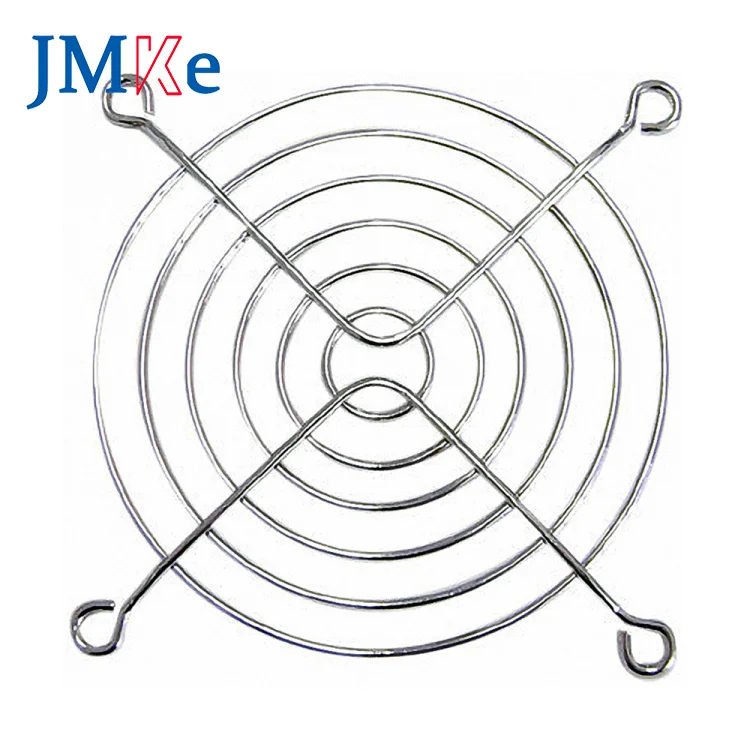

92mm | 6 | 1.8mm | 1.8mm | 4 |
120mm | 8 | 1.8mm | 1.8mm | 4 |
127mm, 130mm, 140mm | 8 | 1.8mm | 2.3mm | 4 |
150mm | 9 | 2.3mm | 2.3mm | 4 |
160mm | 10 | 2.3mm | 2.3mm | 4 |
172mm | 11 | 2.3mm | 2.5mm | 4 |

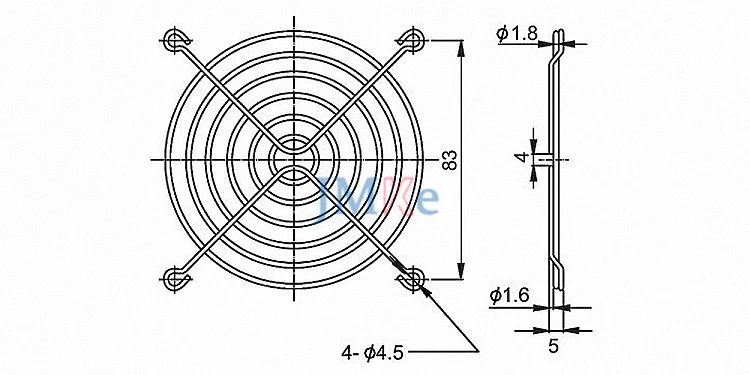

Drawing

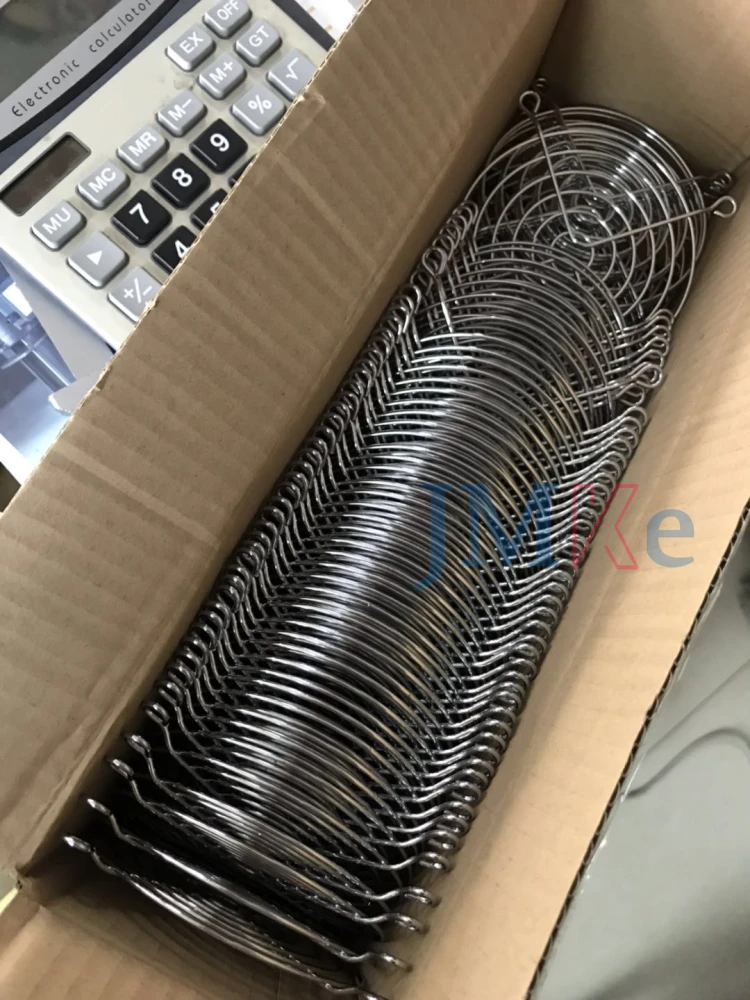

Stock Available
More Chose
|
|
|
|
