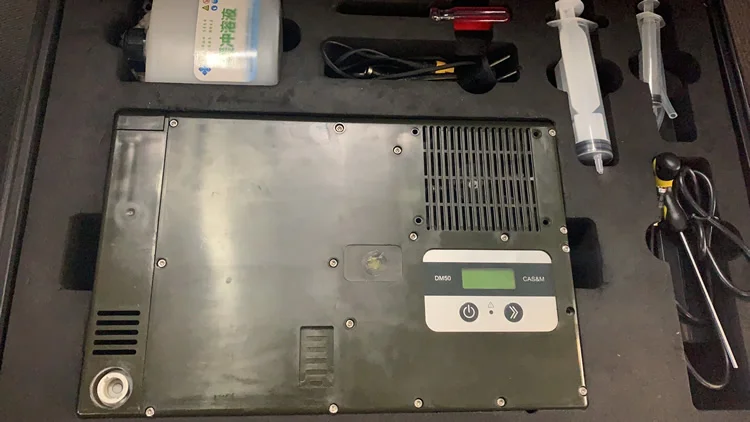

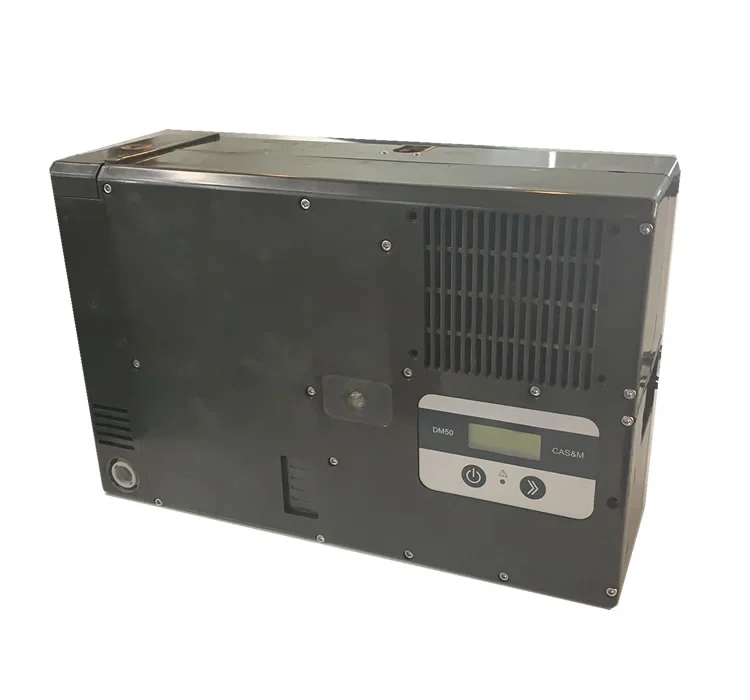

50W Direct Methanol Fuel Cell DMFC Portable Fuel Power Generator Battery Pack for Defense and Civil Purposes

Product Overview

Description

50W Portable DMFC (Direct Methanol Fuel Cell) Battery Pack for Military Use

Methanol is oxidized to form carbon dioxide with action of anode catalyst, and electrons and protons are released.  The protons are transferred to the cathode through electrolyte membrane, while the electrons working through the external circuit are transferred to the cathode region. The electrochemical reduction reaction occurs with protons and oxygen reaching the cathode catalytic layer under the action of the cathode electrocatalyst to produce water. Under standard conditions, the specific energy of methanol fuel is 600Wh/kg.

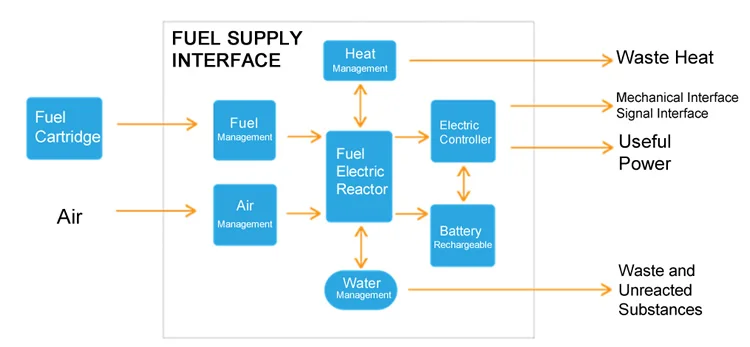

The configuration of DMFC is shown below.

Features:

The portable DMFC power pack uses methanol as fuel to generate electric energy. It can charge batteries or directly power equipment. It is a reliable portable power source.

Carried by one soldier to provide power for whole team
Supply power to a team for over a week in the battle field
Compact size with low noise
The power to count on in radical temperatures, altitudes, typhoons, sandstorms etc.



Technical Data		Cartridge Data
Model	50W	Standard fuel	M1
Daily power output	1200Wh	Volume	500ml
Voltage	14-30V	Type	Methanol
Weight	5.3kg	Weight	0.45kg
Size	311*205*115mm	Output	600Wh/cartridge
