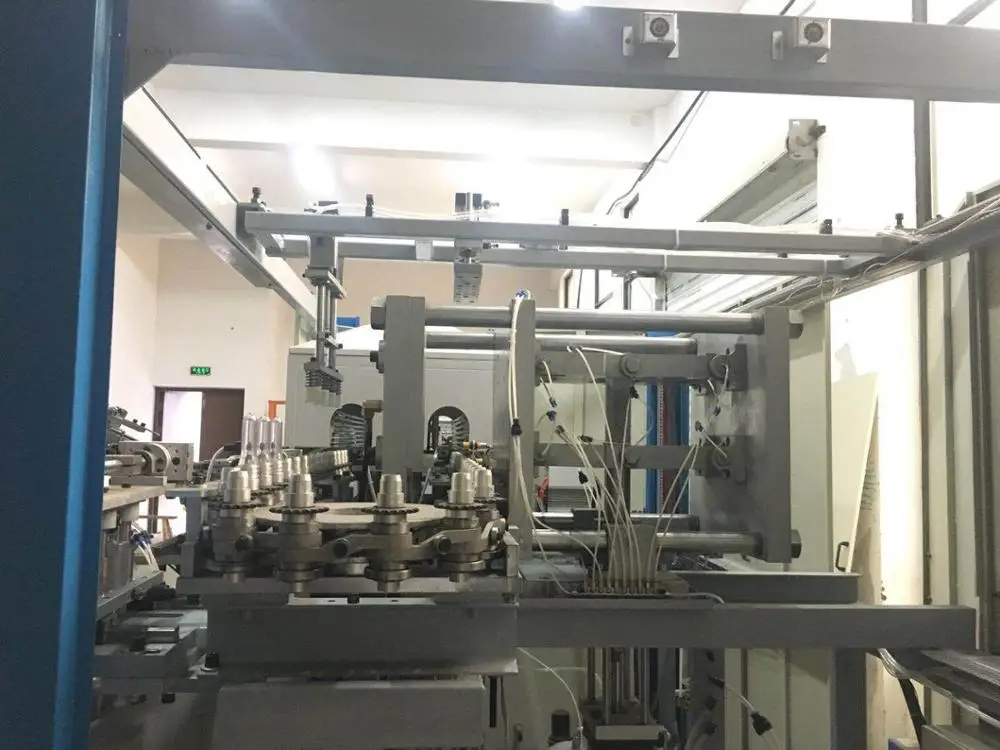

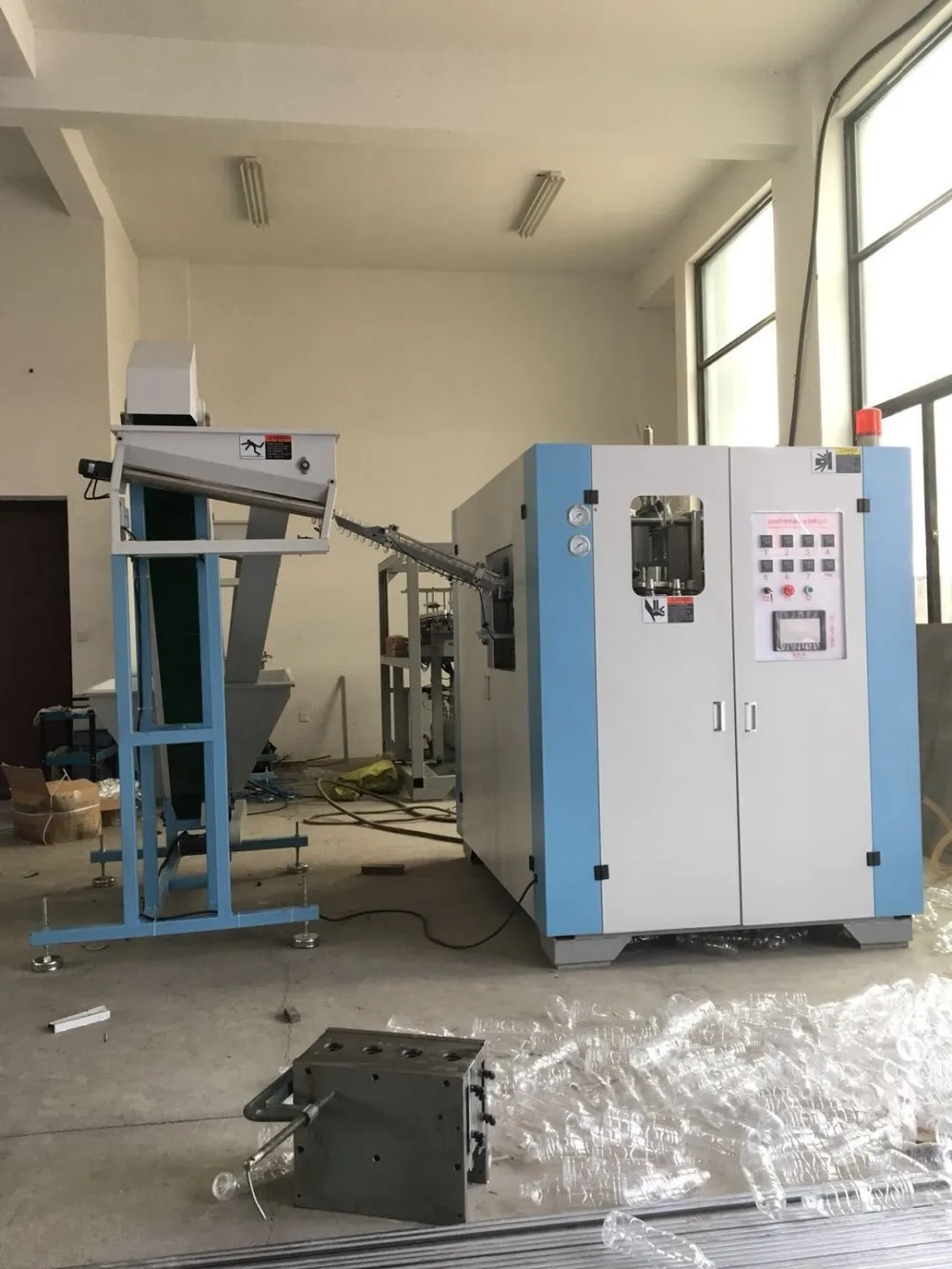

New Design Custom Blow Molding Machine With Good Price

1. Machine Power : 18 KW

2. Theoretical Output: 4500 BPH

3. Suitable Bottle: Mineral Water Bottle, Beverage Bottle, Medicine Bottle.

4. Blower Size: 3500*1500*2200 (MM)

5. Preform Loader Size: 1750*960*2500 (MM)

6. The Weight Of Blower And Oven: 3550 (KG)

Model		BG-4000 Full Automatic 4 Cavities PET Bottle Blow Molding / Moulding Machine
Theoretical output		4500  pcs/h
Finished bottle		Max. bottle volume	1.5 Liters
		Max. neck diameter	38 mm
		Max. bottle diameter	90 mm
		Max. bottle height	330mm
Mold specifications		Cavity	4
		Automatic Lubricating Oil System	Yes
		Mold thickness	180mm-240 mm
		Open stroke	130 mm
Electrical system		Power voltage	380v/3Phase/50HZ
		Installation power	40 kw
		Actual power consumption	18 kw
Air source		Recommend air compressor	3.2 m³/min 30Kg 1.6 m³/min 12Kg
Cooling water		Recommend water chiller	5HP
Blower size		Length*width*height/weight	3500*1500*2200 (MM)/3000 KG
Preform Loader size		Length*width*height/weight	1750*960*2500 (MM)/550kg

Mitsubishi PLC : It is a very popular brand all over the world . It has two big funcations: manual and automatic. Turn it to be Manual . It can help to install mold . Turn it to be automatic . It can produce bottles be stable.

Festo operating valves: Festo valves made by Germany . The three Festo valves control three functions: Mold-closing , Left-stretching, Right-stretching. The three valves can work for a long time .

Bottle volume: BG-4000 can produce      100-1500 ml PET bottle . It also can produce PC bottle . Preform heating system has water cooling system and air cooling system .

Will let the heating system be stable .

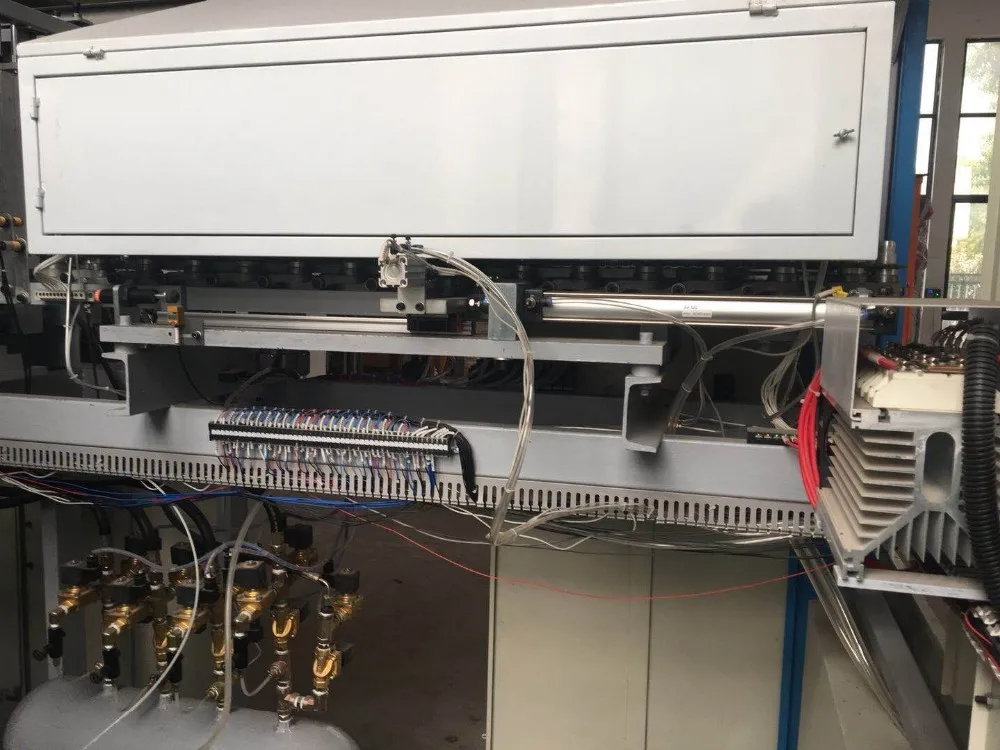

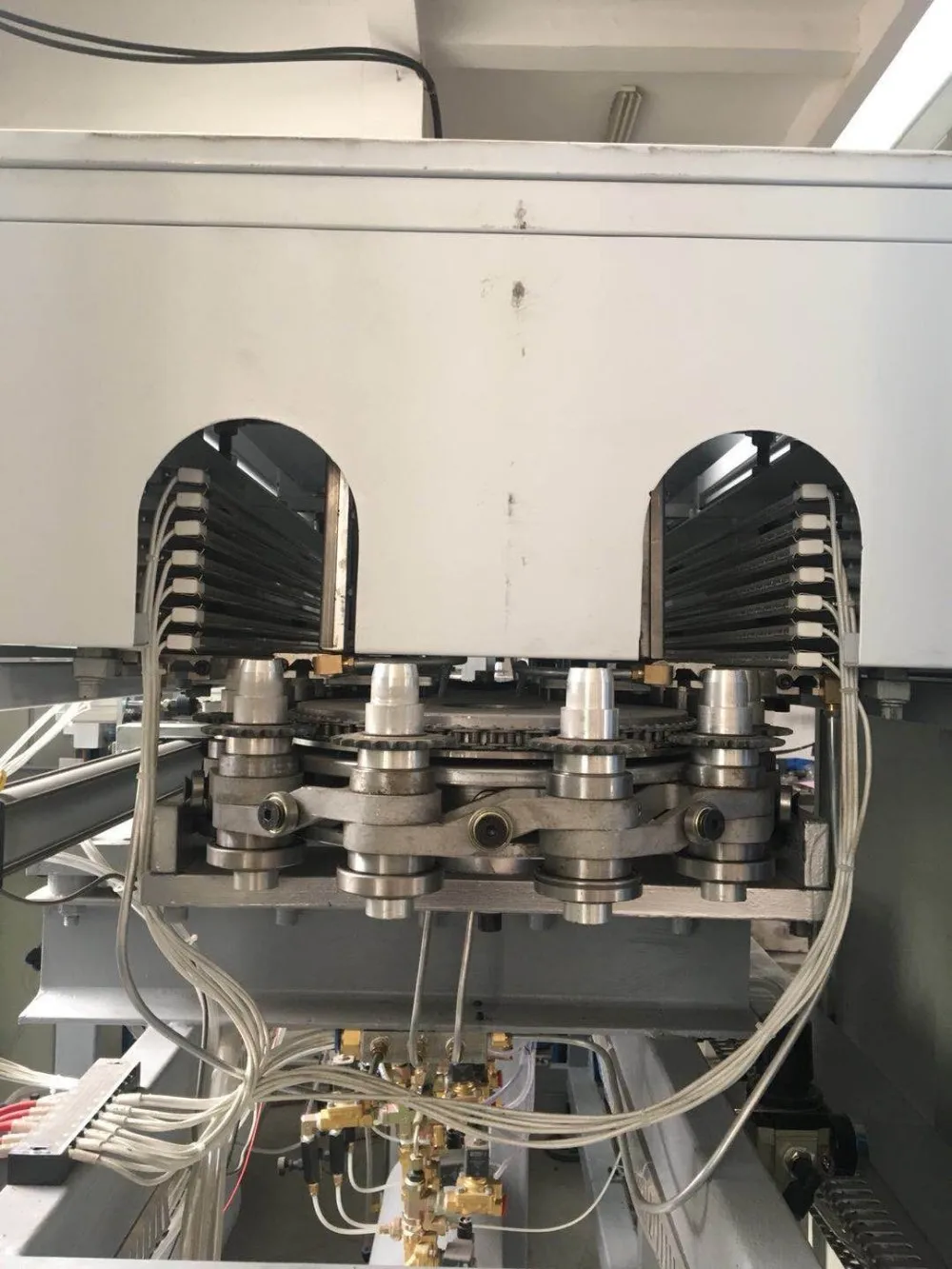

Heating lamps: 48 pieces heating lamps can heat the preform be longer and longer . And the Heating lamps quality is very good . Let it can work for a long time .

Packing & Delivery

Packing by PE film inside and wooden case outside. Make sure it can be shipped be stable by sea .
