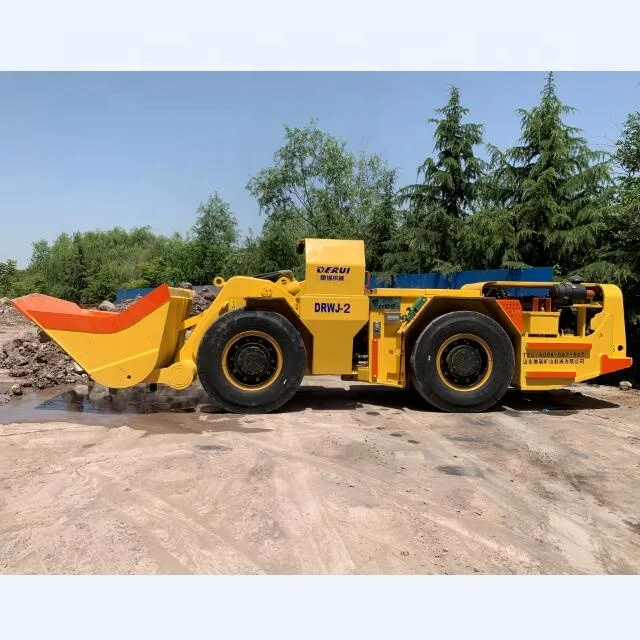

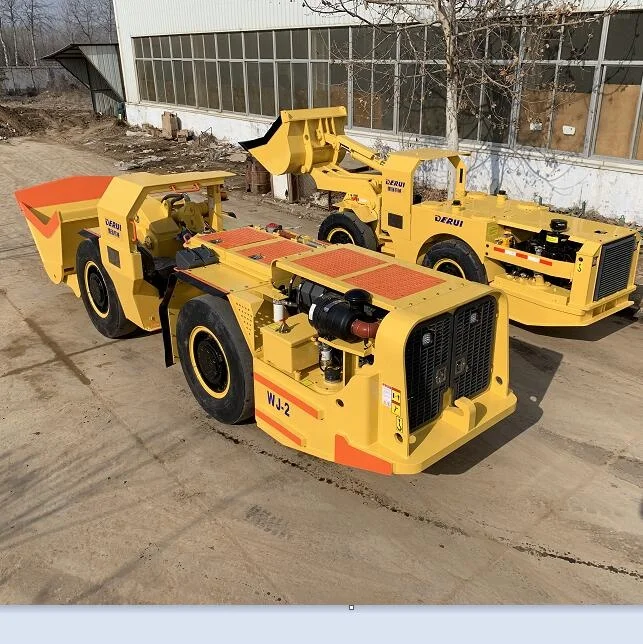

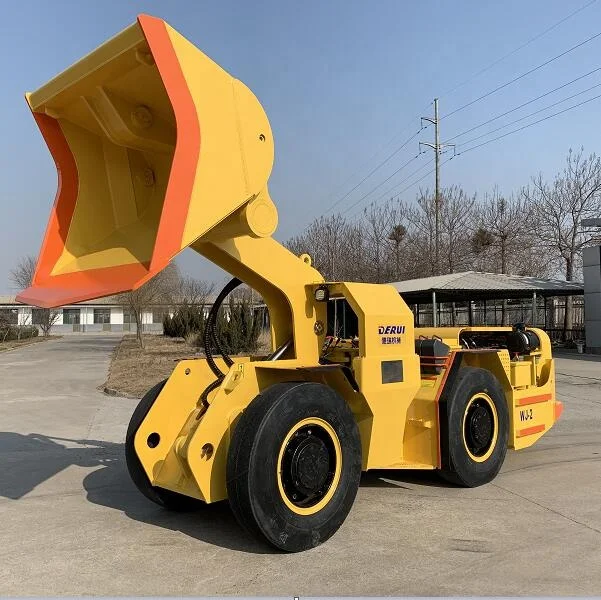

The DRWJ-2G hard rock LHD loader is a robust 4.0 metric tonne LHD intended for narrow workings in hard rock mining and in tunneling. It is a upgrade model of DRWJ-2, with brand new design. With ROPS/FOPS-certified operator canopy and low emission engine to ensure sustainable mining. Ground-level daily maintenance enables safer servicing. ST2G is designed with easy access to all daily service points,To maximize uptime by making maintenance quick and efficient
TECH SPECIFICATIONS
Engine
DEUTZ BF6L914
Kw/rpm
112KW/2300RPM
F6L914
Kw/rpm
86KW/2300RPM
BF4M1013EC
Kw/rpm
115KW/2300RPM
Transmission&axles
DANA gearbox
32000 series
DANA converter
C270 sereies
DANA axles
14D
or China brand
Hydraulic system
PARKER
REXROTH
MAIN FEATURES& MAIN TECHNIAL SPEC
Various Engine options: DEUTZ BF6L914/ F6L914/ BF4M1013EC EU Stage II
D914L06 Stage, TCD4.1EDG III A
Drive Train: DANA 32000 series gearbox + C270 series torque converter
Axle: DANA 14D or MERITOR (China factory made) or KESSEL D71
Brake: Multi disk spring brake (SAHR)
Customized buckets optimized for hard rock available
Ejector bucket : available and proved in many countries
Top brands hydraulic components: PARKER, REXROTH
Central lubrication system : (optional)
Remote control system : (optional)
Exhaust system: Various top brands of catalytic purifier / muffler

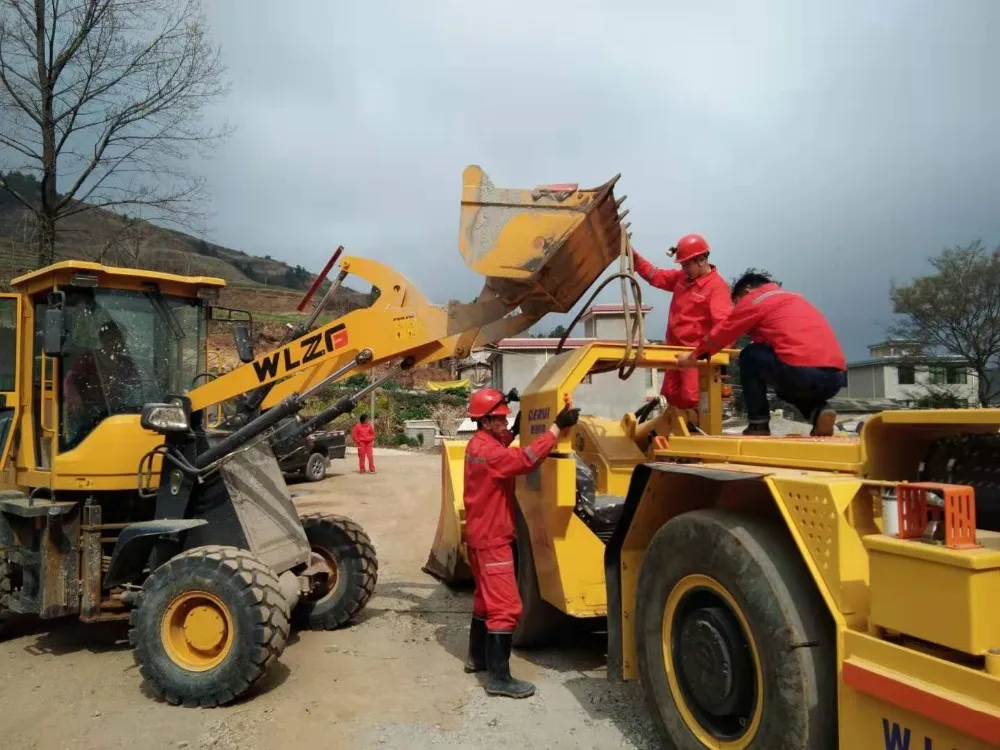

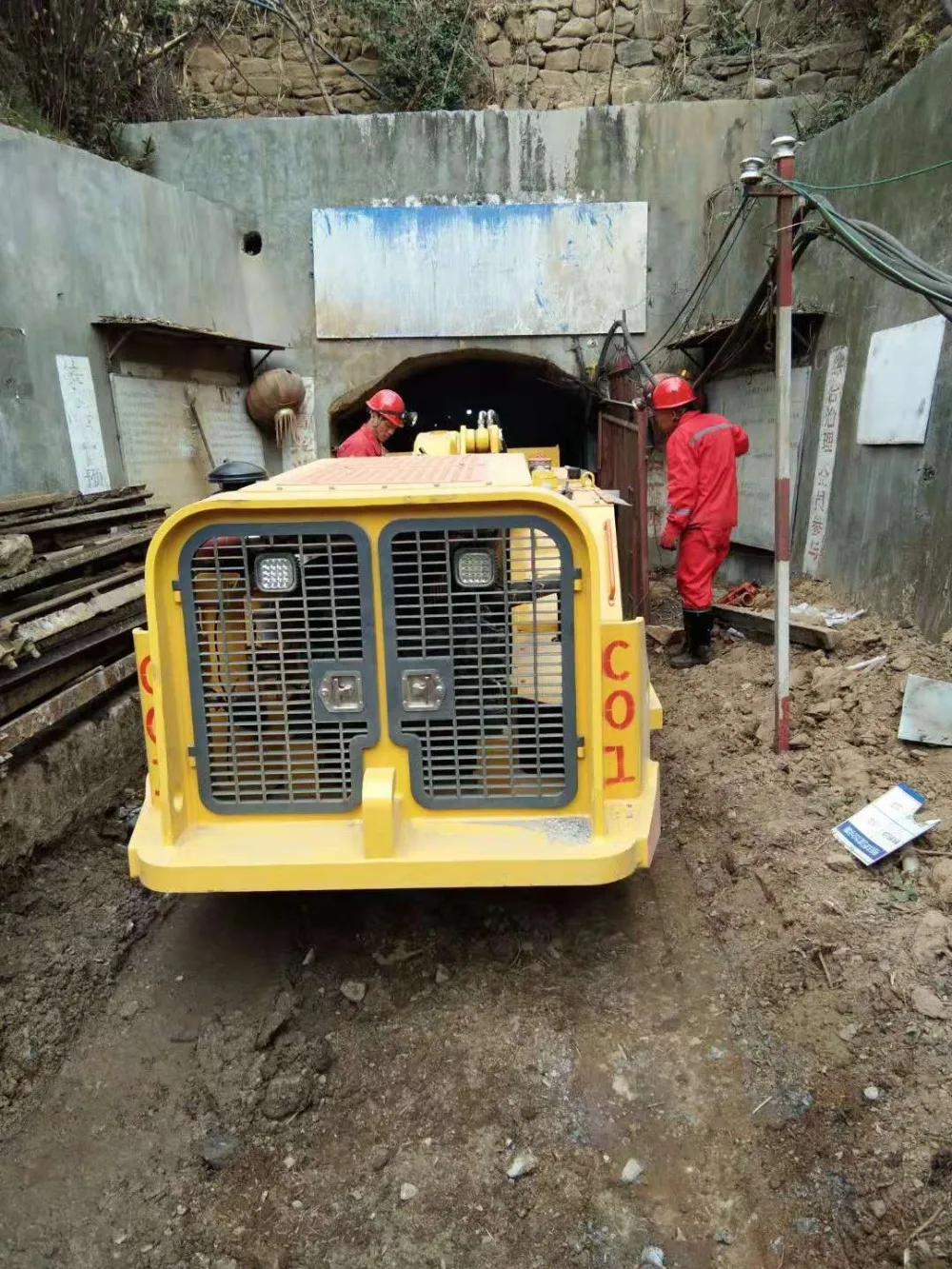

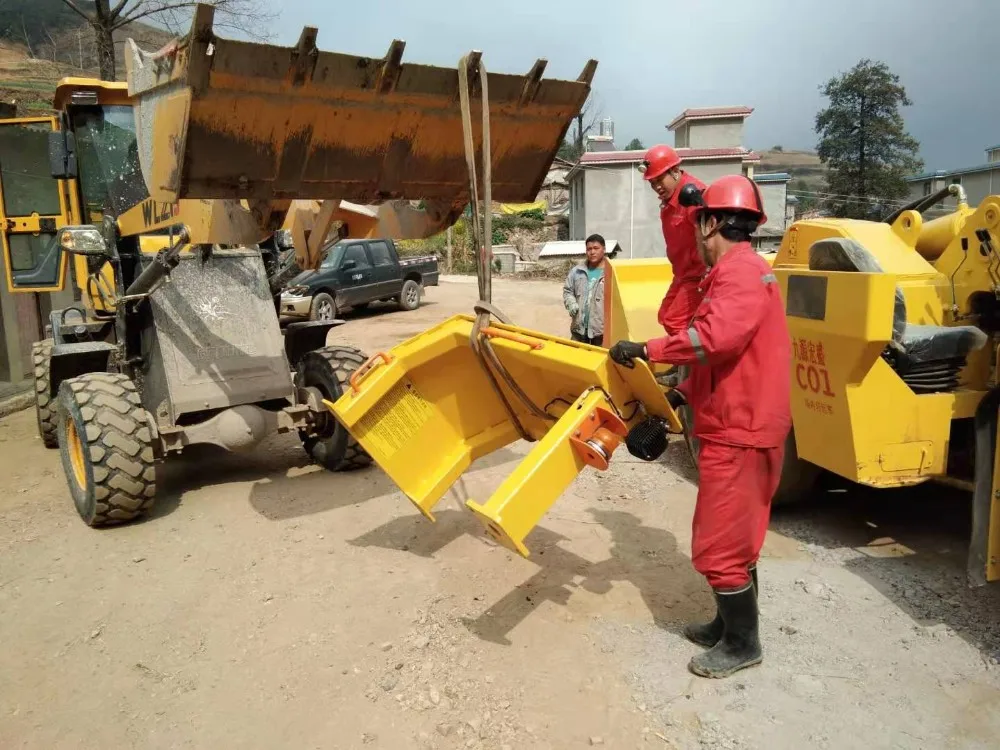

working on mine site
Detailed Images
FOPS&ROPS approved cabin
Three point mounting and anti-skid protection provides safe access for operators and service personnel.

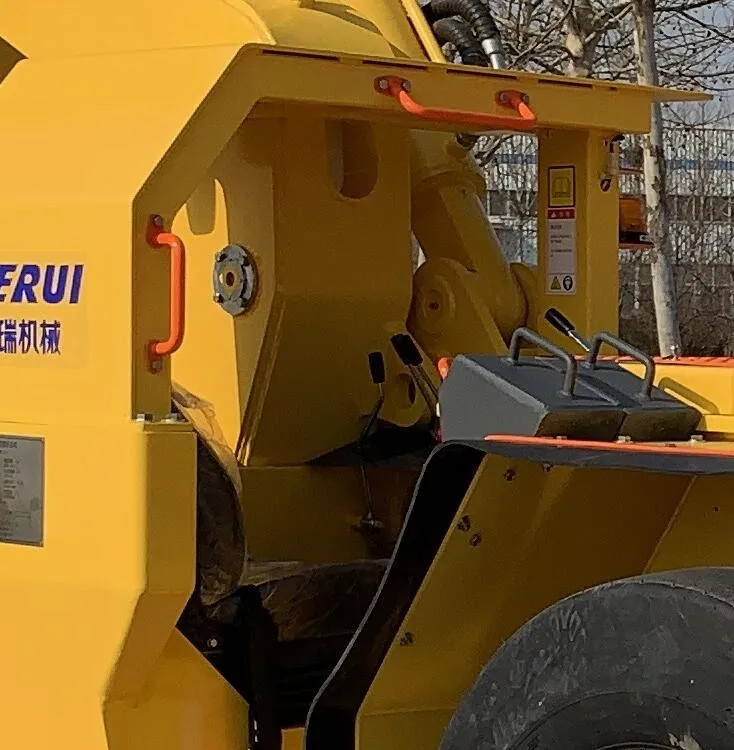

Long life roller bearing center articulation joint provides durable in use.

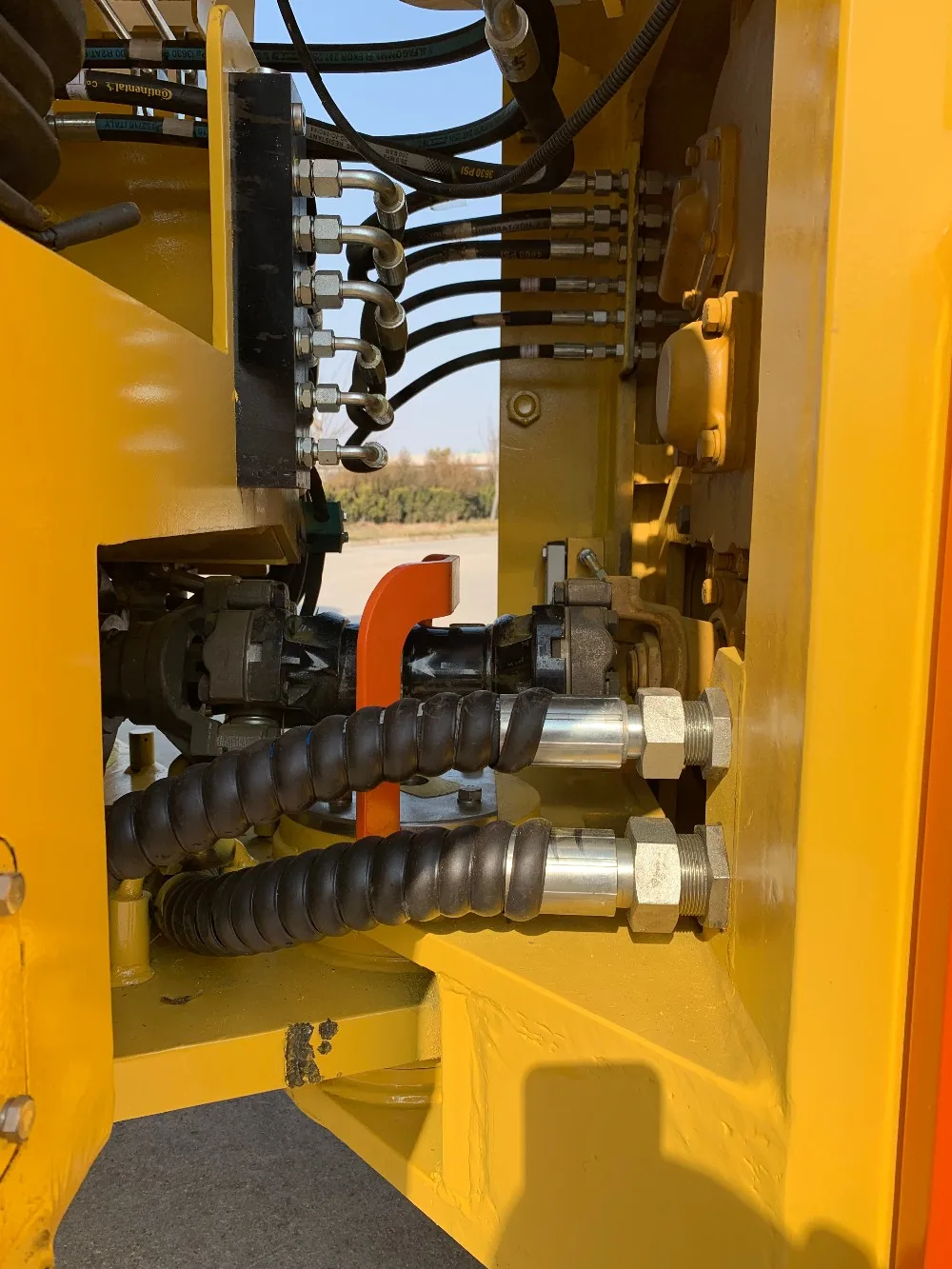

Conventional and proven components are well protected within the frame, thanks to strong frame structure and long life roller bearing center articulation joint
Our Service
The DRWJ-2G can also be installed with Ausal (or PROTECFIRE) fire suppression system.

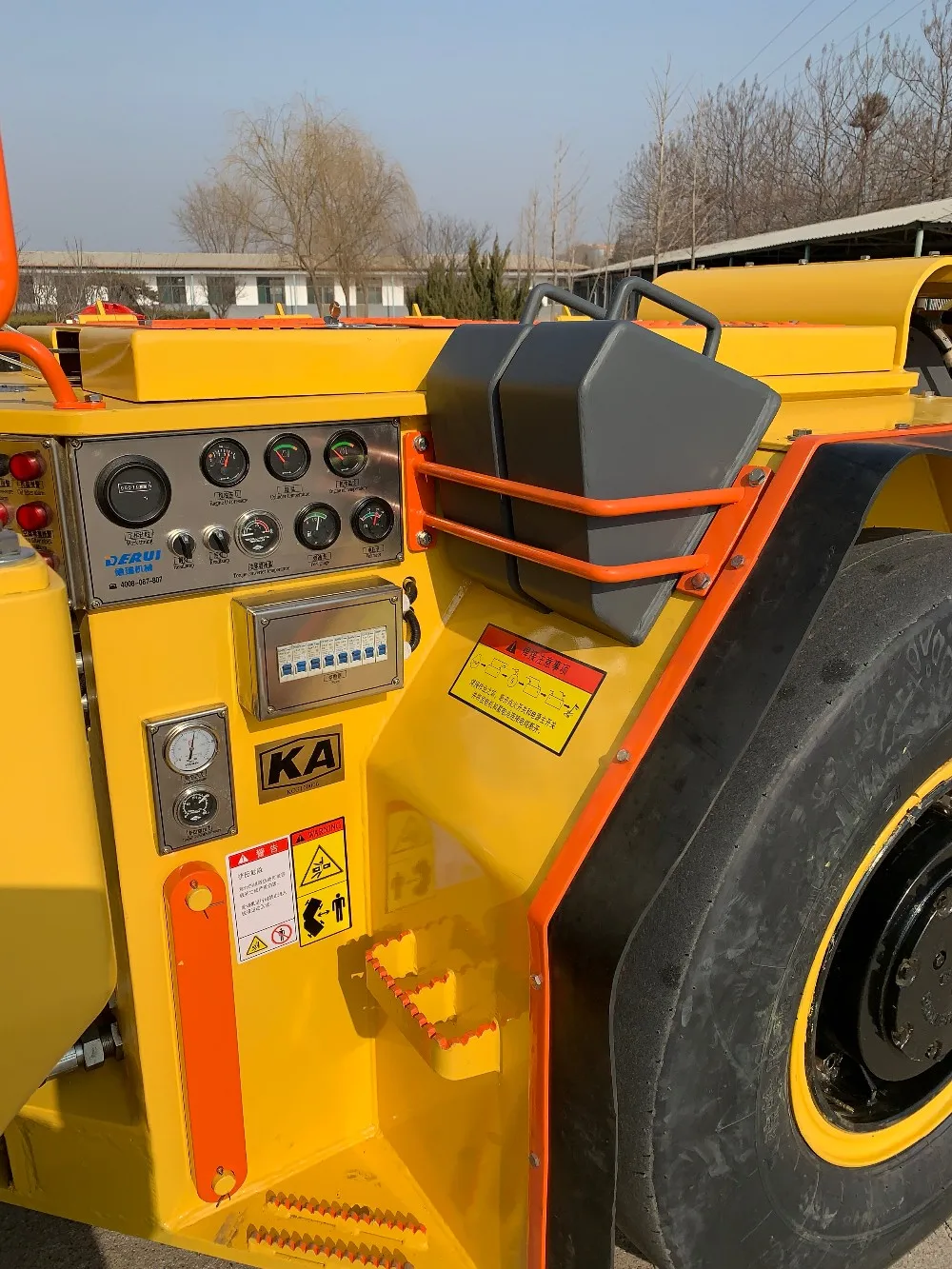

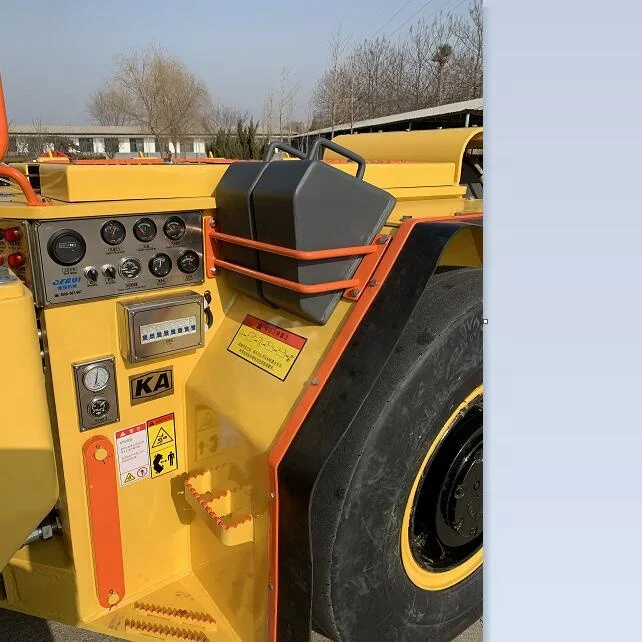

Side seated operator position for efficient bi-directional operation ensures wide visibility. Ergonomic and luxury world leading brand operator seat with seat belt provides comfort during a full work shift.
