10 1/2TDHA527G Tricone bit

Product Overview

Description

 1.Product Description:

10-1/2inch(266.7mm) IADC code 527G tricone bit used very soft with low compressive strength strength and high drill abilit,such as soft shale,clayand salt bed ,etcAdvantage of Products :

2. Cutting Structure of this series tricone bit :
1. Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
2.Gauge Structure of this series tricone rock bit :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3.Bearing Structure of this series tricone rock bit :
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
4.Seal and Lubrication of this series tricone rock bit :
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
3.tricone  bit is suitable for formation:
Very slft with low compressive strength strength and high drillbility,suchas soft shale,clay and salt bed,etc

Tricone bit list
Tricone bit size		API REG	Button moment	Tricone bit size		API REG	Button moment
inch	mm	inch	KN.m	inch	mm	inch	KN.m
3-3/4	95.3	2-3/8	4.1 — 4.7	9-5/8	244.5	6-5/8	38 — 43.4
3-7/8	98.4	2-3/8	4.1 — 4.7	9-7/8	250.8	6-5/8	38 — 43.4
4-1/4	108	2-3/8	4.1 — 4.7	10-1/2	266.7	6-5/8	38 — 43.4
4-1/2	114.3	2-3/8	4.1 — 4.7	10-5/8	269.9	6-5/8	38 — 43.4
4-5/8	117.5	2-7/8	6.1— 7.5	11	279.4	6-5/8	38 — 43.4
4-3/4	120.7	2-7/8	6.1— 7.5	11-5/8	295.3	6-5/8	38 — 43.4
4-7/8	123.8	2-7/8	6.1— 7.5	12	304.8	6-5/8	38 — 43.4
5-1/2	139.7	3-1/2	9.5 — 12.2	12-1/4	311.2	6-5/8	38 — 43.4
5-5/8	142.9	3-1/2	9.5 — 12.2	12-5/8	320.7	6-5/8	38 — 43.4
5-3/4	146.1	3-1/2	9.5 — 12.2	13-1/2	342.9	6-5/8	38 — 43.4
5-7/8	149.2	3-1/2	9.5 — 12.2	13-5/8	346.1	6-5/8	38 — 43.4
6	152.4	3-1/2	9.5 — 12.2	13-3/4	349.3	6-5/8	38 — 43.4
6-1/4	158.8	3-1/2	9.5 — 12.2	14-1/2	368.3	7-5/8	46.1 — 54.2
6-1/2	165.1	3-1/2	9.5 — 12.2	14-3/4	374.7	7-5/8	46.1 — 54.2
6-5/8	168.3	3-1/2	9.5 — 12.2	15-1/2	393.7	7-5/8	46.1 — 54.2
6-3/4	171.5	3-1/2	9.5 — 12.2	16	406.4	7-5/8	46.1 — 54.2
7-1/2	190.5	4-1/2	16.3 — 21.7	17-1/2	444.5	7-5/8	46.1 — 54.2
7-5/8	193.7	4-1/2	16.3 — 21.7	18-7/8	479.4	7-5/8	46.1 — 54.2
7-7/8	200	4-1/2	16.3 — 21.7	20	508	7-5/8	46.1 — 54.2
8-1/2	215.9	4-1/2	16.3 — 21.7	22	558.8	7-5/8	46.1 — 54.2
8-5/8	219.1	4-1/2	16.3 — 21.7	24	609.6	7-5/8	46.1 — 54.2
8-3/4	222.3	4-1/2	16.3 — 21.7	26	660.4	7-5/8	46.1 — 54.2
9-1/2	241.3	6-5/8	38 — 43.4

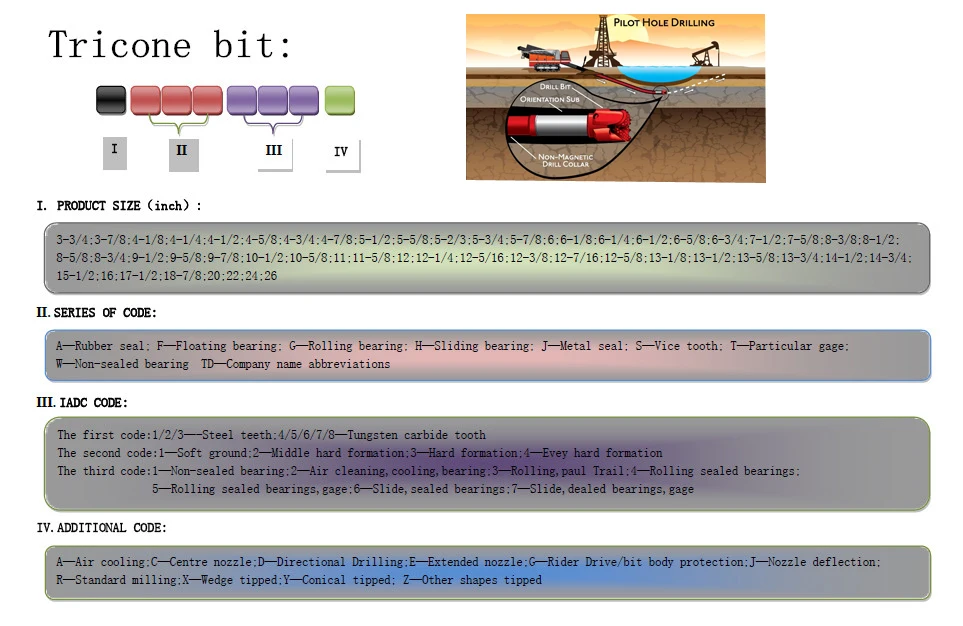

4.Company product naming regulations:

5.Shipping terms:

        SAVE Near from Beijing airport and Tianjin seaport Very economical FOB charges

6.Please contact me:
