Electric Heater with Holder

Product Overview

Description

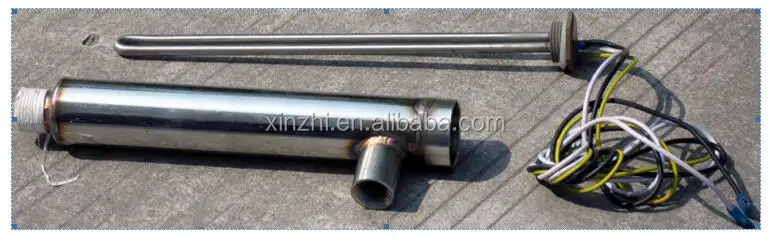

Electric Heater with Holder





It can install at water system to heat water directly.



1) Function and features
4Water pressure tested 10Bar

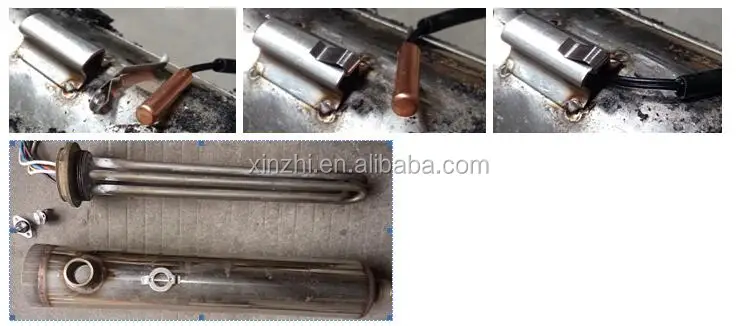

4holder welded two cases for
1) water sensor
2) 80°C thermal protector ( when temperature > 80°C, it give OPEN signal. when temperature < 80°C, it give CLOSE signal.)



4holder with insulation

4electrical heater install to holder with silicon ring, high temperature glue

4holder can weld two brackets, you can install holder to somewhere by screw



2) Specification

Power supply	220V-50Hz-1Phase or 380V-50Hz-3Phase
Heating capacity	2kW, 3kW, 4.5kW, 6kW, 7.5kW, 9kW
Material for holder	SS304
Material for electrical heater	Copper or SS316
Protection	Built-in 80°C thermal protector ( OPEN, CLOSE signal )
Water connection	G3/4”, G1”, G1-1/4”, G1-1/2” ( female or male thread )
Diameter for holder	G1-1/2”, G2”
Length of holder	350mm or 460mm
Direction of water connection	Side-side or side-end
