chipboard hot press machine hydraulic hot press machine
US $11500-$12000

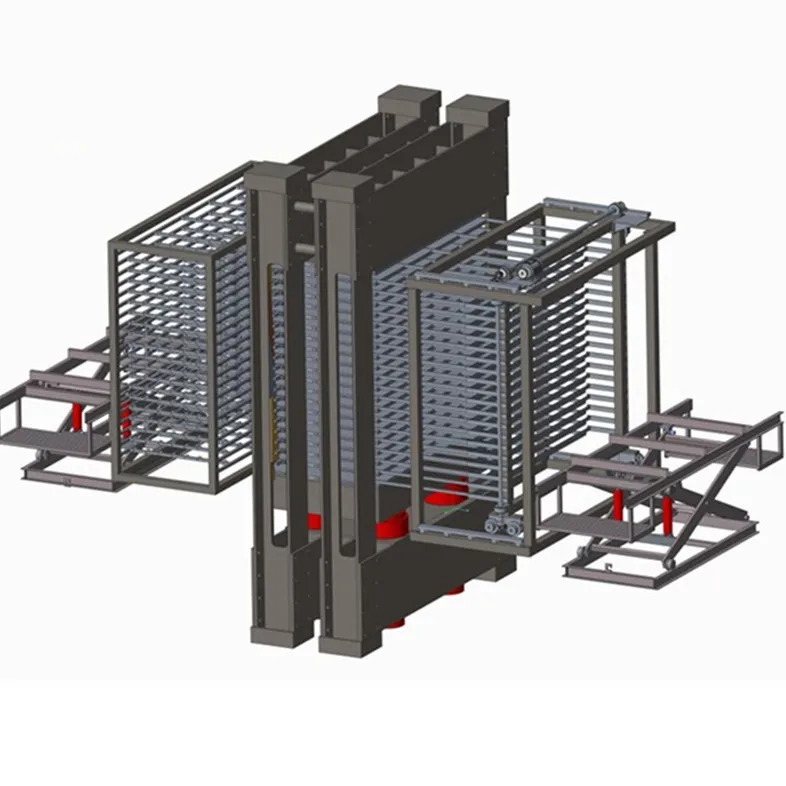

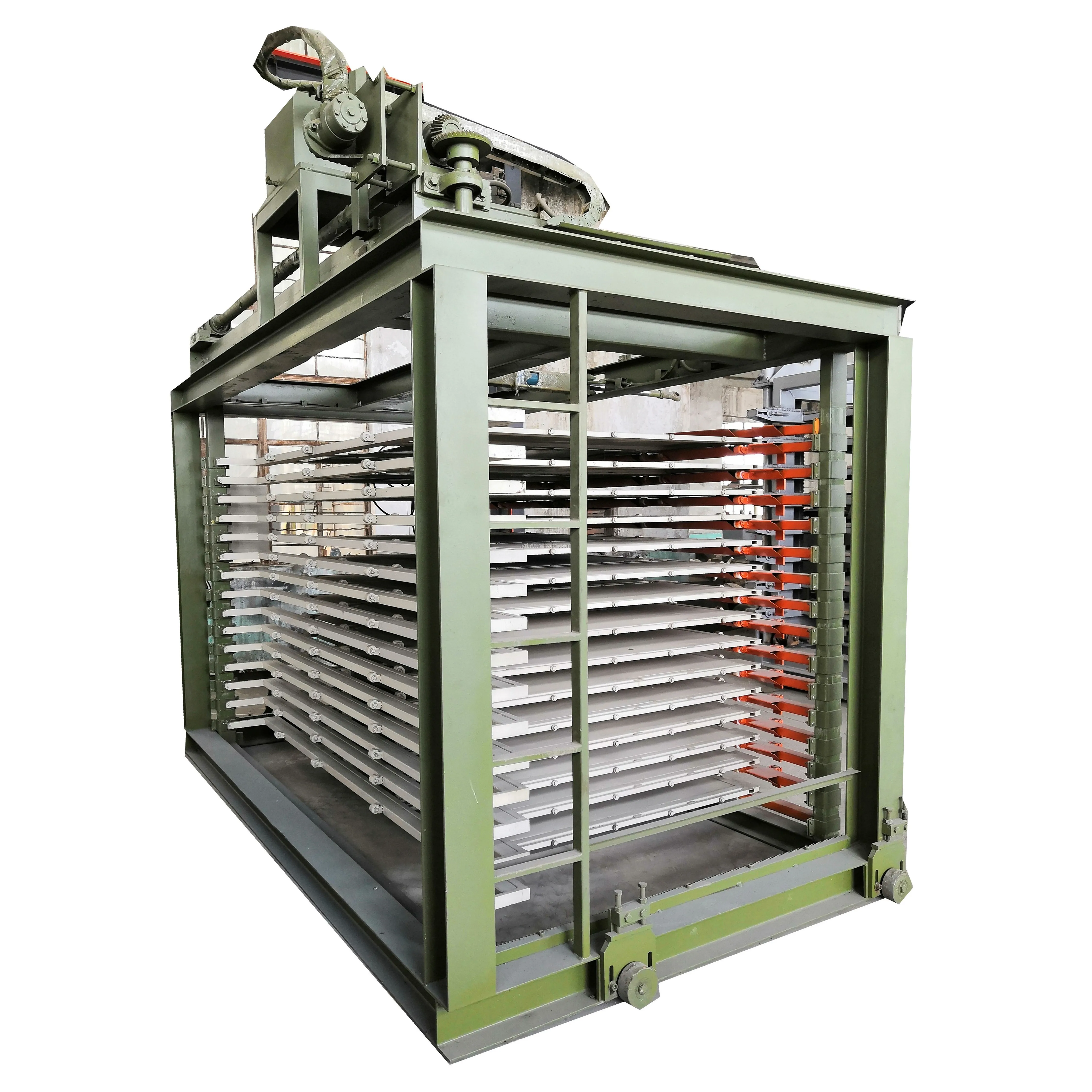

Гидравлическая машина горячего прессования с автоматическим погрузочным и разгрузочным оборудованием
- Category: Press >>>
- Supplier: Linyi Ruifeng Machinery Factory
Share on (62049271280):
Product Overview
Description
Now more and more customers select the RUIFENG as their long-term cooperation partner.
why?
>Professional design based on customer indeed requirement,we not only supply the machine itself ,but also the excellent service,for each customer,we will make their own design to the local conditions.
>Quality always be the best,we insist that the quality is the life,good quality is the fast way to build the friendship and trust between you and us.
>High quality≠expensive,we never and ever to sacrifice the quality for a order with the cheaper price,the price must be equal with the quality,we hope our machines will be your cash printer not the trouble makers.
>Excellent after sale service,no profit no service,we admit that we will benefit service for the machine,but the most of profit will be changed to the excellent service for you,we have professional technician team ready for you need at any time,professional quick and make you satisfied is our working principle
Hydraulic hot press machine for plywood automatic plywood making machine
Our Products
Product Description
Type | Normal Hot Press | 4-side Hot Press | Door Skin Hot Press | ||||
Compression ability(T) | 600 | 400 | 600 | 800 | 400 | 400 | 1200 |
Hot plate amount | 9 | 10 | 10 | 10 | 16 | 9 | 5 |
Layers | 8 | 11 | 11 | 11 | 15 | 8 | 4 |
Hot plate distance(mm) | 100 | 200 | 100 | 100 | 150 | 150 | 250 |
Direction of into board | Horizontal | Vertical | Horizontal | Horizontal | Horizontal | Horizontal | Vertical |
NO.Oil cylinder | 6 | 2 | 6 | 6 | 2 | 2 | 6 |
Diameter(mm) | Φ220 | Φ320 | Φ320 | Φ280 | Φ320 | Φ320 | Φ320 |
Stoke of Cylinder(mm) | 1000 | 1600 | 1050 | 1050 | 1050 | 1050 | 1250 |
Operate time(s) | 10 | 15 | 15 | 15 | 15 | 15 | 10--15 |
Main motor power(kw) | 18.5 | 15 | 15 | 15 | 15 | 15 | 22 |
Control mode | PLC automatic pumping station | ||||||
Frame form | Group frame | ||||||
Pressure of hydraulic system(Mpa) | ≤25 | ||||||
Upper ,bottom crossbeam(mm) | 800 | 600 | 800 | 800 | 800 | 500 | 800 |
Thickness of main frame steel(mm) | 30,20,12 | 30,20 | 30,20 | 30,20 | 30,20 | 30,20 | / |
Pillar(mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
Thickness of main frame steel(mm) | 30,10 | 40,10 | 30,10 | 30,10 | 30,10 | 30,10 | 50 |
Movable crossbeam(mm) | 400 | 400 | 400 | 400 | 400 | 400 | / |
Thickness of main frame steel(mm) | 30,20 | 40,20 | 30,20 | 30,20 | 30,20 | 30,20 | / |

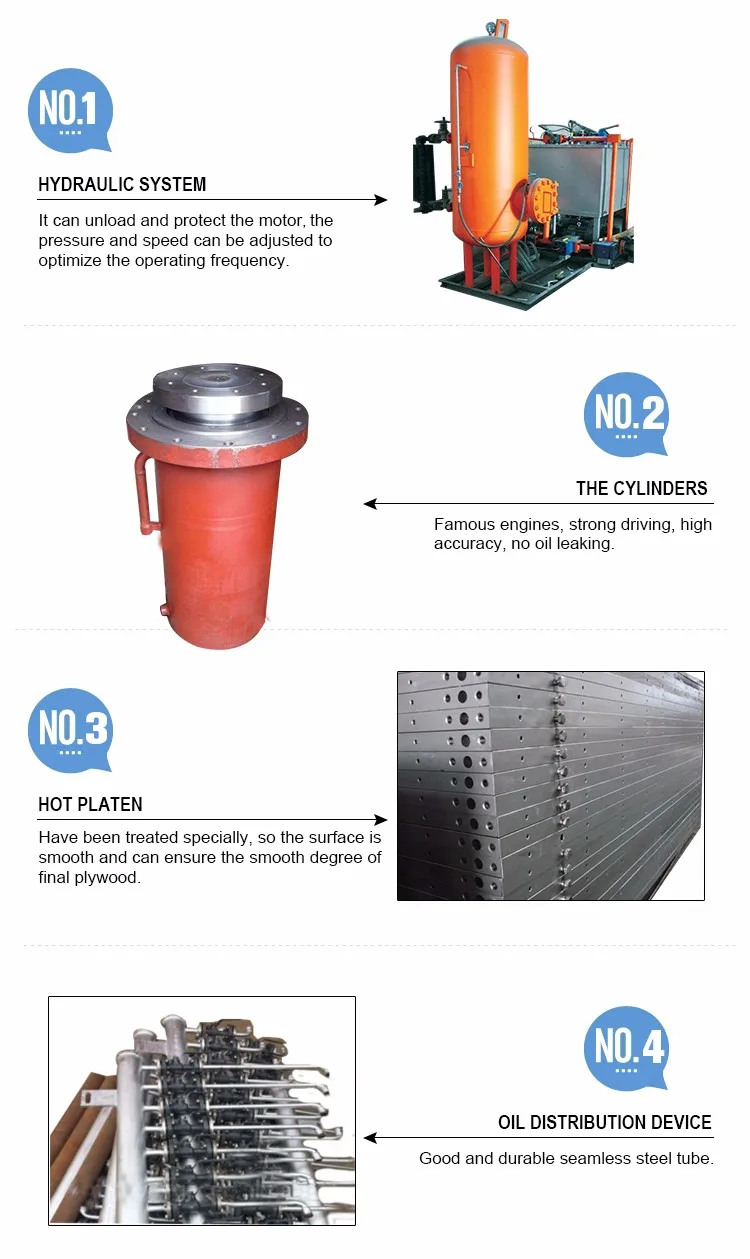

Product Details
Products Application

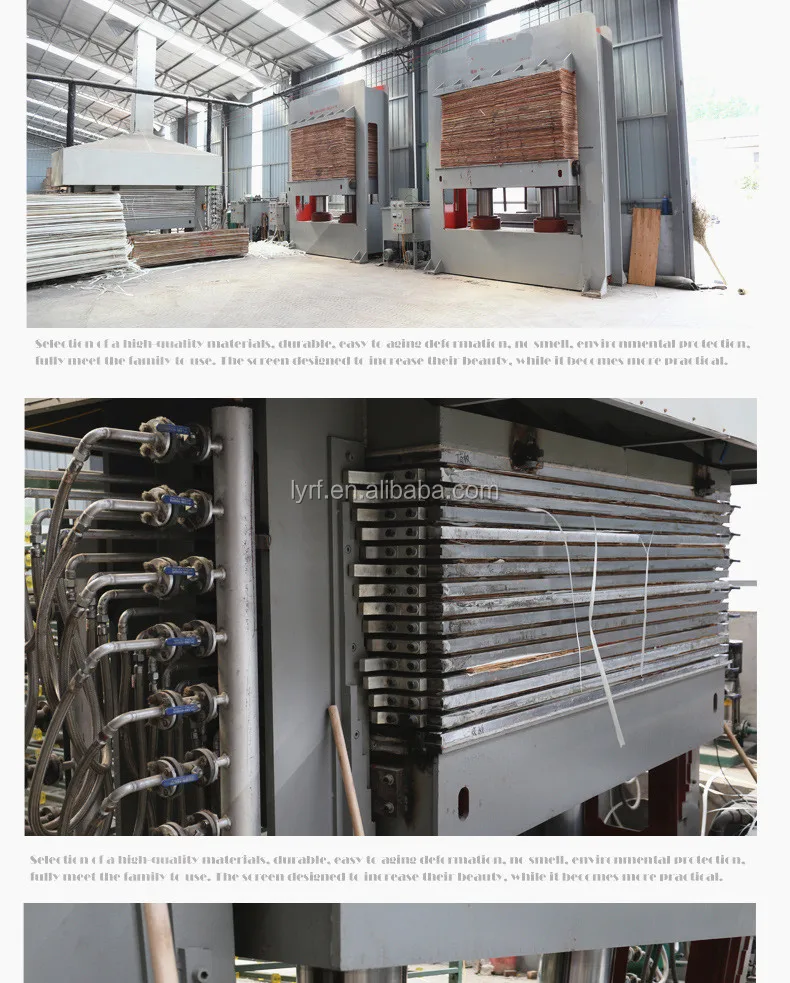

Plywood hot press machine can press veneers together with high temperature.Which is used in furniture and artificial board secondary operation. Manual and automatic controls make the hydraulic press faster, more precise, and more convenient for international customers to use.
Our Services

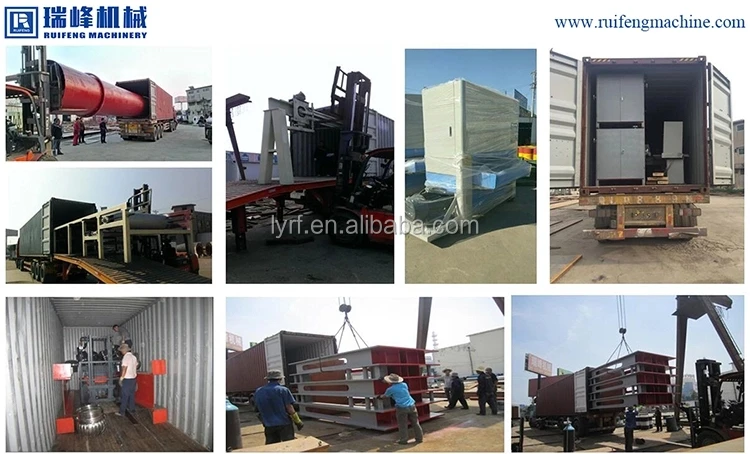

Packaging & Shipping
Package:The normal package for machine is containers,nude package,but the spare parts is wooden box.If export to European countries,we will use PE film for packing it or according to your requests.
Shipping :We will ship the products in 30 days after payment.
Company Information

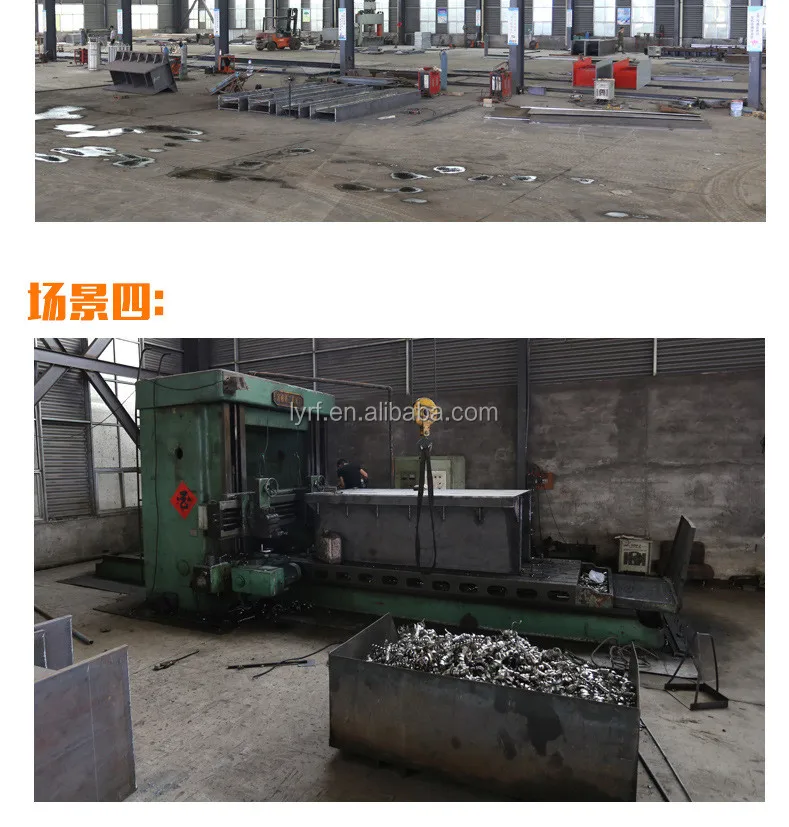

Linyi Ruifeng Machinery Factory, founded in 1993, is a professional wood-based panel machinery manufacturers in China. After several years of hard work and innovation, we have formed our own brand. The equipment are sold well in our country and many of them are exported to over 10 countries and areas of Africa, South Asia, Southeast Asia. With reliable product quality and excellent service , we have gained a strong reputation among our customers.We have a large gantry planer, gantry milling machine, lathe, planer and other professional advanced production equipment , so we can produce: complete plywood producing equipment, complete particleboard producing equipment, OSB producing equipment, complete MDF producing equipment, short-cycle laminating equipment, complete block board equipment and other wood-based paneled machinery. Moreover we can produce hot press, forming machine, edge trimming saw, glue spreader and other board making machines according to customers' requirement.The general manager and all the staff sincerely thank the new and old customers at home and abroad over the years for their support. We welcome all the customers to visit our company and negotiate business .
