smd led 2835 Uv 395 400nm smd led chip gold wire
- Category: UV LED >>>
- Supplier: Shenzhen Huanyu Dream Technology Co. Ltd.
Share on (62050634739):
Product Overview
Description
Product Description
| Model No. | HY-2835U395L1-2S | Power | 0.2W |
| Lumens | 1-2lm | ||
| Color Temp | UV395-400nm | ||
| Voltage | 3.0-3.4v | Current | 60mA |
| Chip Brand | sanan | Chip Size | 12*12*2mil |
| Lifespan | 50000 hours | Warranty | 3years |
| Applications | 1,LED Lighting industry(Tube,Panel Light,Ceiling Light,Bulb light etc) 2,Landscape lighting (LED Strip,Wall washer lamp,Garden light etc) 3,Plant grow Lamp 4,Sterilization and Disinfection 5,Money detector | ||
Detailed Images

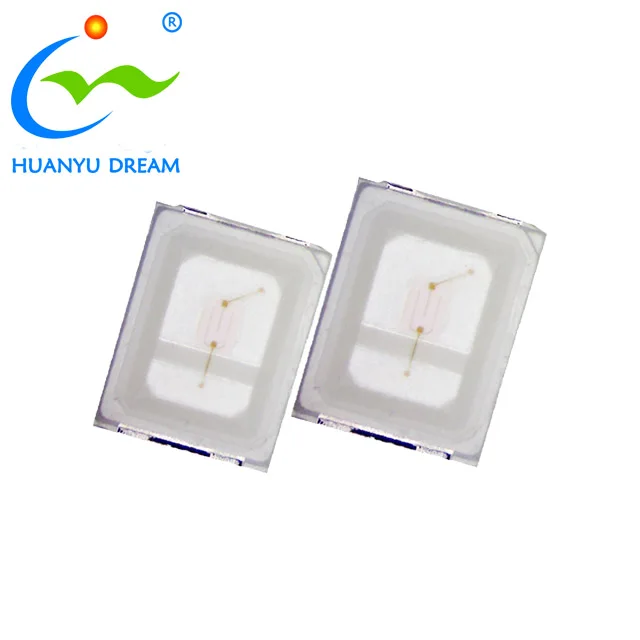

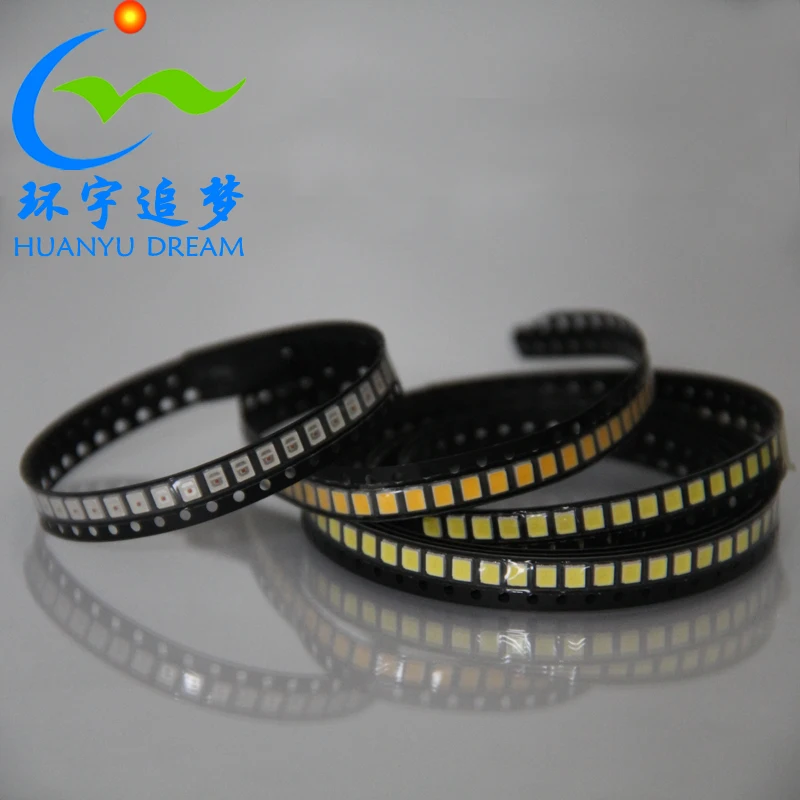

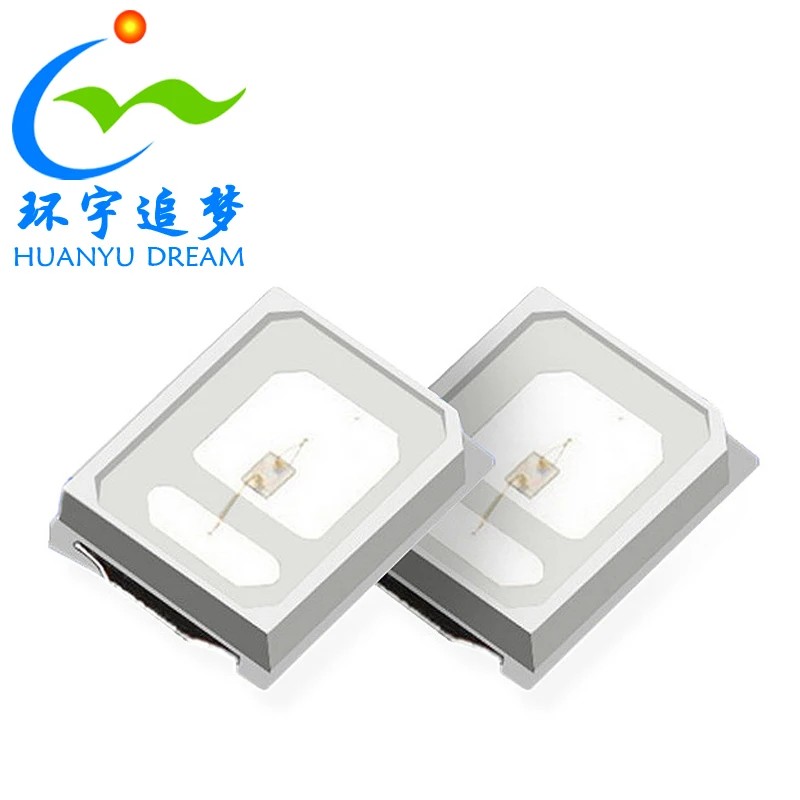

Huanyu Dream SMD LED Chip use Gold Wire and Copper Stand only !
smd led 2835 Uv 395-400nm smd led chip gold wire
Electrical / Optical characteristics
Absolute Maximum Ratings (TA=25ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 60 | mA |
| Pulse Forward Current | IFP | 150 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 300 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 300ºC | for 10sec. for 3sec. |
1/10 Duty Cycle, 0.1 msec Pulse Width.
Initial Electrical/Optical Characteristics (TA=25ºC)
| Symbol | Item | Unit | Min. | Typ. | Max. | Test Conditions |
| VF | Forward Voltage | V | 3.0 | 3.4 | IF=60 | |
| IR | Reverse Current | uA | - | - | 2 | VR=5V |
| 2θ | Viewing Angle | º | - | 120º | - | IF=60 |
| ø | Luminous flux | lm | 1 | 2 | IF=60 | |
| IV | Light intensity | mcd | 950 | 1900 | IF=60 | |
| WLD | Dominant waveleng | nm | 395 | 400 | IF=60 |
Cautions High voltage 6.0v 150mA 1Watt led smd 2835 white
1)Soldering Conditions
Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.
2)Static Electricity
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded. Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)
3)Moisture Proof Package
It is recommended that moisture proof package be used .
4)Storage
Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be used within a year.
5)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package.
Application
Our Company
Huanyu Dream Technology is a professional manufacturer of SMD LED Chip, supply mainly products such as SMD5730, SMD 2835,SMD5050, SMD3528, SMD 3014,SMD4014, High power 1w 3w LED etc.
Our LOGO has been registered as a Trademake, please identified our Logo when you looking for the products, and factory local in Shenzhen city Guangming district, welcome to visit us!
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than 1,000,000pcs.
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways paymant.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
