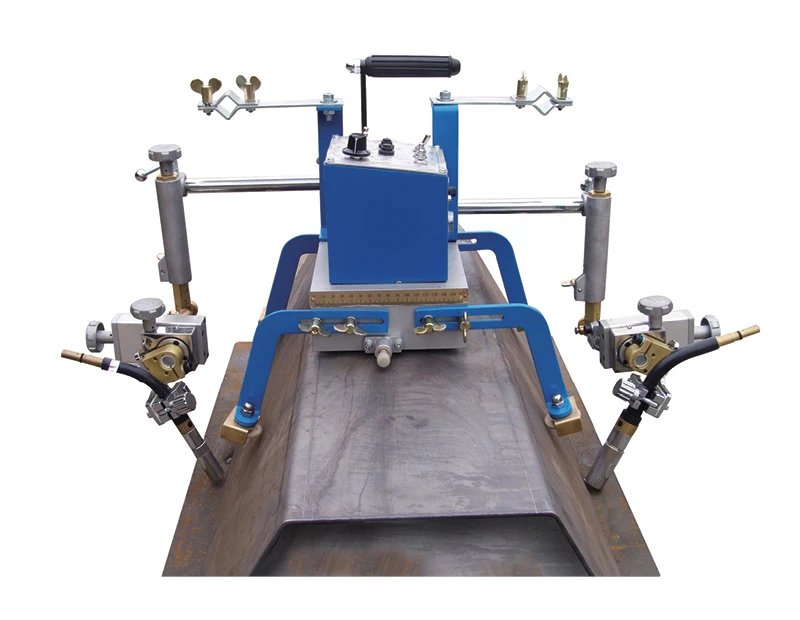

Mainly sued for welding of U-shaped materials during bridge or box girder making; Small size, light weight, and integrated body which is solid and durable. Low gravitational center design with built-in high strength magnet and the high temperature proof rubber wheel drive leads to stable running.

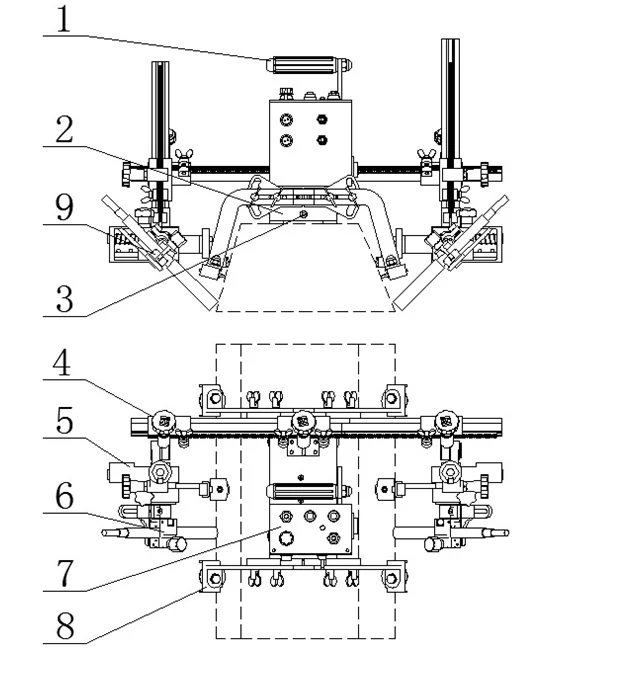

HK-8U is made up of carriage body, control box, X-Y slide, torch gripper and guide wheel.

1)hand grip:Please hold this hand grip when you carry the machine.

2) carriage body:It is the carrier of drive unit, including motor, planet reducer and driving wheel.

3)Auto-stop switch

   There are limit switches on both side of machine (Auto-stop switch).

4)cross handle:  Rotate the handle to adjust the position of torch.

    5) Floating device: It can float according to the deformation of workpiece to make sure

  the distance between torch and seam is same to make the seam fine.

    6) Fine-tune angle device: It is easy to align the torch to welding position by it.

    7) Control box: It can adjust all actions of carriage. Please refer to “explanation of control panel”.

8) Regulating wheel

9) Welding torch gripper: It is used to fix the torch. You can take down torch by it, when you want to repair or adjust the torch.
