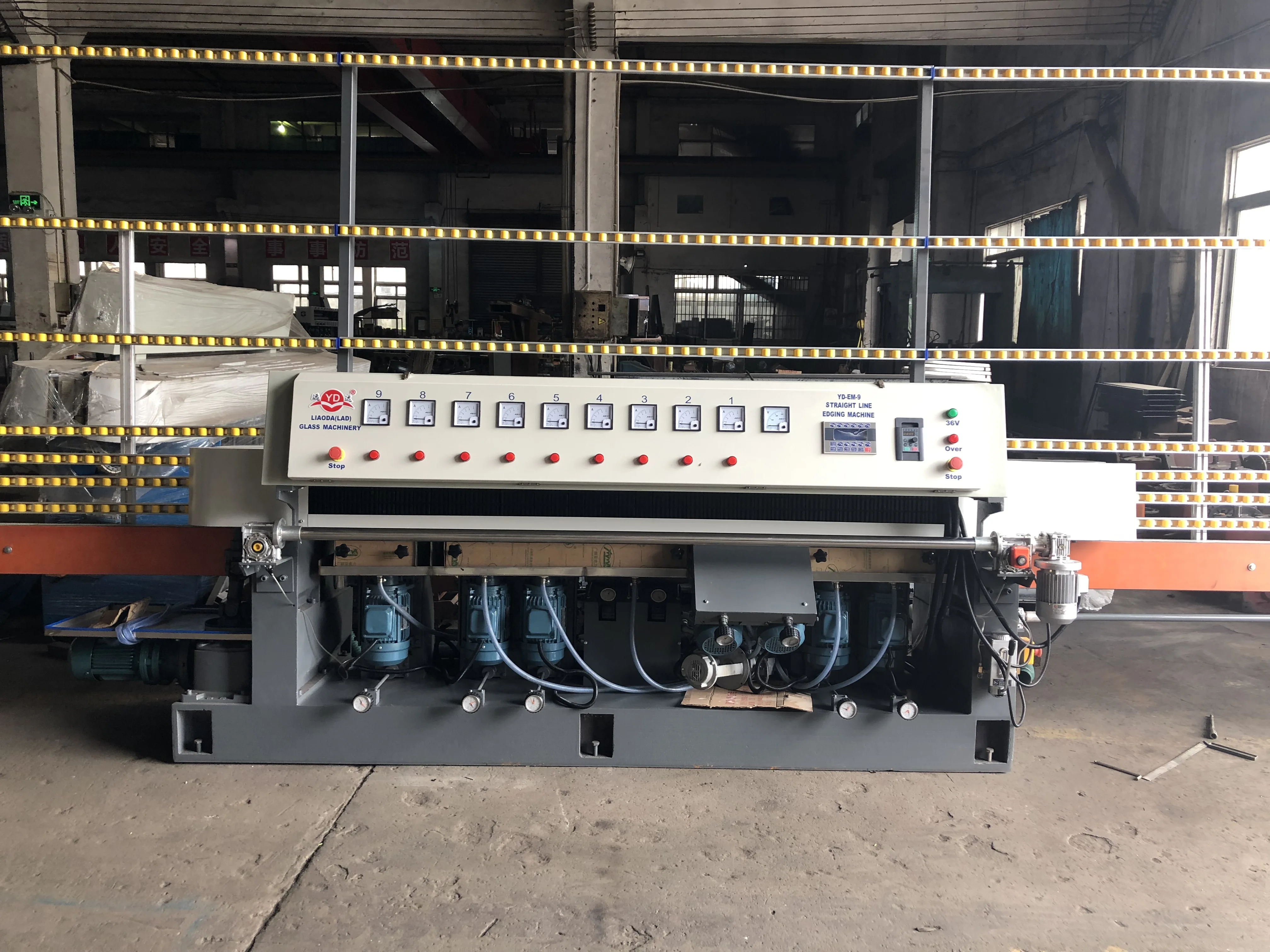

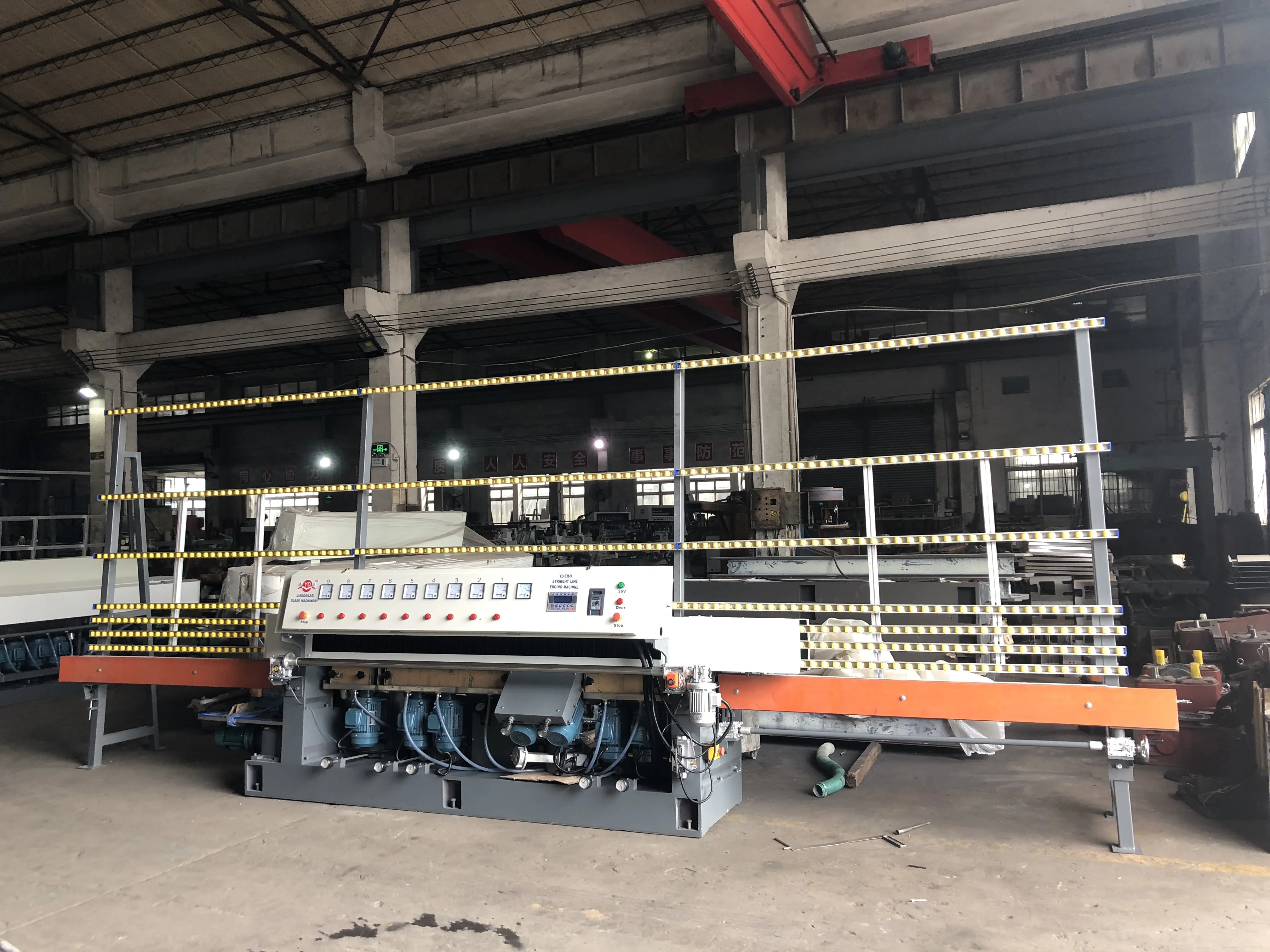

9 stones Glass door window straight line edger machine/glass edge polishing machine

Product Overview

Description

9 Stones Glass door window straight line edger machine/glass edge polishing machine









Machine application

This machine is used to process glass straight edge widely used for glass door, window, shower room, stairs etc. It is a basic machine for glass process factories and 9 wheels edging machine is the most popular size.





Machine specificatons

Item	Specification
Max. glass size:	2440x3660mm
Min. glass size:	80x80mm
Glass thickness:	3-26mm
Maximum flat edging level:	3mm
Maximum arrising width:	2.5mm
Arrise angle:	45°
Working speed	0.8-6.0m/min
Installed power	18kw
Voltage	220/380/415/480V,50/60HZ
Worktable height	750mm
Overall dimension	6500x1000x2600mm
Weight	3000kg



Advantage of machines

1. With the use of cast steel machine basement

2. Single chip control system. With the thickness of glass, conveyor speed adjustable on the conveyor.

3. One felt polishing wheel with cerium oxide to shinning the glass edge

4. Famous and durable Chinese motors

5. High quality conveyor belt

6. With feeding rail height adjustment, automatic lubrication pump and other function for option 6. Schneider electric elements





Advantage of machines

1.With the use of cast steel machine basement



2.Famous and durable Chinese motors



3.High quality conveyor belt



4.With feeding rail height adjustment, automatic lubrication pump and other function for option



5. Bearing structure edging machine for option.



6.Schneider electric elements



7.High quality and durable pads









Warranty and service:



1. 1 year warranty for the machine

2. Life time technical support and parts

3. English version machine operation manual, machine operation video and on site service if necessary

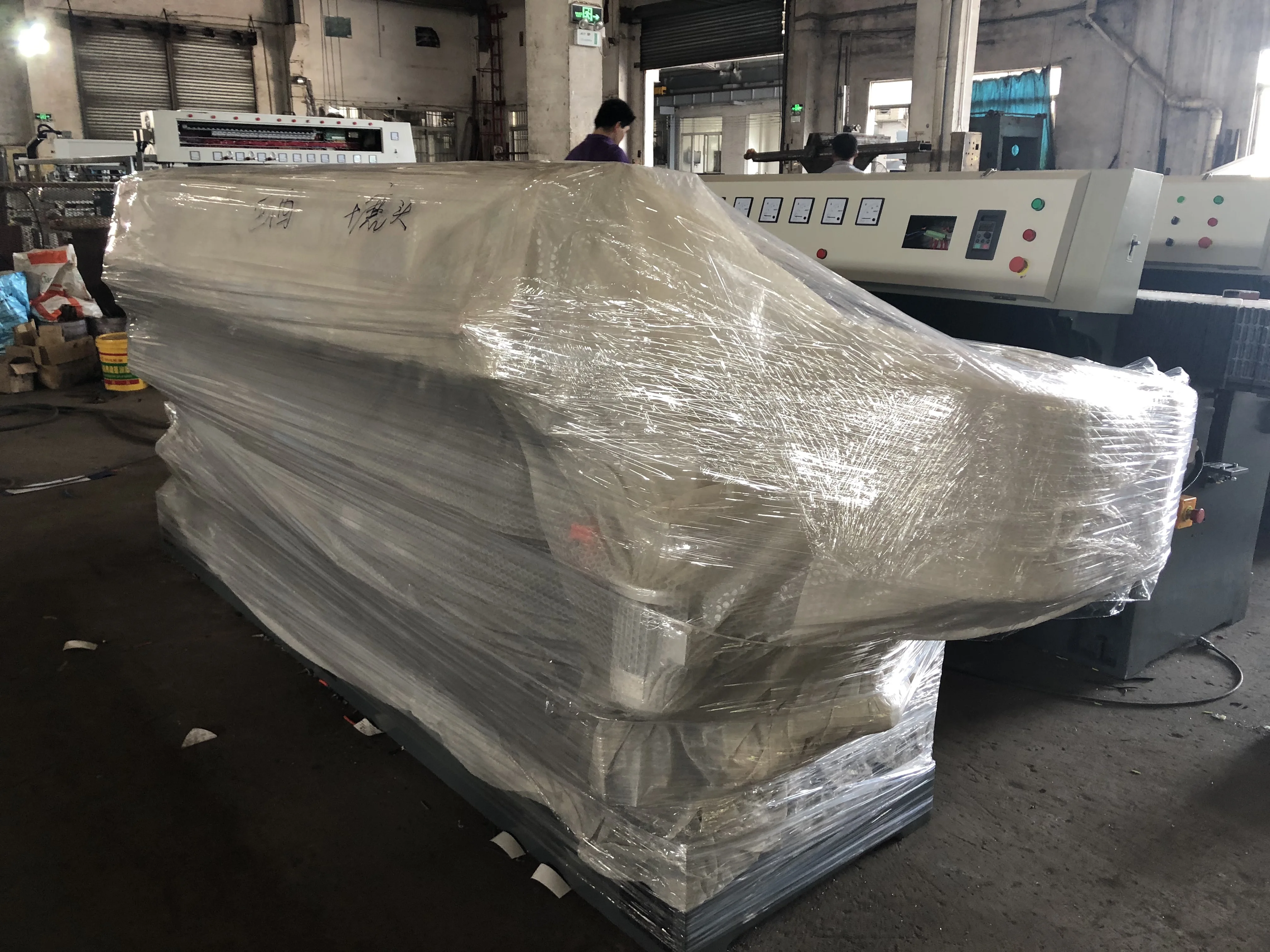

Machine package and loading



Introduction of the company



LIAODA(LAD) Glass Machinery Co.,Ltd, is a company integrating R & D, production and glass and stone processing machine. IThe company located in Lunjiao Town, Shunde Disctict, Foshan City, center of Pearl River Delta, with unique geographical location, easy to get technical support and human resources. The company was born in 90s of the last century, adsorbed huge amount of advanced technology and experience during production. In 2000, our former company, Yuanda glass machinery was established and in 2005, we changed our company name to "Liaoda (LAD) glass machinery" and use Yuanda as our brand name.



After years of research and development, "Yuanda" brand machines are widely used all over Chinaand over 40 countries and areas around the world. In the future, we will continuous supply high quality machines and service to meet the requirement of our clients in China and aboard. Welcome to visit our company, order our products and work together in the glass field!





CE certifications:



Our customers
