BMS 3s 12V 4s 12.8V 100A PCB Lithium 18650 LiFePo4 Battery Cell Protection circuit Board with Balance function
- Category: Battery Testers >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (62054016502):
Product Overview
Description

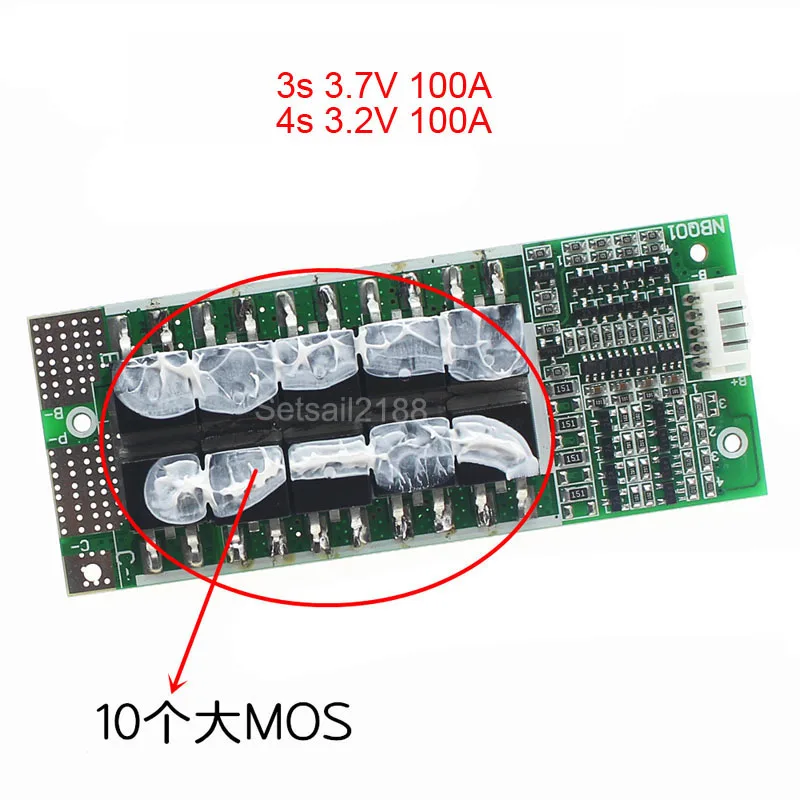

3s 12V 4s 12.8V 100A BMS PCB Lithium 18650 LiFePo4 Battery Cell Protection circuit Board with Balance function
Note:1.we have 1-30s lithium battery protection board.
2.work for lithium battery type:3.2V 3.6V 3.7V.
3.current:1-100A

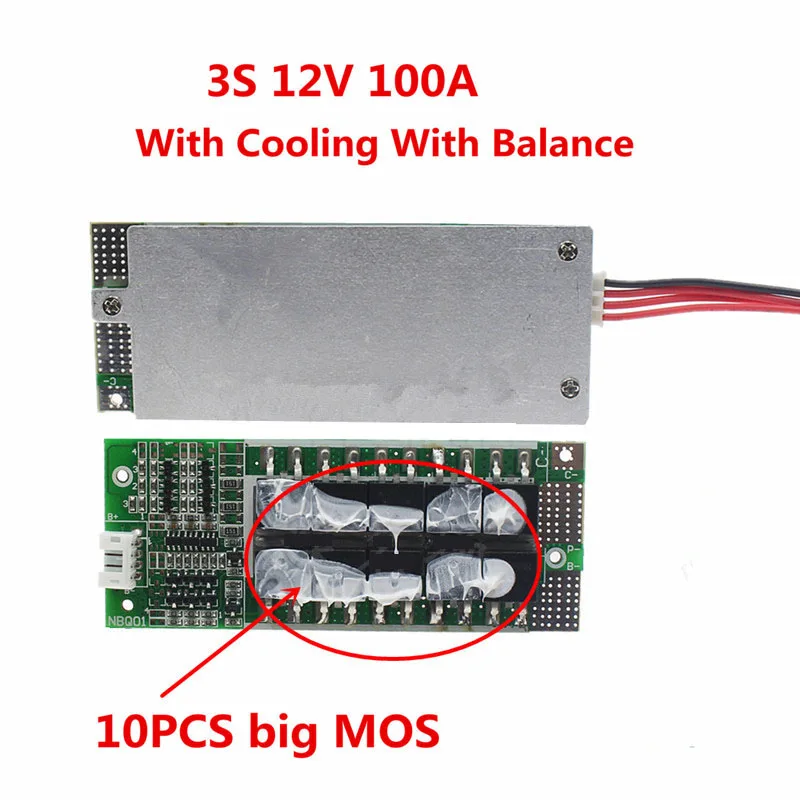

3S 12V 100A
Features:
This board is 3s 12V 12.6V BMS protection board for 3.7V/4.2V 18650 lithium battery.
High current protection board, continuous 100A current, with Balance Circuit.
Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.

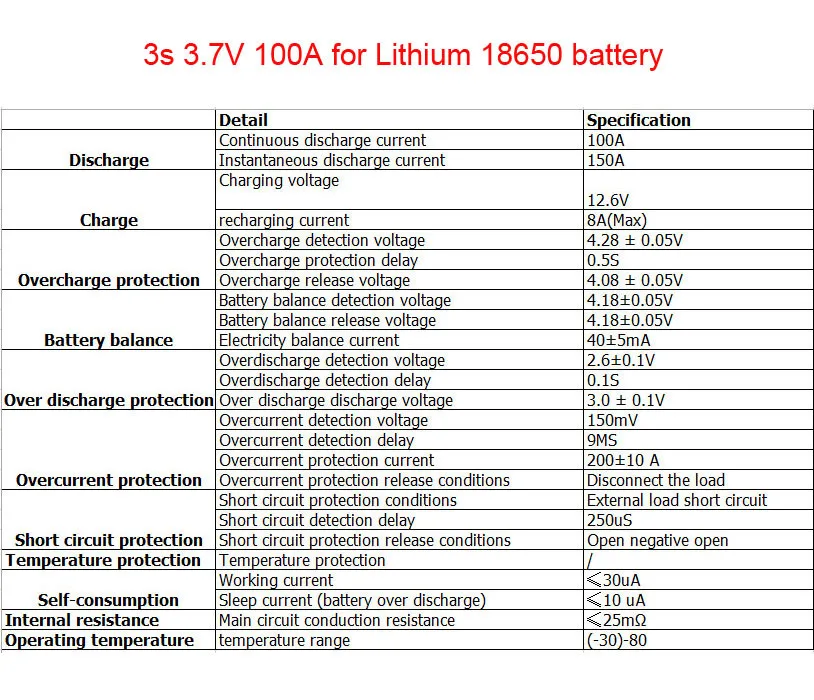

Detailed parameter:
Continuous Discharging Current :100A
Instantaneous Discharge Current :150A
Charging Voltage:12.6V
Charging Current:8A
Over-charge Detect:4.28±0.05V
Protect Delay:0.5S
Over-charge release: 4.08±0.1V
Detect Voltage:4.18±0.05V
Release Voltage:4.18±0.05V
Over-discharge Detect:2.6±0.1V
Over-discharge Detect delay :0.1S
Release Voltage:3.0±0.1V
Detect Voltage:150mV
Detect Delay:9mS
Current Detect:200±10A
Release Condition:Cut Load
Protect Condition:Cut Load
Detect Delay:250uS
Working Current:≤30uA
Sleep Current (when Over-discharge):≤10uA
Working Temperature Range:30/+80°
Size: 87*35*8 (MM)
The board comes with 4P-300mm cable.
Balance function:yes
Battery packs positive: charge / discharge positive.
C- : as charge negative.
P- : only as discharge negative.

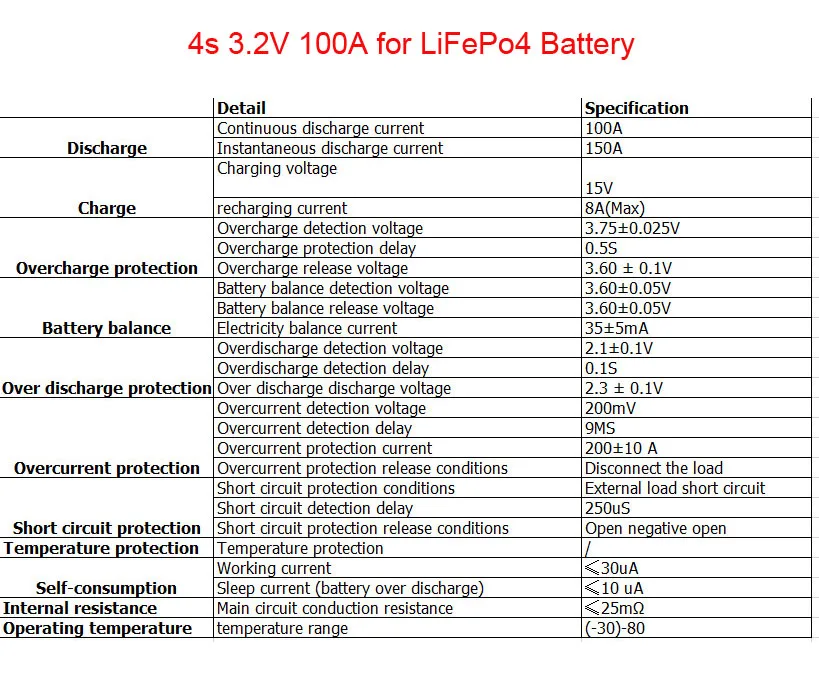

4s 3.2V 100A-LiFePo4
Detailed parameter:
Continuous Discharging Current :100A
Instantaneous Discharge Current :150A
Charging Voltage:15V
Charging Current:8A
Over-charge Detect:3.75±0.025V
Protect Delay:0.5S
Over-charge release: 3.60±0.1V
Detect Voltage:3.60±0.05V
Release Voltage:3.60±0.05V
Over-discharge Detect:2.1±0.1V
Over-discharge Detect delay :0.1S
Release Voltage:3.0±0.1V
Detect Voltage:200mV
Detect Delay:9mS
Current Detect:200±10A
Release Condition:Cut Load
Protect Condition:Cut Load
Detect Delay:250uS
Working Current:≤30uA
Sleep Current (when Over-discharge):≤10uA
Working Temperature Range:30/+80°
Size: 87*35*8 (MM)
The board comes with 5P-300mm cable.
Balance function:yes
Package Contents:
3S/4S 12V BMS Protection PCB Balance Board
