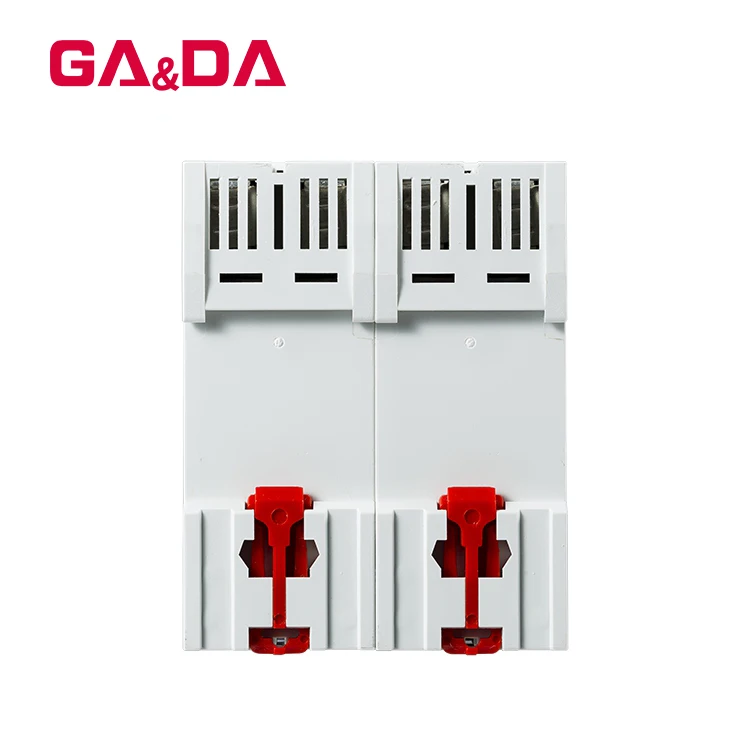

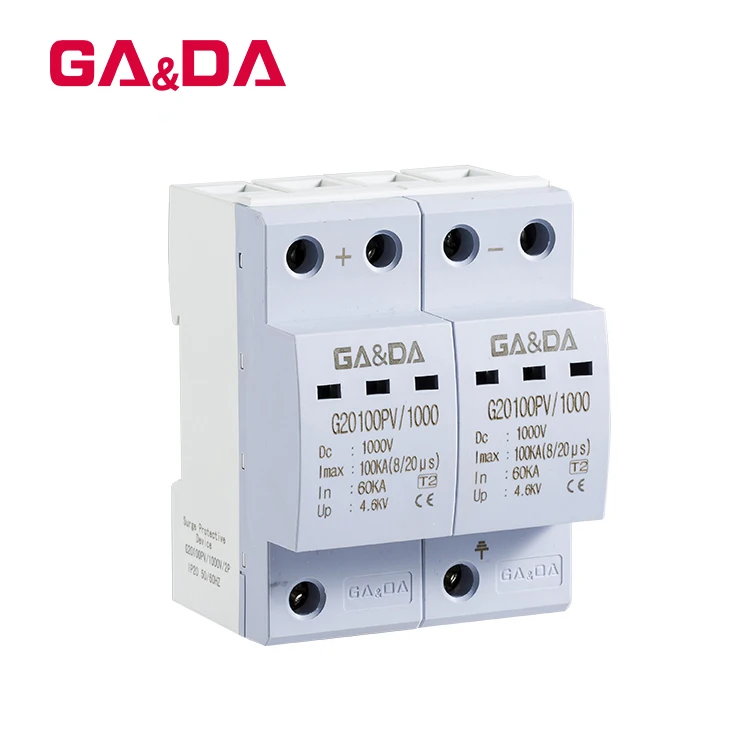

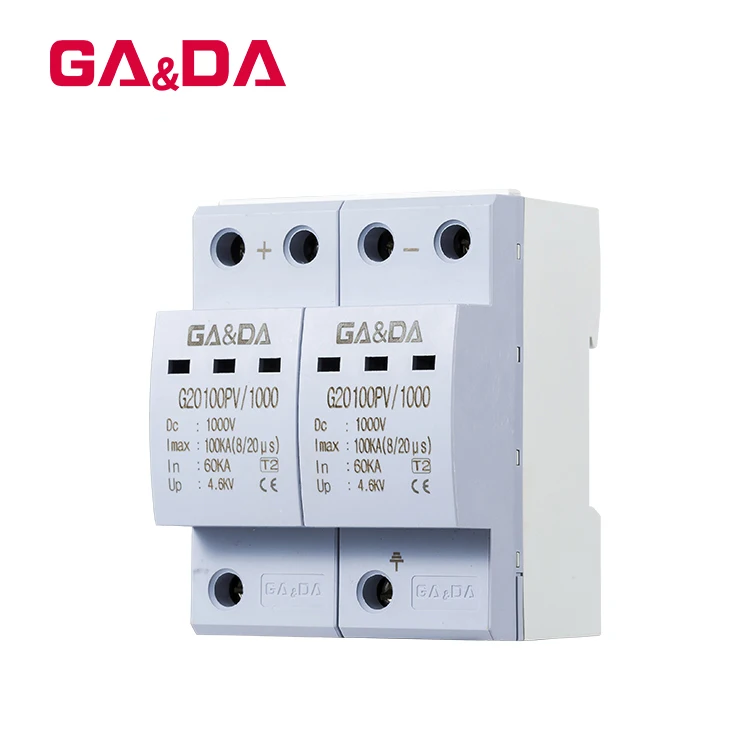

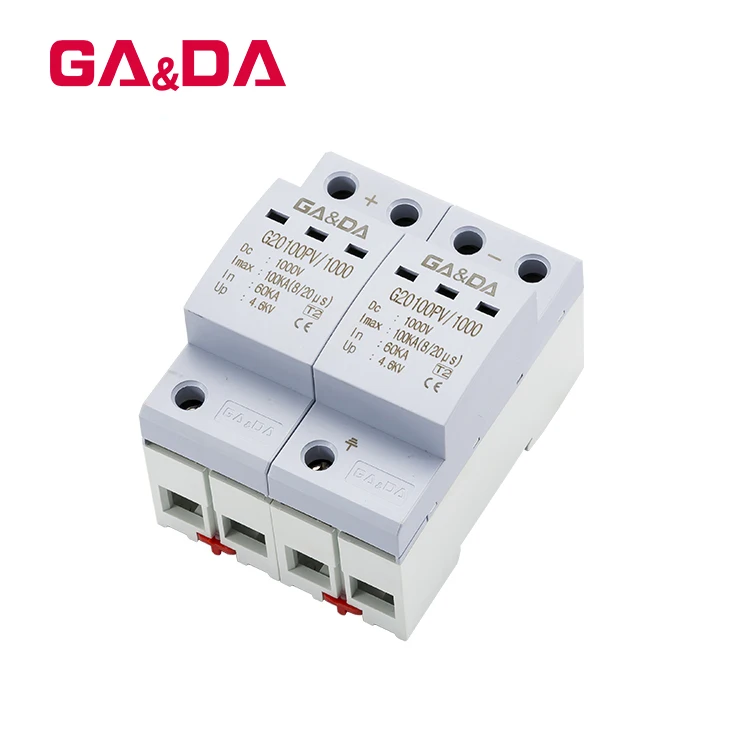

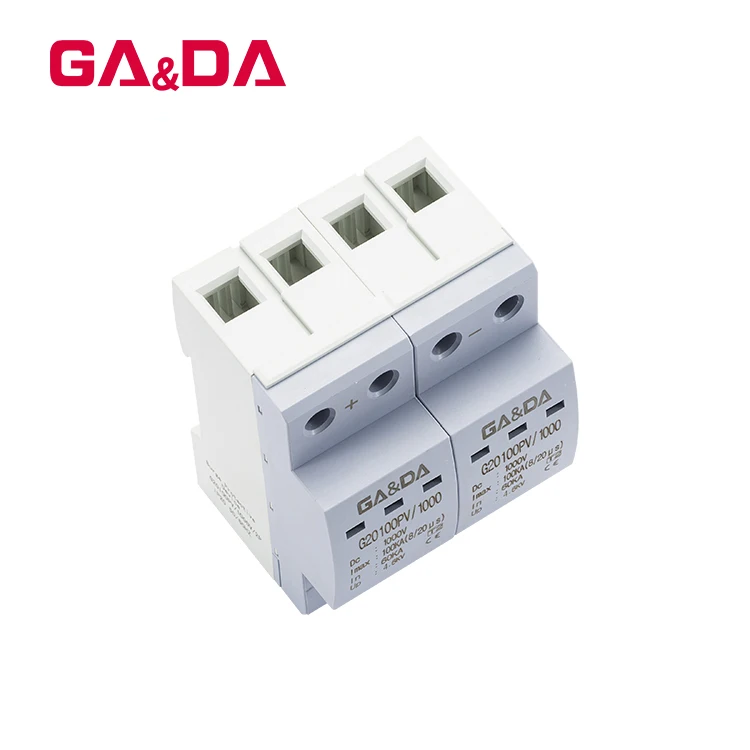

GADA 1000V/1500V type 2 power surge voltage protection device

Product Overview

Description

1000V/1500V type 2 power surge voltage protection device

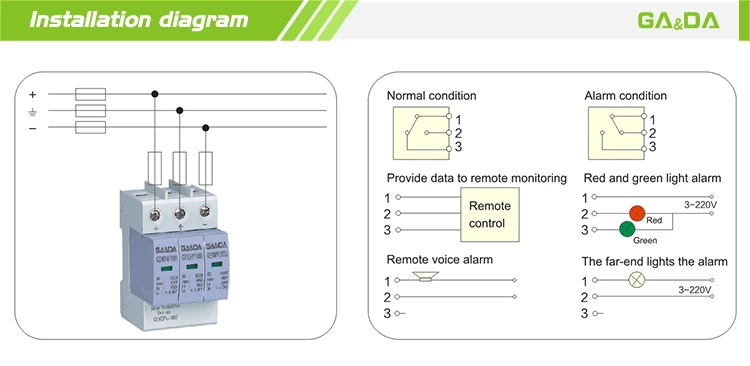

G20100PV/800V/1000V/1500V series surge protector is suitable for the new energy solar power generation system with the working voltage of 800V/1000V/1500V. The installation position is in the total power supply system of direct current circuit, to protect the indirect lightning current, direct lightning current or other instantaneous overvoltage.

G20100PV
Type	G20100PV/XXX/1P.2P.3P.4P
	500		800		1000		1200			1500
in accordance with	IEC61643-11:2011;UL1449-4th
Category IEC/UL	TypeⅠ
Maximum continuous  operating voltage(UC)  DC	500V		800V		1000V		1200V			1500
Nominal discharge  current(8/20us) In	60kA
Maximum discharge  current(8/20us) Imax	100kA
Voltage protection level(Up)	≤3.6kV		≤4.0kV		≤4.5kV		≤4.5kV			≤5.0kV

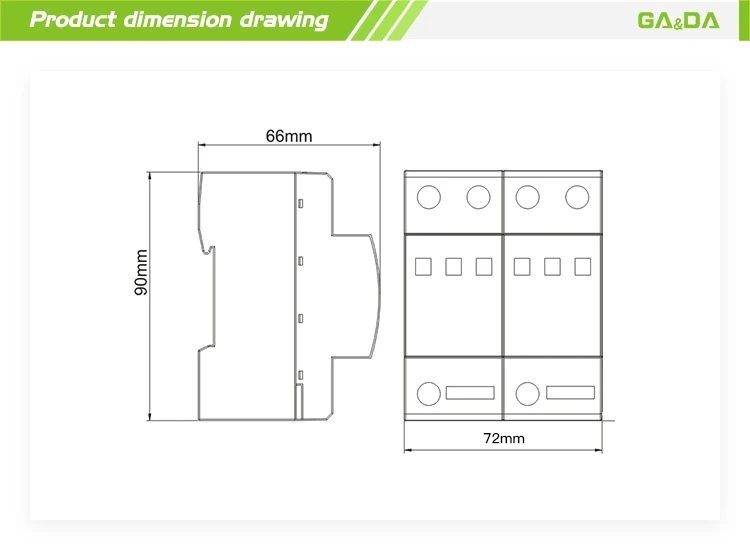

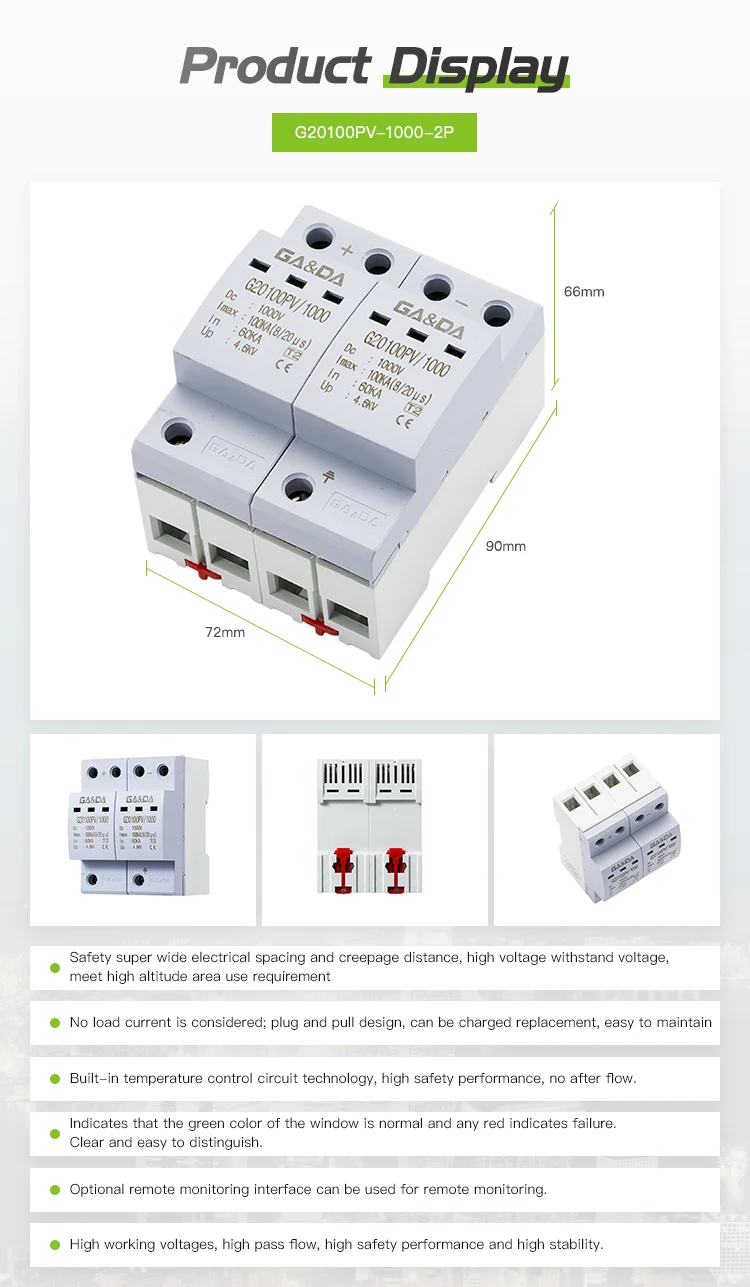

Product Size	144*90*66mm
Core component	Varistor
Response time  ta	≥100ns
Protection grade	IP20
Normal working temperature	-40℃~+80℃
