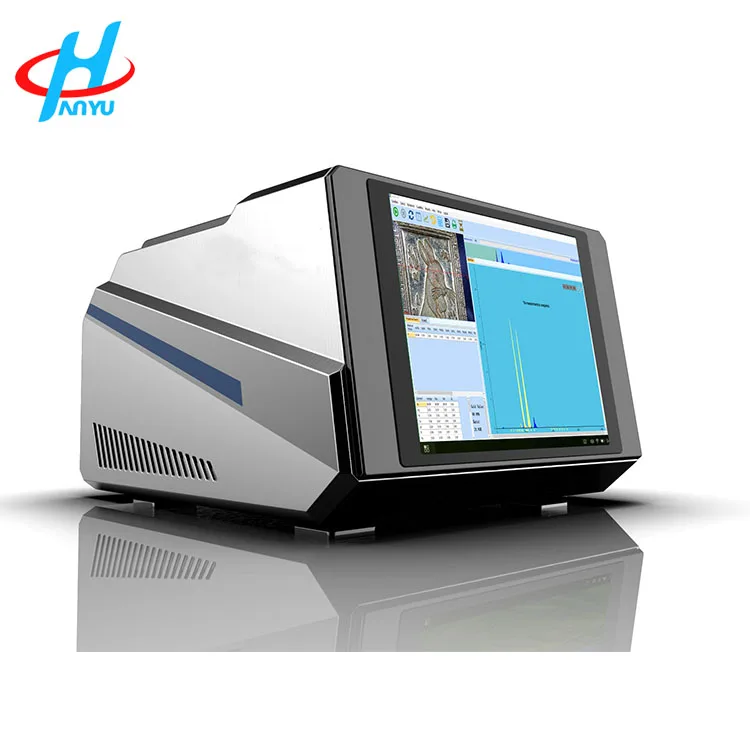

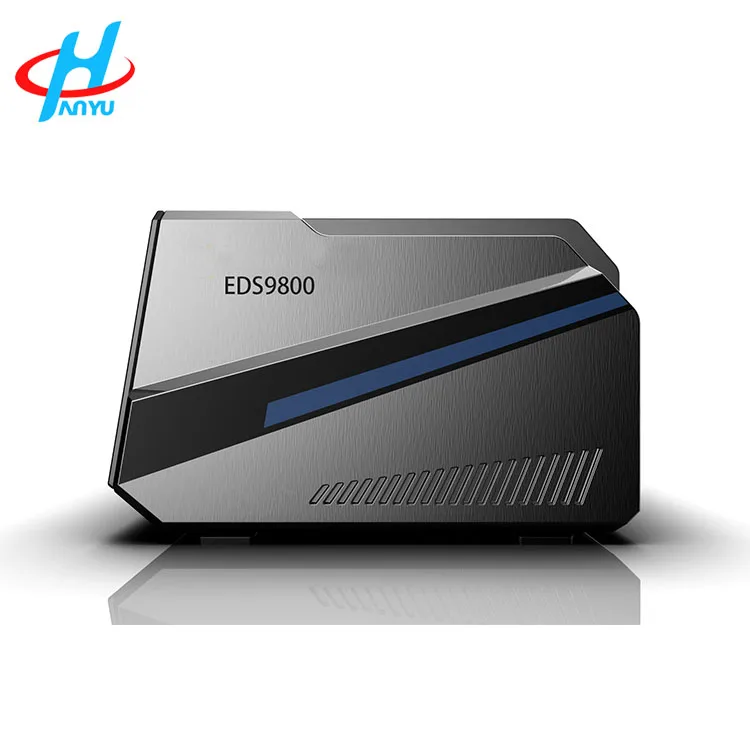

EDS9800 xrf gold purity testing machine with Si pin detector

Product Overview

Description



EDS7700 xrf gold purity testing machine with Si-pin detector

Performance and Configuration
Analysis Range	1ppm to 99.99%
Accuracy	RSD ≤ 0.03%      Au≥90%
Sample Form	Solid, powder, liquid
Tube Voltage	5KV ~ 50KV  (USA)
High Voltage Power Supply	0 ~ 50KV Spellman (USA)
X-Ray Tube Current	0μA~1000μA
Camera	HD camera
Filters	Selectable customized switches
Detector Type	Si-pin(USA)
Resolution	145±5eV
Multichannel Analyzer	KEY-DMCP
Sample Chamber Size	380 *380 * 60 (mm)
Test Time	10sec ~ 50sec
Measuring Element	All the elements from sodium (Na) to uranium (U)(Au  Ag  Pt  Pd  Ru Rh Os Ir W ect.)
Analysis Software	Qualitative and quantitative analysis software
External Dimensions	480 * 480 * 390 (mm)
Weight	38Kg
Instruments Environmental Requirements
Ambient Temperature	-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity	15% ~ 90%
Power Requirements	AC 220V ± 5V, 50/ 60 Hz
	No high power electromagnetic and vibration interference sources nearby
