China Hdd 4K Octa Core Video 1080P Android 5.1 7.1 Streaming Smart Full Hd Intel Media Player
- Category: Radio & TV Accessories >>>
- Supplier: Shenzhen Smart Device Technology Co. Ltd.
Share on (62056339647):
Product Overview
Description
China Hdd 4K Octa Core Video 1080P Android 5.1 7.1 Streaming Smart Full Hd Intel Media Player
Product Description
P3288A Specification
Main Hardware Index | |
Size | 164*104*30mm |
CPU | RK3288, Quad-core,1.8GHz,Android 5.1.1 system |
Memory/Storage | Standard configuration 2G(4G optional)/ Standard configuration 8G(16/32/64G optional) |
Built-in ROM | 2KB EEPROM(By default, optional stickers) |
HDMI output | 1pcs,support 1080P@120Hz,4kx2k@60Hz output |
LVDS input | 1 single/double channel,can drive 50/60Hz LCD panel directly |
eDP output | Can drive many kinds of resolution LCD panel with eDP interface |
Video play | Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 etc |
Image format | Support BMP,JPEG,PNG,GIF |
Amplifier | Support left and right channels output, built-in dual |
Output | 4R/20W,8R/10W amplifier |
Earphone Output | Support one channel three/four band earphone plug in |
USB2.0 Interface | 2 USB HOST,5 USB Socket |
Serial Port | 4 serial port sockets(2 TTL+2 232),one channel is for Bluetooth reuse serial port |
Ethernet | 1,10M/100M self-adapting Ethernet |
WIFI,BT | Built-in WIFI,BT4.0(standard configuration) |
3G/4G | Built-in PCI-E interface 3G/4G networks and voice calls |
SD Card | Support |
RTC Real Time Clock | |
Timing Switch | Support |
System Upgrade | Support local SD,USB upgrade |
IOT3288A uses Rockchip RK3288 Cortex-A17 quad core CPU,carries Android 5.1 system,main frequency 1.8GHz,outstanding properties.Using Mali-T764 GPU,support 4K ,H.265 hard decoding.Whether game,running points or decoding are the super-premium, it is the best choice for your man-machine interaction,industrial control projects.

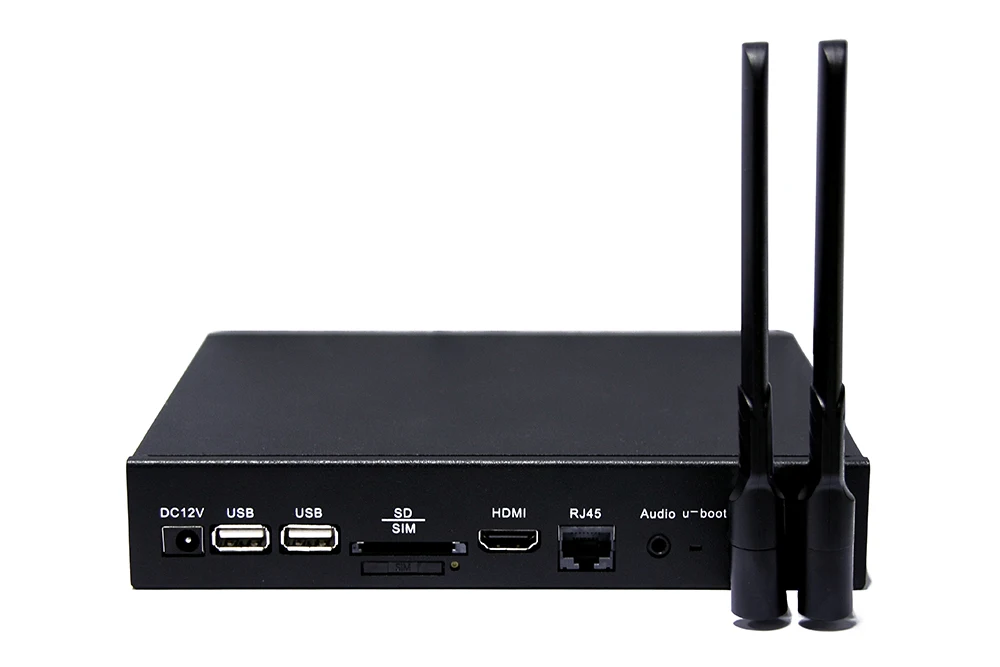

High integration, Integrated LVDS/eDP/Ethernet/HDMI/WIFI/ Bluetooth in one, simplified machine design , remarkable.

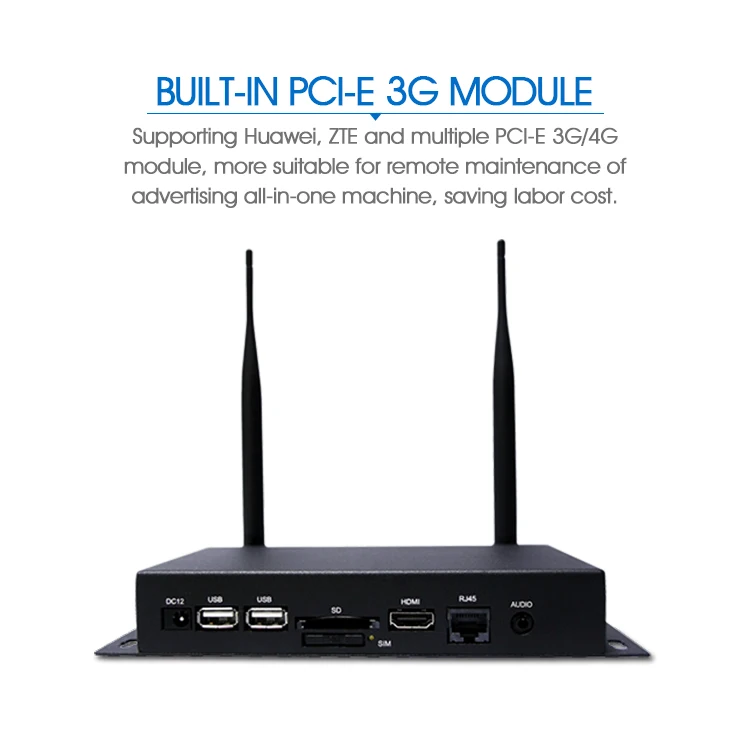

Built in PCI-E 3G module, support HUAWEI, LSAN and other PCI-E 3G/4G modules, support internet data and call.

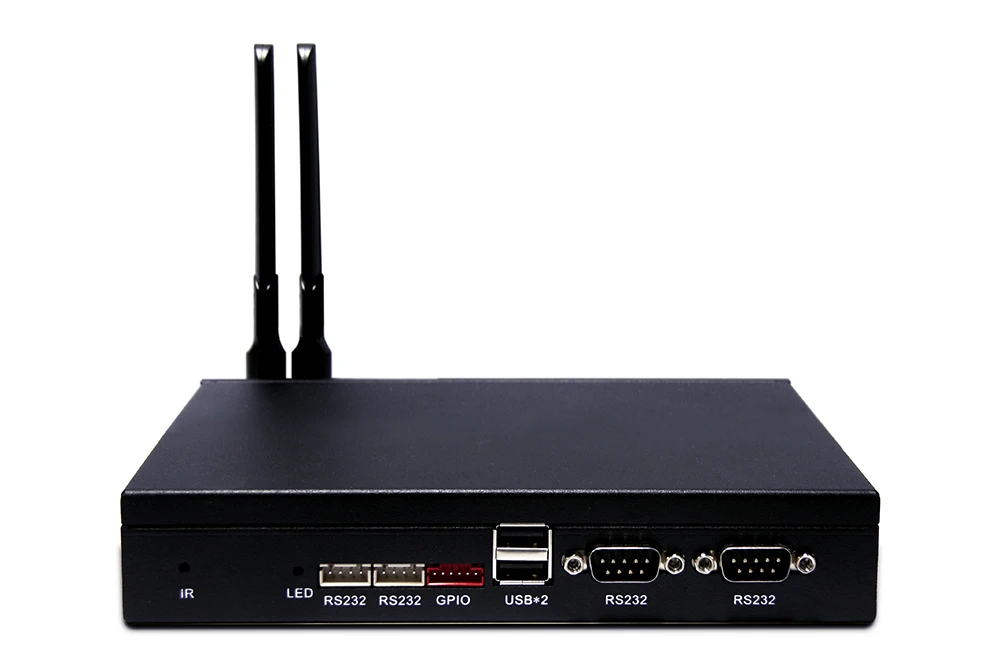

Rich extension interface: 7 USB interfaces( 5 insert pin, 2 standard USB interface), 4 extensible serial port(2*TTL,2* RS232), GPIO/ADC interface, it can meet the requirements of various peripherals in the market.
High definition. Maximum support 4K 3840x2160 decoding and all kinds of LCD screen with LVDS/eDP interface,support each size and different resolution cropping screen.
Support Android system customized,provide system invocation interface API reference source code,support clients upper application development perfectly.
Perfect support IR, optics,capacitive,resistance,touch foil etc multiple mainstream touch screen,support non driver touch screen HID configuration without debugging
Click here to get more information from us
Main products
About SMDT
Certifications
Global market
Logistics
FAQ:
1.Q:how many pcs we have sold one year.
A:we sold 300000 pcs one year .the repair rate is below 1%.
2.Q: What is your guarantee period?
A: SMDT provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor.professional engineer follow after service.
3Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal is also acceptable.
2) For bulk order: 30%deposit T/T in advance, balance clear before pick up or shipment.
4Q:what is leading time
A:2-3 working day for sample .7-10 day for bulk order.
