Installation recommendation-whenever possible, provided for a minimum of 1-1/2"(40mm) bearing support at all grating support points. Hold down clips should be used at the rate of one clip for every 6 square feet(0.56square meters) of grating minimum, or at least 4 clips for any square or rectangular piece, or at least 3 for a triangular piece

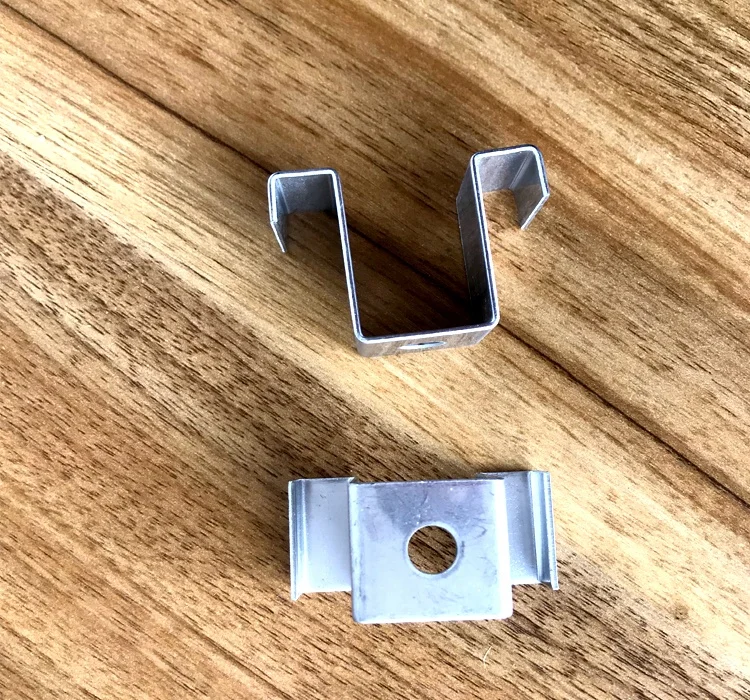

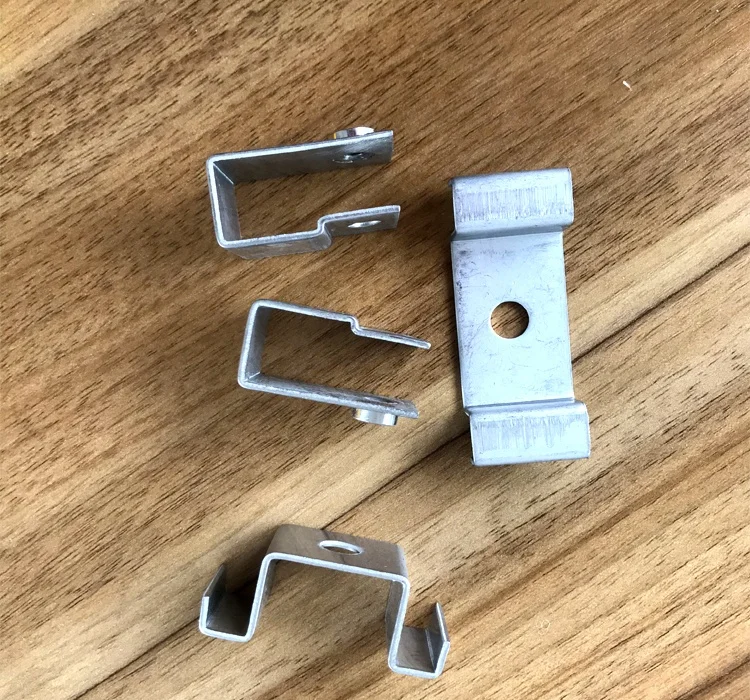

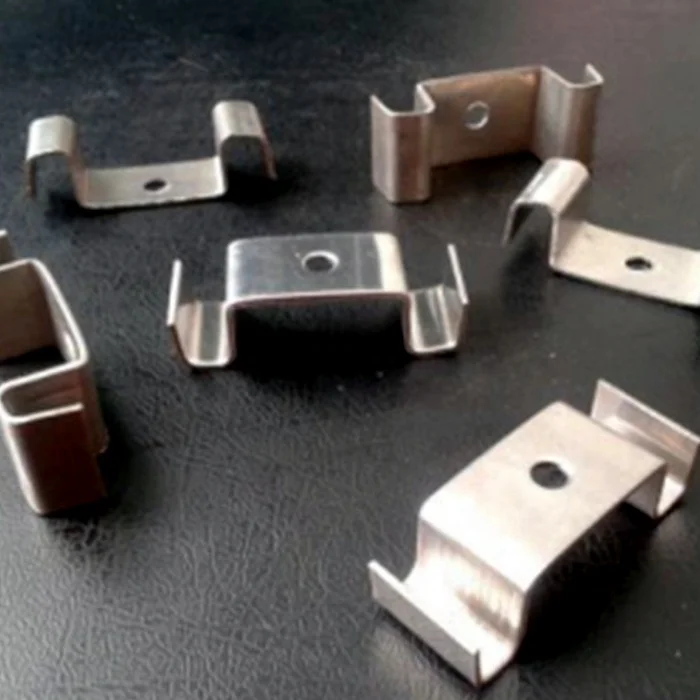

Clips
The clips will help to join gratings together and fasten gratings to support system so as to secure the whole structure. Weenoor supplies various types of clips for its grating.

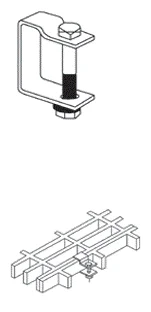

L Clips
To fasten grating panels to support bar for moderate loads. It needs support bar to be drilled on site to fit grating well

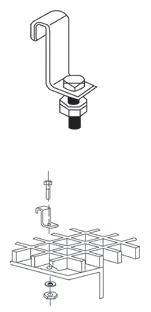

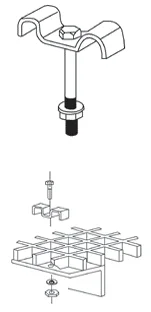

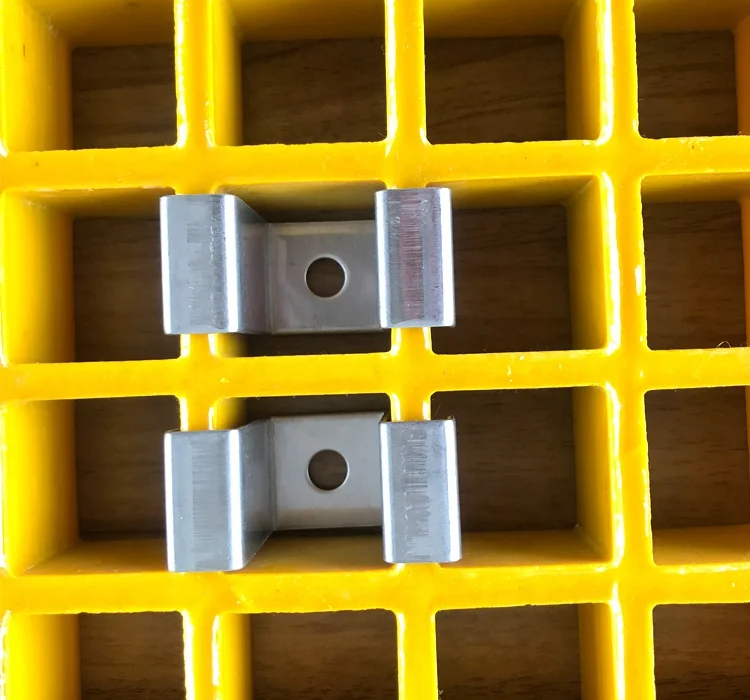

M Clips
To fasten gratings to support bar for retraining movement in using two adjacent grating bars. It need to support bar to be drilled on site to fit gating well.

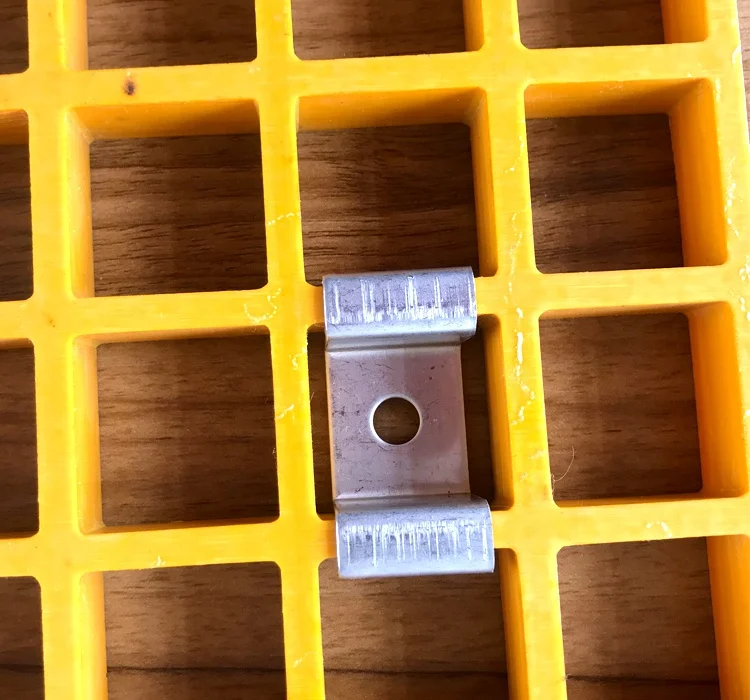

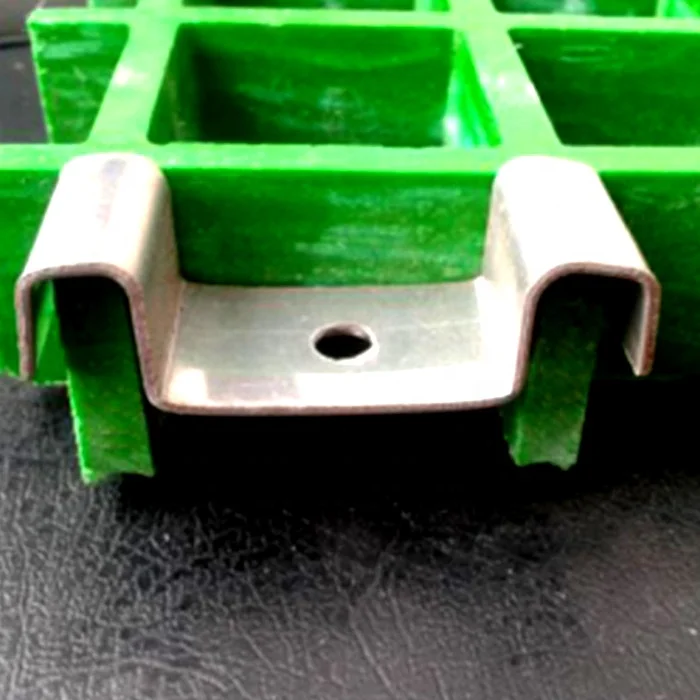

C Clips
For joining two ends of molded grating together simply . It should be placed each 610-914mm to reach indensity requirement.

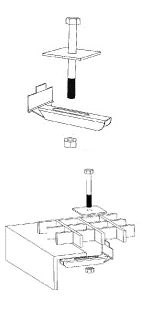

J Clips
To secure grating to support bar conveniently.
TYPICAL PROJECTS

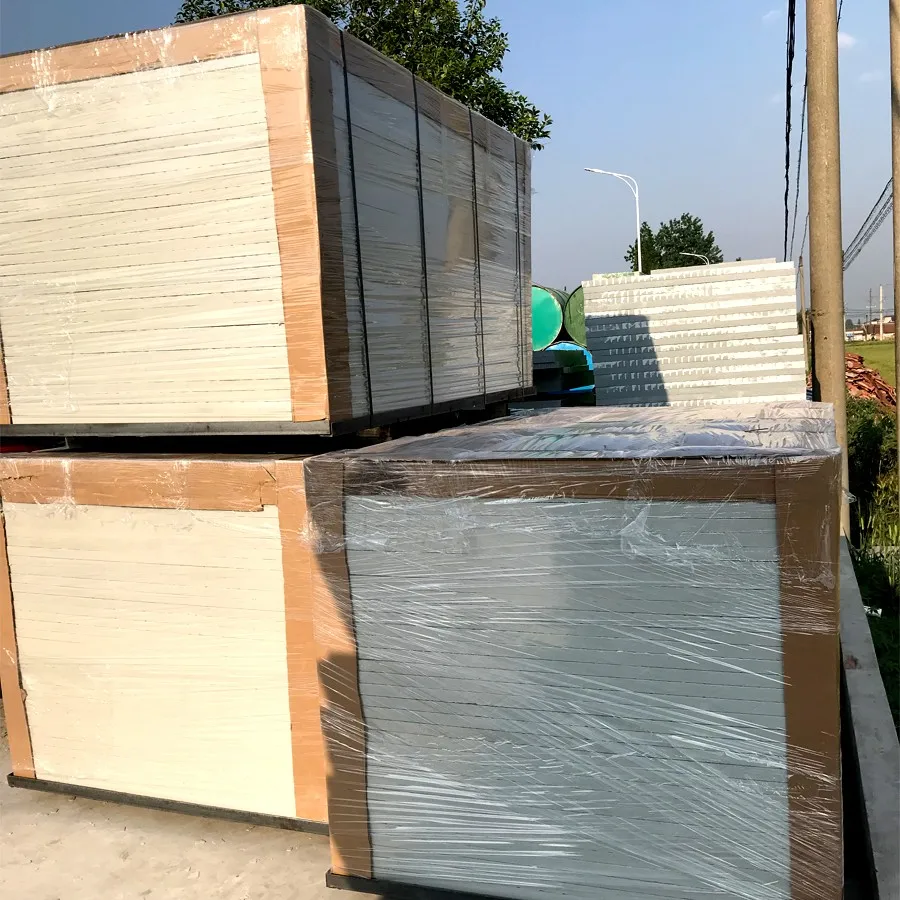

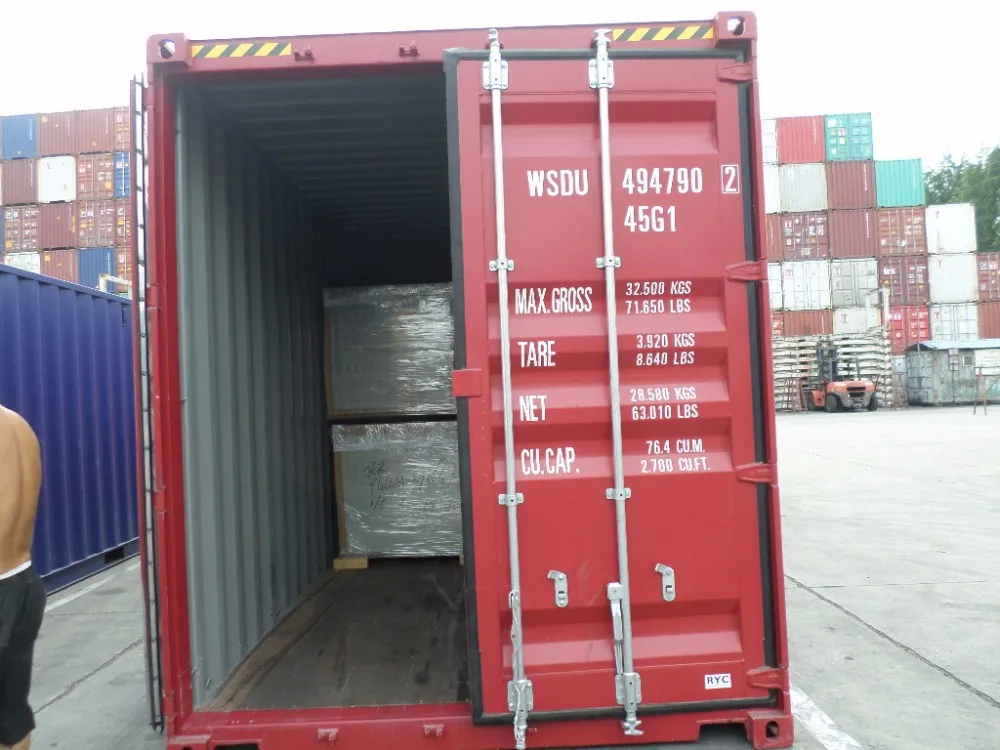

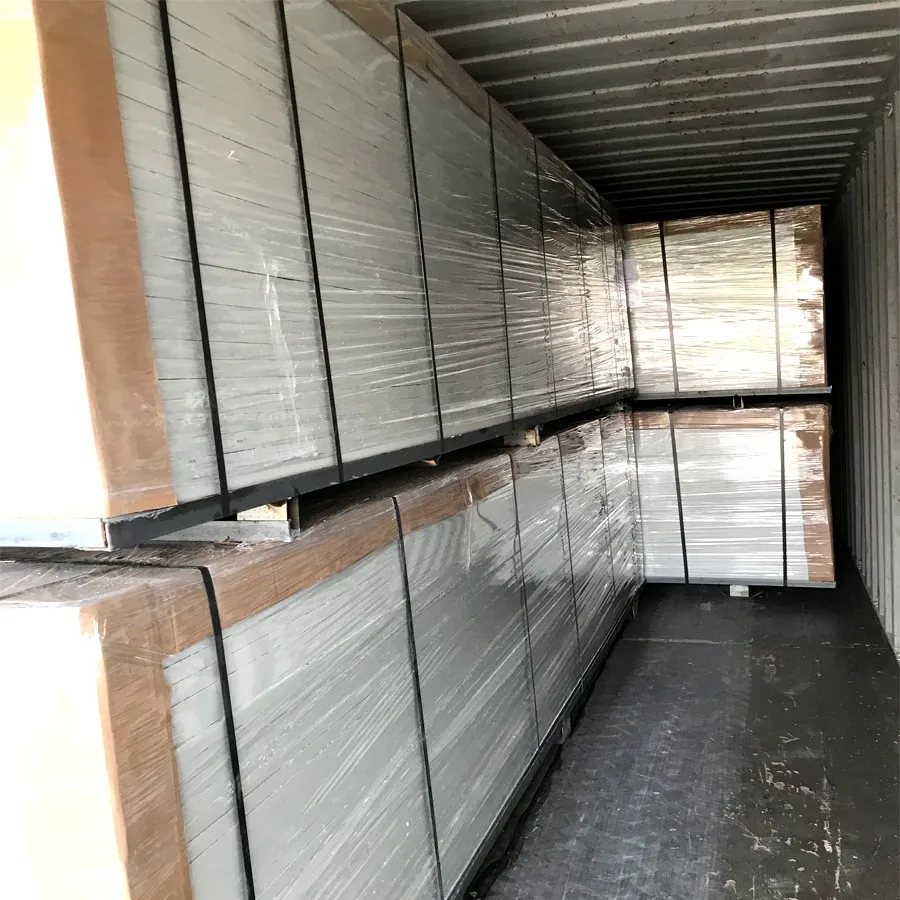

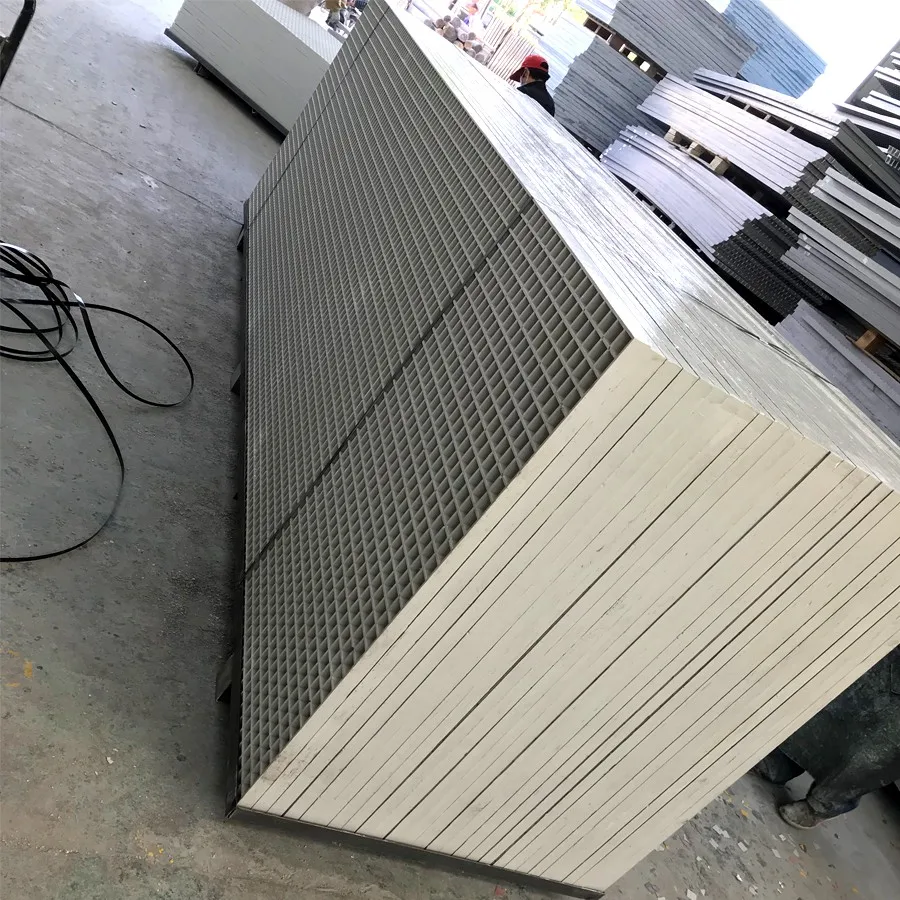

PRODUCTS PACKING

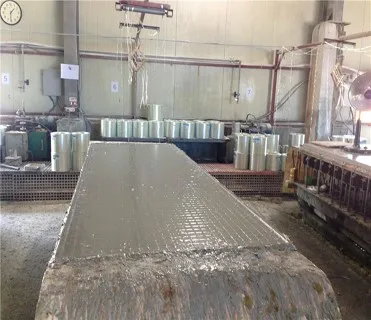

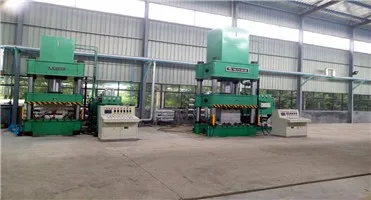

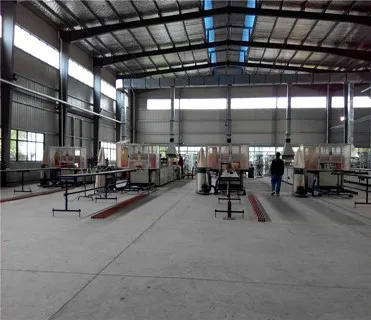

OUR COMPANY
We have molds for molded grating, pultrusion as well as SMC, please contact us for details.
