72V 3kw ebike conversion kit with MTX39 wheel

Product Overview

Description

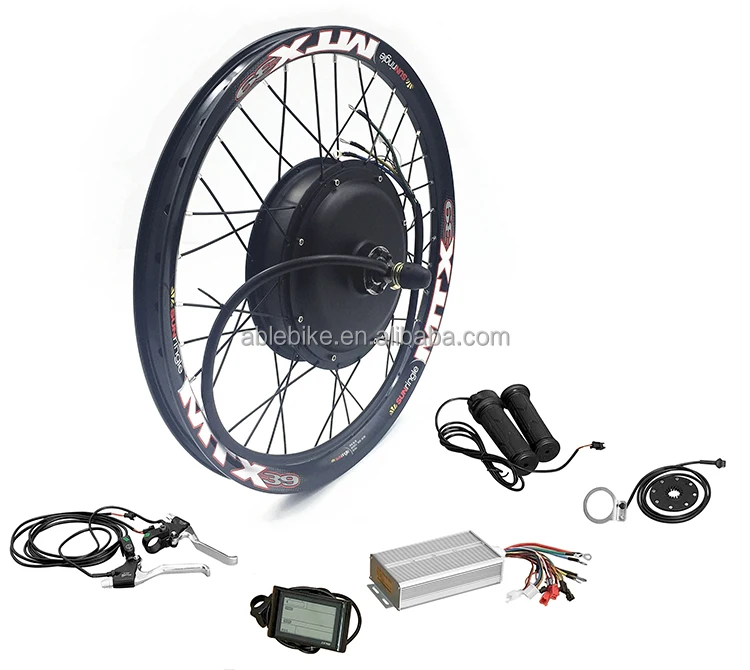

72V 3kw ebike conversion kit with MTX39 wheel





Specification:

Motor	72V 3000W rear brushless hub motor (Model: AE-3KW) 1. Direct drive brushless hub motor 135mm dropout                2. 36h 12g spoked with double-wall aluminum rim, with/without eyelets 3. V brake / disc brake available 4. Rated speed=80KM/H 5. Load≤200KG
Battery	72V 25Ah lithium-ion battery of 60A BMS including Bluetooth. (optional)
Charger	84V 3A smart charger. (optional)
Controller	72V 60A intelligent brushless controller, low voltage protection
PAS	1:1 intelligent pedal assistant system. (12 points magnets)
Display	SW900 LCD display
Throttle	Thumb throttle / twist throttle for option
Braking	E-brake levers / E-brake sensor for motor power cut off.
Wheel	26inch Sunringle MTX39 wheel





Packing Items:

1. 72v 3000w brushless rear hub motor

1) Installation width: rear=135-142mm.
2) Color: black or sliver
3) The speed of the motor will be 80KPH.
4) The size of the rim is 20",24",26" or 700C(28inch) . Please confirm the size in advance.





2. Controller

72V 60A smart controller





3. Display-SW900 LCD

1) Single trip time(TM) + total trip time(TTM) Real time km/h or MPH display
2) Single Max speed(MXS) + single Average Speed(AVS)
3) Single trip distance(DST) + Total Trip distance(ODO)
4) 6km/h cruise function, head ligth, back lights, switching opitonal, brake status showing
5) torque sensor imulation speed sensor 0-5 level + battery capcity showing
6) 24V,36V,48V,60V,72V compatiable.
7) Controller can be reprogrammed by parameter setting.
8) Data clear + parameter copy + fault code disply.





4. PAS:

12 magnents pedal assist





6. Throttle:

Thumb throttle, twist throttle or half twist throttle for option



7. Brake:

High quality e brake with power cut off sensors







Optional Parts:

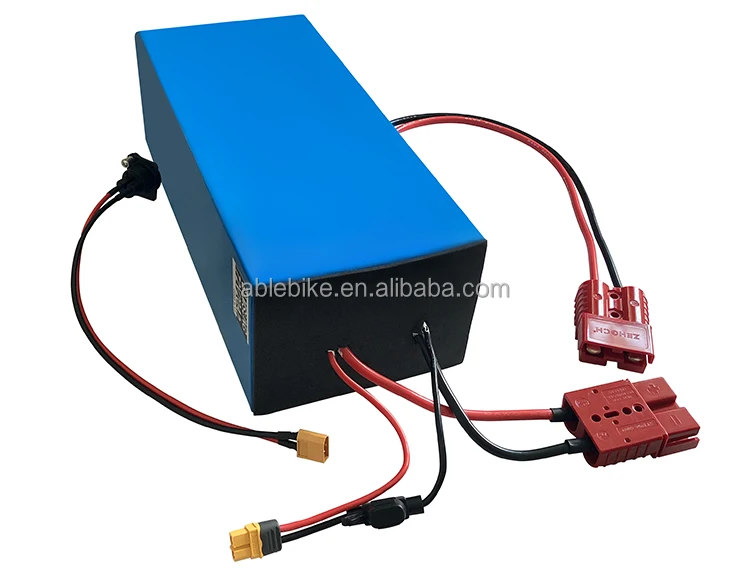

72V 25Ah lithium-ion battery with 84V 3A smart charger







Other electric bike kit:

72V 5000W Ebike Conversion Kit

72V 8000W Ebike Conversion Kit





Service:

1. Warranty: 3 years of motor, 1.5 years of battery, 1year for other ebike parts.
2. OEM &ODM are available as customers demand.
3. 7 years professional R&D, working experience and sales.
4. Workers well trained, every single part tested before packing.
5. 24-hour online customer service.
6. Timely and effective after-sales service.





Packing:

72V 3kw ebike conversion kit with MTX39 wheel packing:





Logistics:

1).By train costs less and takes about 35-40 working days.(to Europe only)
2).By air costs much and takes about 7-10 working days.
3).By sea costs less and takes about 25-40 working days.

Shipping advice: sample order by air, bulk order by sea or by train.





Certificate:

You can check from the following website of CE Certification Authority: www.entecerma.it

Checking No.: 3Q181225.CAECD02

Checking No.: 3Q181226.CAECD33





About us:

Changzhou Able Electronic Technology Co., Ltd located in Changzhou, Jiangsu—near Port of Shanghai. Since founded in 2013, adhere “Business is a win-win situation.” as core values to provide professional technology support, good quality products, competitive prices, short time of delivery and good after-sales services. Our products exported to all over the world and given good feedback by customers. Let’s create a sporty and healthy life!







FAQ:

Q1: This is my first time importing abroad, how can I trust your company?
A: We are Alibaba legitimate certifiable company(VIP), and we provide Trade Assurance Order in Alibaba. Only after you get the products, can we get the payment from Alibaba.



Q2: How about the quality control of your factory?
A: All products 100% tested before packing and shipping.



Q3: Can I visit your factory?
A: Certainly! Please let us know before departure.



Q4: Do you have any kind of certificate?
A: Our products certified by CE, and please let us know if you need other kinds of certification, we are glad to meet your needs.



Q5: What’s the delivery time?
A: It usually takes about 15-25 working days for production based on specifications of your order and quantity.



Q6: Can you accept sample order?
A: Yes. Sample order is available for quality check and market test.



Q7: How to make the order?
A: You can contact us by E-mail, Skype, phone or trademanager for placing an order.



Q8: What are the payment terms?
A: We accept payment by T/T, L/C, Western Union or Trade Assurance Order in Alibaba. 100% T/T in advance for sample order; 30% T/T in advance, the balance paid before shipment for bulk order.



Q9: Your price includes the VAT and TAX?
A: The price doesn't include the TAX, but we can help you pay it if you need, or we can make a low value for you to pay less tax.
