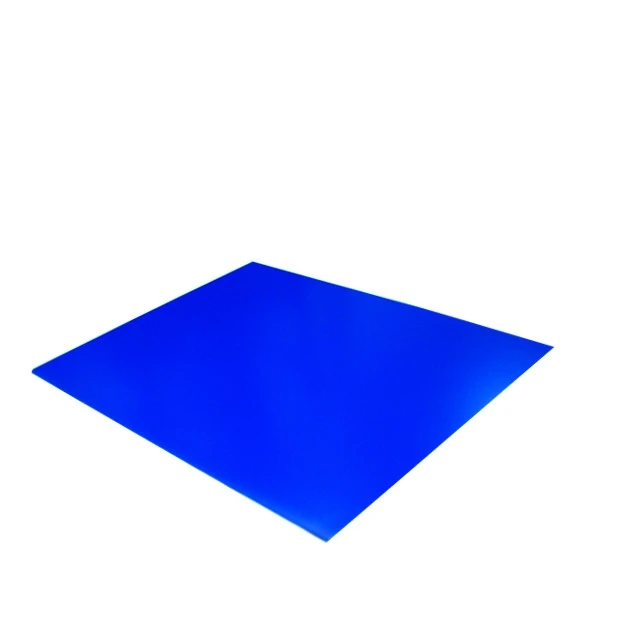

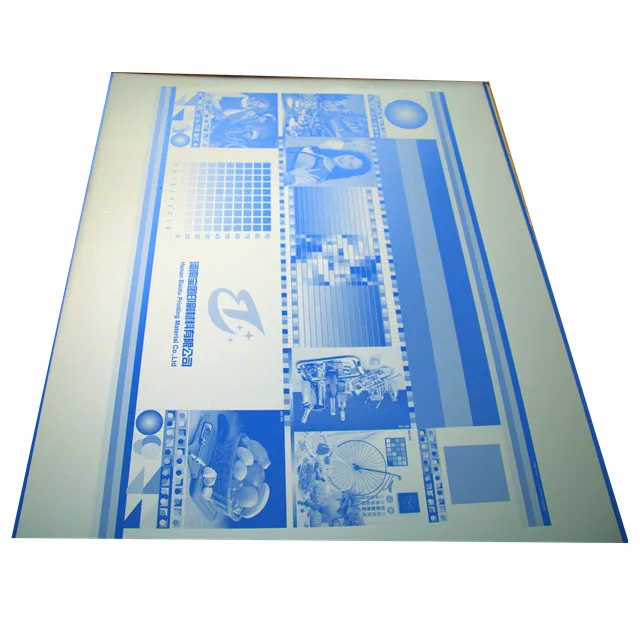

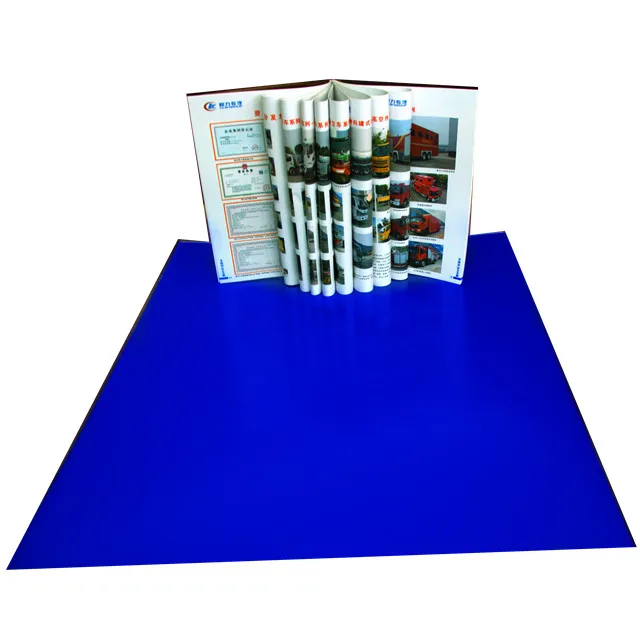

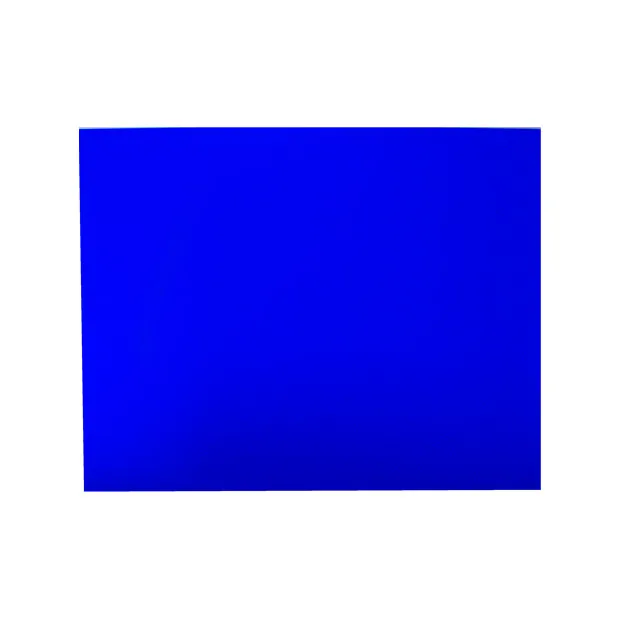

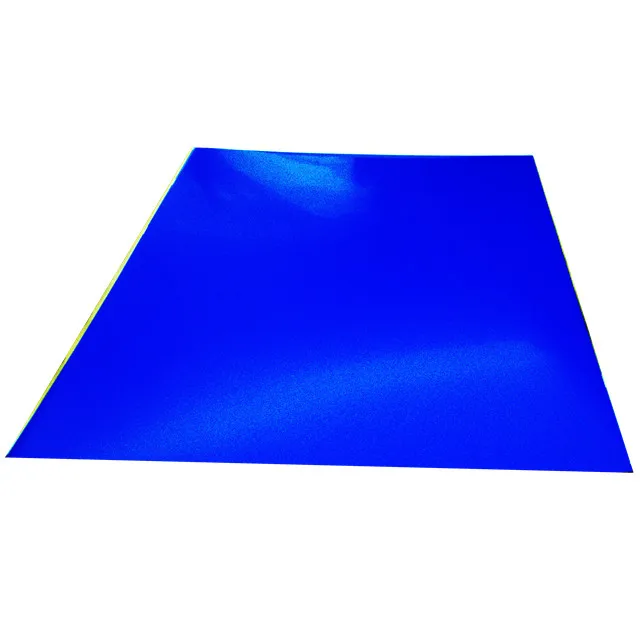

New products printing plate double layers thermal CTP plate
Double coated thermal CTP plate: UV ink resistant. Good stability. The development latitude is large. It has high printing durability and can be used under the same conditions as ordinary CTP. It is compatible with all kinds of mainstream platesetters, developing machines and developing solutions on the market.
Product Description
Application Type
Double coated thermal CTP plate
Plate Features
Very fast sensitive speed, Large developing latitude, Excellent Dot Reappearance, Super Long Impressions
Compatible Plate setter
Compatible with all the common thermal plate setter
Plate Thickness
0.15mm-0.30mm
Maximum Coil Width
1350mm
Spectral Sensitivity
830nm
Exposure Energy
90-110mj/cm²
Developing Temperature
23-25℃
Developing Time
25-35 Sec
Safe-light
2 hours under white light
Resolution
1-99% at 200lpi
Run-Length
Normal lnk: 3500,000 -4000,000 impressions unbaked and UV lnk: 150,000 to 200,000 impressions unbaked(Actual run length may vary according machine,ink,paper conditions)
Shelf Life
24 Months
Storage Conditions
The recommended storage conditions are 10-25℃,with 40%-60% humidity Away from sunlight radiation & direct sunlight, Anti-humidity ,Anti-acid & alkali, Pack height no more than 1.5 meters
