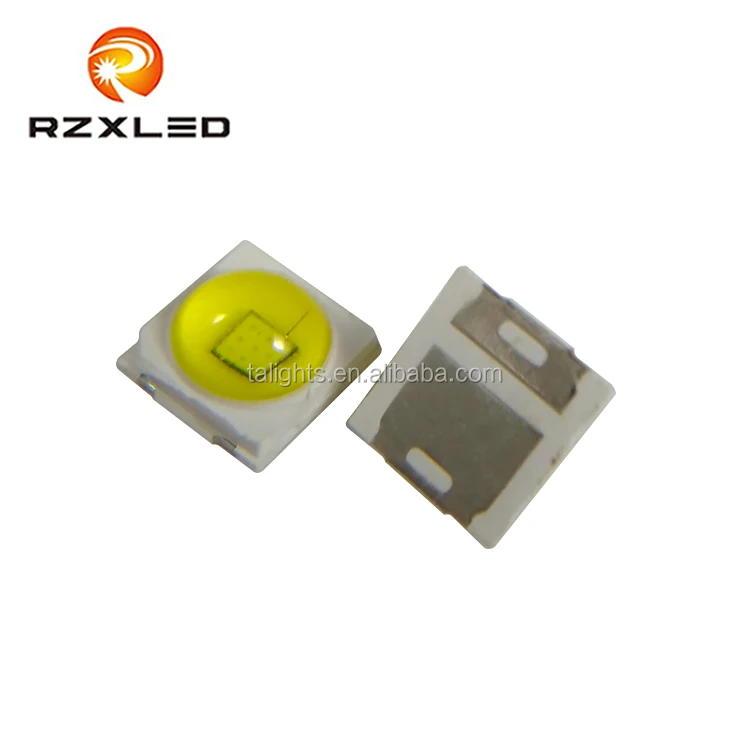

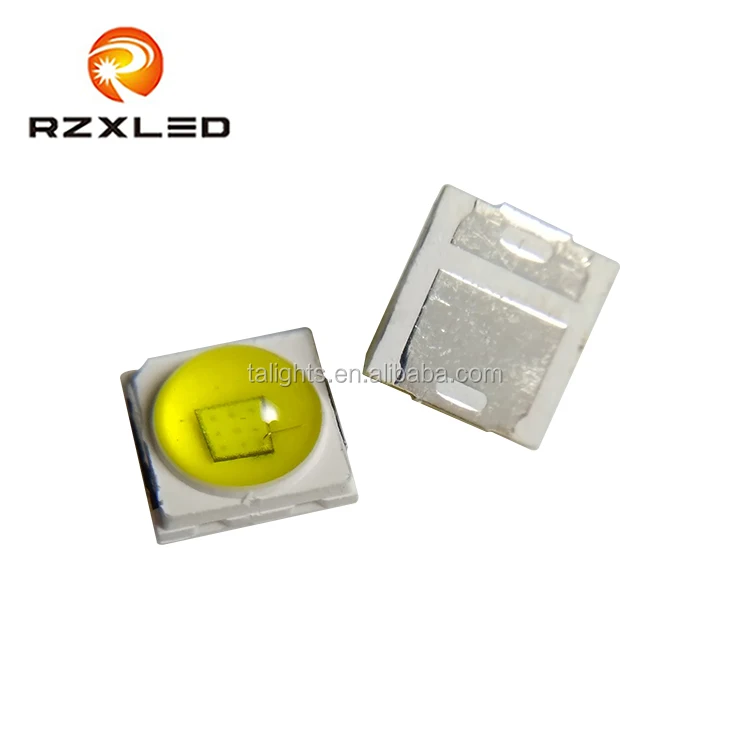

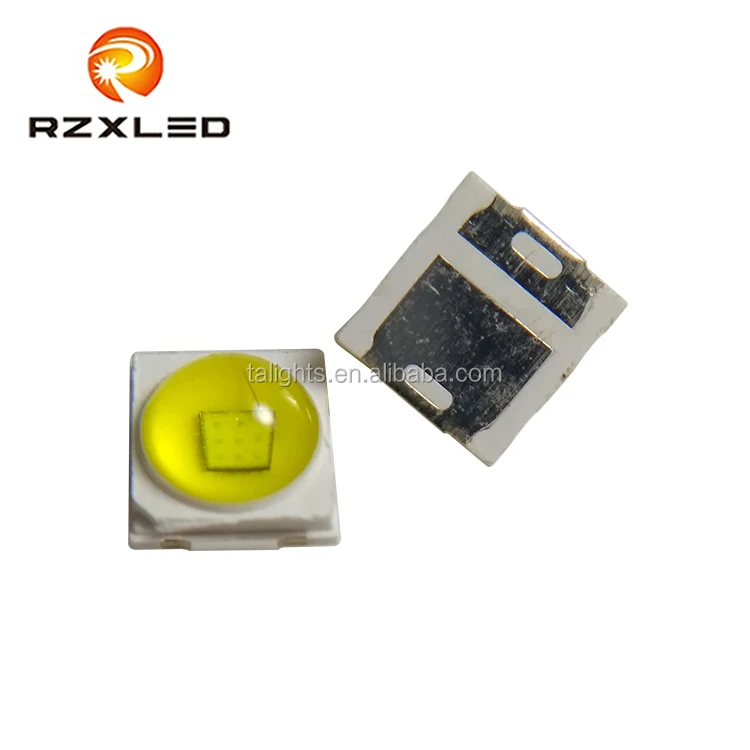

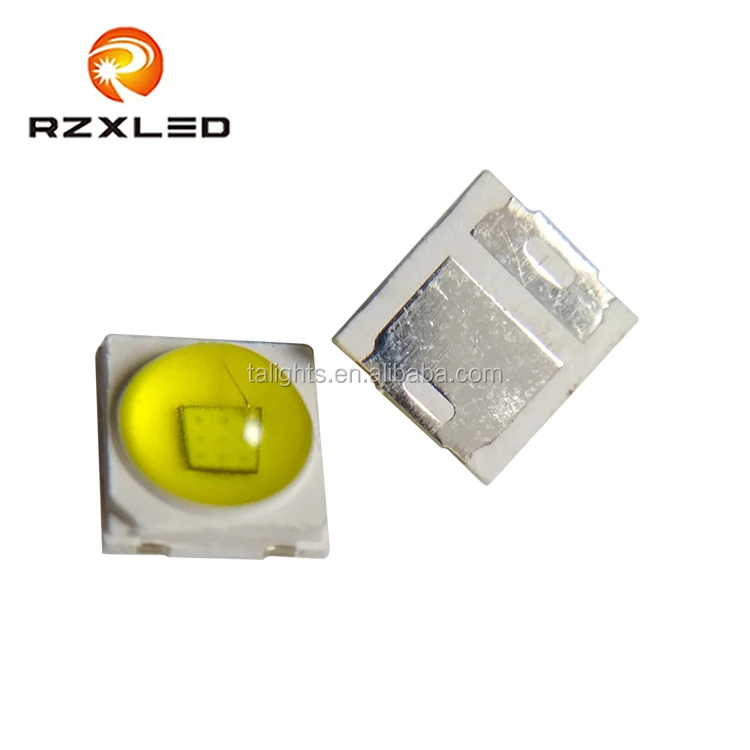

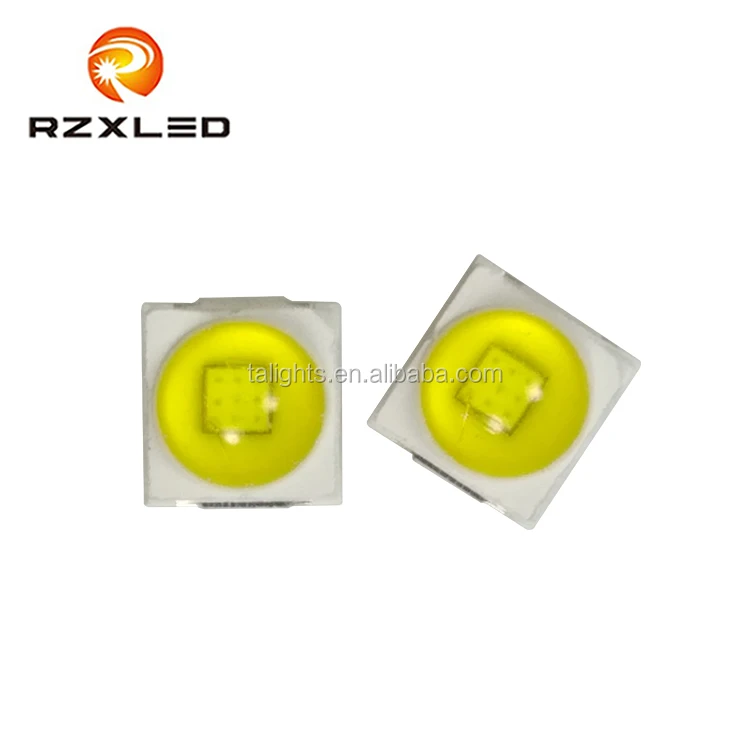

Светодиодная белая серия средней мощности 1 Вт 3 в с круглым объективом 3030 поверхностное крепление
- Category: SMD LED >>>
- Supplier: Shenzhen Trillion Auspicious Lighting Co. Ltd.
Share on (62059365627):
Product Overview
Description
luminous diameter:3.0*3.0*1.8mm
Forward Voltage:2.8-3.6V
Forward current: 350-500MA
Power:2W
Color Temperation:6500-7000K
Viewing Angle:120
luminous flux:160-200LM
Optical Attenua:0.05
storage tempe:-40-85
operating tem:-40-85
packing:4000pcs/reel
3030(2W 3V White6500K)

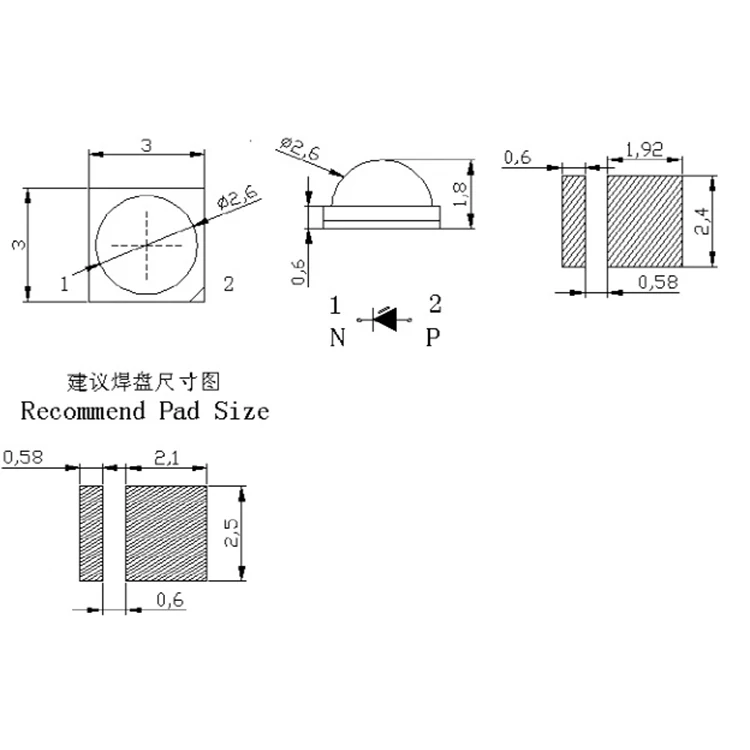

Dimension | 3.0x3.0x1.8mm |
Power Consumption | 1W |
Color Temperature | 6000-6500K |
Voltage | 3-3.4v |
Lumens Output | 100-130lm |
CRI | 70 |
Application | Automotive Lighting/electric motorcycle |
The 3030 is a compact size and high lumen design concept. It is one of RZXLED’s new 1W packages that can be clustered in small arrays for high lumen density applications, paired with invidivual optics for directional lamps, or spread out evenly on a board for diffused applications. It is a very adaptable LED for multiple high lifetime applications.
Packaging Details:reel and tape in carton
