100-3000L Spherical vacuum evaporative concentrator

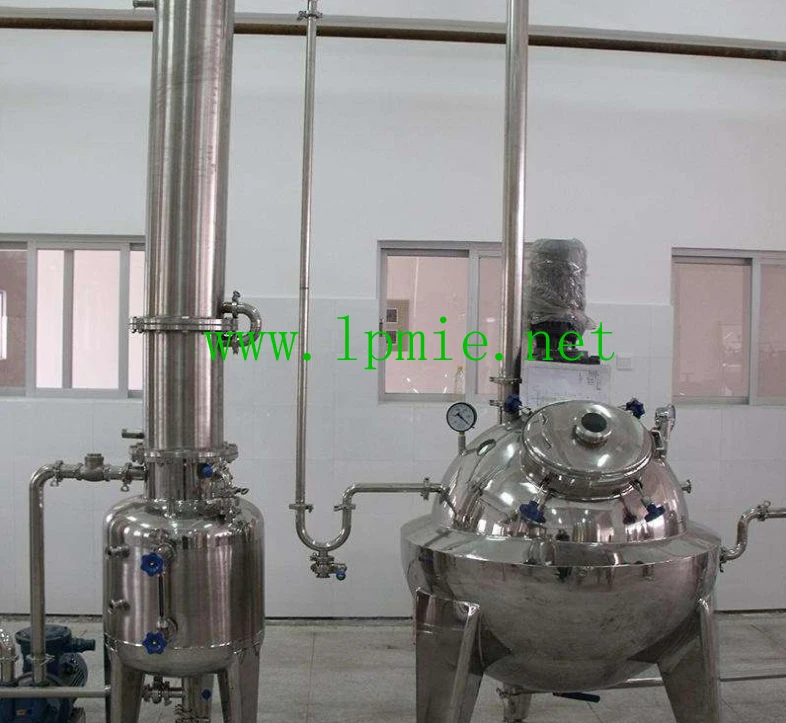

100-3000L Spherical vacuum evaporative concentrator is mainly composed of four parts: the main body of the condenser, the vapor-liquid separator, the condenser and the receiving liquid barrel. The equipment and material contact part are ocr18ni9 stainless steel, with good corrosion resistance, durable, in line with the requirements of pharmaceutical hygiene.
100-3000L Spherical vacuum evaporative concentrator
Product feature
1. It can be used in small batch concentration of traditional Chinese medicine, beverage, chemical solution, organic solvent recovery, industrial wastewater evaporation and other processes.
2. The form of heating and stirring can be customized according to the needs of users.
3. The vacuum negative pressure evaporates and condensates at low temperature. The time is short and the effect is good, so the thermosensitive material will not destroy its effective components.
4. It is suitable for small and medium enterprises in universities, scientific research institutions and small enterprises.
5. The equipment can be operated at atmospheric pressure or can be operated under negative pressure. It can be produced continuously or intermittently.
6. Compact structure, beautiful appearance, simple operation and low noise, compared with other concentrating equipment, the cost is low.
Technical Parameter
| Model | LPB-100 | LPB-200 | LPB-300 | LPB-500 | LPB-1000 | LPB-1500 |
| Volume L | 115 | 230 | 315 | 575 | 1135 | 1600 |
| Evaporation capacity kg/h | 15-20 | 20-50 | 50-100 | 100-150 | 200-300 | 350-450 |
Condensing area m2 | 3 | 4 | 6 | 9 | 18 | 25 |
| Tank volume L | 70 | 70 | 115 | 115 | 170 | 240 |
Vacuum pump power KW | 1.5 | 1.5 | 2.2 | 3 | 4 | 4 |
Dimension m | 2*0.9*2.1 | 2.2*1.1*2.3 | 2.2*1.1*2.5 | 2.5*1.2*2.5 | 2.8*1.4*2.6 | 2.8*1.4*3.2 |
