Automatic Lithium Battery Slurry Coating Coater Machine For Battery Electrode Coating
- Category: Coating Machines >>>
- Supplier: Xiamen Tmax Battery Equipments Limited
Share on (62060644915):
Product Overview
Description
Product Description
Automatic Lithium Battery Slurry Coating Coater Machine For Battery Electrode Coating
Features

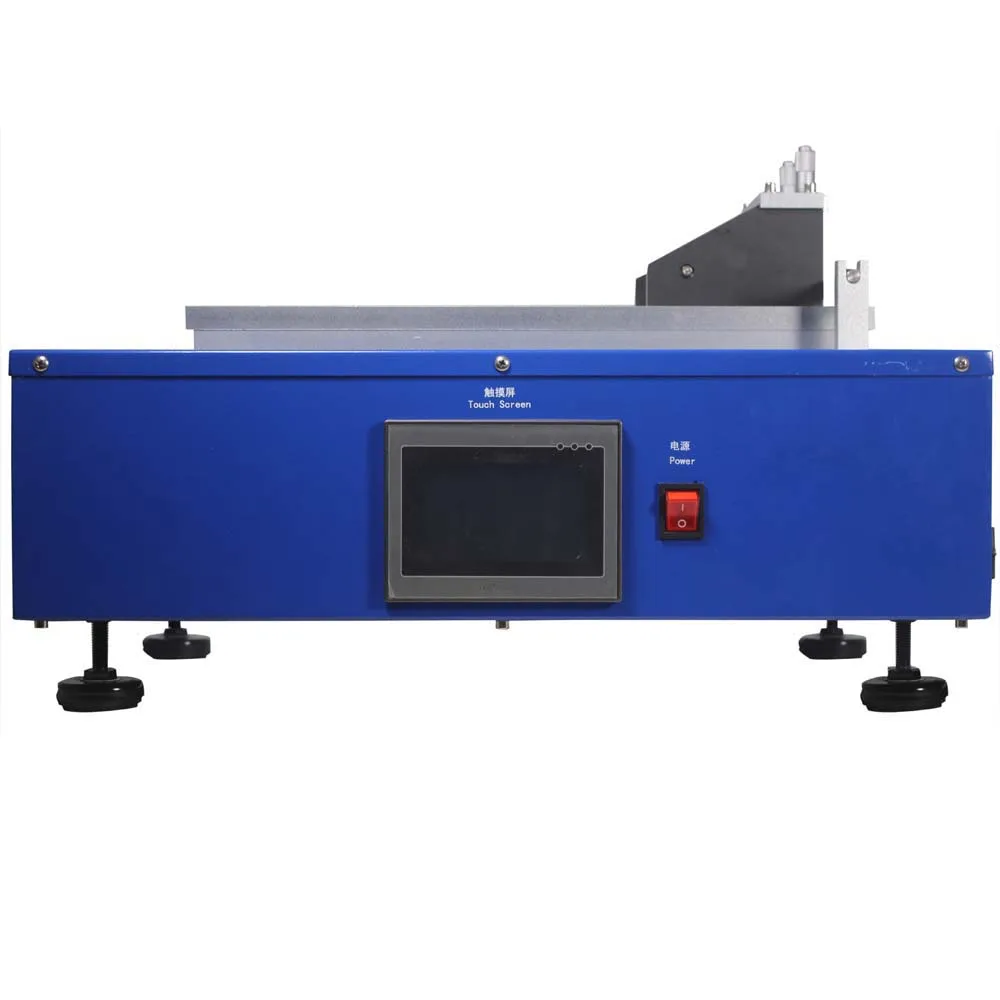

TMAX-JK-TMJ-220A is a CE Certified Automatic Film Coater with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce the smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating.
Specifications
Stroke Length | 10 - 200 mm adjustable by using Adjustable Position Switch |

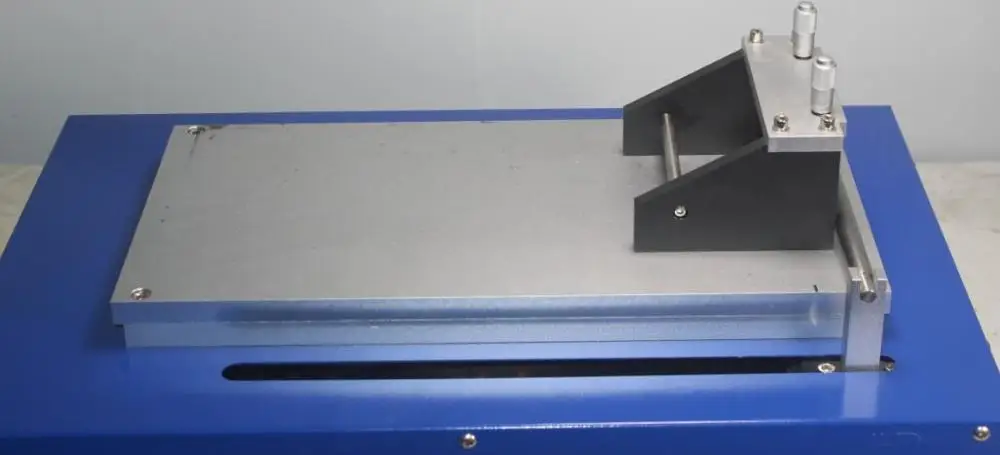

Platform | Aluminum alloy flat vacuum chuck |
Accessories: Film Applicator | Optional 50 upto 180 mm width micrometer film applicator is included, with adjustable thickness from 0.02 mm - 2 mm |
Optional Heating Cover Voltage and Power | 110VAC or 220VAC |
Traverse Speed | 0 - 100 mm/sec variable |

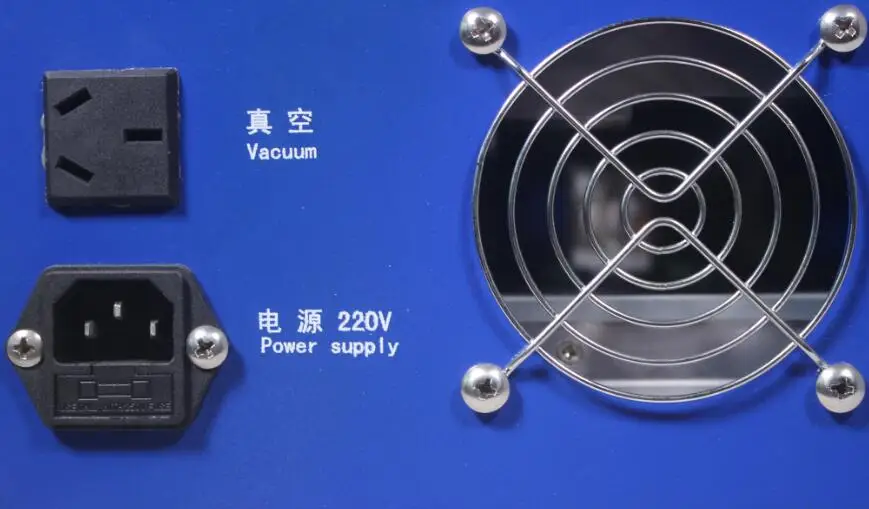

Vacuum Pump | Vacuum pump is included |
Compliance | CE Certificate |
Warranty | Two years limited warranty with lifetime support |
