MYT 1250mm round duct elbow machine Electric / Hydraulic gorelocker for making duct

Product Overview

Description

SBWT-1000 round duct elbow machine Hydraulic gorelocker elbow duct making machine

Connect tube by machine with perfect efficiency. good seal and stability. It is easy to operate and process

different diameter, Traditionally, tubes connecting and pressing is finished by handwork. But our company

developed and produced elbow making machine that can connect tubes by machine with prefect effect,

good seal and stability. It’s easy to operate and it can process tubes with different diameter. It replaced the

traditional handwork method totally. It suits such industries as ventilation, refrigeration, environment

protection project. There’re two styles of elbow notching machine: electric and hydraulic, with two working

location both, one is used to process single and double profile, and the other is used to connect and press

Main Technical Parameters:round duct elbow machine Hydraulic gorelocker elbow duct

Type	MYWT-1000	MYWT-1000C	MYWT-1500
Max. thickness	1.2mm	2.0mm	2.0mm
Dia. range	150-1000mm	150-1000mm	150-1500mm
Forming speed	7r/min	7r/min	7r/min
Motor power	1.5kwx2	2.2kwx2	2.2kwx2
Weight	556kg	556kg	610kg
Dimension	2100x820x890mm	2100x820x890mm	2400x820x890mm

Detailed pictures:round duct elbow machine Hydraulic gorelocker elbow duct making

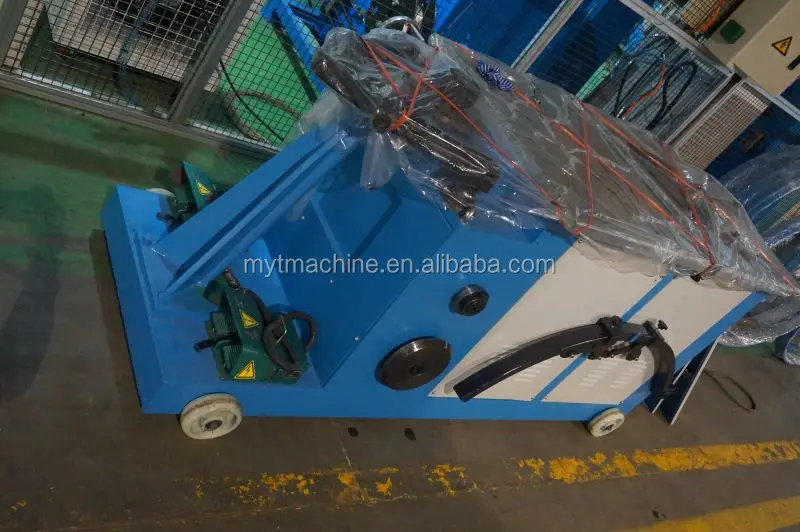

Right side about round duct elbow machine Hydraulic gorelocker elbow duct making  :

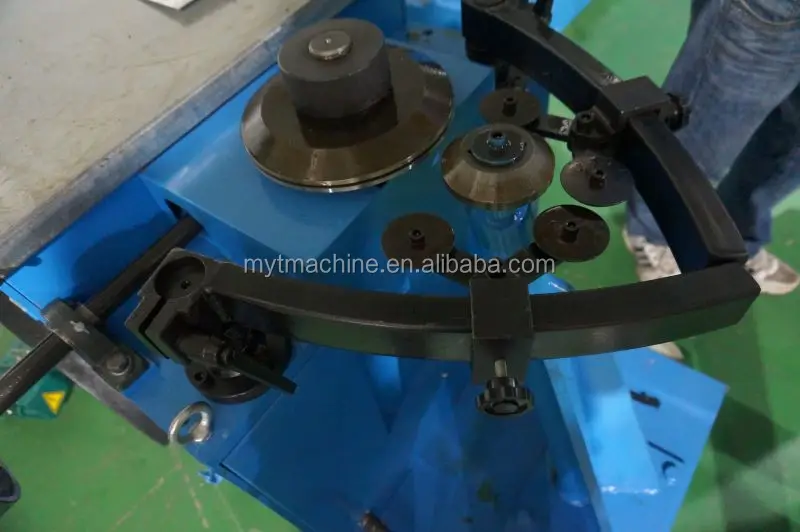

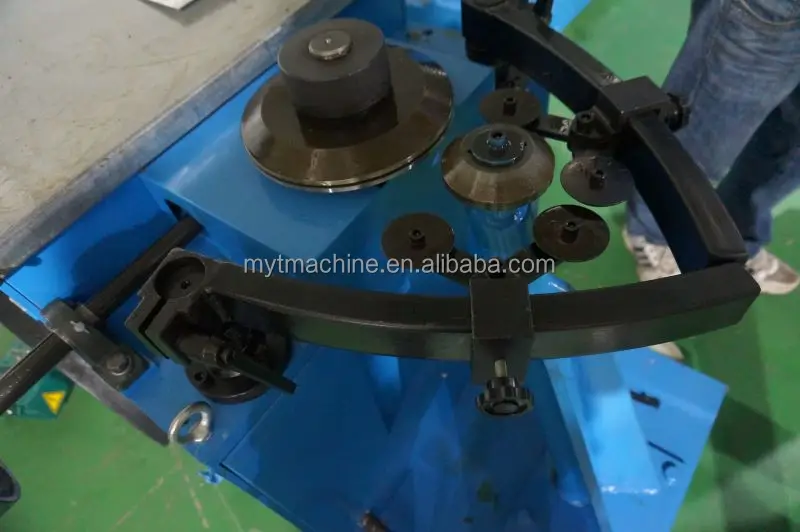

Elbow mould for round duct elbow machine Hydraulic gorelocker elbow duct making :

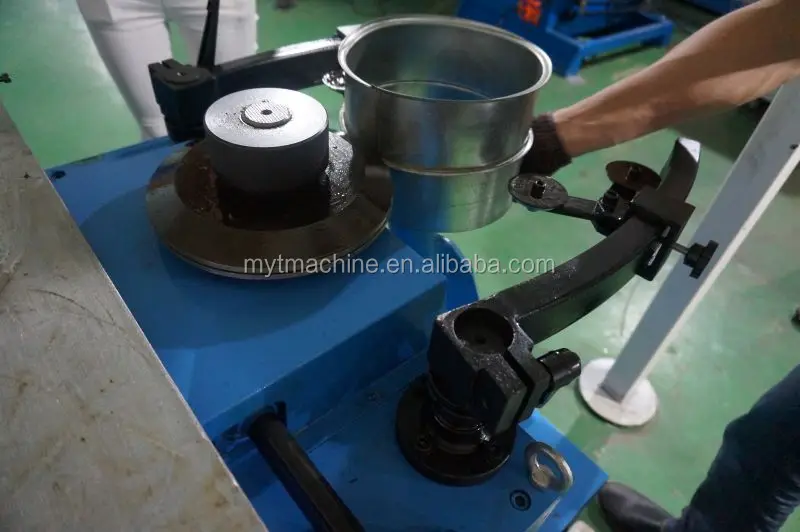

Lock seaming for round duct elbow machine Hydraulic gorelocker elbow duct making  :

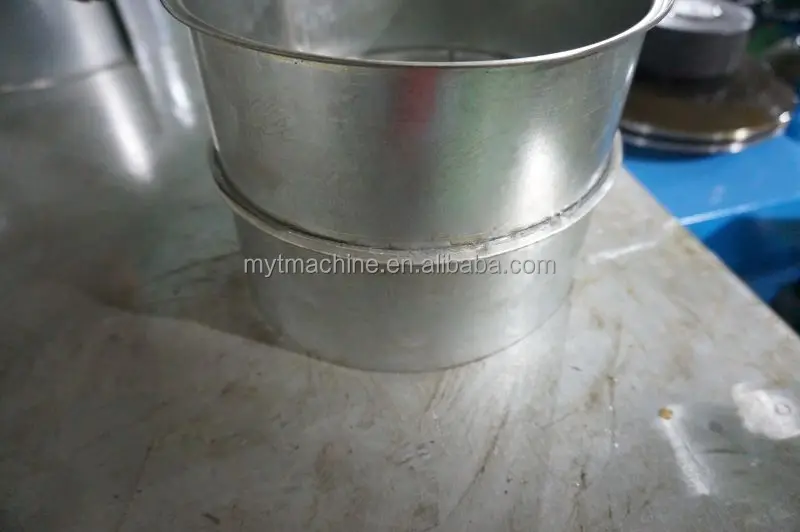

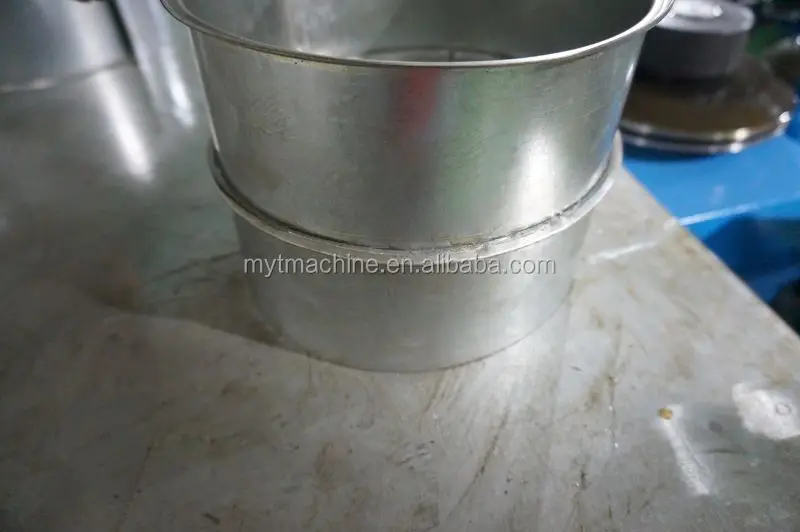

Finished product from round duct elbow machine Hydraulic gorelocker elbow duct making :



 round duct elbow machine Hydraulic gorelocker elbow duct making
