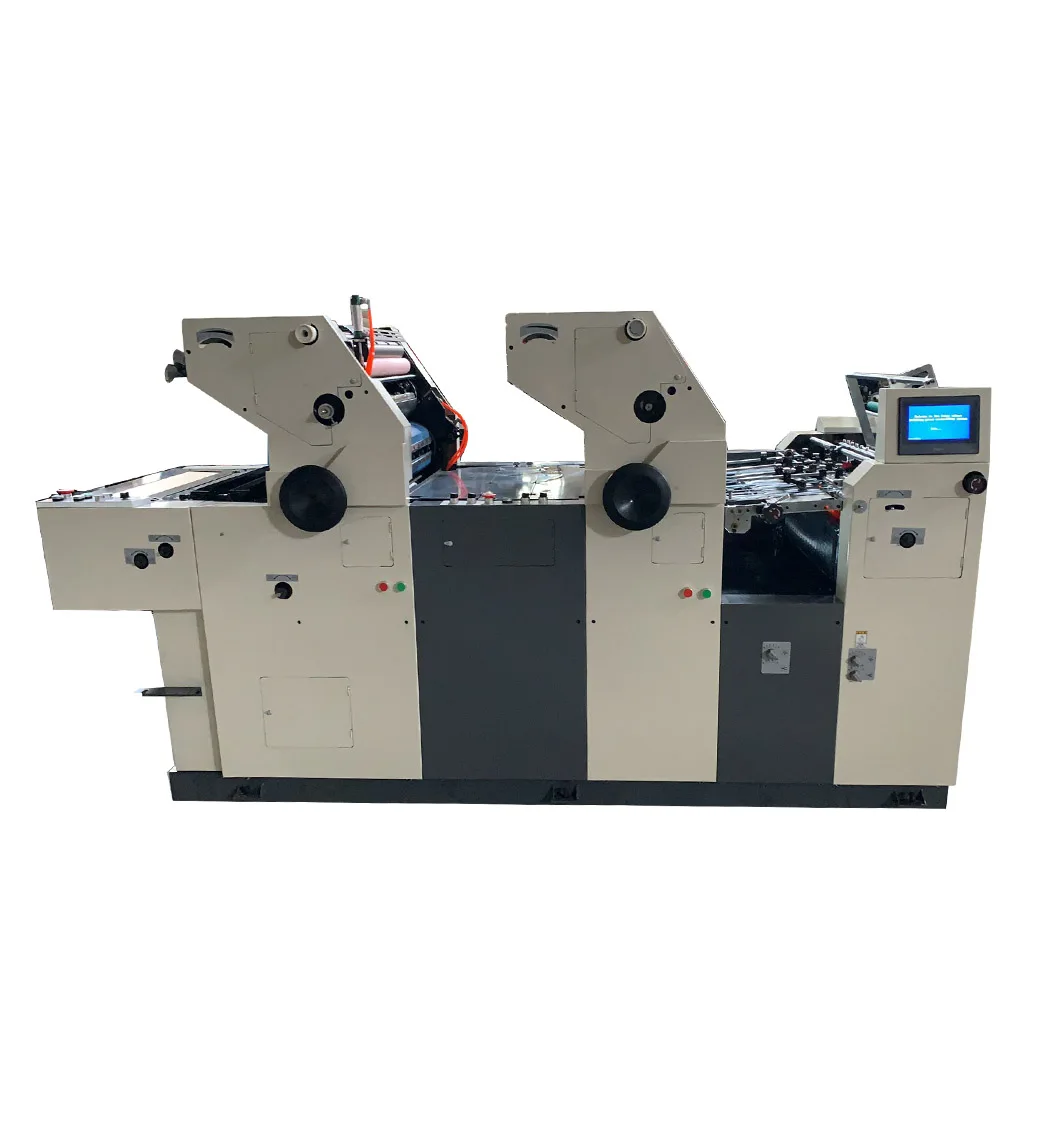

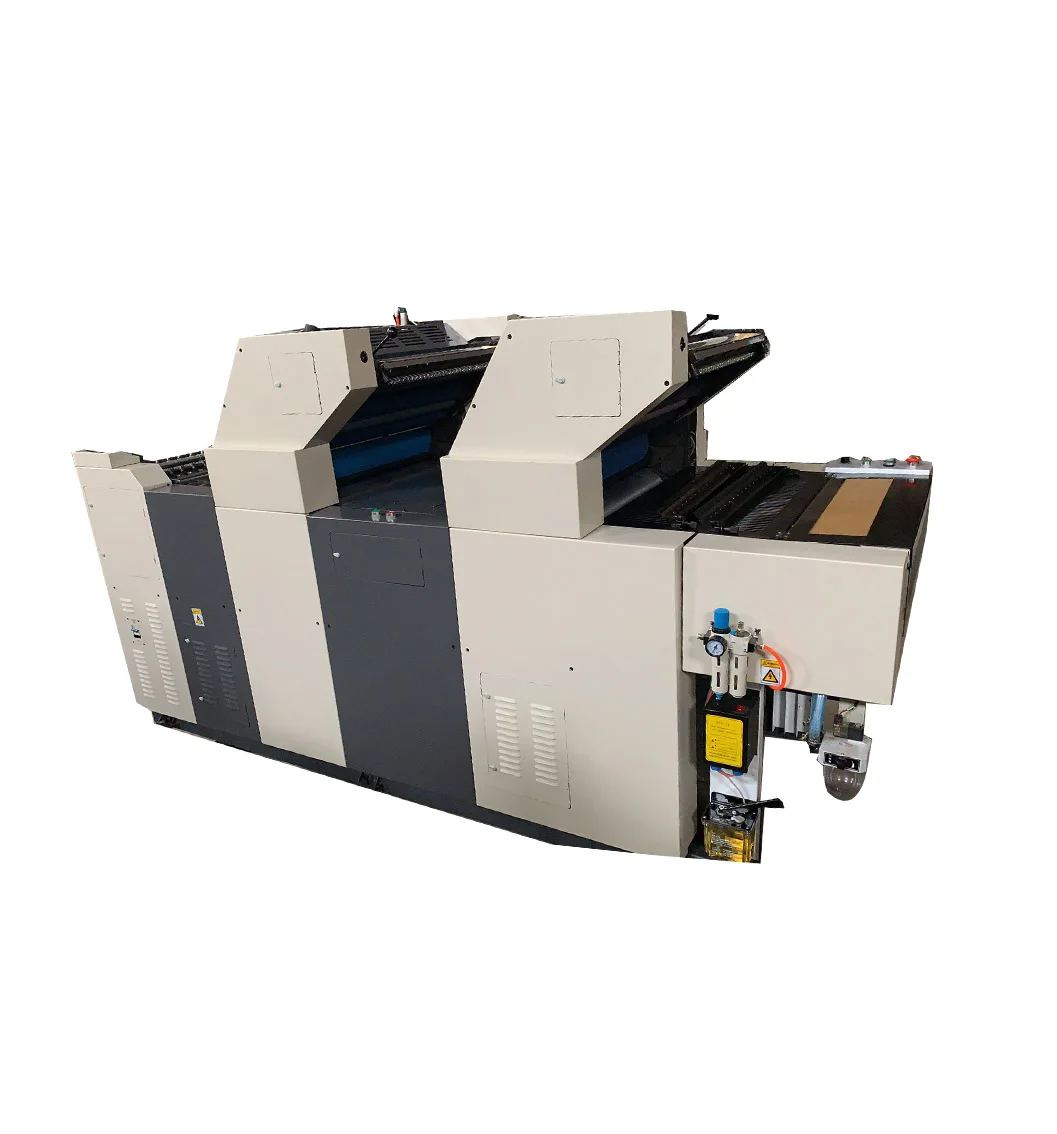

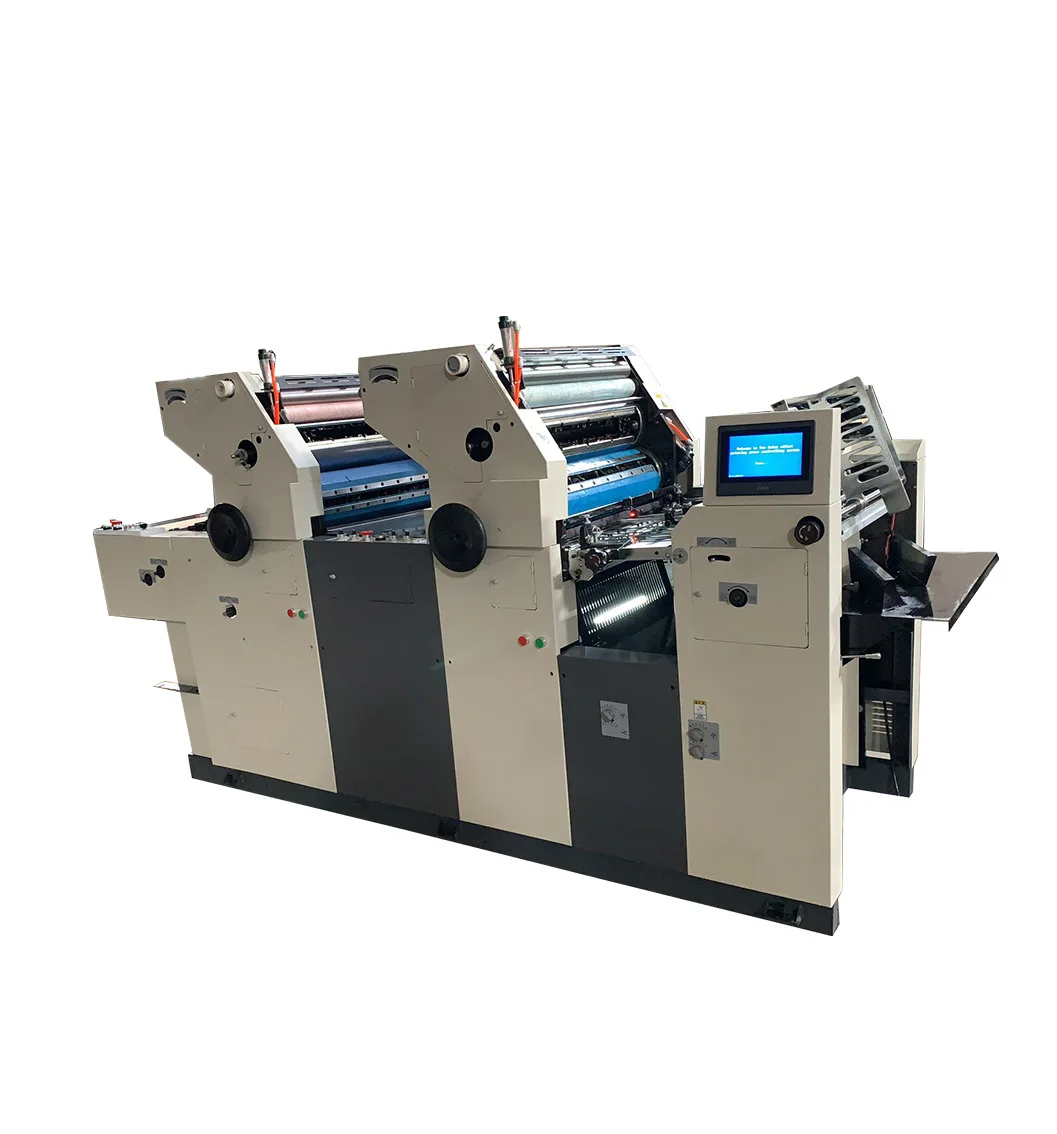

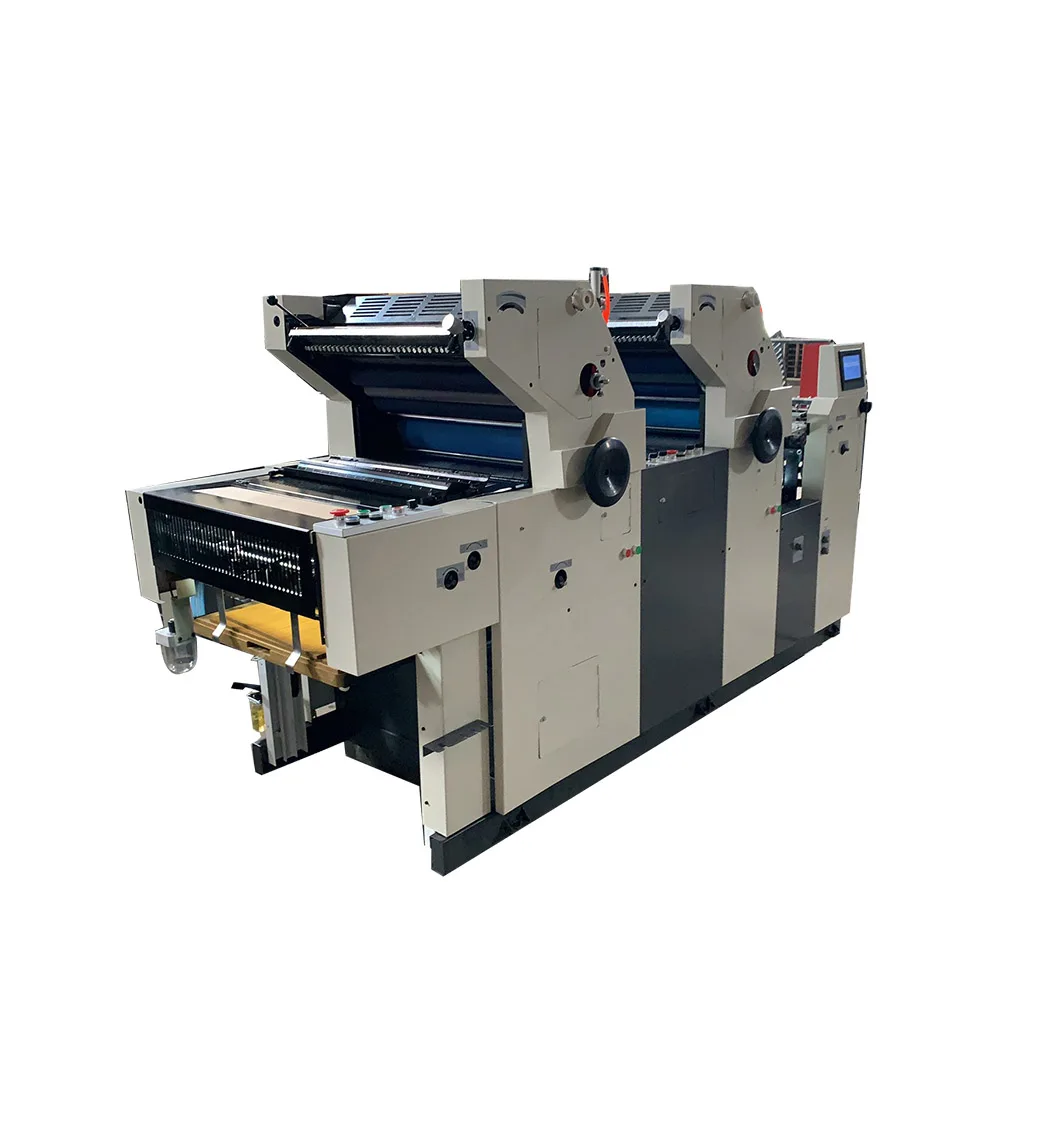

HT247 High Speed Multi Color Offset Printing Machine Supplier Two Color Offset Printer
- Category: Offset Printers >>>
- Supplier: Weifang Haotian Printing Machinery Co. Ltd.Weifang Ltd.
Share on (62062728776):
Product Overview
Description
Product Description
Max.paper size | 470*365mm |
Min.paper size | 130*180mm |
Max.printing area | 450*345mm |
Paper weight | 28-250g/square meter |
Printing speed | 2000-8000sheets/hour |
Plate size | 470*395mm |
Ink roller | 16pieces(3 ink form rollers) |
Total power | 2.75KW |
Paper feed mode | Suction cross feed |
Register device | Wheel-type side pull guide |
Moistening mode | water |
Power supply | 220V/50HZ |
Package size(mm) | 2600*1010*1550 |
Total weight | 950kg |
Detailed Images
Special Features
Fully automatic
Machine suitable to print on non-woven bags or papers.
Three main hard chromium faced cylinders strongly guarantee their resistance and durability.
Straight/helical gears drive system .
Bearing type pull side lay with micro adjustment without stopping the machine.
Front loading system .
Multi sucker universal feeder.
Single lever operation for damping inking & impression.
Vertical micro adjustment on plate cylinder .
Anti-static charger to remove magnet from paper.
Reverse and forward inching.
Double sheet is ejected downward without
interrupting the printing job.
Automatic ink feed system .
Skip feed function is realizable to ensure ink ensure ink density.
Power supply cut-off while opening delivery guard.
Centralized oil lubrication system.
Powder spray unit.
Three ink form rollers keep image solid and stable.
Exhaust fan for quick drying.
Shorter make Ready-time.
Pre-set copy counter &digital speed indication.
Automatic ink cleaning device.
Print with poly master & plates.
Compact & stable structure.
Full safety covers and guard and many more.
Fully automatic
Machine suitable to print on non-woven bags or papers.
Three main hard chromium faced cylinders strongly guarantee their resistance and durability.
Straight/helical gears drive system .
Bearing type pull side lay with micro adjustment without stopping the machine.
Front loading system .
Multi sucker universal feeder.
Single lever operation for damping inking & impression.
Vertical micro adjustment on plate cylinder .
Anti-static charger to remove magnet from paper.
Reverse and forward inching.
Double sheet is ejected downward without
interrupting the printing job.
Automatic ink feed system .
Skip feed function is realizable to ensure ink ensure ink density.
Power supply cut-off while opening delivery guard.
Centralized oil lubrication system.
Powder spray unit.
Three ink form rollers keep image solid and stable.
Exhaust fan for quick drying.
Shorter make Ready-time.
Pre-set copy counter &digital speed indication.
Automatic ink cleaning device.
Print with poly master & plates.
Compact & stable structure.
Full safety covers and guard and many more.
Size Information
Max.paper size | 470*365mm | ||||||
Min.paper size | 130*180mm | ||||||
Max.printing area | 450*345mm | ||||||
Paper weight | 28-250g/square meter | ||||||
Printing speed | 2000-8000sheets/hour | ||||||
Plate size | 470*395mm | ||||||
Ink roller | 16pieces(3 ink form rollers) | ||||||
Total power | 2.75KW | ||||||
Paper feed mode | Suction cross feed | ||||||
Register device | Wheel-type side pull guide | ||||||
Moistening mode | water | ||||||
Power supply | 220V/50HZ | ||||||
Package size(mm) | 2600*1050*1600 | ||||||
Total weight | 950kg | ||||||
Payment method | T/T, L/C, Western Union, Cash, Ali escrow etc. | ||||||
Packaging options | wooden case or according to the customers' request | ||||||
Shipment ways | By Sea, By air, DHL, FedEx, UPS, EMS, TNT | ||||||
Place of Origin | Shandong,Weifang, China (Mainland) | ||||||
Company name | Weifang Haotian Printing Machinery Co., Ltd. | ||||||
Related Products

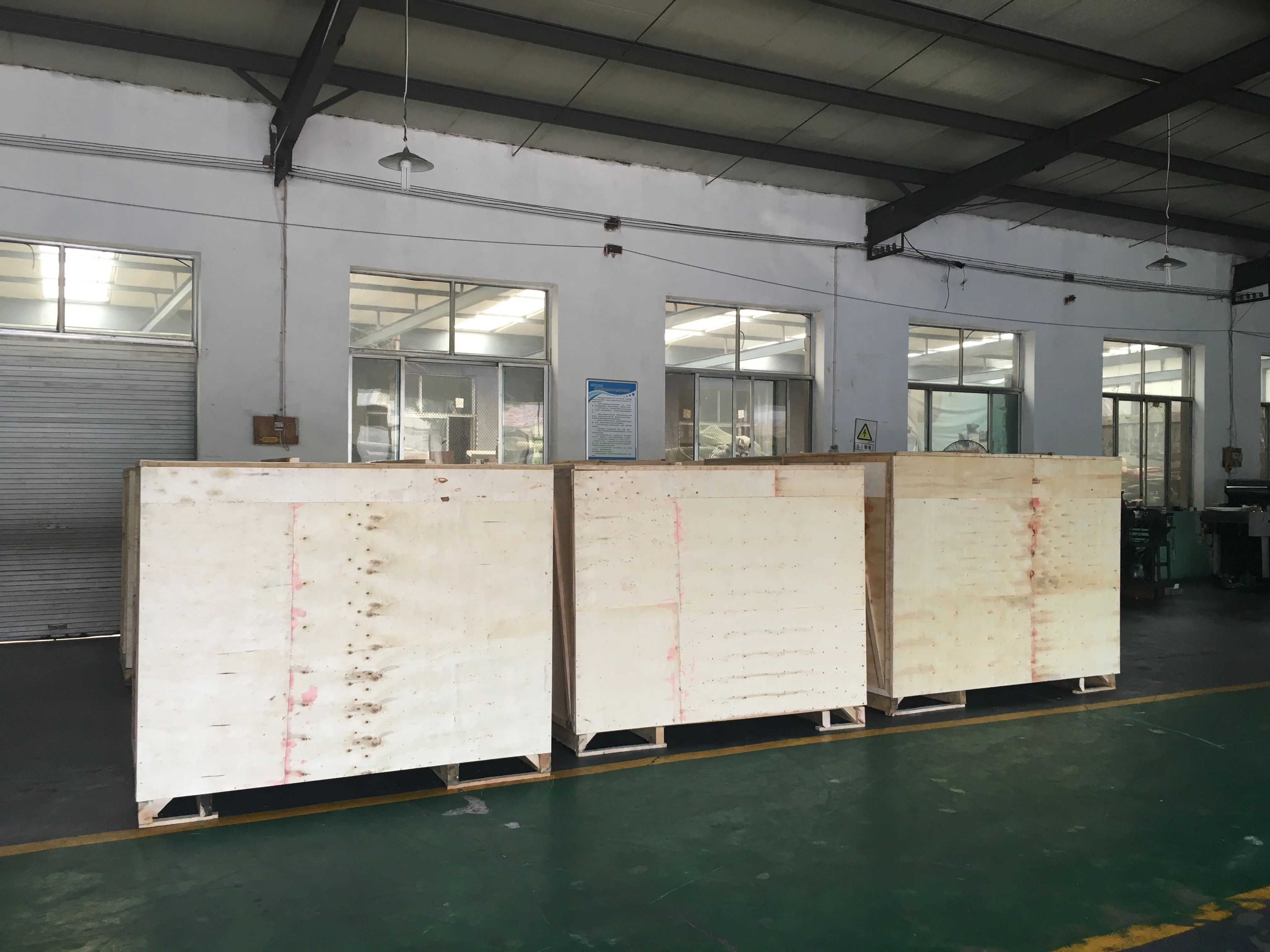

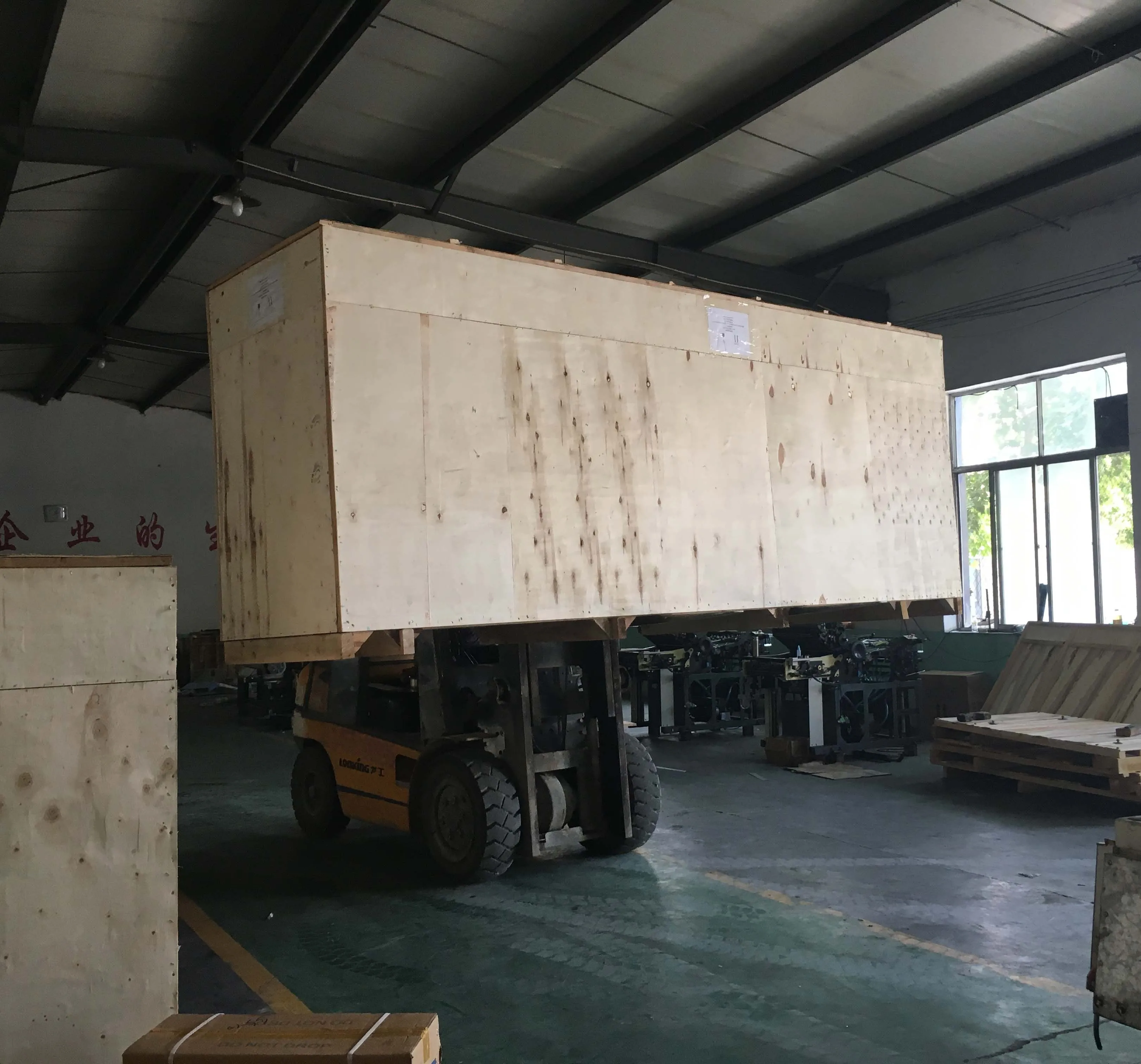

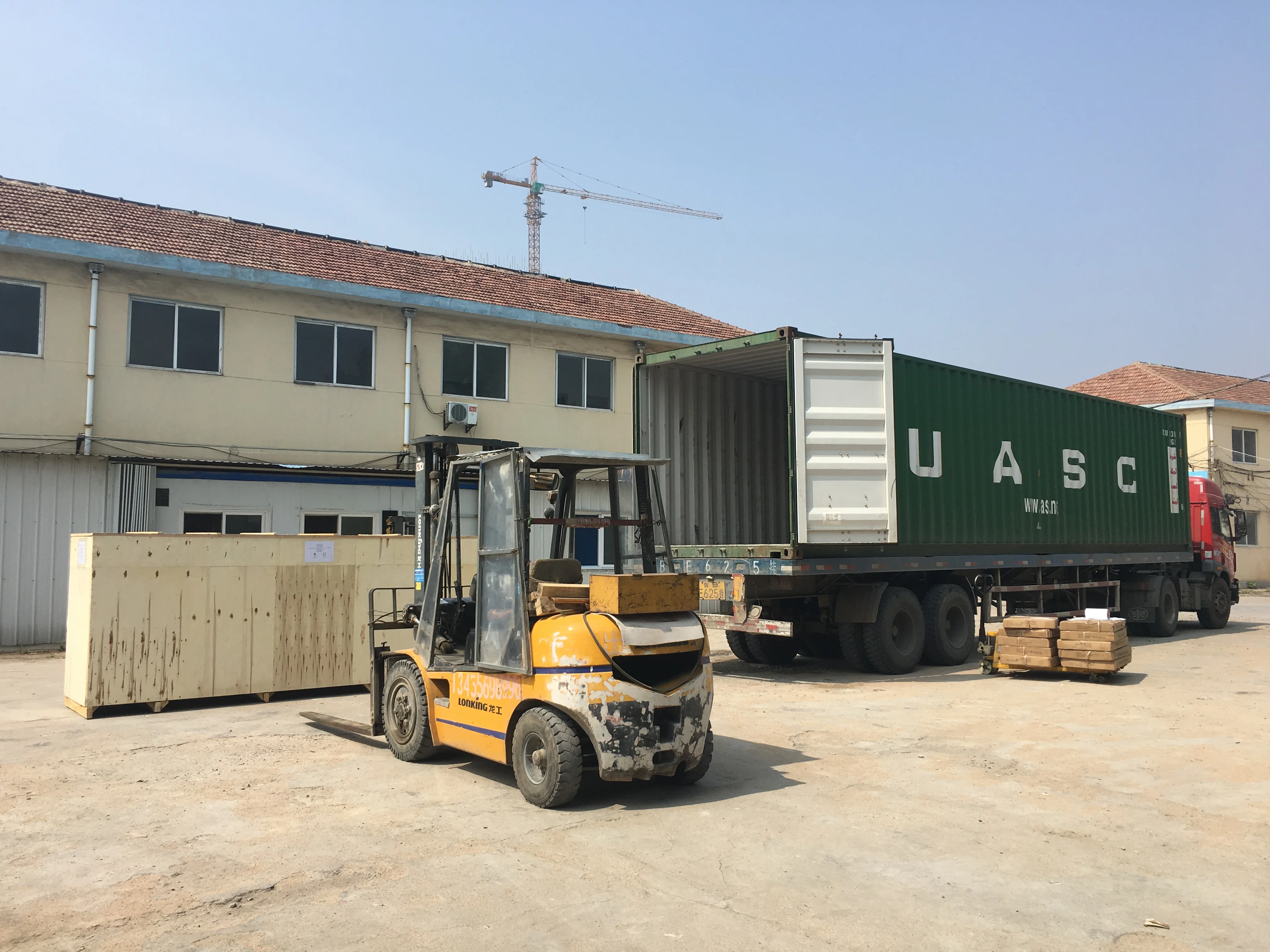

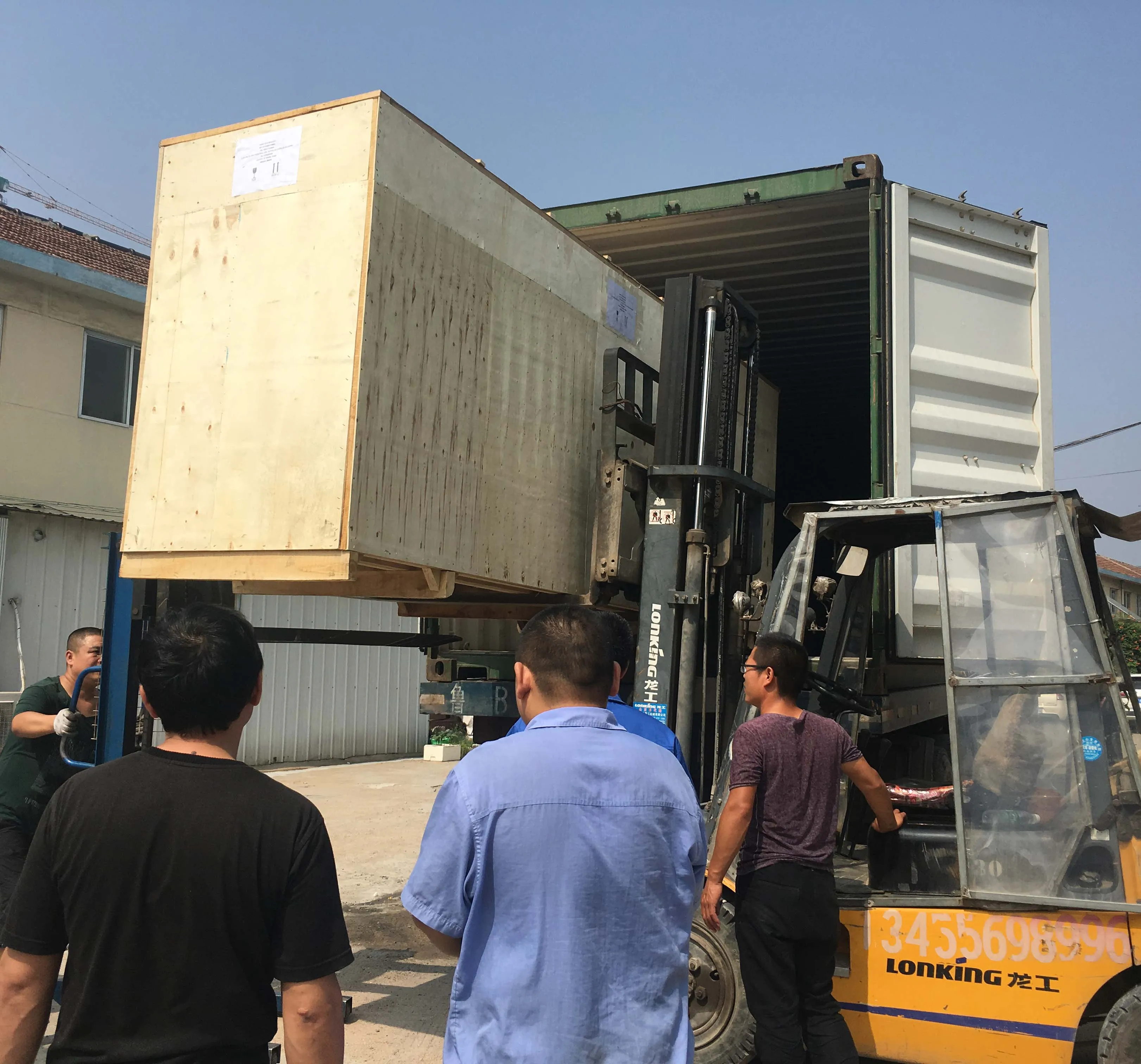

Packing&Shipping
After Sales Service
Company Introduction
FAQ
1. How can I get sample to check your quality ?
We have free sample available for all dear customers , you just have to pay the cost of freight or air courier . If you place
order to us , we can deduct the cost from the total order amount.
2. If I don't know how to operate , how can I get installation and training ?
We have an experienced service group , our engineer can go to your factory to give approx.1 week.
You have to cover all the visa , flight ticket expense and provide our engineer accommodation and allowance $80/day.
3. If there is any problem on machine , how can I solve it?
First of all , we have online service , after submitting and problem we will come up withsolution , if you can solve it yourself
we will give you procedure step by step teach you solve if , by msg , pic , voice , or video talk.Normally we are good at video
talk , and it is most successful method . If any electronic parts in problem which is occured ifself (not inproper
operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieght or air lift.
4. What's the lead time and lead term?
Leading time is 10days after rceipt of 30% deposit , balance paid before delivery.
We have free sample available for all dear customers , you just have to pay the cost of freight or air courier . If you place
order to us , we can deduct the cost from the total order amount.
2. If I don't know how to operate , how can I get installation and training ?
We have an experienced service group , our engineer can go to your factory to give approx.1 week.
You have to cover all the visa , flight ticket expense and provide our engineer accommodation and allowance $80/day.
3. If there is any problem on machine , how can I solve it?
First of all , we have online service , after submitting and problem we will come up withsolution , if you can solve it yourself
we will give you procedure step by step teach you solve if , by msg , pic , voice , or video talk.Normally we are good at video
talk , and it is most successful method . If any electronic parts in problem which is occured ifself (not inproper
operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieght or air lift.
4. What's the lead time and lead term?
Leading time is 10days after rceipt of 30% deposit , balance paid before delivery.
