Aluminum Profile Lock Hole Punching Machine For Door And Window
Product parameter
1,Used for punching processing in the manufacture of aluminium window and door.
2,Every combination punching die equipped with the machine can achieve various punching process, by-changing processing position, various types profiles can be processed.
3,Adopt disk worktable equipped with six dies. Each die be used at any time by the worktable rotating, which greatly increased the production efficiency
Power supply
Pneumatic
Operation air pressure
0.5~0.8Mpa
Air consumption
80L/min
Die dimensions
200x250 mm
Punching pressure
30Kn
Punching travel
17mm
Dimension
800×600×1300mm
Weight
180kg
Main Features

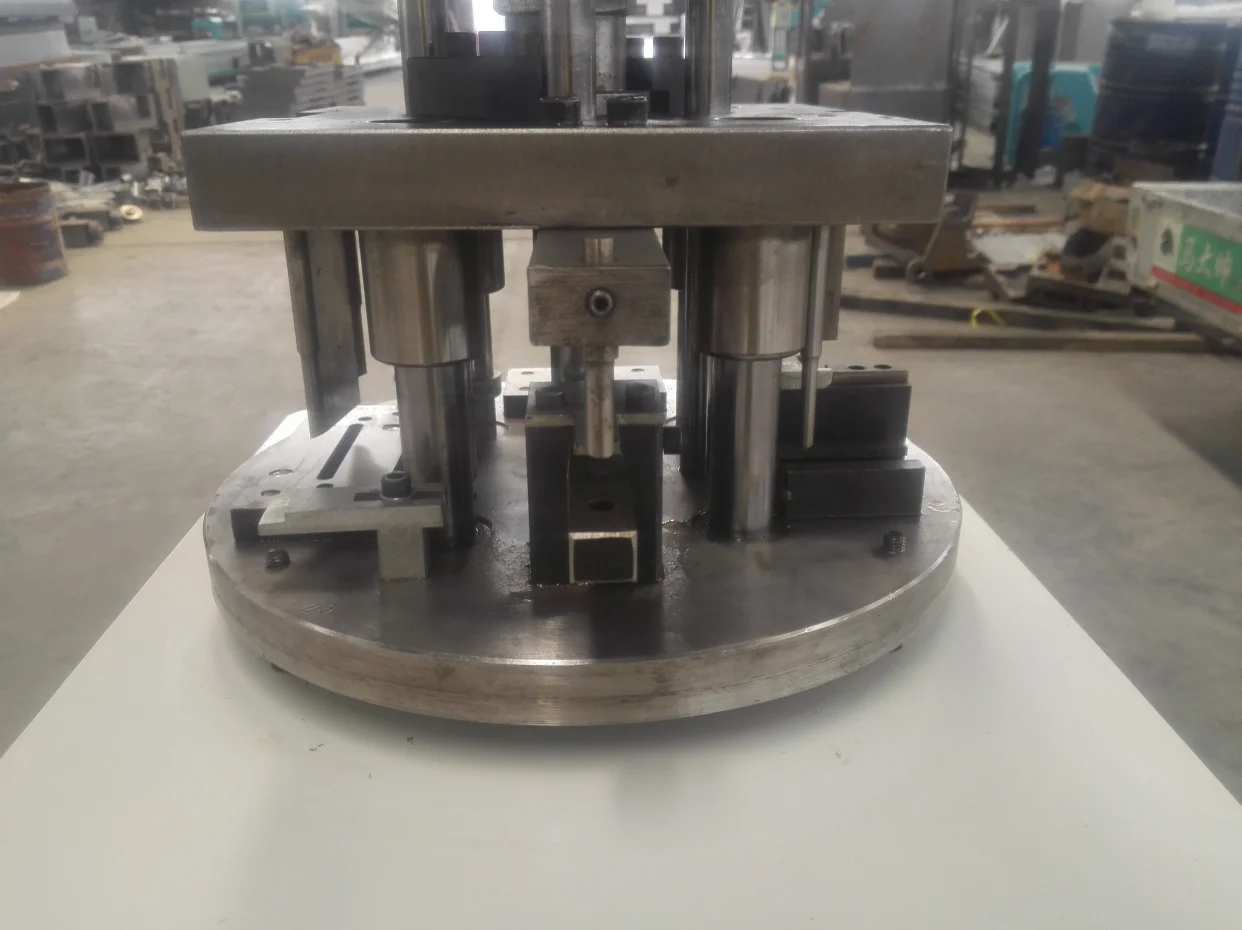

1.Rotating work table can be installed with sets of dies.
2.Single position die can be designed and installed easily.
3.Hydraulic drive,great power for special kinds of holes.
4.Openside design,easy operation.
5.Controlled by the pneumatic pedal and works stadely.
6.Stamping section smooth, high production efficiency.

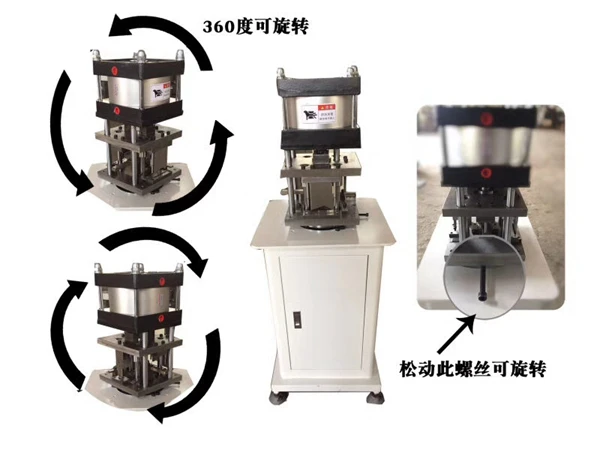

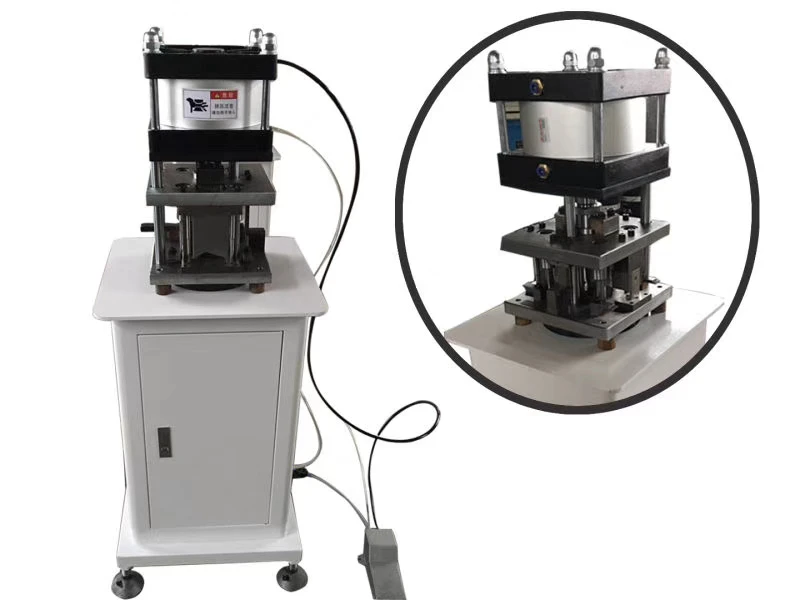

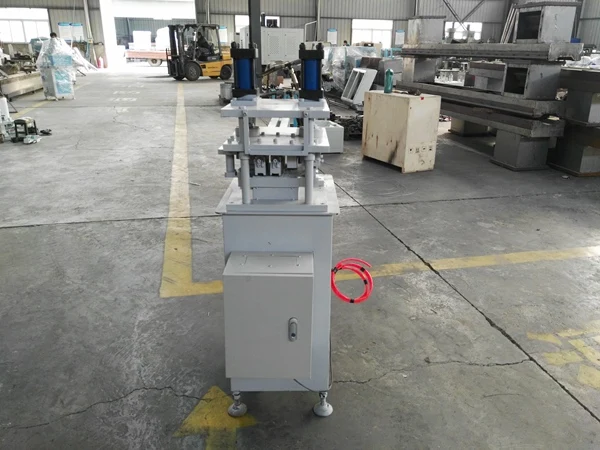

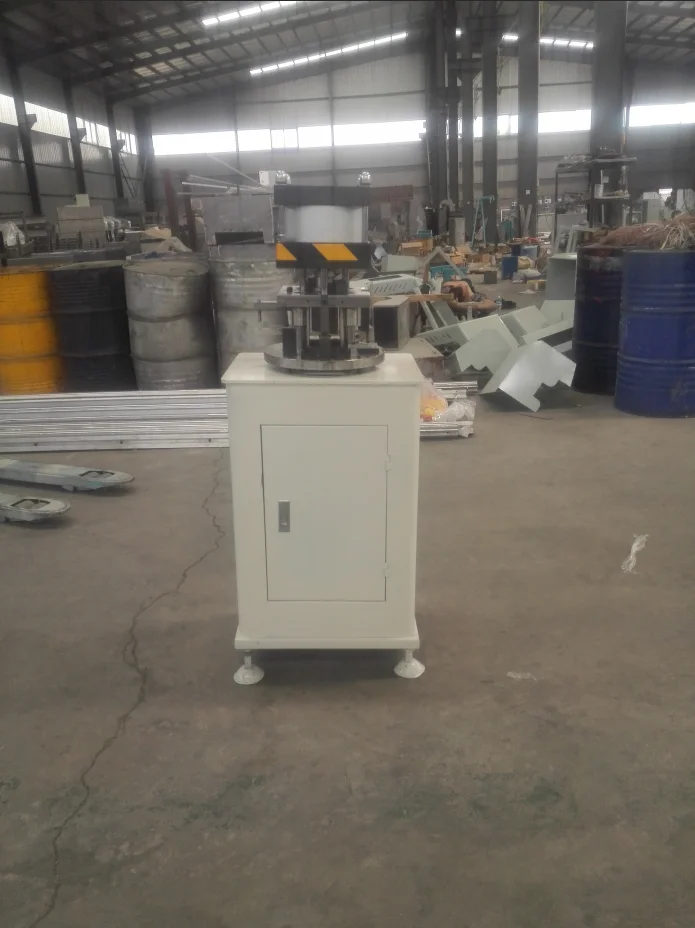

Product detail

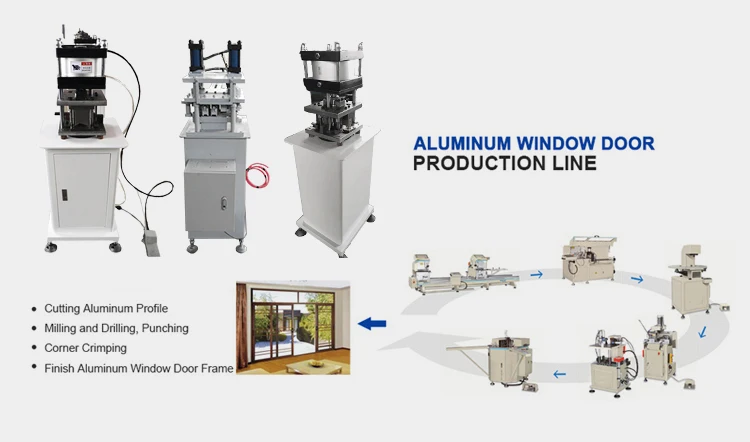

Product Flow
